SKU : VS16ES
There are a few things you need to check before purchasing any vertical-shaft engine to ensure it fits your mower.
Bolt Pattern: Our engine has a Briggs & Stratton bolt pattern. You can view a schematic of the bolt pattern in our thumbnail pictures. If you have a Briggs engine then the bolt pattern will be a perfect match. Bolt size: M10-6H (bolts not included).
Output Shaft Size: The output shaft on our engine is 1” (25.4mm). Almost all ride-on-mower engines with a HP rating between 9hp and 18hp will have 1” shafts. The thread pitch for the output shaft is 7/16 20 UNF -2B.

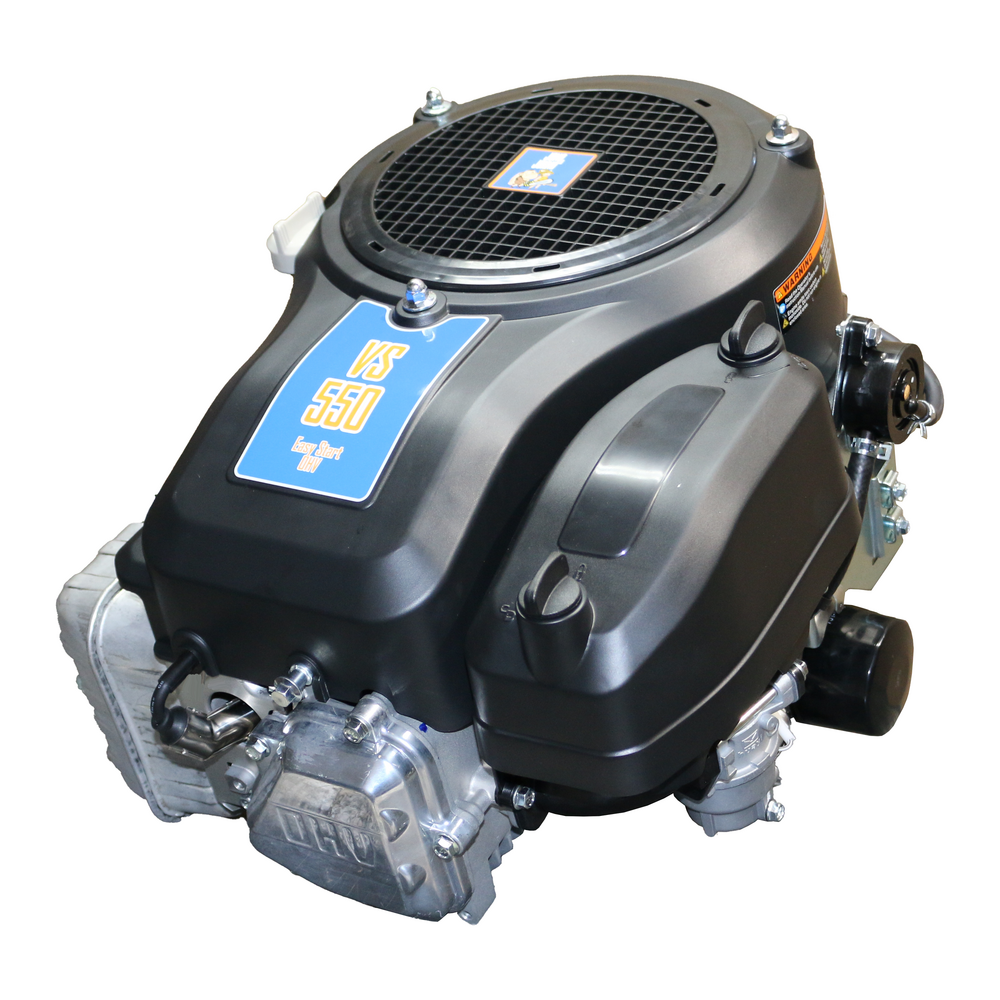

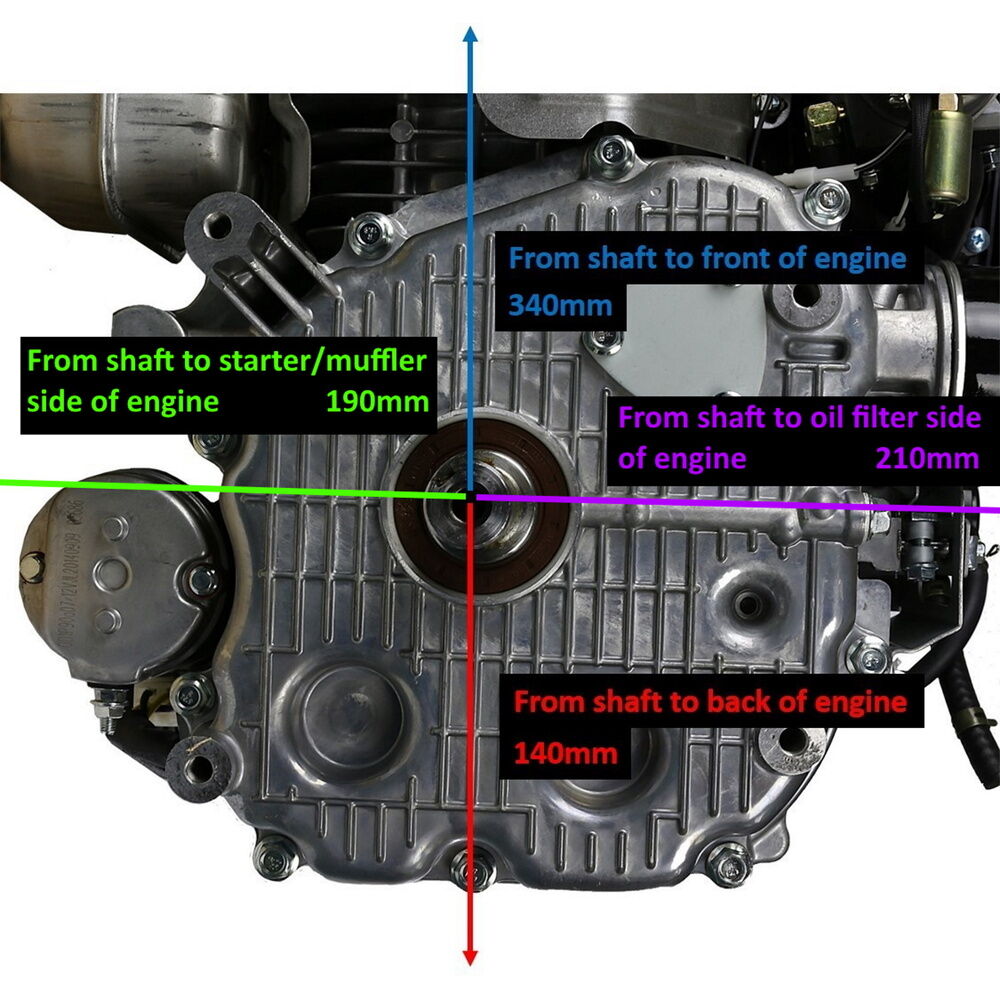

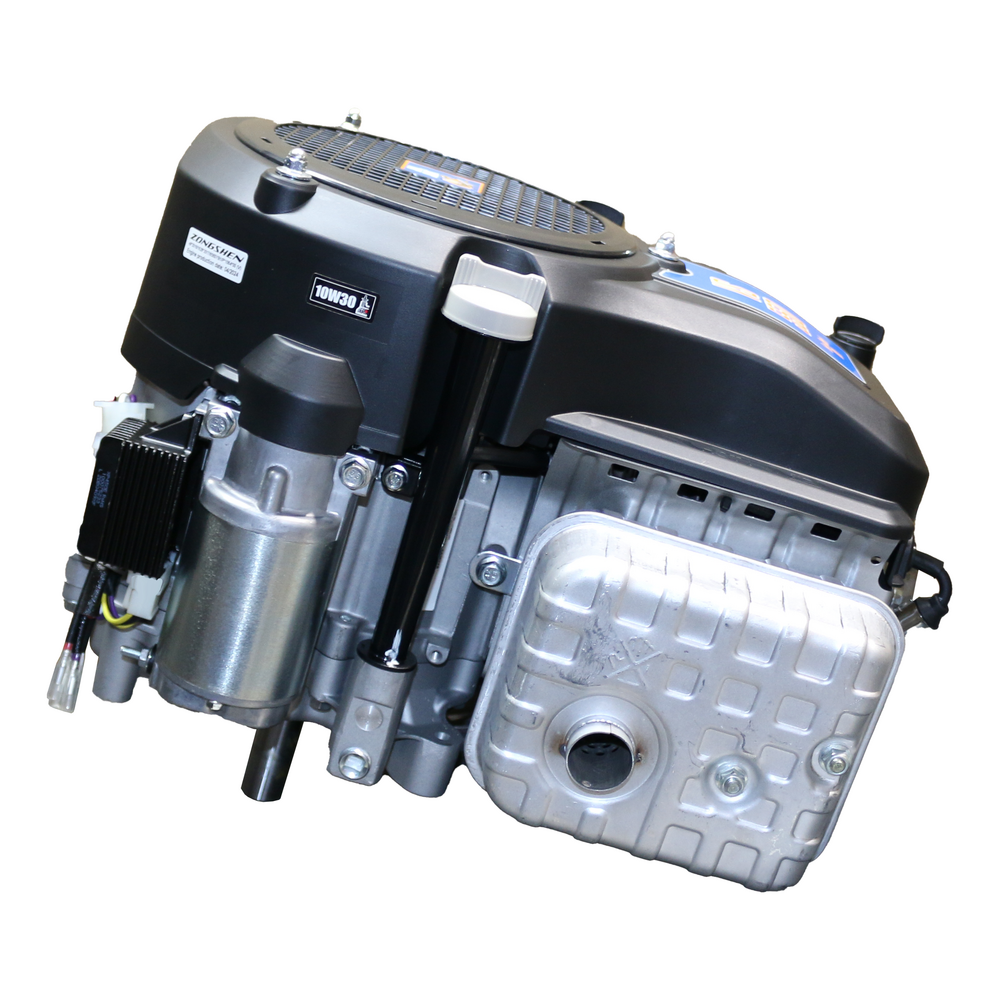

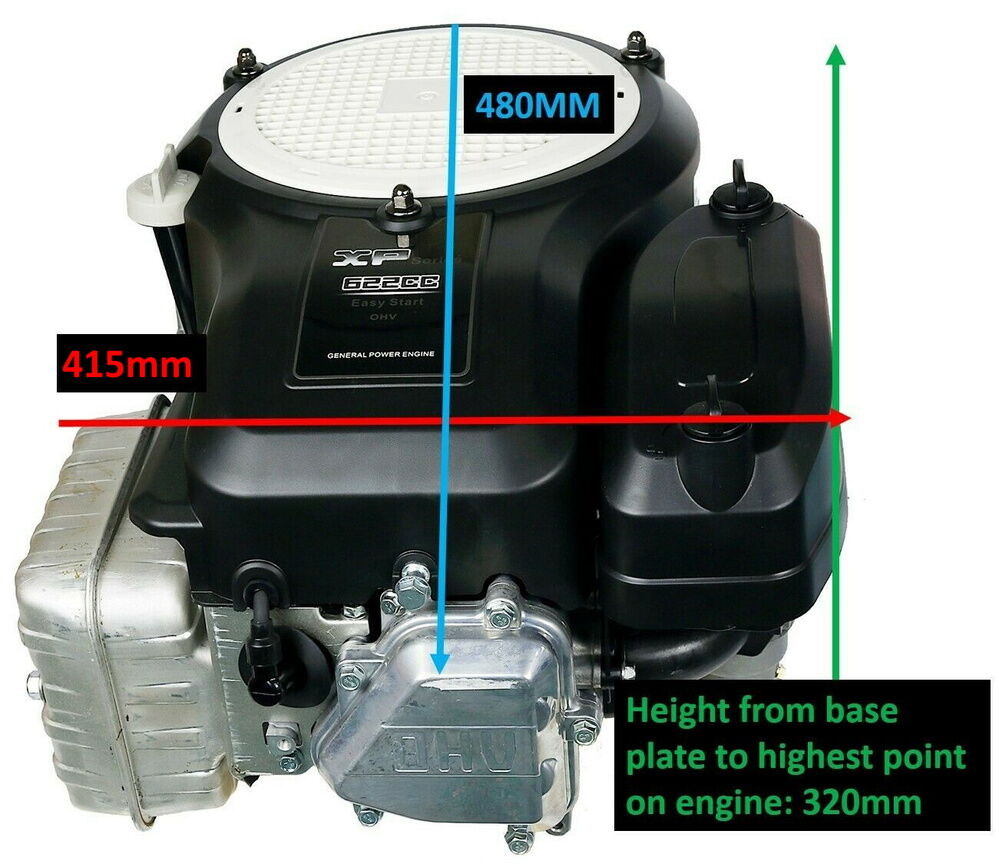

Physical Size of Engine: If your mower has only a limited amount of space for the engine to fit into then you will need to check the physical dimensions of our engine before purchasing. A schematic of the engine’s physical dimensions can be found in the thumbnail pictures of our listing.
PLEASE NOTE: THIS IS AN UNIVERSAL FITMENT ENGINE AND SOME MODIFICATIONS TO THE MOWER MIGHT BE NEEDED, INCLUDING (BUT NOT LIMITED TO) THE MUFFLER AND EXHAUST SYSTEM.
Two of the mounting holes require thread tapping to suit your application.
|Engine type||Single cylinder, 4 stroke, forced cooling, OHV|
|Bore x stroke||92mm × 68mm|
|Bore material||Cast iron|
|Net power||16HP / 3600rpm|
|Net torque||28Nm（20.7lbf.ft）/ 2600rpm|
|Idle speed (rpm)||1850 ± 150r/min|
|PTO shaft rotation||Anti-clockwise (from PTO side)|
|Output Shaft Size||25.4mm|
|Output Shaft Length||79.5mm|
|Output Shaft Thread Pitch||7/16 – 20 UNF-2B|
|Output Shaft Keyway||6.34mm|
|Ignition system||Transistorized magneto ignition|
|Charging coil||12A, 12.5V|
|Fuel pump||Installed to allow fuel tank to be mounted above or below the carburettor|
|Lubrication system||Oil Pump and Pressure Feed Lubrication System|
|Governor system||Centrifugal mass type|
|Air cleaner||Semi-dry,dual element|
|Oil capacity||1.2L (0.32gal)|
|Net weight||31Kg (68lb)|
|Dimension(mm)||W: 432 × L: 440 × H: 310mm (check photos for schematic)|
