SKU : SHV42-63ER-BC--

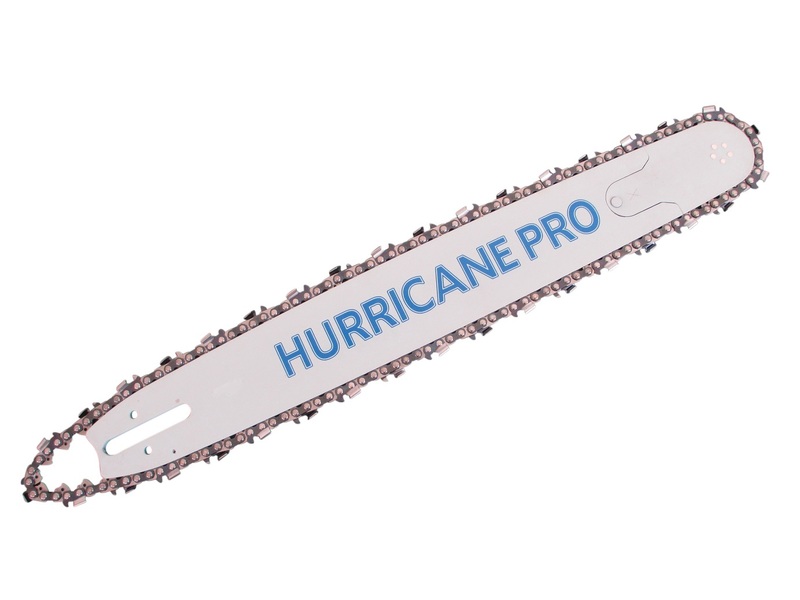

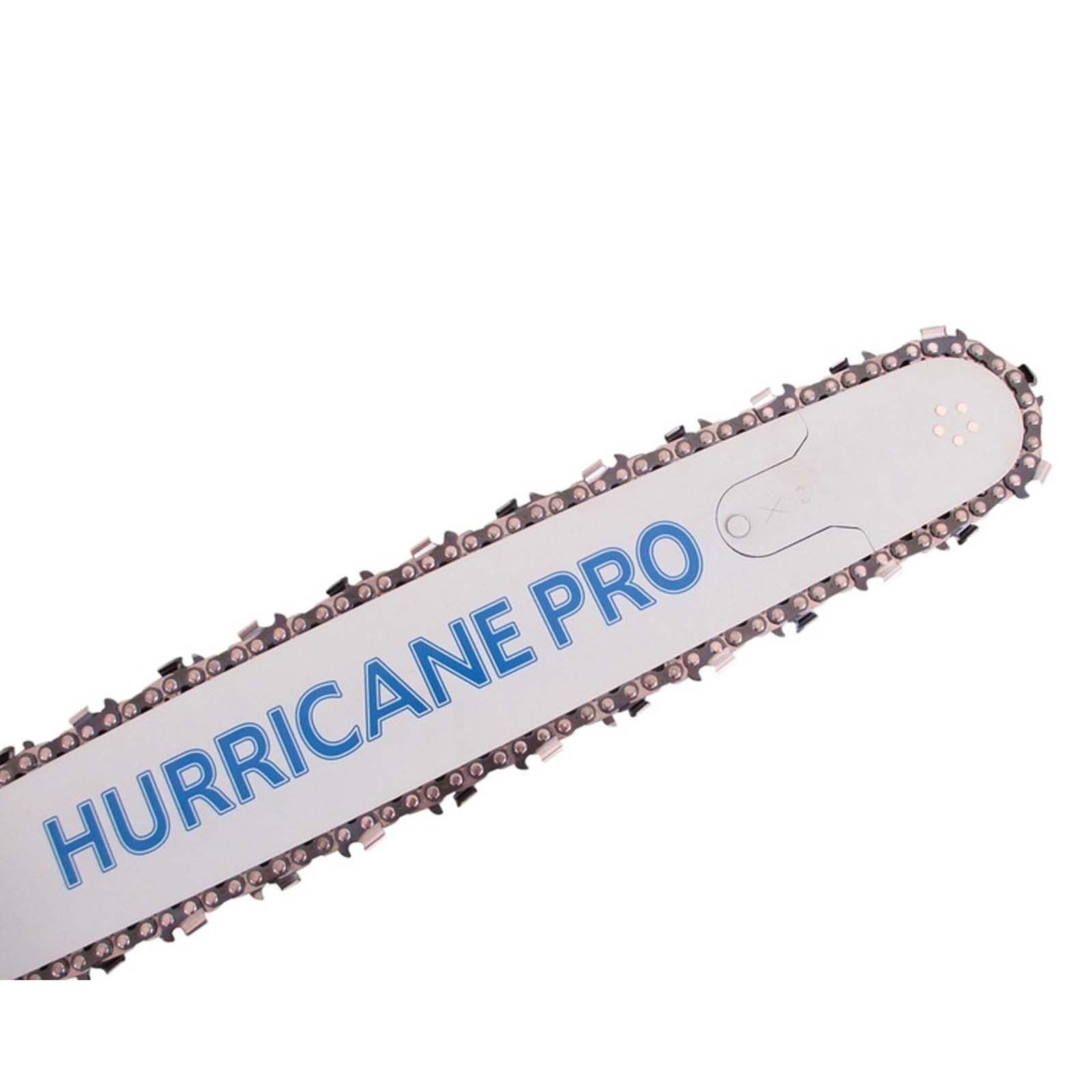

42'' HURRICANE Professional Sprocket Nose Chainsaw Bar & Chain
42'' Bar & 3/8'' 063'' 135 drive link chain
BAR AND CHAIN MADE FROM USA STEEL
Brand New
Suits the following models:
Bar will need to be greased prior to use
If the saw doesn't have SX92 MKII written on the pull start then please do not assume that this part will fit.
We cannot guarantee it will fit any other similar chainsaw.
For our other Baumr-ag parts, please click here.

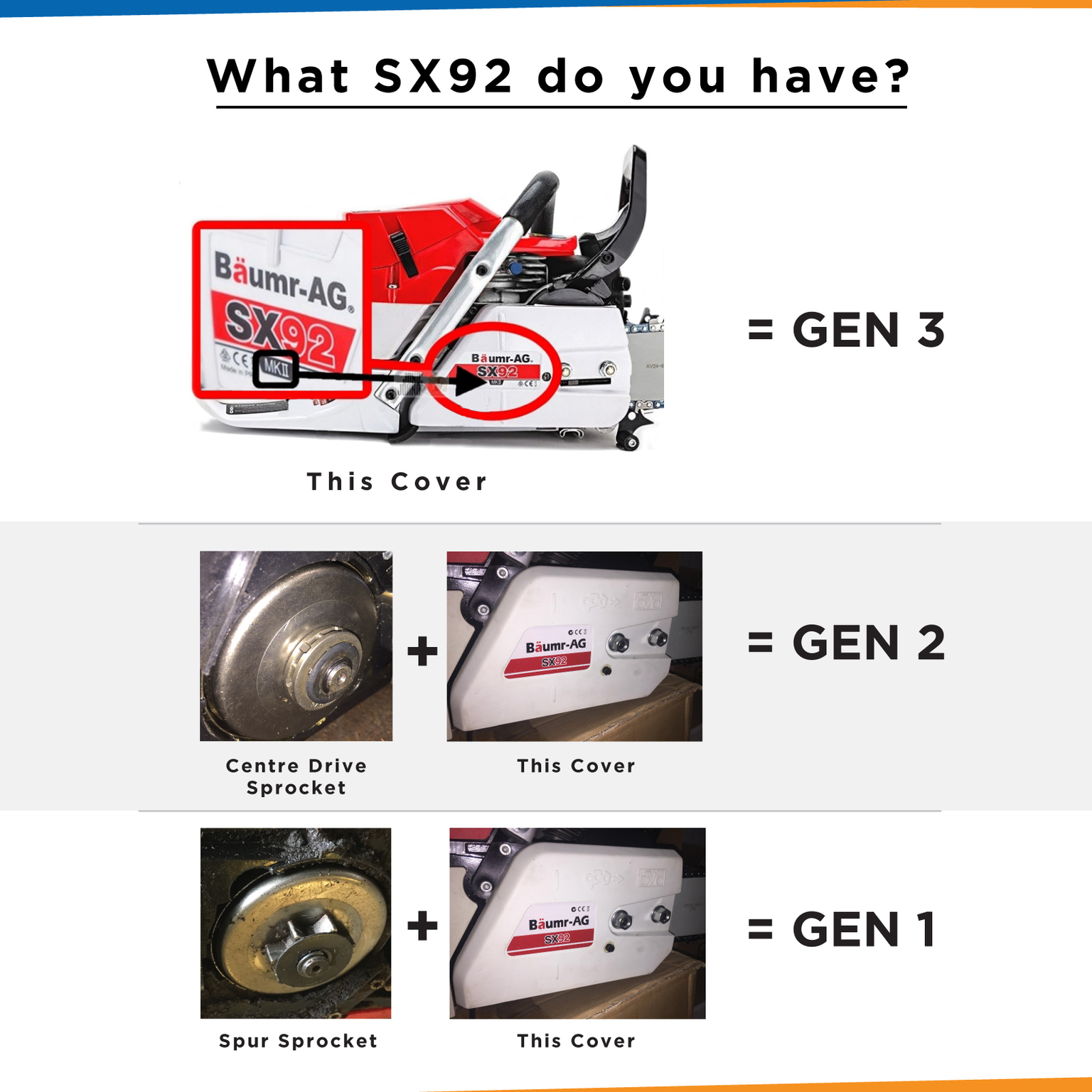

The SX92 has been released in three different versions.
Gen 1 and Gen 2 both look very similar but can be distinguished by the drive sprocket.
Gen 1 has a spur sprocket and Gen 2 has a centre drive sprocket. See our pictures for details.
Gen 3 has a label on the sprocket cover to differentiate it from the first two SX92 releases. It is labelled SX92 MKII although it is the third generation of the saw.
The part in this picture is only guaranteed to fit the SX92 Gen 3 (MKII).
To determine if you have the right model you need to confirm two things, the writing on the pull start reads Baumr-Ag SX92 MKII and that it has a centre drive sprocket.
About HURRICANE Sprocket Nose Pro Bars
HURRICANE Professional Pro Chainsaw bars are made from SAE8660 imported USA steel, which is the exactly same as big brand companies. Bar is made from solid metal and has been laser cut in order to improve the quality of the production. We also use Japanese heat treating facilities. The pro bar nose sprocket roller is imported from Switzerland, the same as many of the leading brands on the market.
Features
·Solid metal bar

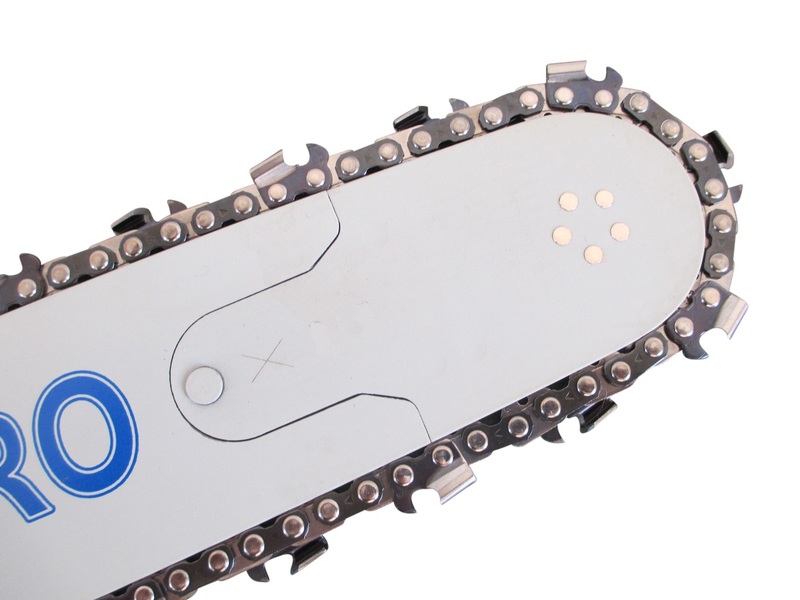

·Replaceable sprocket nose
·Heat treated bar rails for extend life
·Made from USA Steel
·Laser cut for precision and durability
·Suitable for consumer and professional user
Bar Specifications
Length: 42''
Pitch: 3/8''
Gauge: .063''
Number of drive links: 135
Made From USA Steel
Chain Specifications
Pitch: 3/8''
Gauge: .063''
Drive Links: 135
Chain type: Semi Chisel
Please check out our other listings!
WARRANTY OVERVIEW
Jono & Johno offers a 12-month warranty on all products. Warranty period is 12 months for the home user and 6 months for commercial use.
We pride ourselves on selling good quality kit and will be fair and prompt honouring our warranties. If you’re in trouble, we’ll help you out.
WHAT IS COVERED?
Exactly what is covered by warranty will depend on 2 things:
Minor faults caused by user - Parts will be supplied for repair at user expense.
Minor faults caused by manufacturer - Parts will be supplied for repair, with instructions provided by us on how to carry out repair. If the repair is time consuming in nature, you can contact Jono & Johno to discuss labour cost compensation.
Major faults caused by manufacturer - Jono & Johno will facilitate a return of the product for refund or replacement at our expense. Or if you’d prefer (at our discretion and in consultation with you), we can send appropriate parts and compensate labour costs if you can carry out the repair yourself.
Major faults caused by user - Where possible parts will be supplied at user expense. Where the item cannot be repaired by the user, Jono & Johno will offer to have the item returned for repair at user expense. Our workshop rate is $60 per hour.
HOW DO I RETURN MY PRODUCT IF IT’S COVERED BY WARRANTY?
If you’re in reasonable driving distance of a Jono and Johno outlet, you can physically return the product yourself. Please contact us in advance to arrange a return authority.
If you are not within reasonable driving distance, Jono & Johno will provide you with a return authority and an address to return the product to. Where Jono & Johno is at fault a postage-paid return label will be provided.
EXCEPTIONS TO THE RULE
If your product is out of warranty and is buggered, even though you’ve hardly used it, give us a call or shoot us an email. If there is a manufacturer fault or the item should have lasted a lot longer than it has, we’re happy to assess it outside of the warranty period. We do this on a case-by-case basis.
SKU | SHV42-63ER-BC-- |
Model # | SHV42-63ER-BC-- |
Barcode # | 682157270804 |
Brand | Hurricane |
Shipping Weight | 3.7500kg |
Shipping Width | 0.122m |
Shipping Height | 0.030m |
Shipping Length | 1.250m |
Shipping Cubic | 0.004575000m3 |
Unit Of Measure | ea |
