PERLA BARB 62CC V4 20" BAR PRO CHAINSAW WITH LOG HORSE

Jono & Johno would like to present the 62cc Perla Barb V4 Pro chainsaw with log horse combo.

This is a good solid saw which, with regular maintenance, will last a long time. This is not a throw away saw.

We stock ALL spare parts in our warehouse, so should you ever have any issues with the saw, in or out of warranty period, we’ll be able to help you out. THAT’S A GUARANTEE!

The warranty on the saw is a 12-month parts warranty. So if something goes wrong with the saw in the first 12 months of use, we can send you the parts, free of charge.

Our bars are made from USA steel and our chains are made from German steel.

If you have any questions about our saw, don’t hesitate to give us a call or drop us an email.

For extra chains, please click here!

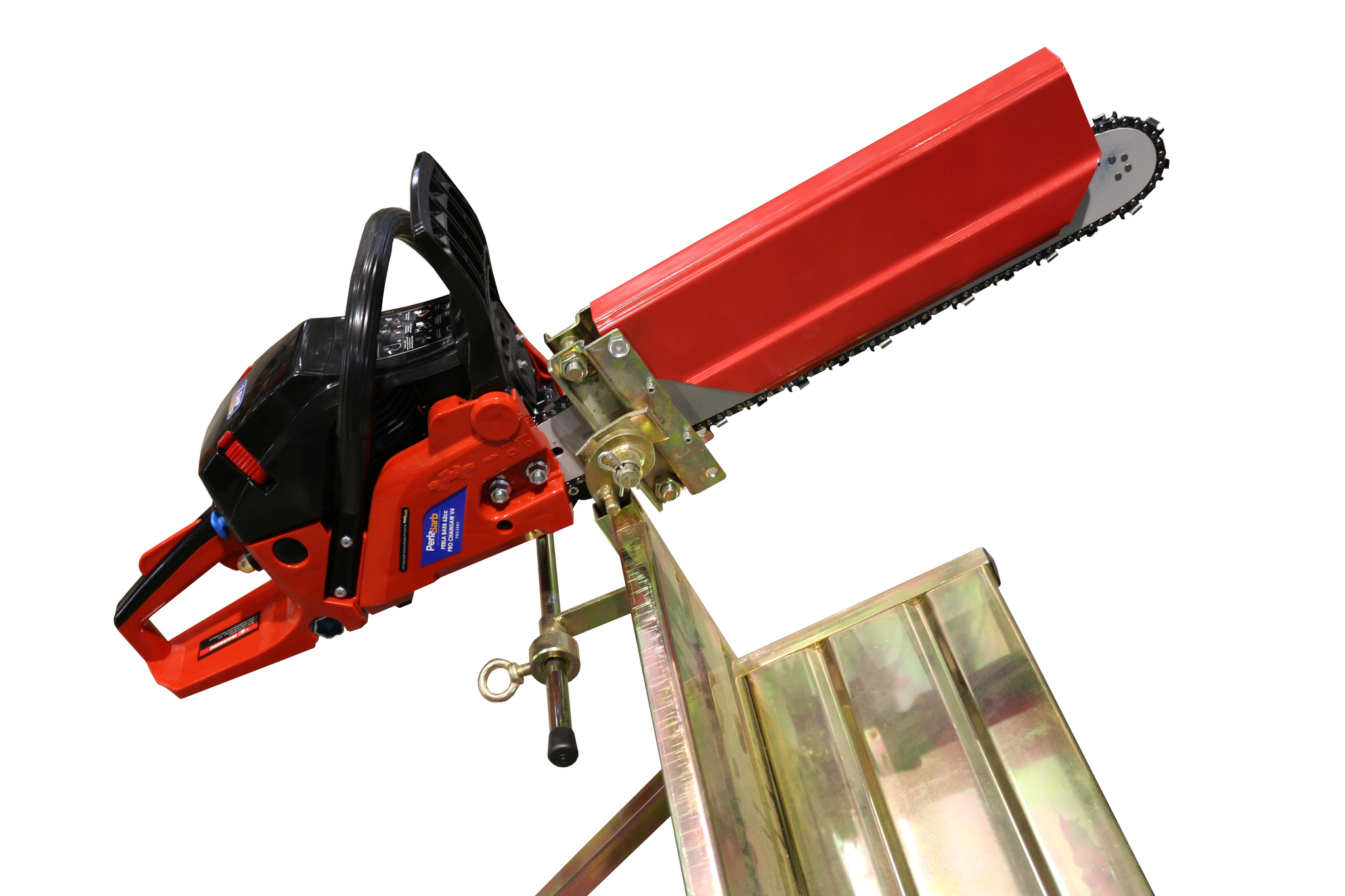

The saw horse by Jono & Johno will revolutionise the world of wood cutting. It comes with a sheeth to guard you from your chainsaw blade. Simply clamp your chainsaw bar to the log horse, inside the protective sheath, and it will hold the weight of the saw and protect you from the chain.

Then you can slide your wood along the 'v' and shaped groove and cut to your desired length.
This makes it fast, effortless and safe to operate unlike the conventional method which requires constant bending lifting and straining, starting and stopping. The Jono & Johno log horse folds away for easy storage and will suit all chainsaws.

SPECIFICATIONS:

Model: Perla Barb 62cc V4 Pro Chainsaw
Engine: Single cylinder, two stroke, air cooled
Displacement: 62cc
KW: 2.85
Ignition system: C. D. I.
Engine Idling speed: 3000rpm + or - 300
Max engine speed: 10000rpm
Fuel tank capacity: 550ml (19.36 fl oz)
Bar oil tank capacity: 260ml (9.15 fl oz)
Recommended bar oil: Dedicated bar oil. Do not use motor or sump oil.
Fuel: Regular unleaded petrol and 2-stroke oil (25:1)
Carburettor: Diapghram type
Spark plug: NGK = BPMR7A, Champion = RCJ6Y
Oil feeding system: Automatic pump with adjuster

TUNING:

Low speed setting: between 2,700 and 3,300 rpm

High speed setting: between 10,200 and 11,100 rpm

CHAIN & BAR:

Sprocket: 7 tooth 0.325
Chain pitch: 0.325"
Chain gauge: 0.058"
Chain Length: 76 drive links
Guide bar type: Sprocket nose
Guide bar size: 20" (cutting length)
Oil feeding system: Automatic pump with adjuster

DIMENSIONS OF CHAINSAW:

Gross weight of saw with 20" bar and chain, packaging and accessories: 11.40kgs (25.13lbs)
Net weight of saw with 20" bar and chain: 7kgs (15.43lbs)
Packing size: 52x33x31cm

LOG HORSE FEATURES:

Galvanised metal to protect against rust
Serrated edge
Equipped with adjustable bar to ensure consistent block lengths
Protective sheath to guard against injury
Strong clamp to hold weight of all brand name chainsaws
Maximum total weight capacity: 120kg
Length of tray that holds log: 760mm
Length of tray including clamp: 890mm
Widest point of V that holds the log: 275mm
Height from ground to top of V: 800mm
Width of unit when legs are full expanded: 720mm
Size of Log Horse: 795mm x 800mm x 815mm

WARRANTY OVERVIEW

Jono & Johno offers a 12-month warranty on most products.

We pride ourselves on selling good quality gear and will be fair and prompt in honouring our warranties. If you’re in trouble, we’ll help you out.

WHAT IS COVERED?

The exact warranty coverage depends on two factors:

Whether the fault is due to user error or a manufacturer defect
Whether the fault is minor or major

Minor faults caused by the user

Parts will be supplied for repair at the user's expense.

Minor faults caused by the manufacturer

Customers are expected to perform basic repairs as part of our warranty process.
Jono & Johno will provide replacement parts and instructions for simple repairs, such as installing a recoil starter.
Jono & Johno will determine whether a fault is classified as minor.
If unsure about a repair, contact us, and we’ll assist you.

Major faults caused by the manufacturer

Jono & Johno will arrange a return, refund, or replacement at our expense.
If preferred (and at our discretion), we may provide replacement parts and contribute to labour costs if you can perform the repair.

Major faults caused by the user

Where possible, parts will be supplied at the user's expense.
If the item cannot be repaired by the user, we offer repairs at our workshop at $80 AUD per hour.
The customer will need to cover return shipping costs for user-related faults.

RETURN PROCESS & SHIPPING COSTS

If you need to return your product:

In-store return: If you're near a Jono & Johno outlet, you can return the product in person. Contact us first to arrange a return authority.
Shipping return: If you are not within driving distance, we will provide a return address.
- If the fault is due to a manufacturer defect, we’ll cover return costs.
- If the fault is user-related, the customer is responsible for return shipping.

EXCEPTIONS TO THE RULE

Some products are not covered by warranty, including:

Engines used in go-karts and stump grinders

OUT-OF-WARRANTY PRODUCTS

If your product is out of warranty and has failed despite minimal use, contact us. We may assess it on a case-by-case basis. If a manufacturer defect is identified, we aim to be fair in resolving the issue—but this is at our discretion.

SKU	LogHcombo1
Model #	LogHcombo1
Barcode #	682157251070
Brand	Perla Barb
Shipping Weight	20.0000kg
Shipping Width	0.050m
Shipping Height	0.050m
Shipping Length	0.050m
Shipping Cubic	0.000125000m3
Unit Of Measure	ea
Items included in the kit
Product Name	Quantity	SKU
1x Chainsaw Chain Semi Chisel 325 058 76DL	1	76DL004
Chainsaw Log Horse Saw Bench Stand Table Holder Chain Fire Wood for all makes	1	LHWCM
Perla Barb 62cc V4 Chainsaw Power Head	1	PBCS001
Bar only - POH19-58WH	1	POH19-58WH
