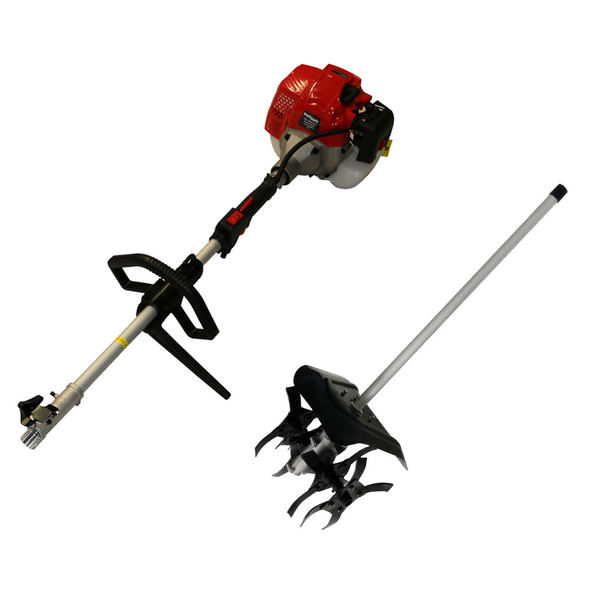

Perla Barb 65cc Mini Tiller attachment and Multi Tool power head Combo

This is the ultimate multi-tool gardening machine. This combo includes the powerhead plus a Mini Tiller attachment. Made with quality materials, the Perla Barb Multi-Tool features quick-connect shafts and couplings with ball-bearing floating centres. The power unit is a tough and proven Perla Barb 65cc engine surrounded by a flexible and strong motor housing. Extended use is made possible thanks to a large capacity fuel tank, which is also protected by a strong metal bracing.

This unit offers the ultimate in serious soil preparation. It will leave your soil well aerated and finely milled. Yet another tough and reliable Jono & Johno backed product with a 12 month warranty.

PLEASE NOTE: DOES NOT INCLUDE SAFETY GOGGLES.

Jono & Johno are industry leaders for quality outdoor power machinery and unbeatable customer service.

Features:

65cc Perla Barb two stroke 3.4hp motor with durable casing

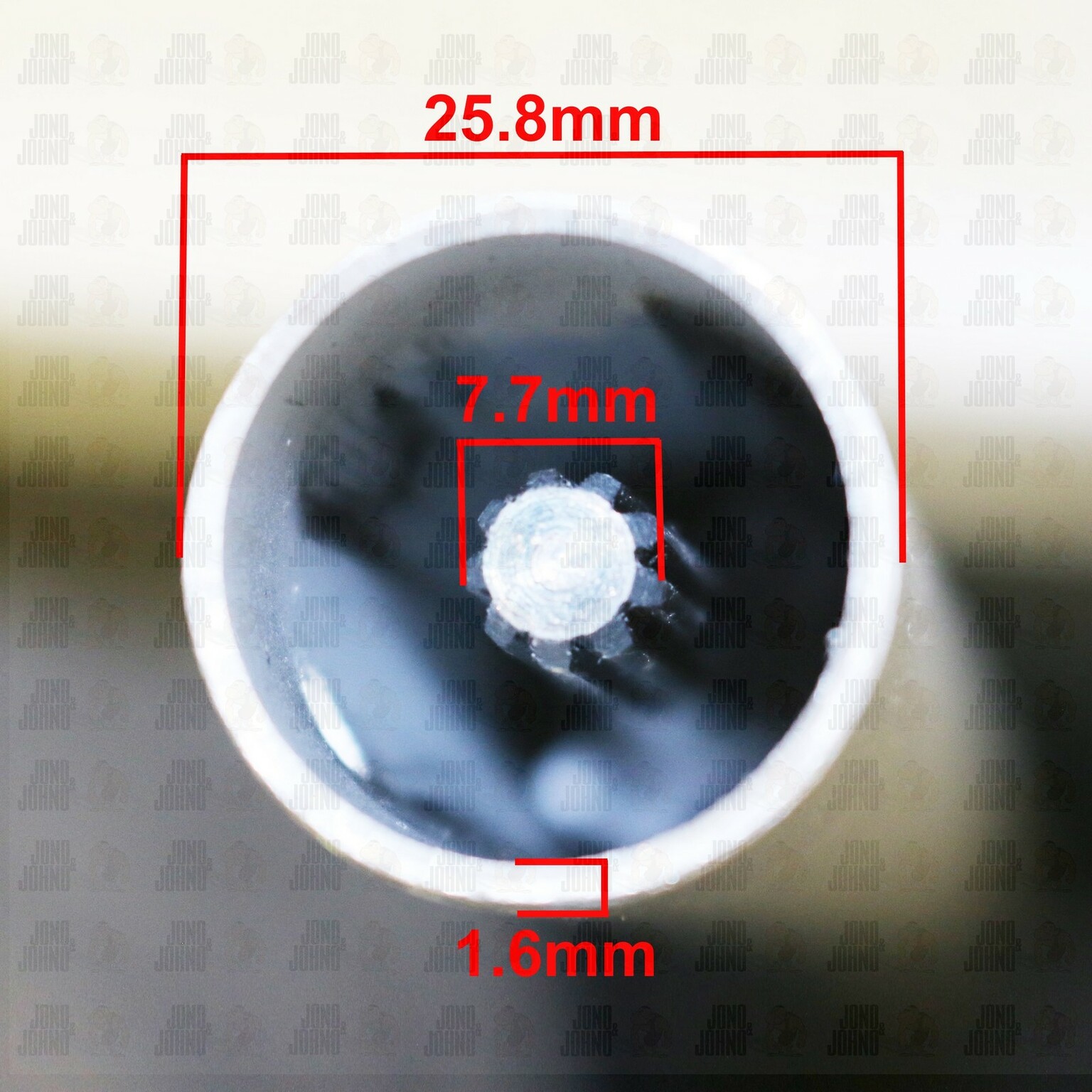

26mm Commercial Anodised Alloy Shafts
Shafts with Quick-change commercial bearing couplings
Quick start guide
Easy fill large capacity fuel tank
High torque
Light but powerful

Engine specs:

Brand: Perla Barb
Engine Type: Petrol - Two Stroke Commercial
Dual Weighted Crank / Double Ringed Piston
Displacement / Maximum Power: 65CC / 3.4hp
Max. Engine Speed: 11,000 RPM w/Centrifugal clutch
Fuel Tank Capacity: 1.2 Litre
Fuel Mix: 25:1 (25 parts fuel to 1 part two stroke oil)
Fuel Type: Regular Unleaded

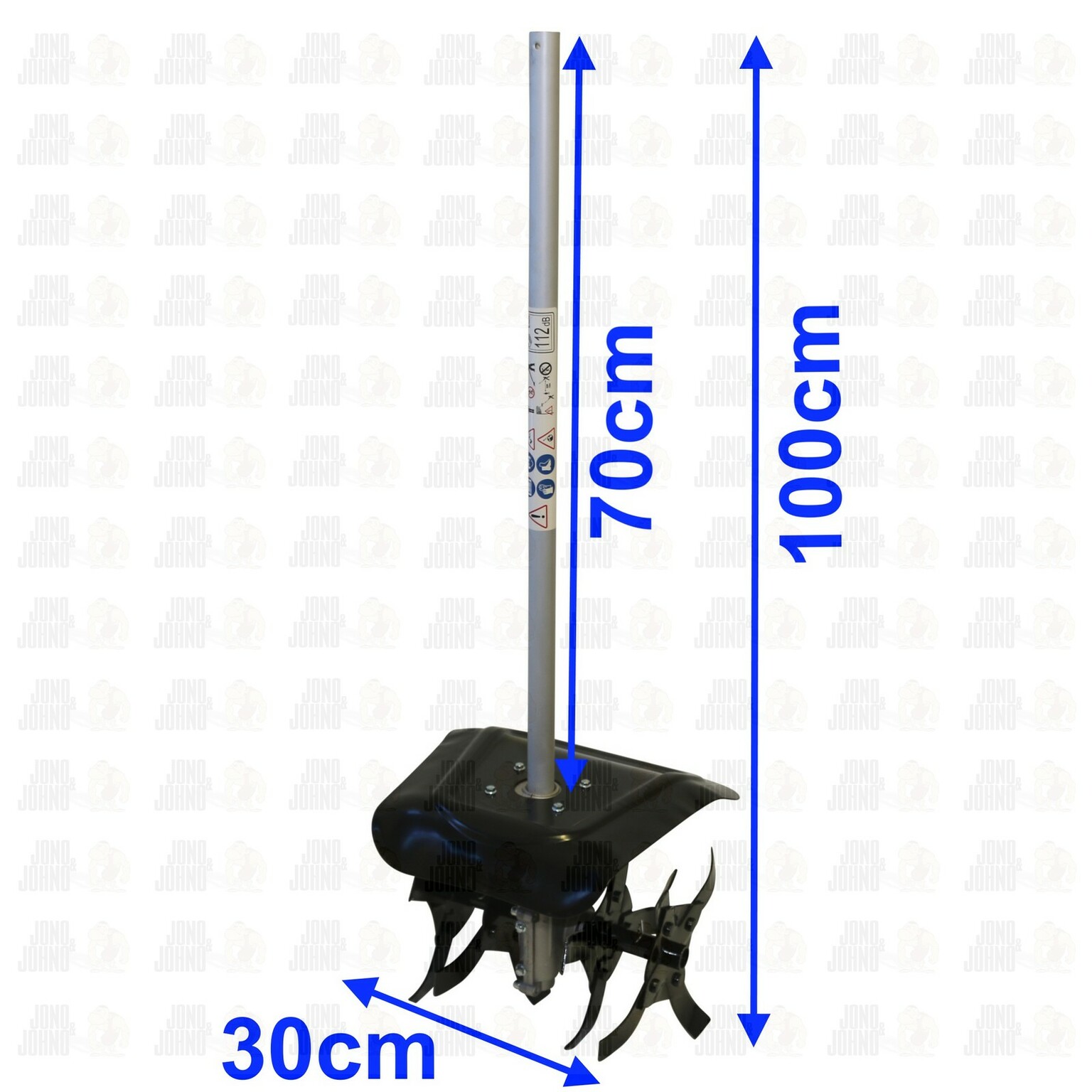

Mini Tiller specs:

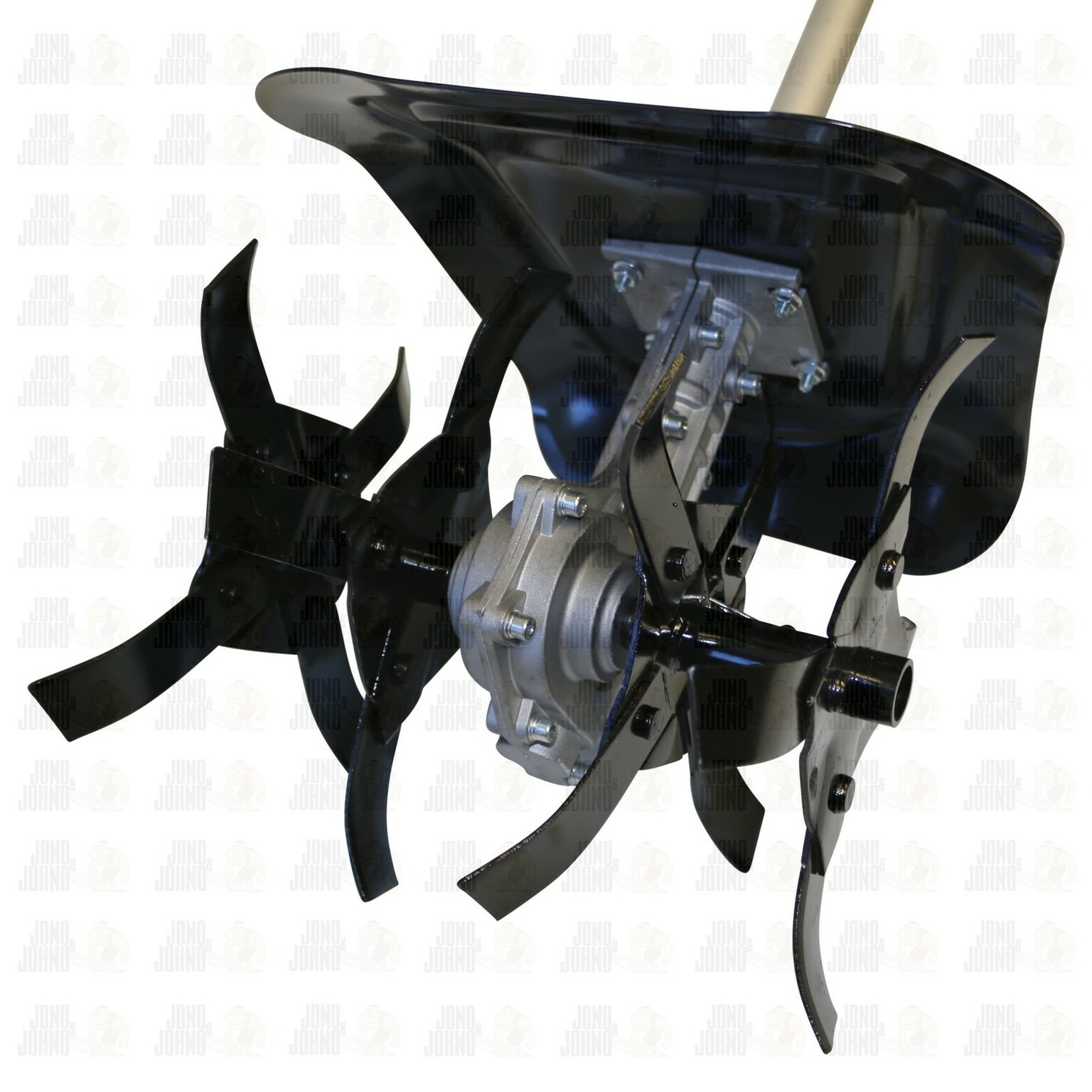

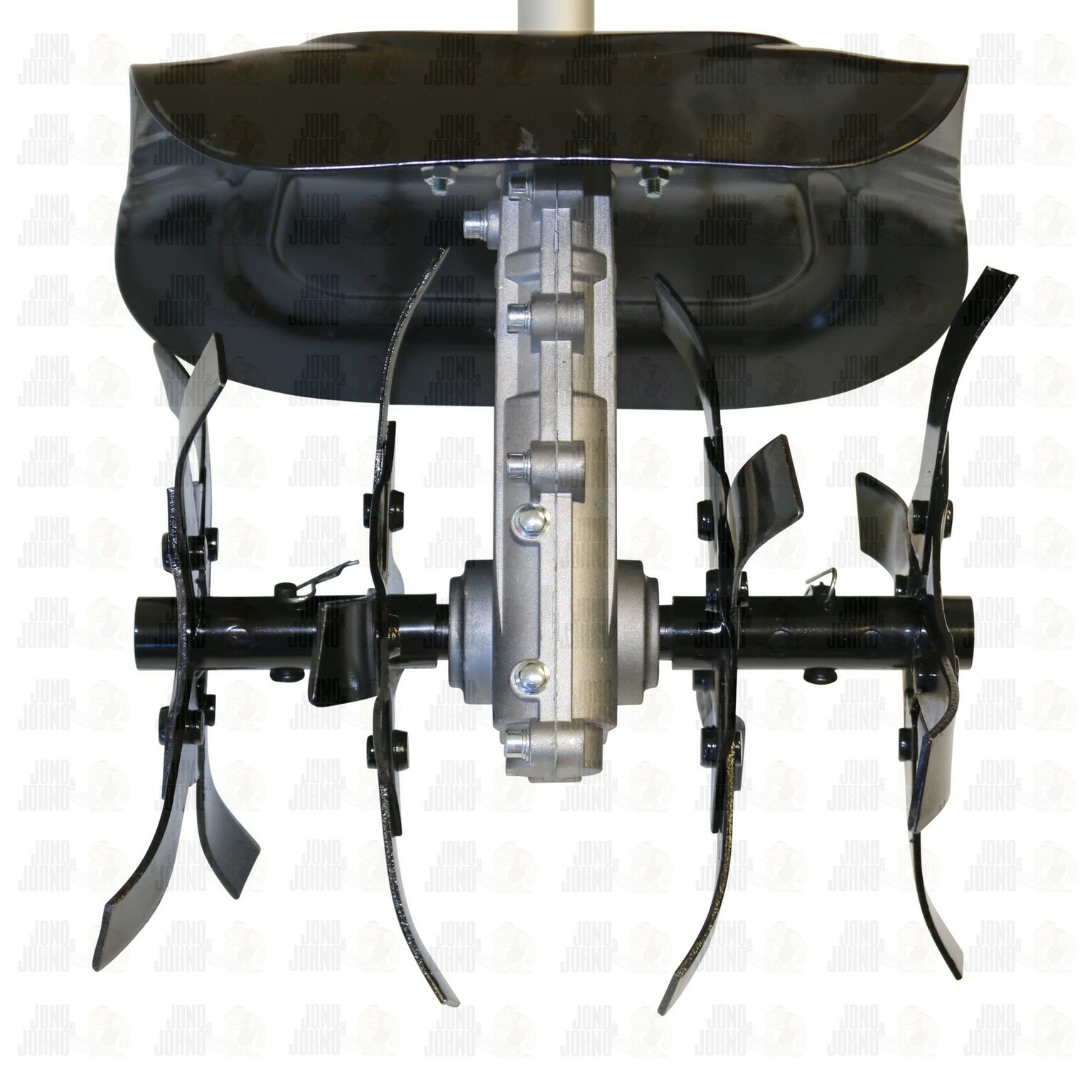

Four synchronous rotating heavy duty steel blades for deeper tilling and greater control

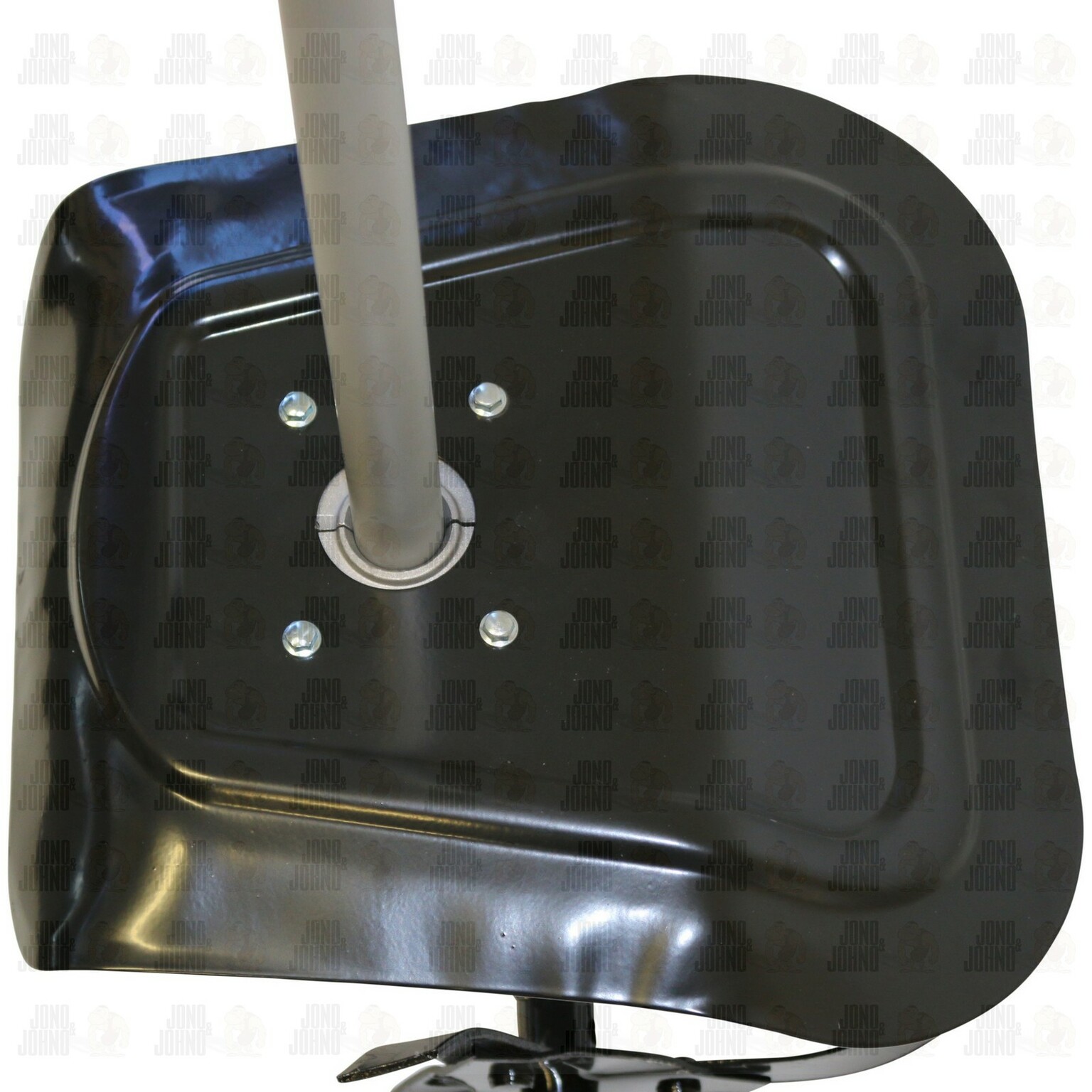

Convinient safety guard
Straight shaft/pole
Hard wearing powder coated finish
Heavy duty solid construction

Perla Barb 65cc Rotary Hoe

Get the earth moving quick and easy with the Perla Barb hand-held cultivator/tiller/rotary hoe.
Featuring a 65cc 2-stroke engine, the Perla Barb rotary hoe churns out soil deep and wide with 36-teeth of hardened steel.

The six blades allow you to till an extra-wide swathe of 400mm and up to 150mm in depth in only one third of the time compared to four-blade models. In other words, you only need one pass with the tiller to pulverise the soil and get the right seedbed for your favourite crops.

Operating the rotary hoe is just as easy with its pull-start improved engine, ergonomic handle and quick-release hand throttle control and all-terrain rubber tyres to transform back-breaking tilling work into a ground-breaking stroll. And when the tilling’s done, just fold the unit away and store with the rest of your tools. With the Perla Barb rotary hoe, you can begin to lay the ground for a fruitful harvest with utmost ease. Ideal for the home gardener or small-scale commercial grower.

Features:

Powerful 65cc engine

2-stroke engine with easy start up system

Adjustable tilling depth of up to 150mm

6 Blades to cover a 400mm extra wide tiller width

36 superior hardened steel tines

Complete your job in a third of the time compared to 4-blade models

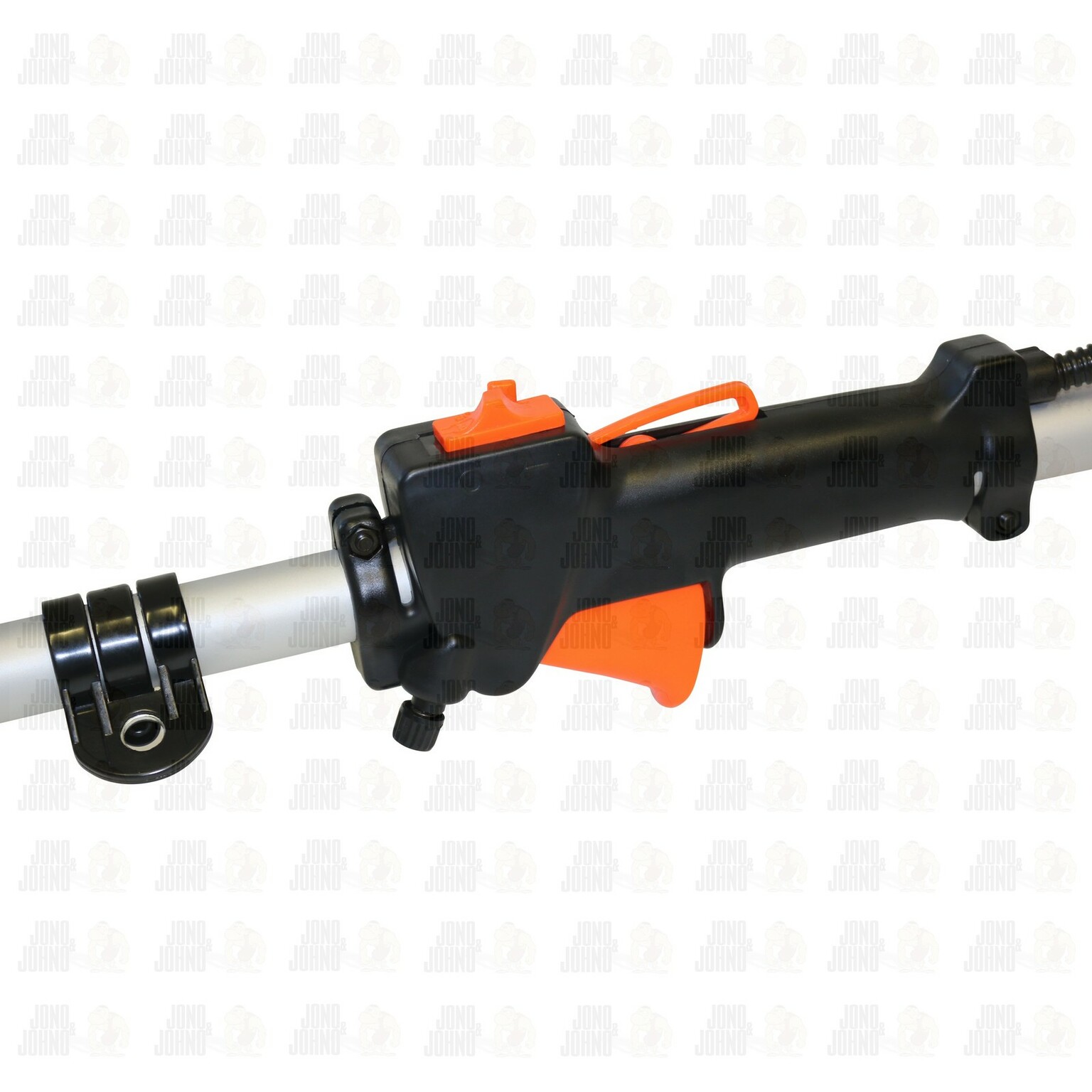

Slip-proof handle with quick release hand throttle

All terrain rubber tyre with mud resistant tread

Ultra-manoeuvrable design to turn tough jobs into a stroll

Built to last phosphor bronze worm gear reducer

Foldable construction

Specifications:

Displacement: 65cc

Engine type: 2-stroke, 3.4hp

Max Engine Speed: 11000RPM

Declared Maximum Torque: 3.0 Nm @ 5500rpm

Ignition System: C.D.I

Fuel type: Regular Unleaded

Fuel-oil ratio: 25:1 (25 parts fuel to 1 part two stroke oil)

Fuel tank capacity: 1L

Max working depth: 150mm

Working width: 400mm

Gear ratio: 34:1

Replaceable blades

Depth Control Rod: 5 points adjustment

Starting System: Recoil (pull cord start)

Product dimension: 900mm x 400mm x 1000mm approx.

⚠️ Important Usage Warning

The Tiller is not suitable for plowing hard or rocky soil. To ensure optimal performance and prevent damage:

✅ Prepare the soil – Water the area several hours before tilling to allow moisture to penetrate deeply.
✅ Check for obstructions – Remove large rocks, roots, or heavy debris before use.

If the blades become stuck due to grass, stones, or other materials:

Immediately release the clutch handle.
Do not allow the machine to continue running while the blades are jammed.
Failure to follow this guidance may damage the gearbox and void your warranty.

Always follow proper usage instructions to ensure the longevity of your machine.

Weights

Multi-Tool: 6.32kg
Multi-Tool with Tiller: 11.67kg

WARRANTY OVERVIEW

Jono & Johno offers a 12-month warranty on most products.

We pride ourselves on selling good quality gear and will be fair and prompt in honouring our warranties. If you’re in trouble, we’ll help you out.

WHAT IS COVERED?

The exact warranty coverage depends on two factors:

Whether the fault is due to user error or a manufacturer defect
Whether the fault is minor or major

Minor faults caused by the user

Parts will be supplied for repair at the user's expense.

Minor faults caused by the manufacturer

Customers are expected to perform basic repairs as part of our warranty process.
Jono & Johno will provide replacement parts and instructions for simple repairs, such as installing a recoil starter.
Jono & Johno will determine whether a fault is classified as minor.
If unsure about a repair, contact us, and we’ll assist you.

Major faults caused by the manufacturer

Jono & Johno will arrange a return, refund, or replacement at our expense.
If preferred (and at our discretion), we may provide replacement parts and contribute to labour costs if you can perform the repair.

Major faults caused by the user

Where possible, parts will be supplied at the user's expense.
If the item cannot be repaired by the user, we offer repairs at our workshop at $80 AUD per hour.
The customer will need to cover return shipping costs for user-related faults.

RETURN PROCESS & SHIPPING COSTS

If you need to return your product:

In-store return: If you're near a Jono & Johno outlet, you can return the product in person. Contact us first to arrange a return authority.
Shipping return: If you are not within driving distance, we will provide a return address.
- If the fault is due to a manufacturer defect, we’ll cover return costs.
- If the fault is user-related, the customer is responsible for return shipping.

EXCEPTIONS TO THE RULE

Some products are not covered by warranty, including:

Engines used in go-karts and stump grinders

OUT-OF-WARRANTY PRODUCTS

If your product is out of warranty and has failed despite minimal use, contact us. We may assess it on a case-by-case basis. If a manufacturer defect is identified, we aim to be fair in resolving the issue—but this is at our discretion.

SKU	MTCOMBO7
Model #	MTCOMBO7
Barcode #	682157251155
Brand	Perla Barb
Shipping Weight	13.5000kg
Shipping Width	0.340m
Shipping Height	0.330m
Shipping Length	1.110m
Shipping Cubic	0.124542000m3

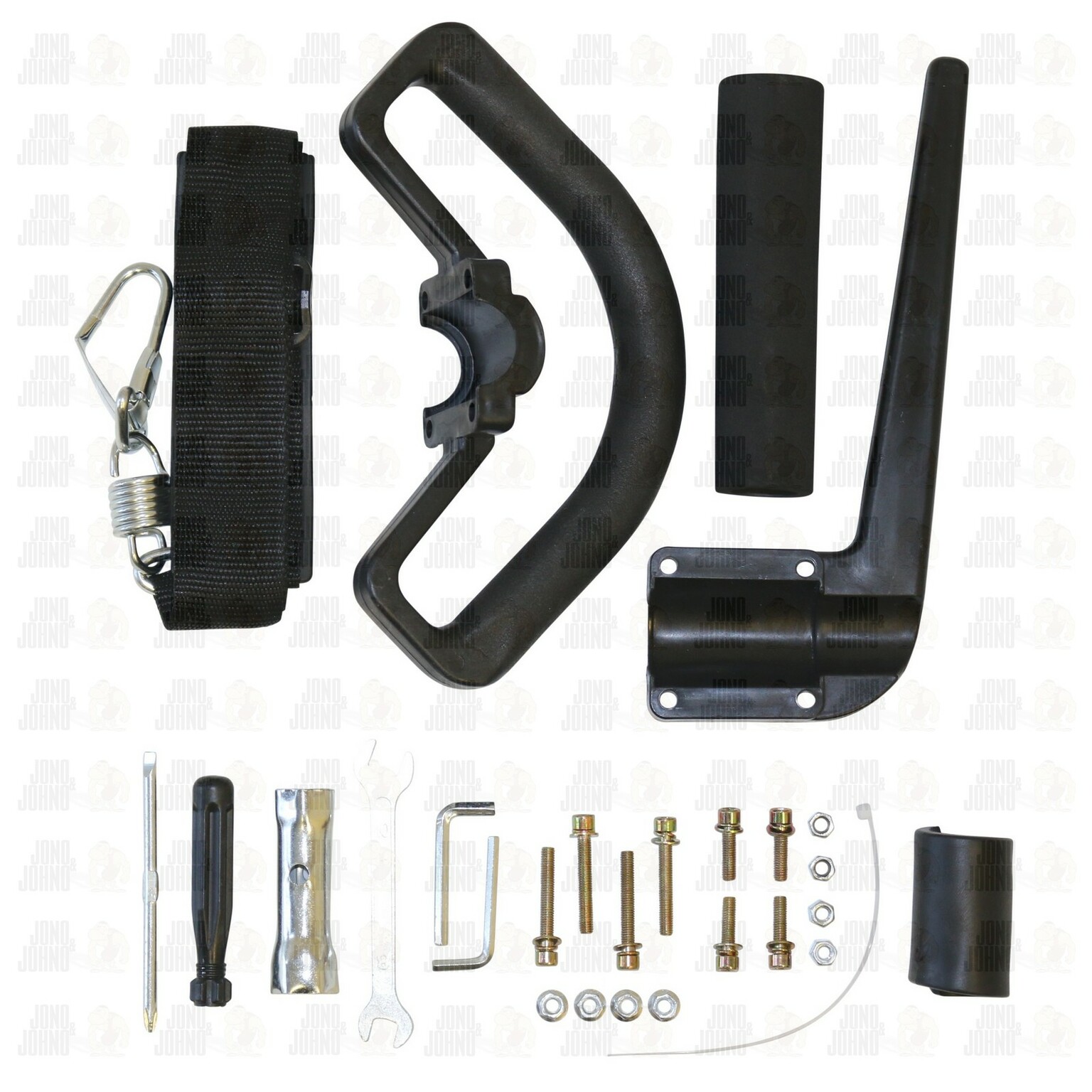

Items included in the kit
Product Name	Quantity	SKU
Tiller Rotary Hoe Cultivator Attachment for Multi Tool	1	PBBB062
65cc Multi Tool Power Head Only Pole Chainsaw Brush Cutter Petrol Trimmer	1	PBGG
