70cc Perla Barb V1 Chainsaw Power Head only

Jono & Johno would like to present the 70cc Perla Barb V1 chainsaw.

The 70cc Perla Barb V1 chainsaw is part of the Jono & Johno professional range of saws.

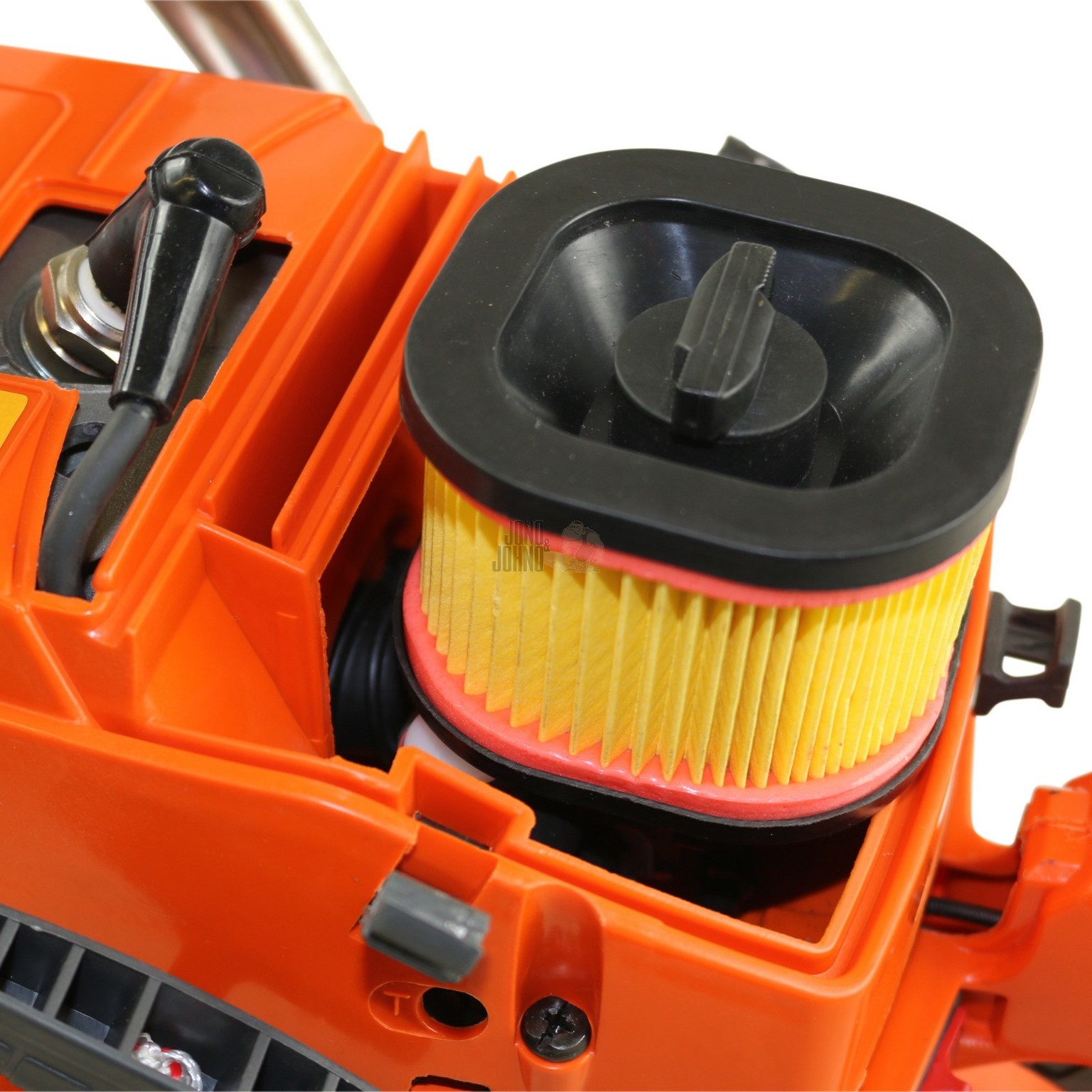

It comes equipped with an easy start mechanism, a premium, easy access air filter, and a top quality anti-vibration system.

We stock ALL spare parts in our warehouse, so should you ever have any issues with the saw, in or out of warranty period, we’ll be able to help you out. THAT’S A GUARANTEE!

The warranty on the saw is a 12-month parts warranty. So if something goes wrong with the saw in the first 12 months of use, we can send you the parts, free of charge.

If you have any questions about our saw, don’t hesitate to give us a call or drop us an email.

Includes tool kit.

SPECIFICATIONS:

Model: Perla Barb 70cc V1
Engine: Single cylinder, two stroke, air cooled
Displacement: 70cc
Bore x Stroke: 50mm x 36.4mm
Ignition system: C. D. I.
Maximum Engine Idling speed: 2700rpm
Maximum Engine Power: 3.9kw (5.23hp) at 9600rpm
Chain speed at max power: 21.4 m/sec
Fuel tank capacity: 900ml
Bar oil tank capacity: 500ml
Recommended bar oil: Dedicated bar oil. Do not use motor or sump oil.
Fuel: Regular unleaded petrol and 2-stroke oil (25:1)
Carburettor: Diapghram type
Spark plug: NGK = BPMR7A, Champion = RCJ7Y (0.5mm gap)
Oil feeding system: Automatic pump with adjuster

TUNING:

Low speed setting: between 3,000 and 3,100 rpm

High speed setting: between 10,700 and 11,700 rpm

DIMENSIONS:

Gross weight of saw (includes packaging and accessories): 7.85kgs (17.3lbs)
Net weight of saw (without a bar and chain): 6.40kgs (14.11lbs)
Packing size: 48x26x33cm

SKU 70ccPBV1
Model # 70ccPBV1
Brand Perla Barb
Shipping Weight 7.8000kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.050m
Shipping Cubic 0.000125000m3
Unit Of Measure ea

Top saw

By: on 27 August 2019
I own 4 of these one is 12 months old. And has been used on a commercial bassist very reliable will drive 30 incl bar no problem the other three are used at least once a week and have never had any issues
