CHAINSAW CHAIN SPROCKET SUITS STIHL 024 026

Aftermarket Part

IMPORTANT: PLEASE READ THE FOLLOWING NOTE:


The 024 and 026 model chainsaws have been sold with two different sprockets over the years.
The sole difference between these sprockets is the height of the drum.

If the height of your sprocket drum is 13.7mm then you are on the right page.

If the height of your sprocket drum is 17.7mm then please click here.

  • 13.7mm - 325 - 63360
  • 13.7mm - 3/8 - 63365
  • 17.7mm - 325 - 64280
  • ​​17.7mm - 3/8 - 63370

SUITS THE FOLLOWING STIHL MODELS:

024, 026

SPECIFICATIONS:

  • 3/8” or .325 CHAIN PITCH (please select what rim you require from the menu at the top of the page)
  • NUMBER OF TEETH: 7

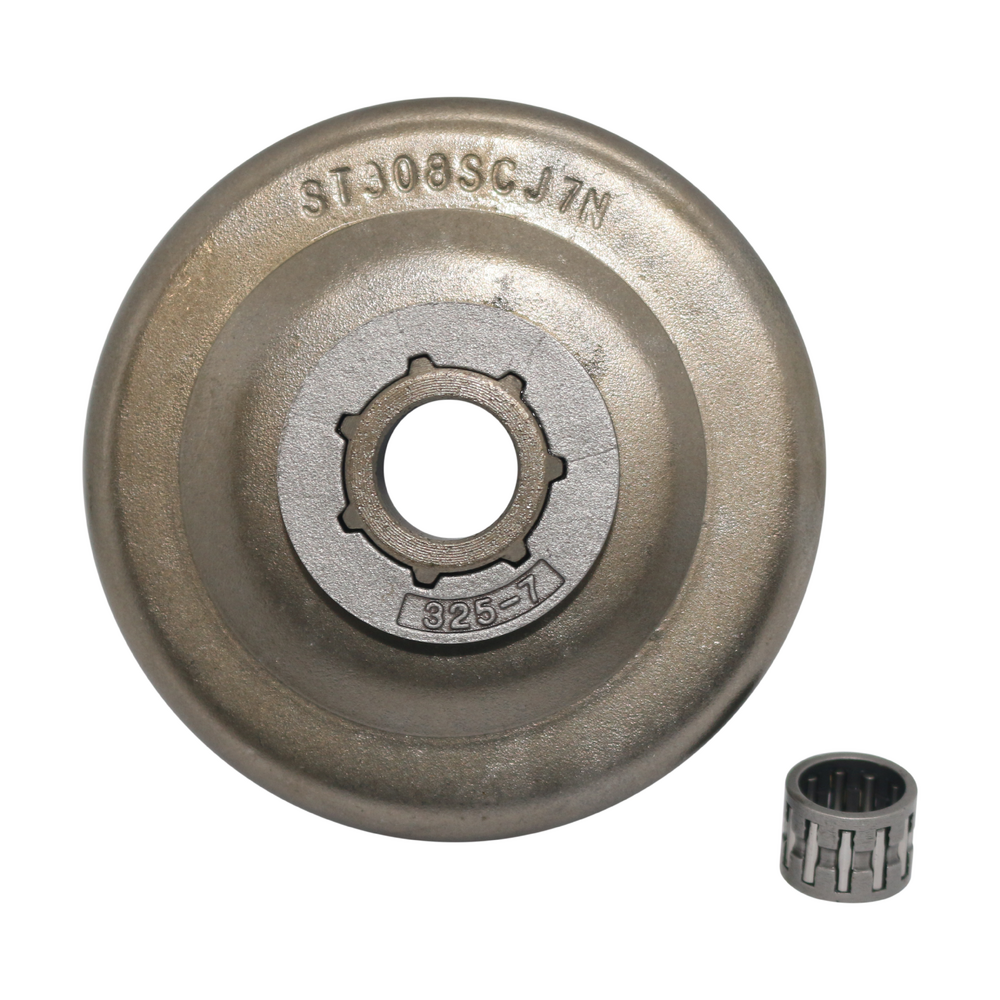

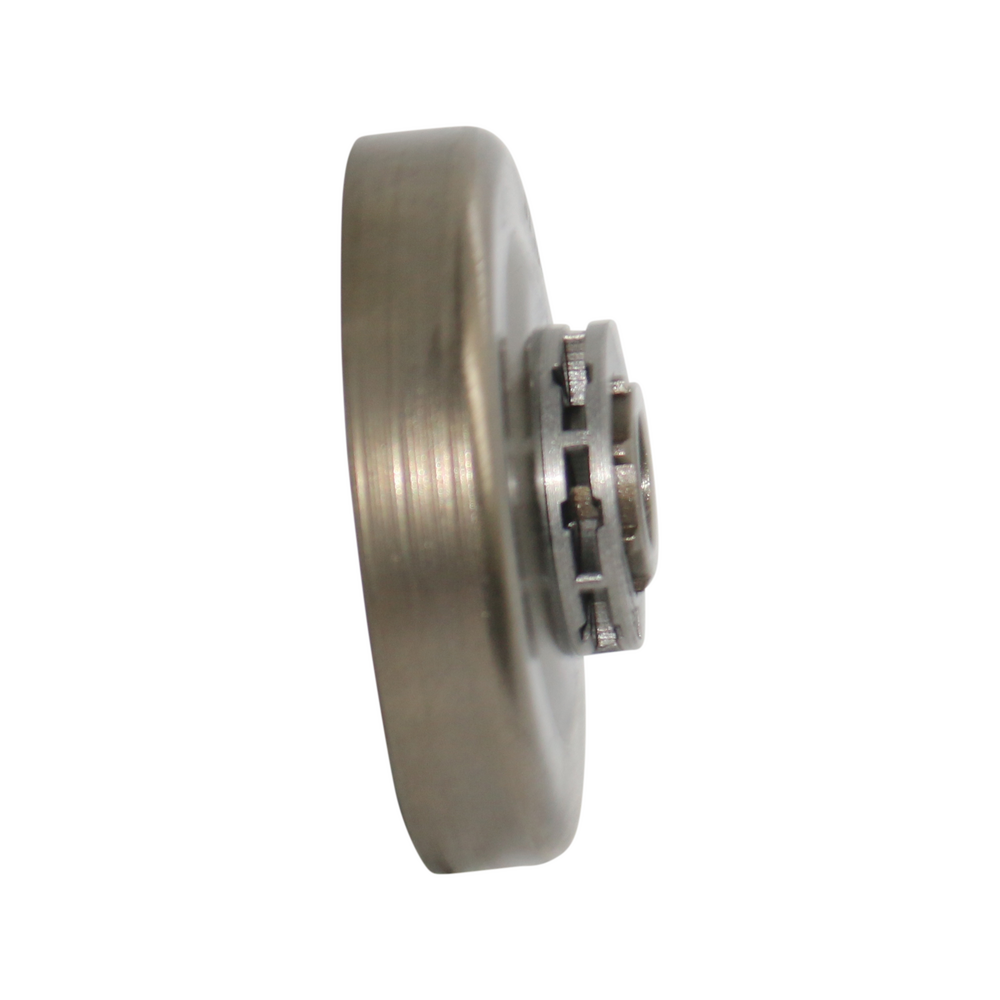

KIT INCLUDES:

  • 1x SPROCKET DRUM
  • 1x RIM SPROCKET
  • 1x BEARING

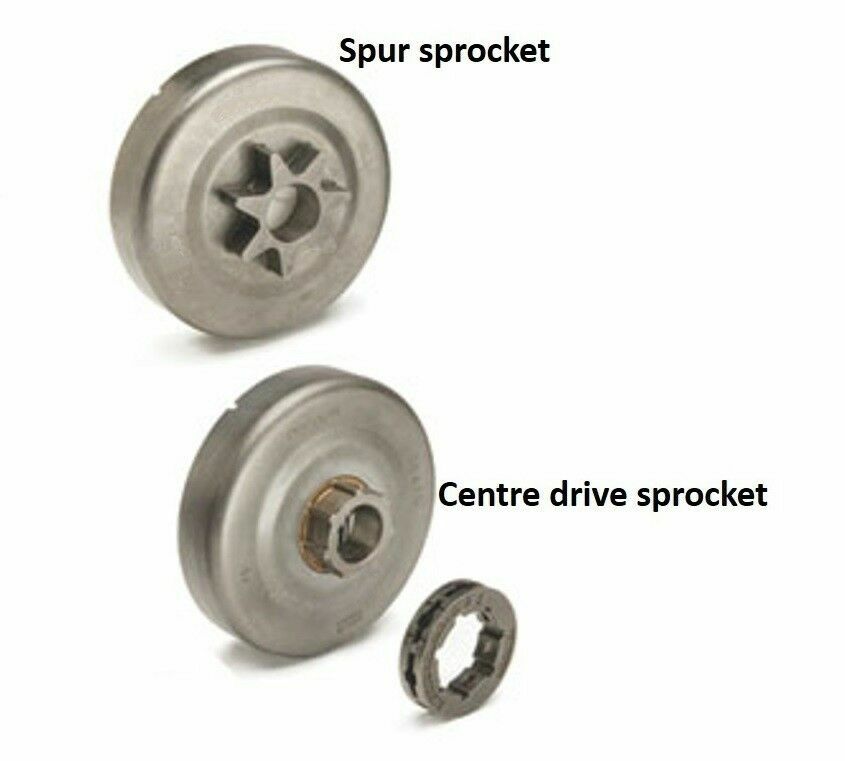

What is the difference between a centre drive sprocket and a spur sprocket?

A centre drive sprocket assembly is cheaper to maintain than a spur sprocket assembly.

A spur sprocket incorporates the drive into the drum so that it is one continuous piece of metal.

A centre drive sprocket assembly has a replaceable drive rim. This means that you can replace the rim on its own when it wears down as opposed to replacing the drum and rim, as is the case with a spur sprocket assembly.

SKU 024026137DRUM
Model # 024026137DRUM
Brand Unbranded
Shipping Weight 0.1500kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.050m
Shipping Cubic 0.000125000m3
Unit Of Measure ea
