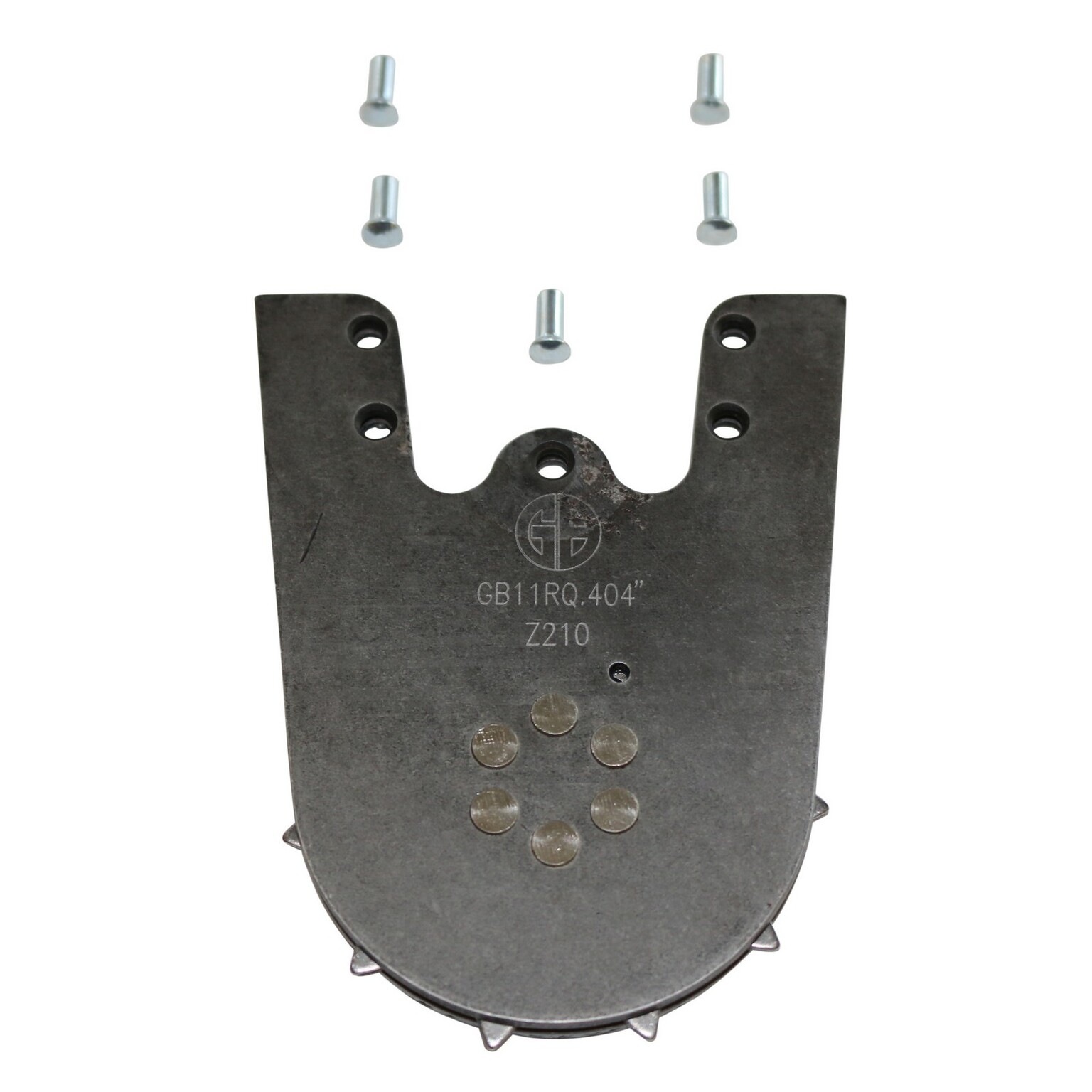

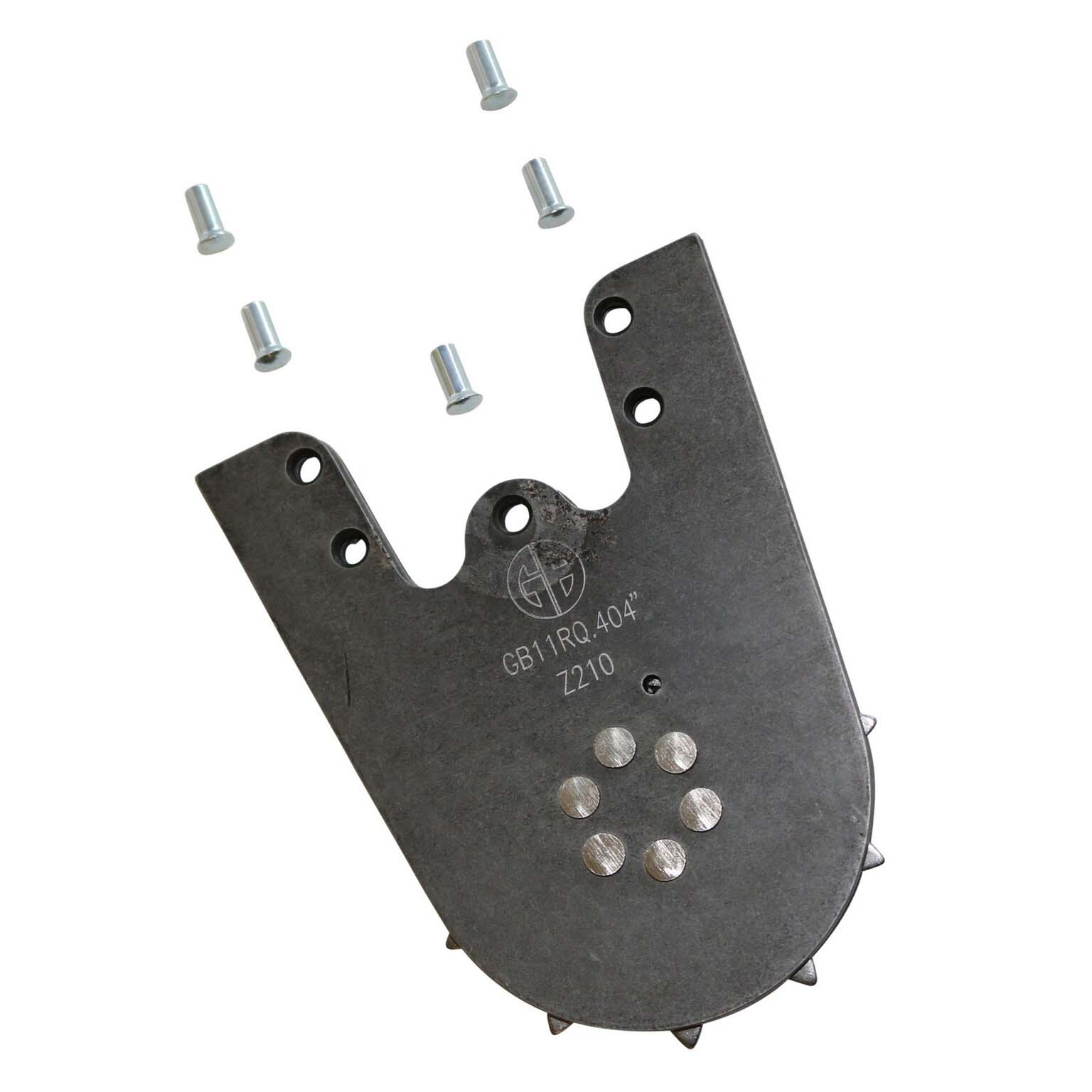

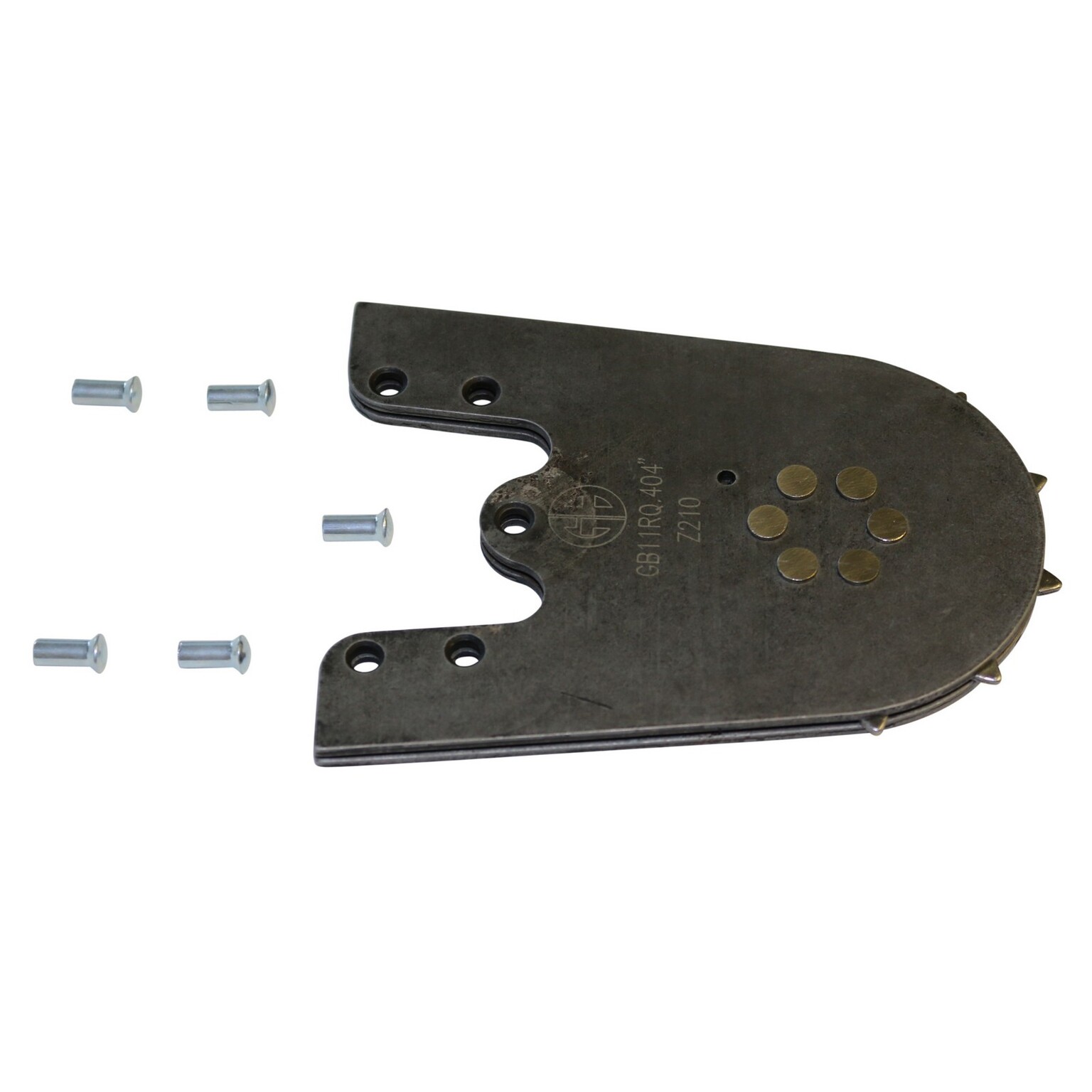

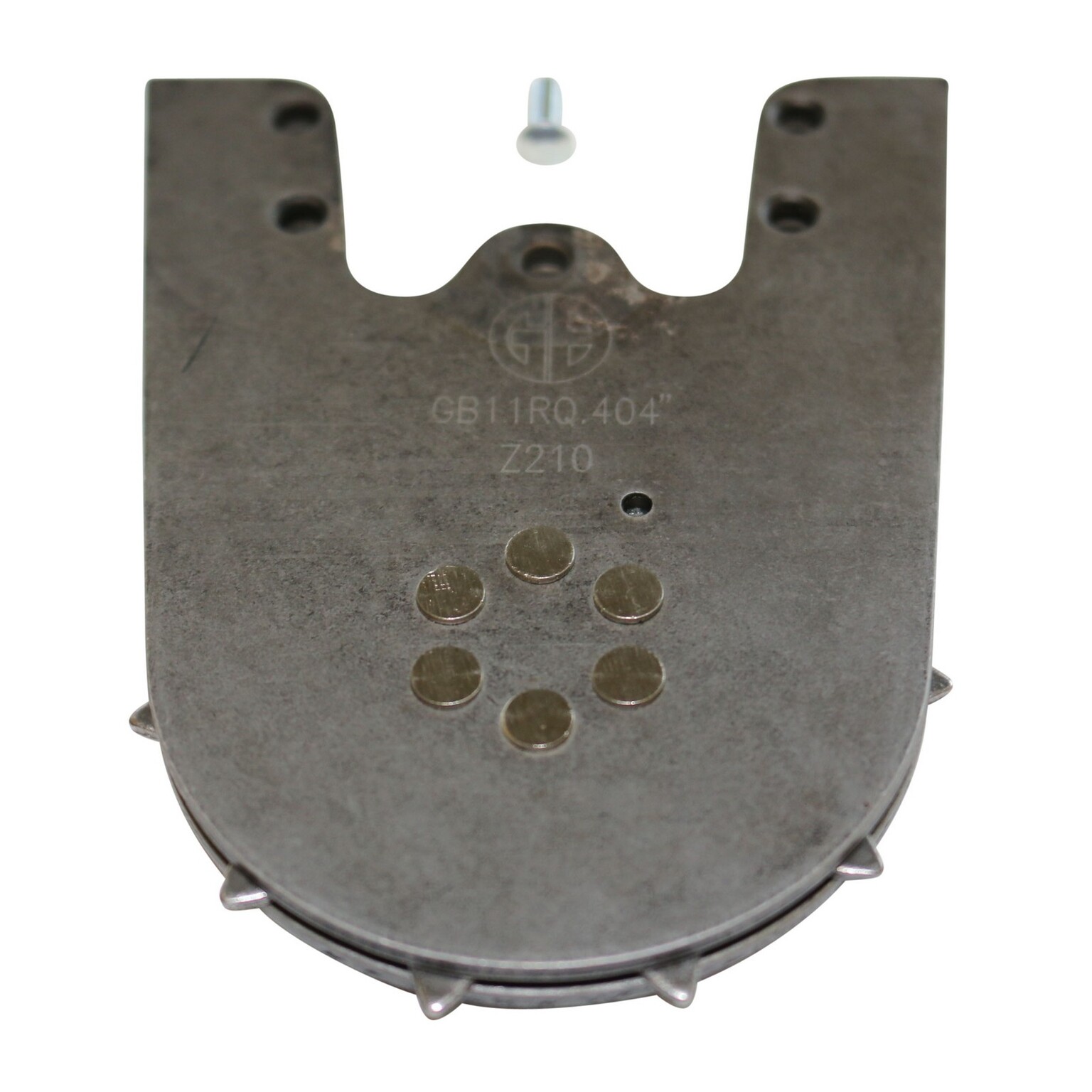

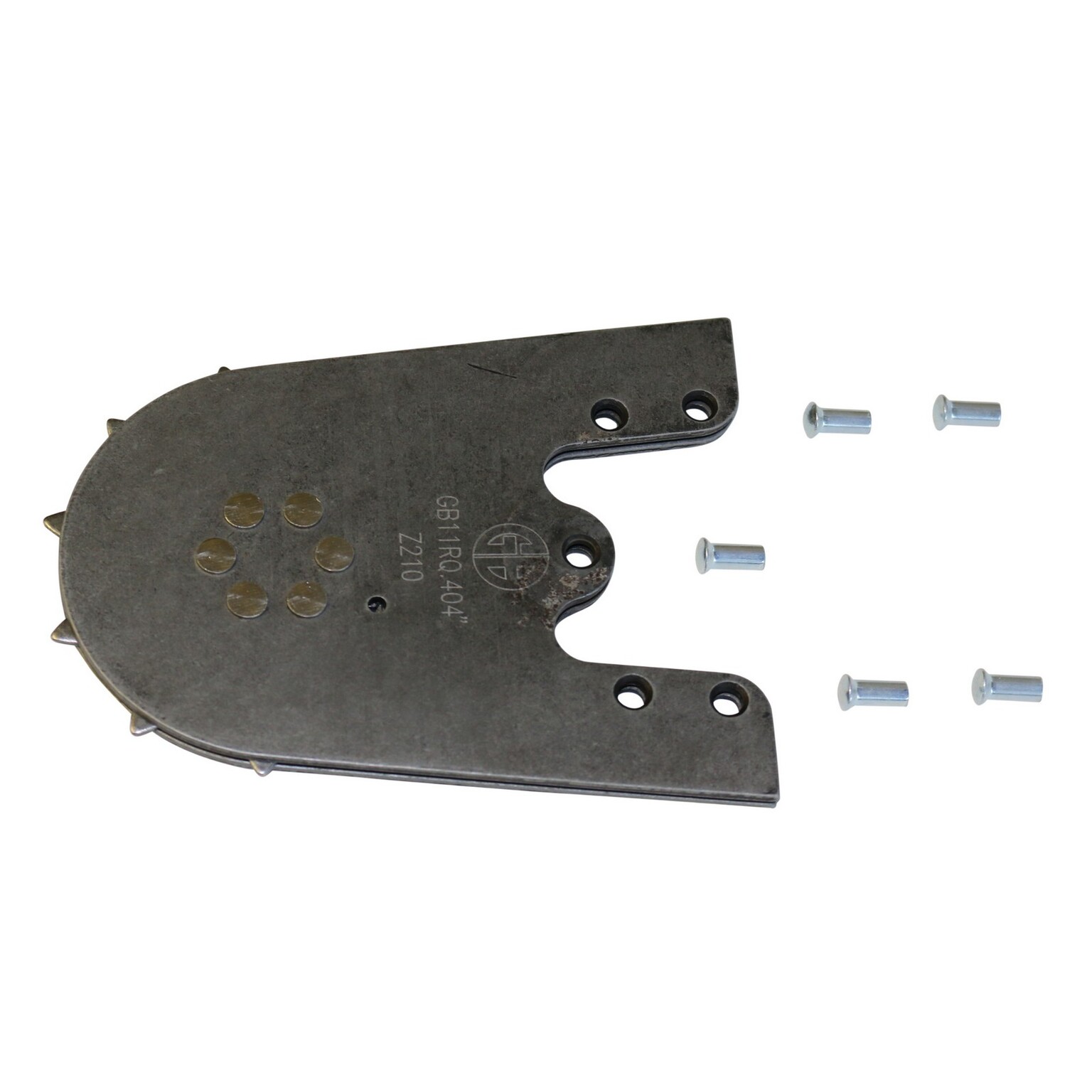

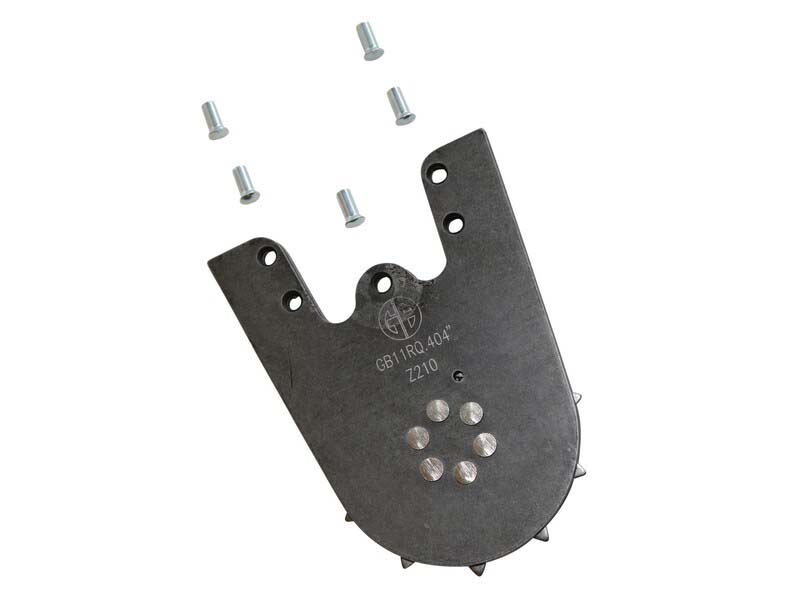

Chainsaw Sprocket Nose Tip for GB Extra Long Titanium Bar 404 063 5 Rivet

Genuine GB replacement sprocket nose tip for GB Extra Long Titanium bars in .404" pitch, .063 gauge.

The nose sprocket is the part that wears out first on a replaceable-tip bar. Replacing the tip costs a fraction of a new bar, and gets you back to clean, straight cuts. Made in Australia.

Specifications:

Spec	Detail
Pitch	.404"
Gauge	.063"
Mounting	5 rivet
Rivets	5 rivets included
Suits	GB Extra Long Titanium bars
Made in	Australia

Suits:

GB Extra Long Titanium chainsaw bars running .404" pitch, .063 gauge chain.

This nose is made for GB Extra Long Titanium bars only. Nose tips are not interchangeable between brands or bar ranges — a Hurricane, Oregon or Tsumura bar needs its own matching nose, and so do other GB ranges.

Please note:

Sale is for the bar nose only. The bar itself is not included.

Fitting it:

This is a workshop job rather than a field repair, but it's straightforward with the right tools:

Drill or punch out the five rivets holding the old nose
Slide the old nose out and fit the new one
Place the five new rivets through the mounting holes
Peen the rivet heads flat with a ball-peen hammer, working against a heavy, solid surface such as an anvil or vice

The rivets are included, so there is nothing else to buy.

Take your time peening — the rivets need to be properly flattened to hold the nose securely under load.

WARRANTY OVERVIEW

Jono & Johno offers a 12-month warranty on most products.

We pride ourselves on selling good quality gear and will be fair and prompt in honouring our warranties. If you’re in trouble, we’ll help you out.

WHAT IS COVERED?

The exact warranty coverage depends on two factors:

Whether the fault is due to user error or a manufacturer defect
Whether the fault is minor or major

Minor faults caused by the user

Parts will be supplied for repair at the user's expense.

Minor faults caused by the manufacturer

Customers are expected to perform basic repairs as part of our warranty process.
Jono & Johno will provide replacement parts and instructions for simple repairs, such as installing a recoil starter.
Jono & Johno will determine whether a fault is classified as minor.
If unsure about a repair, contact us, and we’ll assist you.

Major faults caused by the manufacturer

Jono & Johno will arrange a return, refund, or replacement at our expense.
If preferred (and at our discretion), we may provide replacement parts and contribute to labour costs if you can perform the repair.

Major faults caused by the user

Where possible, parts will be supplied at the user's expense.
If the item cannot be repaired by the user, we offer repairs at our workshop at $80 AUD per hour.
The customer will need to cover return shipping costs for user-related faults.

RETURN PROCESS & SHIPPING COSTS

If you need to return your product:

In-store return: If you're near a Jono & Johno outlet, you can return the product in person. Contact us first to arrange a return authority.
Shipping return: If you are not within driving distance, we will provide a return address.
- If the fault is due to a manufacturer defect, we’ll cover return costs.
- If the fault is user-related, the customer is responsible for return shipping.

EXCEPTIONS TO THE RULE

Some products are not covered by warranty, including:

Engines used in go-karts and stump grinders

OUT-OF-WARRANTY PRODUCTS

If your product is out of warranty and has failed despite minimal use, contact us. We may assess it on a case-by-case basis. If a manufacturer defect is identified, we aim to be fair in resolving the issue—but this is at our discretion.

SKU	GB11RQ
Model #	GB11RQ
Barcode #	687398677139
Brand	GB
Shipping Weight	0.2000kg
Shipping Width	0.080m
Shipping Height	0.010m
Shipping Length	0.115m
Shipping Cubic	0.000125000m3
Unit Of Measure	ea
Assembled Length	0.115m
Assembled Height	0.010m
Assembled Width	0.080m
