Drive Gear Repair Kit for Kohler SV540 SV590 Courage Starter Motor 15 to 20 HP Models

HOW TO CHECK IF THIS STARTER MOTOR DRIVE GEAR REPAIR KIT IS THE ONE YOU NEED:

Count the number of drive teeth on your starter motor’s drive gear. There should be 14 teeth.
Check what the drive gear on your old starter motor is made from. If it is steel then this starter kit is suitable.

This is an aftermarket replacement starter motor drive gear repair kit.

Email or call us with any questions using below contact details.

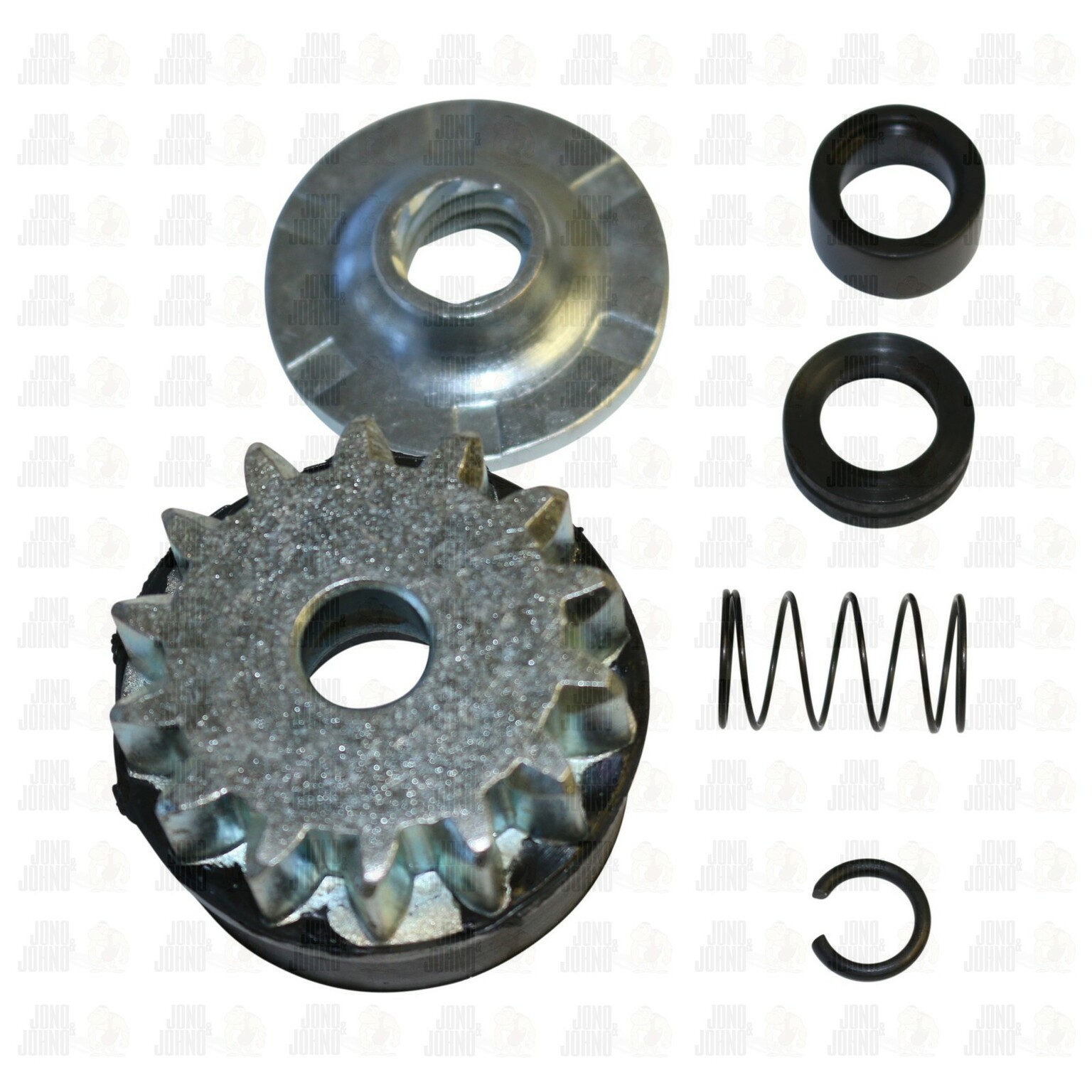

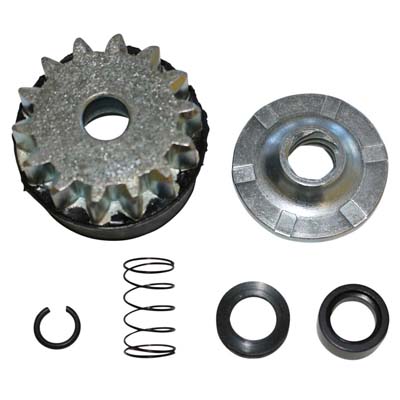

Kit includes:

14 teeth drive gear
return spring
retention plate
6mm wide washer
8mm wide washer
C clip

Specifications:

Drive 14 Teeth - Counter Clockwise Rotation.
Drive Pinion Dia. 43.6mm / 1.717"
Quality Aftermarket Replacement Part

Suits starter motors with the following OEM numbers:

Case/New Holland: K0H2009805S

Cub Cadet: KH20-098-05S

Kohler: 20-098-01 - 20-098-01S - 20-098-05 - 20-098-05S - 20-098-06 - 20-098-06S - 20-098-08 - 20-098-08S - 20-098-10 - 20-098-10S - 20-098-11 - 20-098-11S - K2009811S

Lester: 5796

Suits the following models:

SV470 15 HP
SV470-0004 15 HP
SV470-0005 15 HP
SV470-0006 15 HP
SV470-0011 15 HP
SV470-0104 15 HP
SV470-0105 15 HP
SV470-0123 15 HP
SV470-0213 15 HP
SV470-3213 15 HP
SV471-3211 15 HP

SV530 17 HP
SV530-0007 17 HP
SV530-0008 17 HP
SV530-0016 17 HP
SV530-0017 17 HP
SV530-0025 17 HP
SV530-0034 17 HP
SV530-0213 17 HP
SV530-3213 17 HP
SV530-3224 17 HP
SV530-3225 17 HP

SV540 18 HP
SV540-0004 18 HP
SV540-0009 18 HP
SV540-0011TURFCARE 18 HP
SV540-0024 18 HP
SV540-0025 18 HP
SV540-0026 TURFCARE 18 HP
SV540-0212 18 HP
SV540-0213 18 HP
SV540-3032 KUBOTA 18 HP
SV540-3202 RFI 18 HP
SV540-3210 COX INDUSTRIES 18 HP
SV540-3212 HUSQVARNA 18 HP
SV540-3216 GGP ITALY 18 HP
SV540-3217 GGP SWEDEN 18 HP
SV540-3219 MTD 18 HP
SV540-3220 MTD 18 HP
SV540-3222 HOP 18 HP
SV540-3223 KUBOTA 18 HP
SV540-3225 SIMPLICITY 18 HP
SV540-3226 MTD 18 HP
SV540-3227 MTD 18 HP
SV540-3228 MTD 18 HP
SV540-3230 MTD 18 HP
SV540-3231 SHIVVERS 18 HP
SV540-3232 KUBOTA 18 HP
SV540-3233 KUBOTA 18 HP
SV540-3234 KUBOTA 18 HP
SV541-3200 MARKETING 18 HP
SV541-3210 HUSQVARNA 18 HP
SV541-3212 MTD 18 HP
SV541-3213 KUBOTA 18 HP
SV541-3214 KUBOTA 18 HP
SV541-3216 GGP ITALY 18 HP

SV590-0001 ELECTROLUX HOME PRODUCTS 19 HP
SV590-0002 EHP - SEARS 19 HP (2004)
SV590-0003 MTD 19 HP
SV590-0004 HUSQVARNA 19 HP
SV590-0005 CUB CADET 19 HP
SV590-0006 HUSQVARNA 19 HP
SV590-0007 HUSQVARNA 19 HP
SV590-0008 CUB CADET 19 HP
SV590-0009 EHP 19 HP
SV590-0010 SEARS 19 HP
SV590-0011 MTD 19 HP
SV590-0012 POULAN PRO 19 HP
SV590-0013 MTD 19 HP
SV590-0014 ARIENS 19 HP
SV590-0015 BASIC 19 HP
SV590-0016 MTD 19 HP
SV590-0017 MTD 19 HP
SV590-0018 YARDMAN/GUTBROD 19 HP
SV590-0019 TORO 19 HP
SV590-0020 HUSQVARNA 19 HP
SV590-0021 HUSQVARNA 19 HP
SV590-0022 EXCEL HUSTLER 19 HP
SV590-0023 TORO 19 HP
SV590-0024 MTD 19 HP
SV590-0200 BASIC 19 HP
SV590-0210 HUSQVARNA 19 HP
SV590-0211 EXCEL HUSTLER 19 HP
SV590-0212 TORO 19 HP
SV590-0213 TORO 19 HP
SV590-0218 HOP 19 HP
SV590-0219 MTD 19 HP
SV590-0220 MTD 19 HP
SV590-0221 MTD 19 HP
SV590-0223 MTD 19 HP
SV590-0224 MTD 19 HP

WARRANTY OVERVIEW

Jono & Johno offers a 12-month warranty on most products.

We pride ourselves on selling good quality gear and will be fair and prompt in honouring our warranties. If you’re in trouble, we’ll help you out.

WHAT IS COVERED?

The exact warranty coverage depends on two factors:

Whether the fault is due to user error or a manufacturer defect
Whether the fault is minor or major

Minor faults caused by the user

Parts will be supplied for repair at the user's expense.

Minor faults caused by the manufacturer

Customers are expected to perform basic repairs as part of our warranty process.
Jono & Johno will provide replacement parts and instructions for simple repairs, such as installing a recoil starter.
Jono & Johno will determine whether a fault is classified as minor.
If unsure about a repair, contact us, and we’ll assist you.

Major faults caused by the manufacturer

Jono & Johno will arrange a return, refund, or replacement at our expense.
If preferred (and at our discretion), we may provide replacement parts and contribute to labour costs if you can perform the repair.

Major faults caused by the user

Where possible, parts will be supplied at the user's expense.
If the item cannot be repaired by the user, we offer repairs at our workshop at $80 AUD per hour.
The customer will need to cover return shipping costs for user-related faults.

RETURN PROCESS & SHIPPING COSTS

If you need to return your product:

In-store return: If you're near a Jono & Johno outlet, you can return the product in person. Contact us first to arrange a return authority.
Shipping return: If you are not within driving distance, we will provide a return address.
- If the fault is due to a manufacturer defect, we’ll cover return costs.
- If the fault is user-related, the customer is responsible for return shipping.

EXCEPTIONS TO THE RULE

Some products are not covered by warranty, including:

Engines used in go-karts and stump grinders

OUT-OF-WARRANTY PRODUCTS

If your product is out of warranty and has failed despite minimal use, contact us. We may assess it on a case-by-case basis. If a manufacturer defect is identified, we aim to be fair in resolving the issue—but this is at our discretion.

SKU	Start-037
Model #	Start-037
Barcode #	681087037594
Brand	JONO & JOHNO
Shipping Weight	0.2830kg
Shipping Width	0.120m
Shipping Height	0.030m
Shipping Length	0.170m
Shipping Cubic	0.000125000m3
Unit Of Measure	ea
Assembled Length	0.170m
Assembled Height	0.030m
Assembled Width	0.120m
