SKU : elecfencekit-11
Electric Fence Kit 5-8km Solar Energiser, 150 Pinlock Insulators, Polytape, Gate Handles & Signs
Already got star pickets in the ground? This kit runs a live fence line along them.
Unlike our tread-in post kits, this one is built for a permanent fence line you've already got standing. The 150 pinlock insulators mount onto standard star pickets and carry the polytape, holding it clear of the steel so no current passes into the pickets themselves — the pickets stay dead, the tape stays live. That lets you run a hot line along an existing boundary without pulling anything out or putting new posts in.
Please note: star pickets are NOT included. This kit supplies the insulators, tape, energiser and earthing gear only. If you're starting from bare paddock with no fence line in place, one of our tread-in post kits will suit you better.

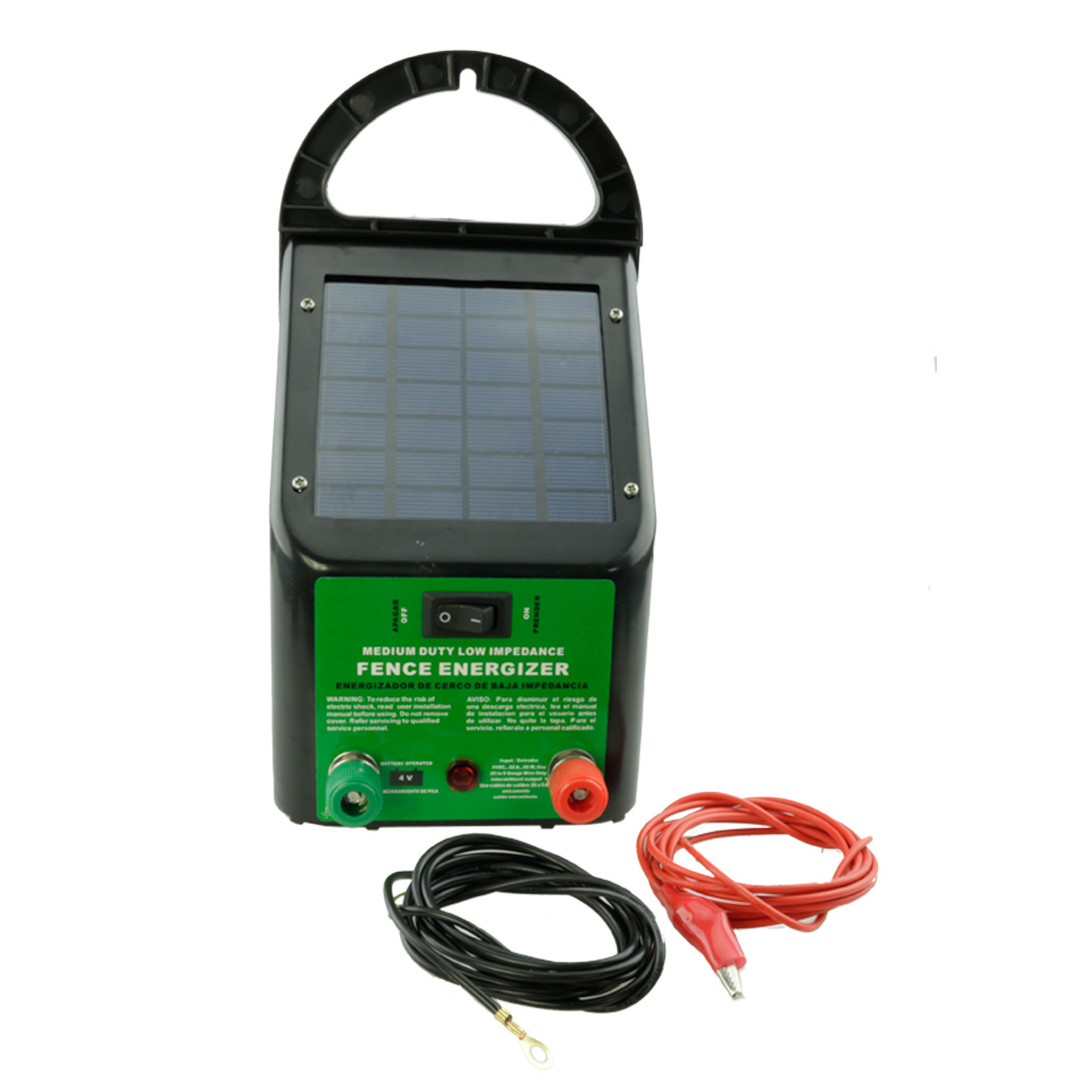

The included 5-8km energiser is a tough little unit, built to run entirely off-grid — no mains power needed, no fuss.
| Spec | Detail |
|---|---|
| Operating Range | 5–8km of fencing |
| Output | 7kV (open circuit, intermittent) |
| Output Energy | 0.4 Joules |
| Stored Energy | 0.6 Joules |
| Input | 4V DC, 0.02A, 60Hz, 0.8 watt |
| Battery | 4.6Ah rechargeable lead acid (included, built in) |
| Dimensions | 15cm L x 15cm W x 29cm H |
| Weight | 1.35kg |
Why we rate it:
If you're not already set up with one, grab an electric fence tester while you're at it. It checks both energiser output and fence line output, so you know for certain your fence is live and doing its job — without one, you're setting up blind.
View our Electric Fence Voltage Testers
Please note: Given the size and range of gear in this kit, your order will be sent in two separate boxes.
Jono & Johno offers a 12-month warranty on most products.
We pride ourselves on selling good quality gear and will be fair and prompt in honouring our warranties. If you’re in trouble, we’ll help you out.
The exact warranty coverage depends on two factors:
Minor faults caused by the user
Minor faults caused by the manufacturer
Major faults caused by the manufacturer
Major faults caused by the user
If you need to return your product:
Some products are not covered by warranty, including:
If your product is out of warranty and has failed despite minimal use, contact us. We may assess it on a case-by-case basis. If a manufacturer defect is identified, we aim to be fair in resolving the issue—but this is at our discretion.
| SKU | elecfencekit-11 | |
| Model # | elecfencekit-11 | |
| Barcode # | 726597615556 | |
| Brand | JONO & JOHNO | |
| Shipping Weight | 11.7500kg | |
| Shipping Width | 0.050m | |
| Shipping Height | 0.050m | |
| Shipping Length | 0.050m | |
| Shipping Cubic | 0.000125000m3 | |

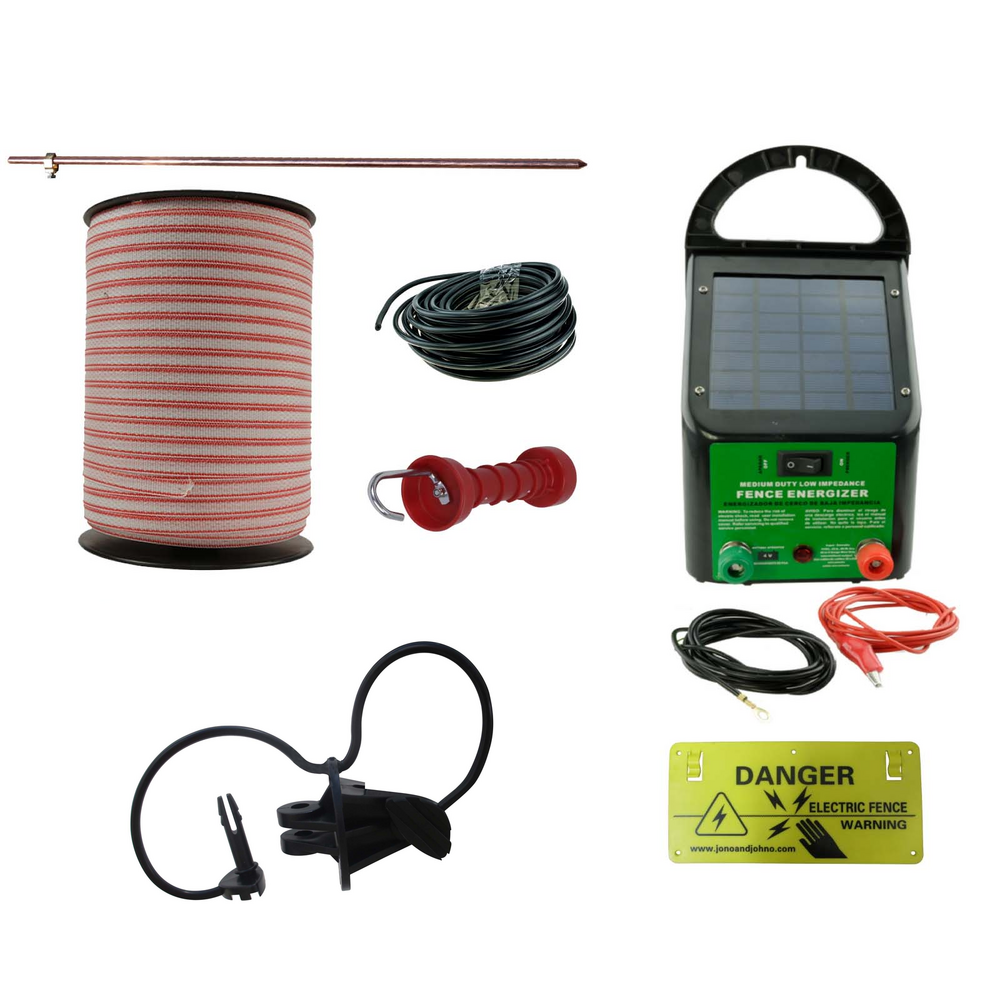

| Items included in the kit | ||
| Product Name | Quantity | SKU |
| 5-8km 0.4J Solar Power Electric Fence Energiser Charger for Poly Wire Tape Posts | 1 | 5-8KM-SEE |

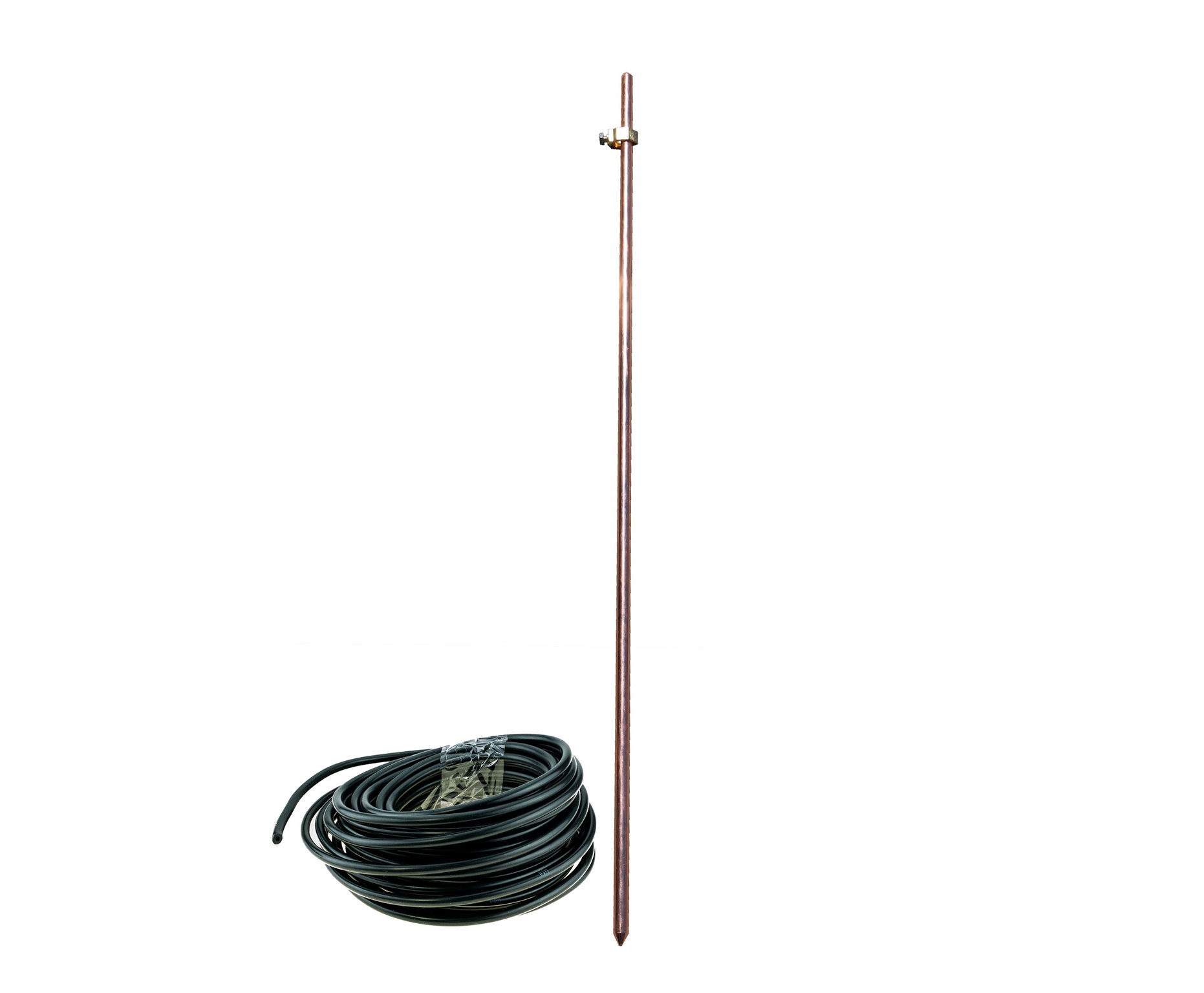

| 1x Earth Ground Rod with Clamps - Earthing Stake Grounding Pole | 1 | EarthRodx1 |

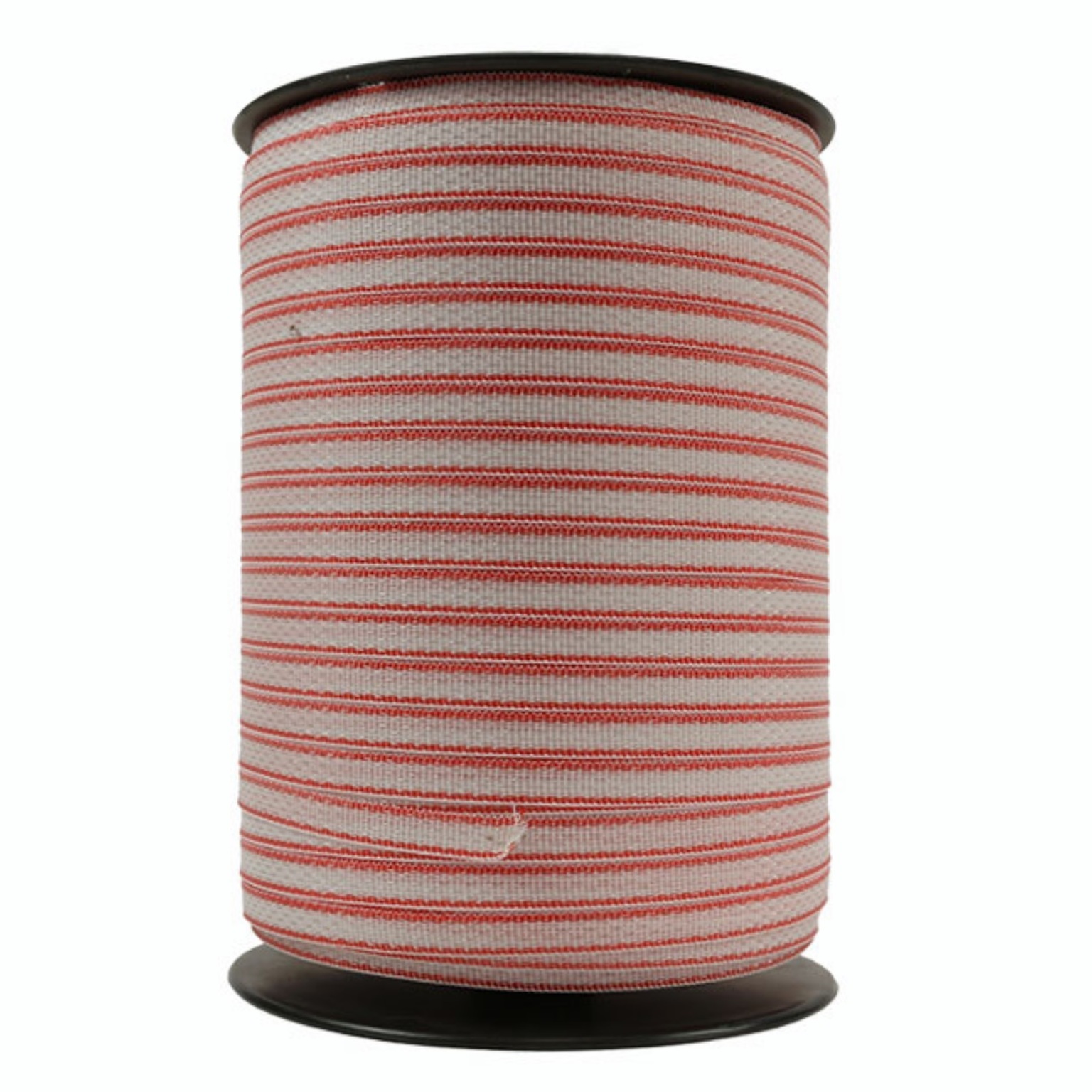

| 800m x 12mm Roll Polytape for Electric Fence Kit Stainless Steel Wire Poly Tape | 1 | EF-004 |

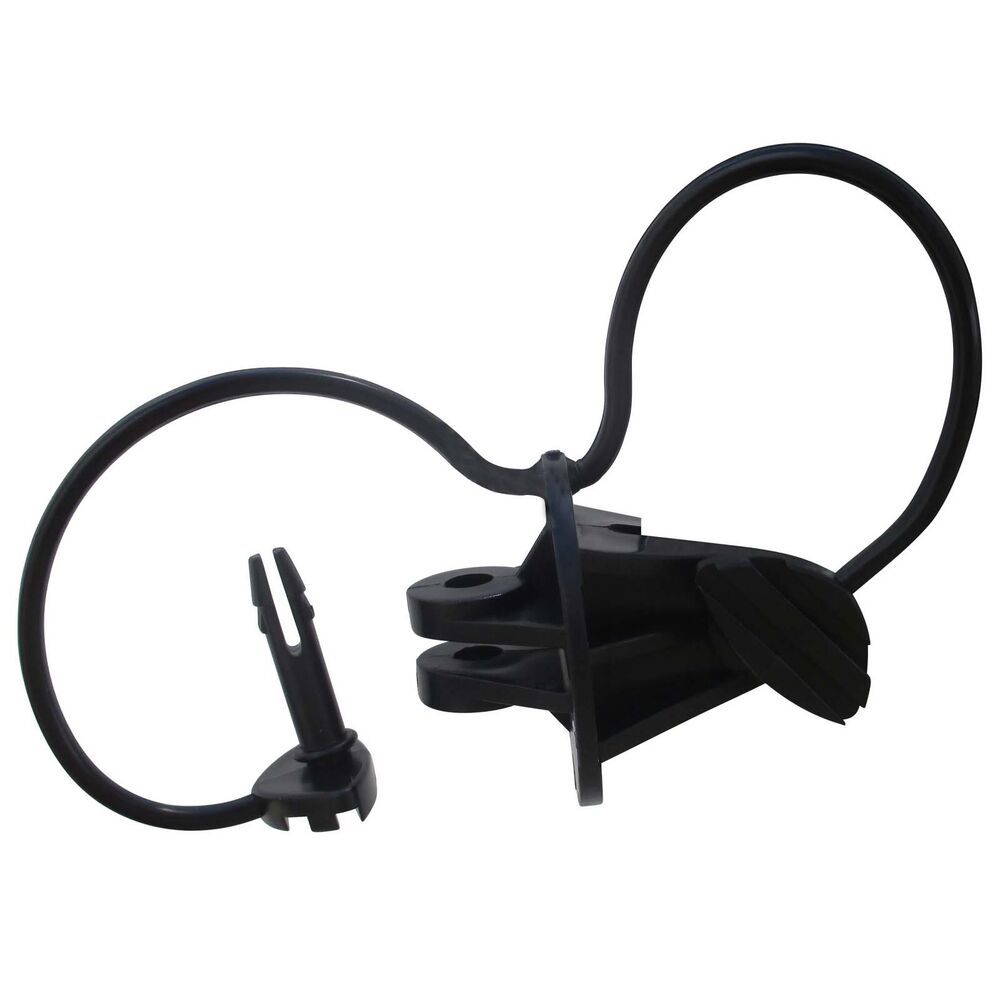

| 25x Pinlock Insulator for Star Picket Steel Electric Fence Post Insulators | 6 | EF-008 |

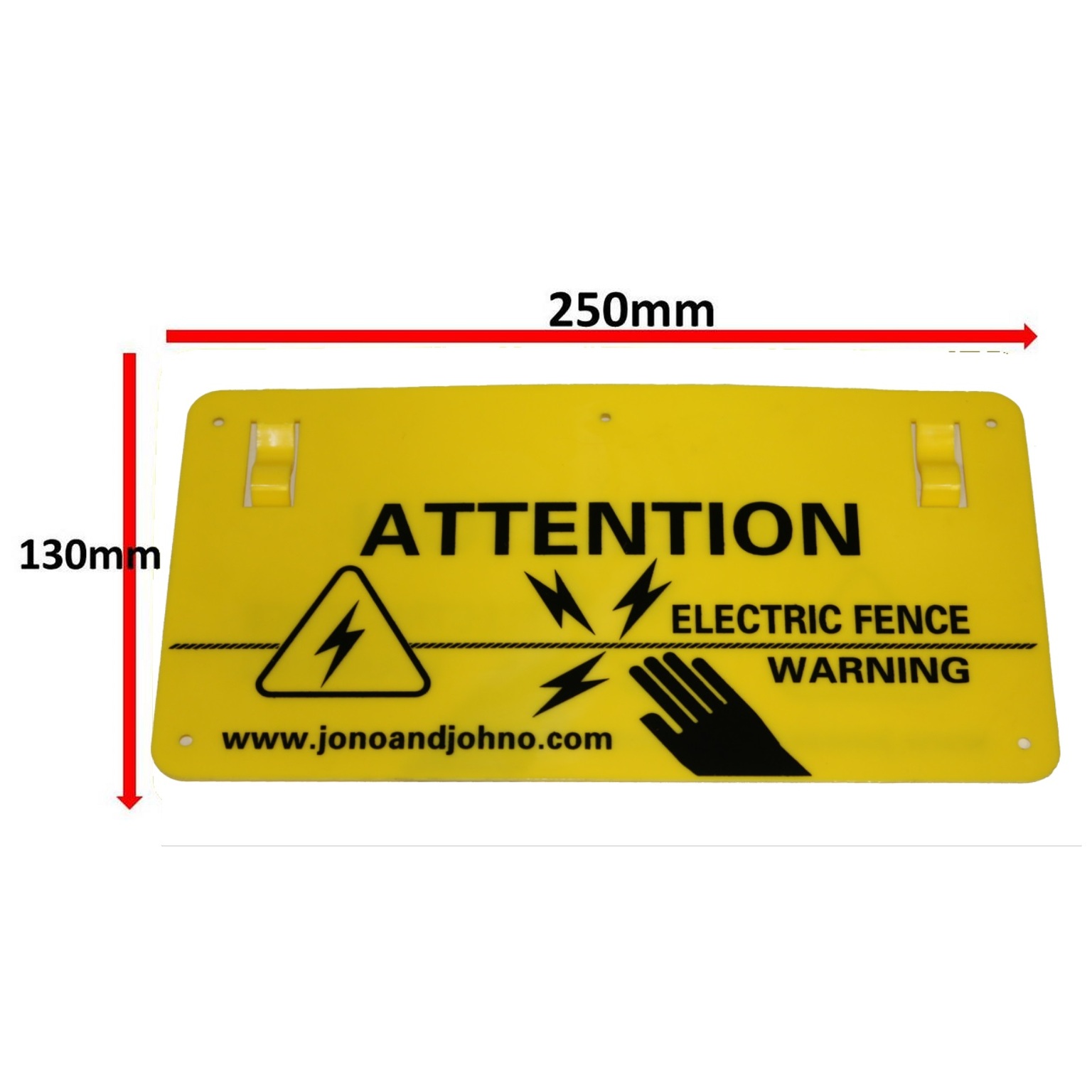

| 10x Electric Fence Warning Safety Sign Danger Farm Energizer Fencing | 1 | EF-011 |

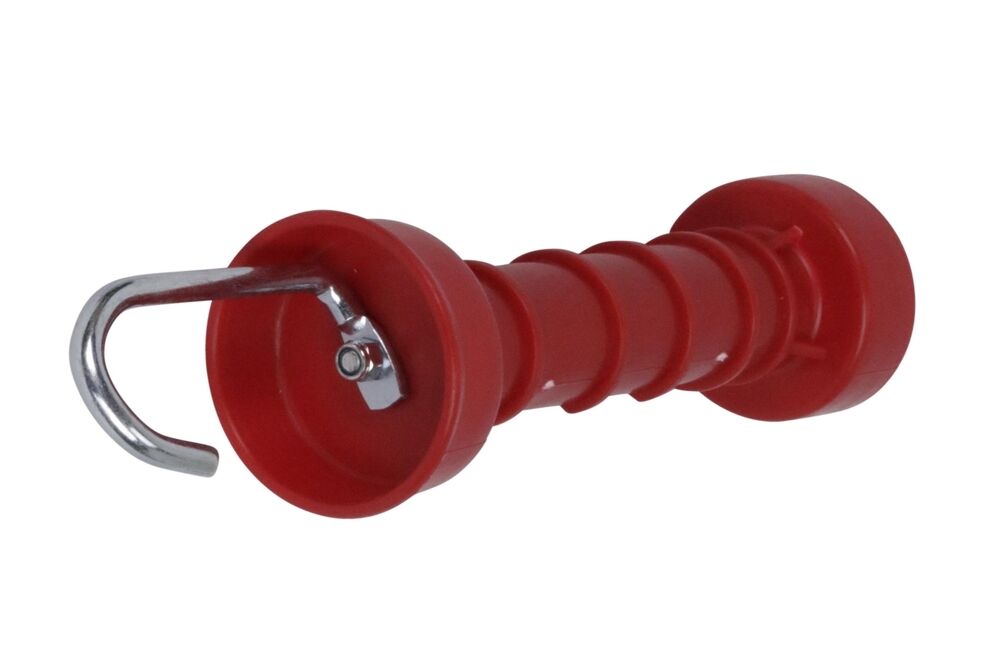

| 5x Insulated Electric Fence Farm Gate Handles - Gate Break Handles With Spring | 1 | EF-013 |
| 5m x 2.5mm Lead out wire for Electric Fence Earth System Cable for Grounding Rod Pole | 1 | EF-018 |
