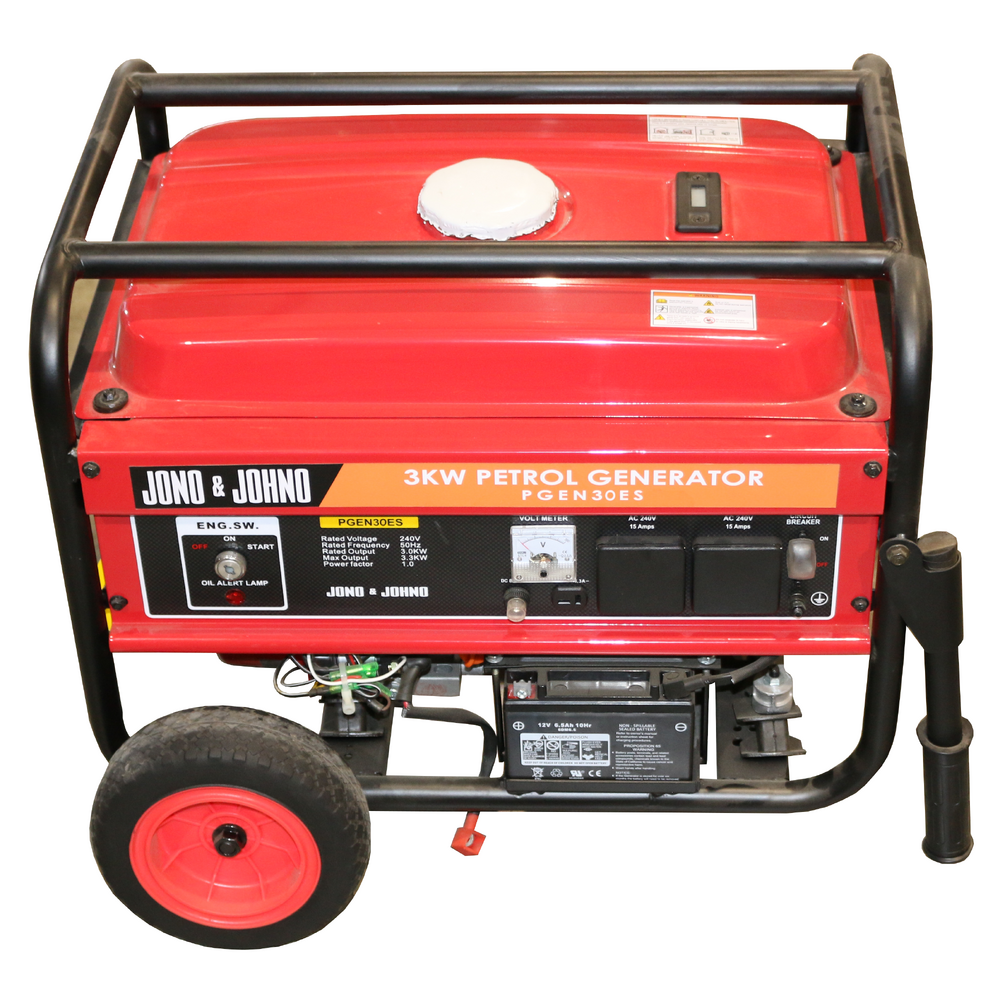

Jono & Johno Electric Start Single Phase 240v 3KW Generator

IMPORTANT FREIGHT NOTE

This generator will need to be delivered to a premises with forklift access or to a TNT freight depot. Please call us if you wish to have the generator delivered to a TNT freight depot.

This Jono & Johno 3kw generator is a high quality, reliable and competitively priced unit.

The 240v outlets are suitable to run your electronic devices as the generator is equipped with an automatic voltage regulator.

This includes laptops and mobile phones.

It is equipped with a circuit breaker which provides a failsafe from voltage overload.

The generator comes with a 12-months warranty and ongoing support from Jono & Johno.

FEATURES:

2x 240v outlets (15amp)

1x DC 12V 8.3A outlet

7hp Jono & Johno Engine

100% copper alternator

7amp battery for key start

Recoil and Electric Start (key start) option

15cm metal wheels for easy manoeuvrability

Circuit breaker and Volt meter

Noise: less or equal to 75db (measured 4 meters away from generator)



SPECIFICATIONS:

Engine	7HP
Rated Voltage	240v
Rated Frequency	50HZ
Rated Output	Single Phase 240v 3kw
Max Output	3kw
Power factor	1
Voltage Regulator	AVR
Voltage Fluctuation Rate	<2.5%
Frequency fluctuation rate	<1%
Starting System	Recoil & Electric Start
Fuel Capacity (L)	15 litres
Continuous Operating Time (H)	10 hours
Alternator Type	Brush
Oil	SAE 10W30
Fuel	Regular Unleaded
Alternator Material	100% Copper
Handles	Yes
Wheels	15cm solid plastic
Packing (LxWxH) (mm)	605 x 445 x 465
Weight (kg)	51 (including box)



We are often asked if our generators are powerful enough to run certain size electric motors. The only way we can advise on this with certainty is if you know how many Watts your motor will draw on start up and whilst running.

If you don’t have this information then the chart below can be used as a guide on the average draw that an electric motor will require. This is strictly to be used as a guide only. We cannot guarantee that these figures will convert directly to your electric motor, though they do hold true for most motors.

ELECTRIC MOTORS
Watts on Motor Name Plate	Average Running Watts	Average Starting Watts
180W (¼HP)	240	720
250W (⅓HP)	340	1000
370W (½HP)	500	1480
550W (¾HP)	740	2200
750W (1HP)	1000	3000
1100W (1½HP)	1475	4400
1500W (2HP)	2000	6000
1870W (2½HP)	2500	7450
2200W (3HP)	2950	8500
