PERLA BARB 91.6CC MILLING KIT WITH 42" BAR & CHAIN

Kit Includes:

• 1x 91.6cc Perla Barb Chainsaw
• 1x 18-48" Milling Attachment
• 1x 42" Hurricane Pro Bar
• 1x 3/8 063 135DL Full Chisel Skip Tooth Ripping 10 Deg Hurricane Chain

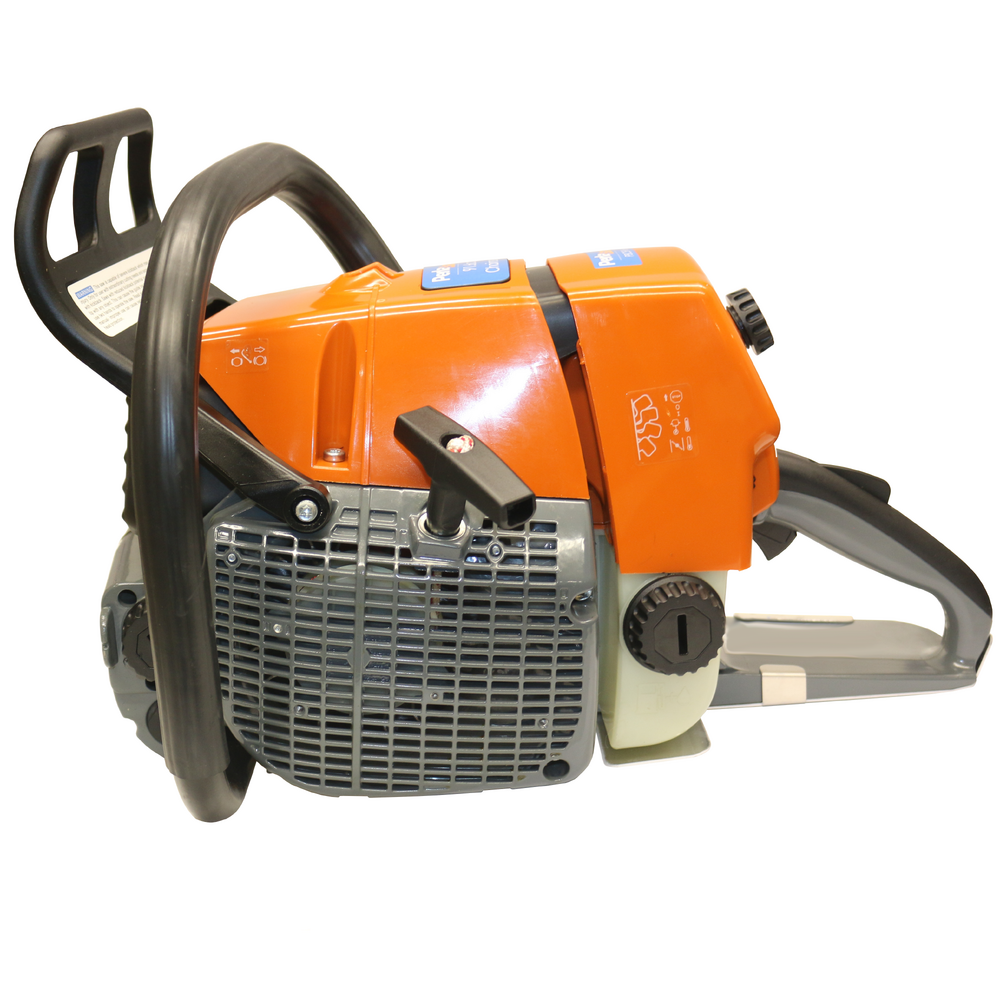

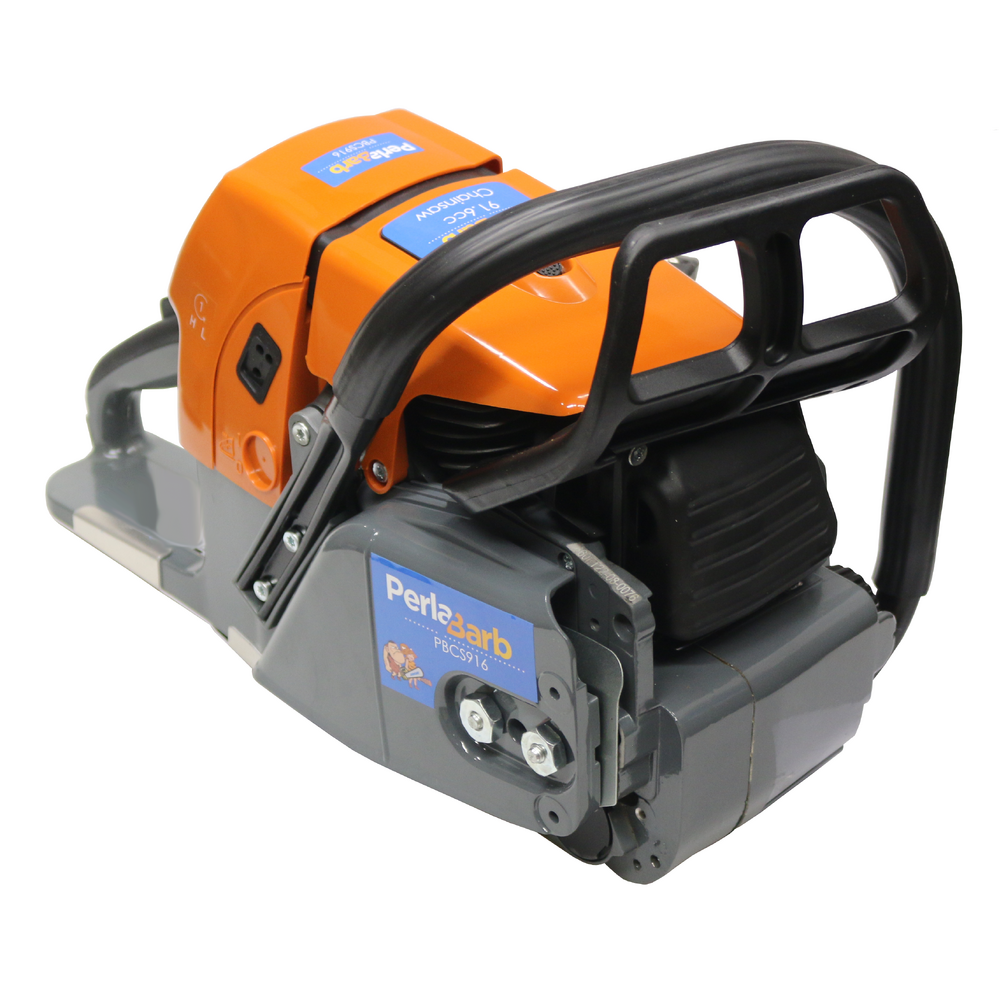

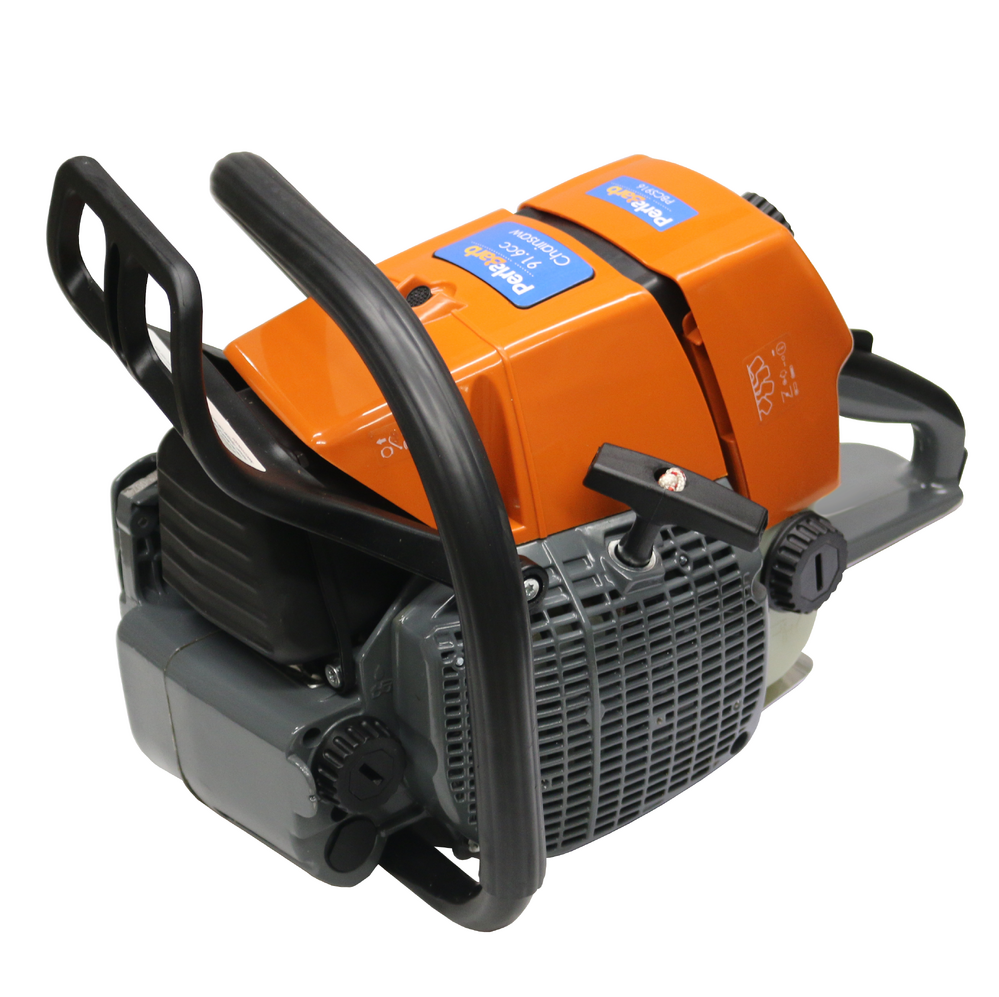

Perla Barb 91.6cc Chainsaw

Jono & Johno would like to present the 91.6cc Perla Barb V1 chainsaw.

The 91.6 cc Perla Barb V1 chainsaw is part of the Jono & Johno professional range of saws.

This is a good solid saw which, with regular maintenance, will last a long time. This is not a throwaway saw.

We stock ALL spare parts in our warehouse, so should you ever have any issues with the saw, in or out of warranty period, we’ll be able to help you out. THAT’S A GUARANTEE!

The warranty on the saw is a 12-month parts warranty. So if something goes wrong with the saw in the first 12 months of use, we can send you the parts, free of charge.

If you have any questions about our saw, don’t hesitate to give us a call or drop us an email.

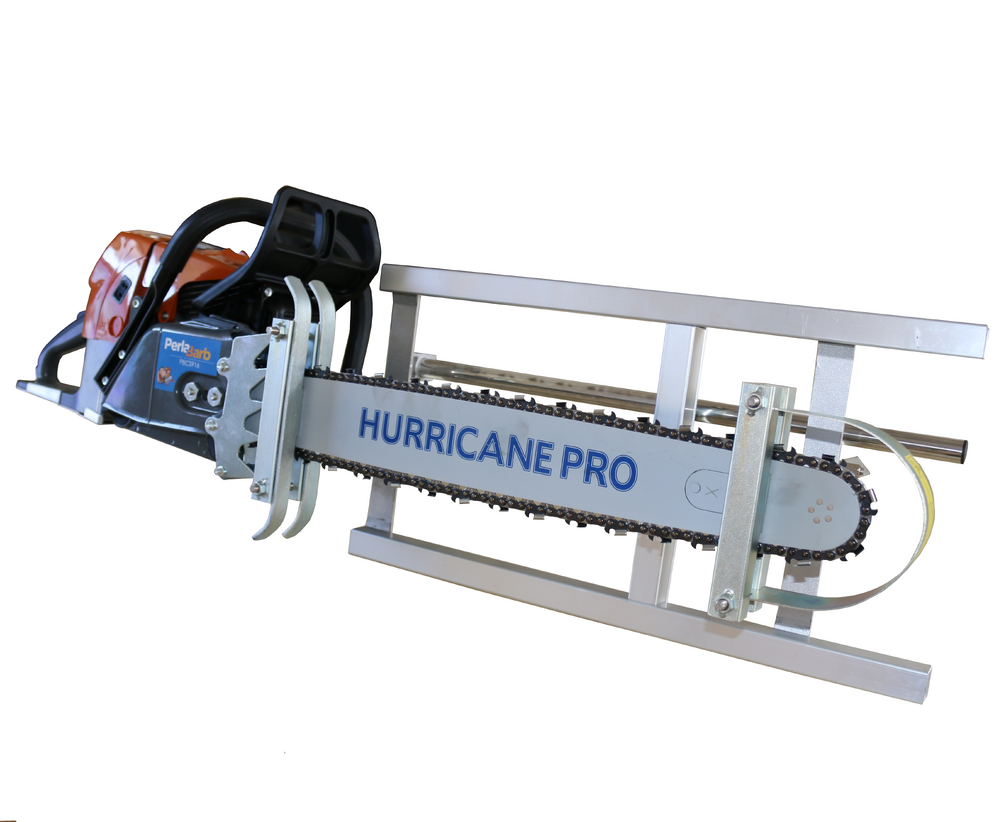

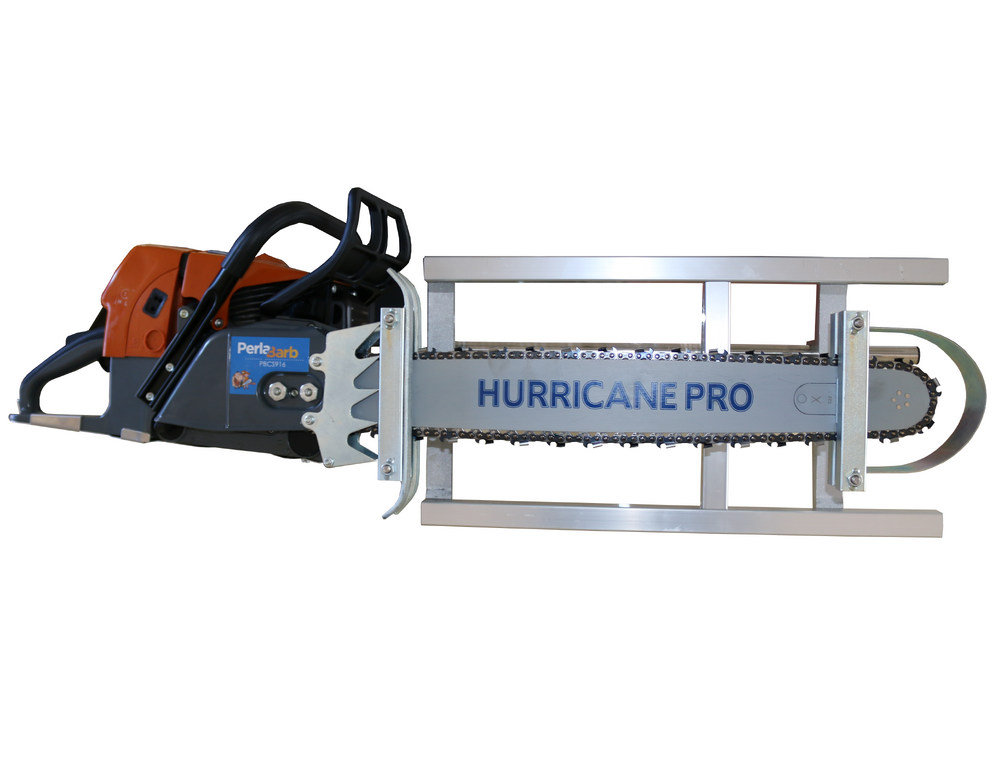

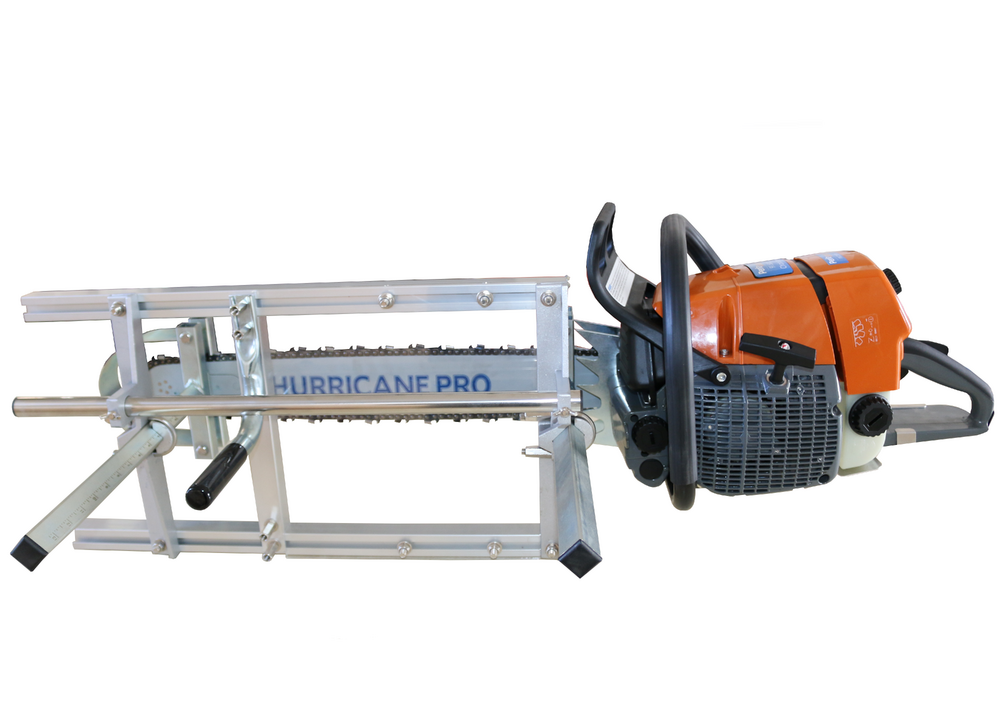

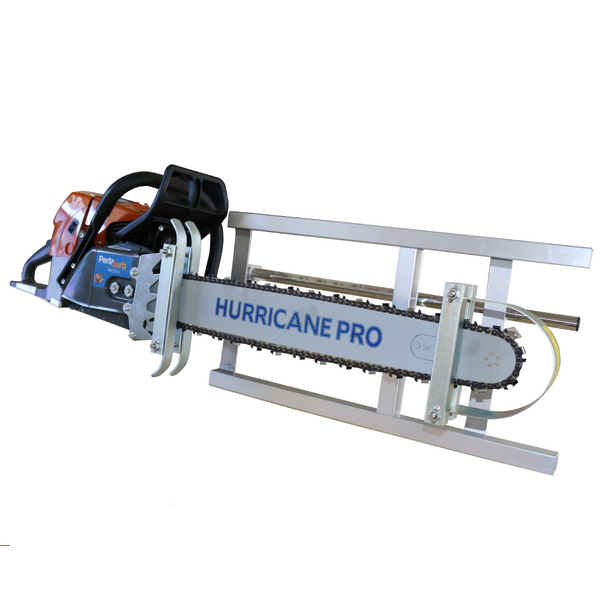

Jono & Johno chainsaw mill:

The Jono & Johno chainsaw mill will convert your chainsaw into a portable mill/slabbing machine! It comes with an adjustable chainsaw bar clamp, so you can mount your chainsaw fitted with a cutter bar. Simply clamp your chainsaw bar to the milling attachment and you now have your very own portable saw mill.

Light but sturdy, this mill is designed to produce smooth-cut slabs from your logs and trees. It is made of heavy-duty aluminium components and includes a protective plate made of Perspex.

This tool has a parallel bar that can have its distance adjusted from the chainsaw bar to provide different thickness slabs. The first slab is cut by using a couple of guide rails placed and secured onto the top of the log. You can then mill slabs between 1/2" to 13" thick.

Includes instruction manual and operation guide detailing assembly of mill and how to use it, with colour pictures.

Chainsaw Specifications:

• Technical Specs:

  Model: PBCS916 Perla Barb 91.6cc V1

  Engine Type - Single Cylinder 2-Stroke Engine

  Total Weight - 8KG (NO bar and chain)

  Cylinder Displacement - 91.6cc

  Power Output - 7.0HP

  Idle Speed - 2500 RPM

  Maximum Power Speed - 13,500 RPM

  Cylinder Bore - 54mm (2.13 inches)

  Cylinder Stroke - 40mm (1.57 inches)

  Spark plug: NGK = BPMR7A, Champion = RCJ7Y (0.5mm gap)

  Fuel System:

  Carburettor Type - Diaphragm Carburettor

  Air Filter - Heavy Duty Type

  Fuel Type - Unleaded 90+

  Fuel Mix - 2 Stroke 25:1

  Fuel Tank Volume - 825mL

  Cutting Attachments:

  Guide Bar - 16" to 42"

  Bar Mount - Hurricane (QR)

  Chain Sprocket - Standard 7 Tooth .3/8" Pitch

  Chain Lubrication - Fully Automatic Oil Pump

  Bar Oil Type - Bar and Chain Oil

  Oil Tank Capacity - 360mL

Hurricane Bar and Chain Specifications:

• Chain pitch: 3/8"
• Chain gauge: .063"
• Chain length: 136 drive links

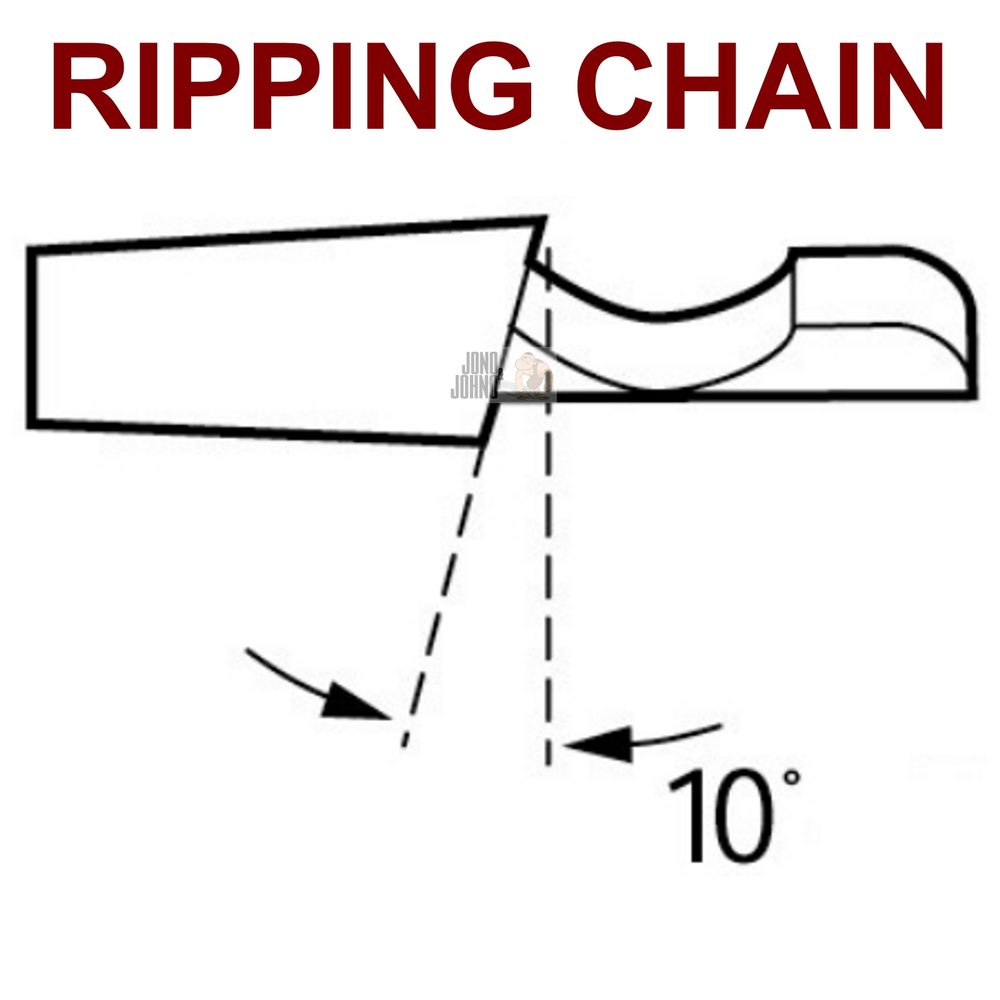

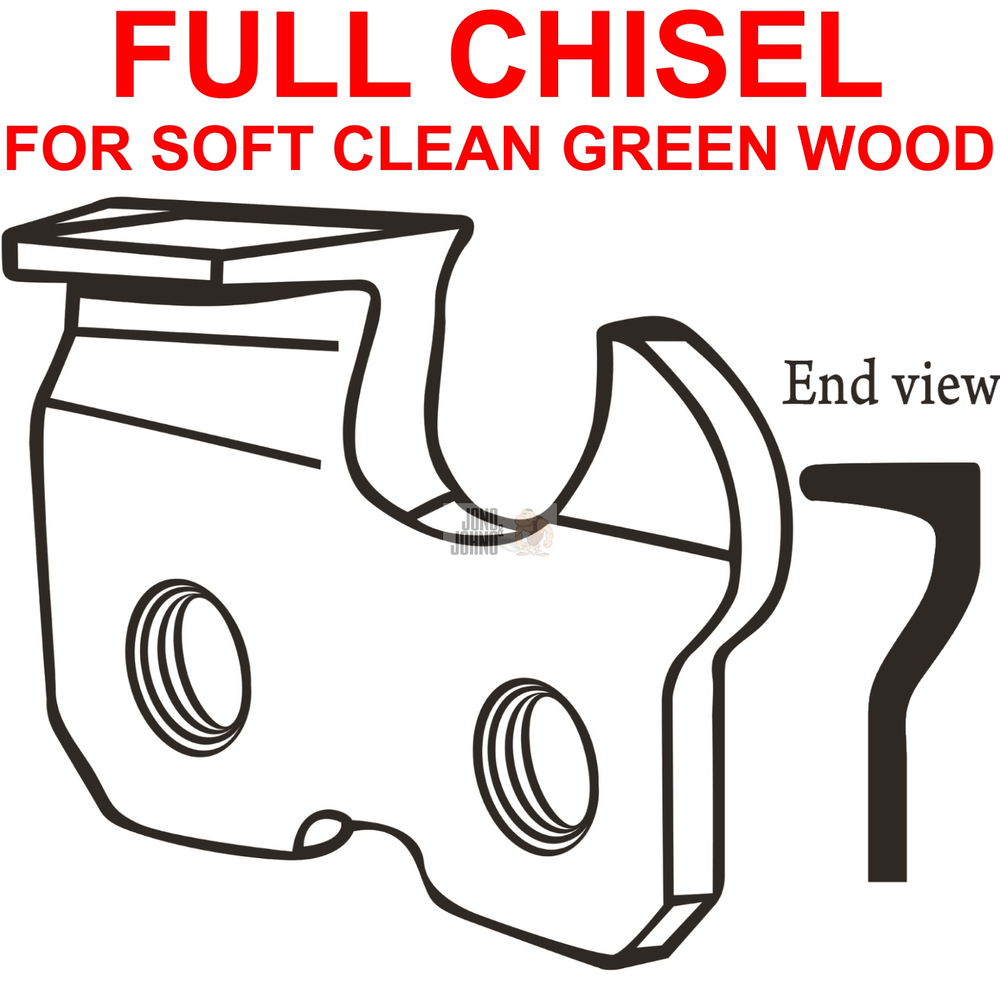

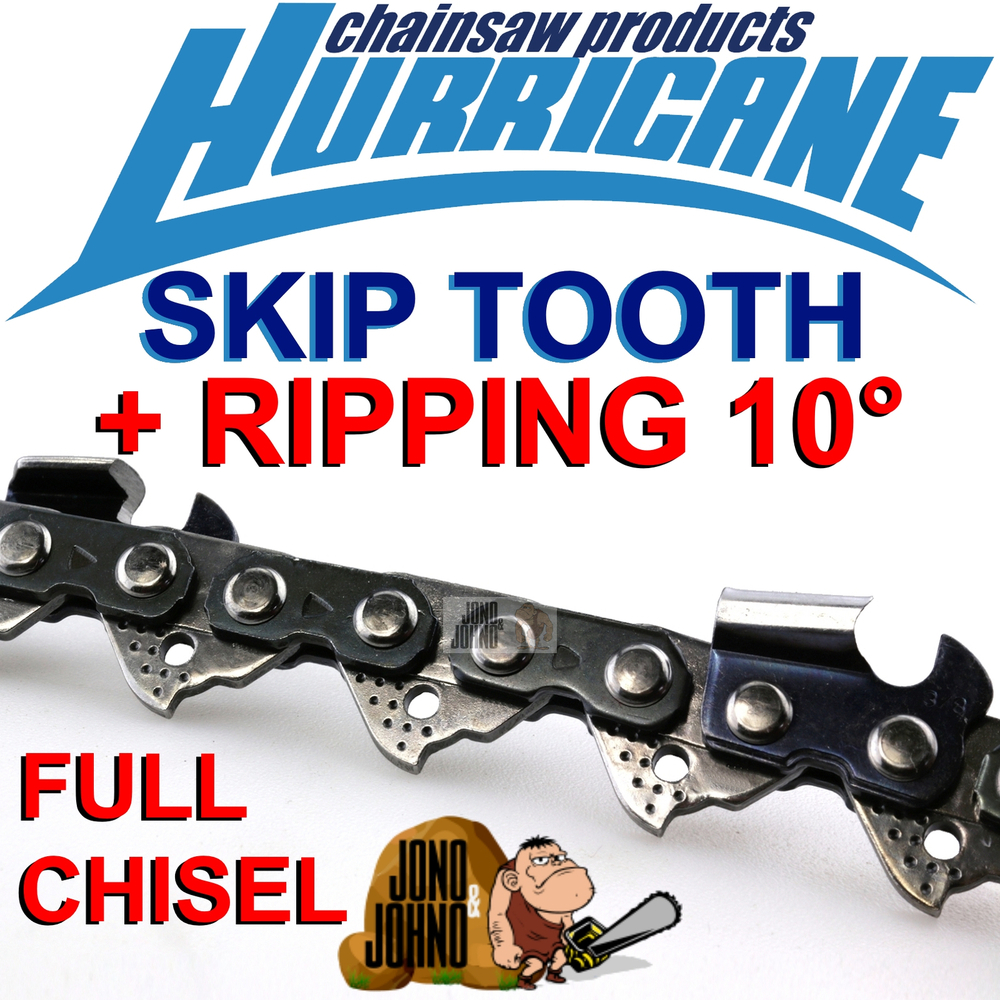

• Chain type: Skip Tooth Full Chisel Ripping (10 deg)

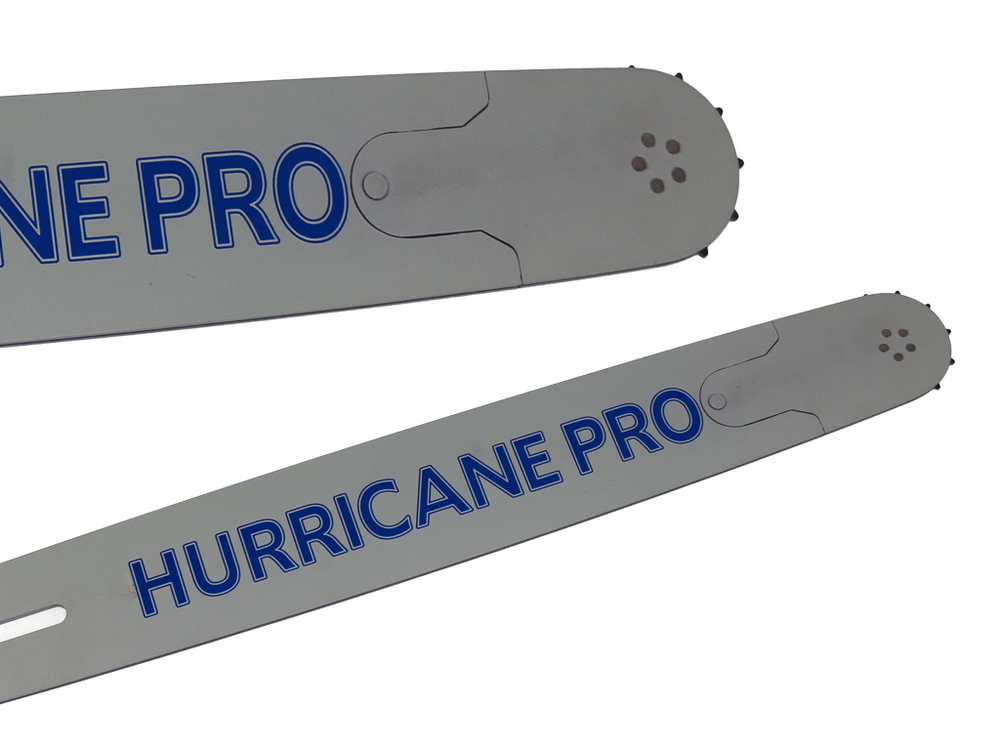

• Guide bar type: Professional sprocket nose
• Guide bar size: 42" (cutting length)

Milling Attachment Features:

• Aircraft grade 29mm square aluminum mill frame
• Square steel 25mm clamping pad brackets
• Tubular Steel 22mm handle bars
• Protective perspex plate to guard against injury
• Strong clamp to hold weight of all brand name chainsaws
• Suitable for chainsaws with a bar length between 18" and 48"
• Box dimmensions for shipping: 123cm x 33cm x 7cm
• Maximum slabbing width: 1100mm (43.3")
• Maximum slabbing thickness: 1/2" to 13" (12.7mm to 330mm)
