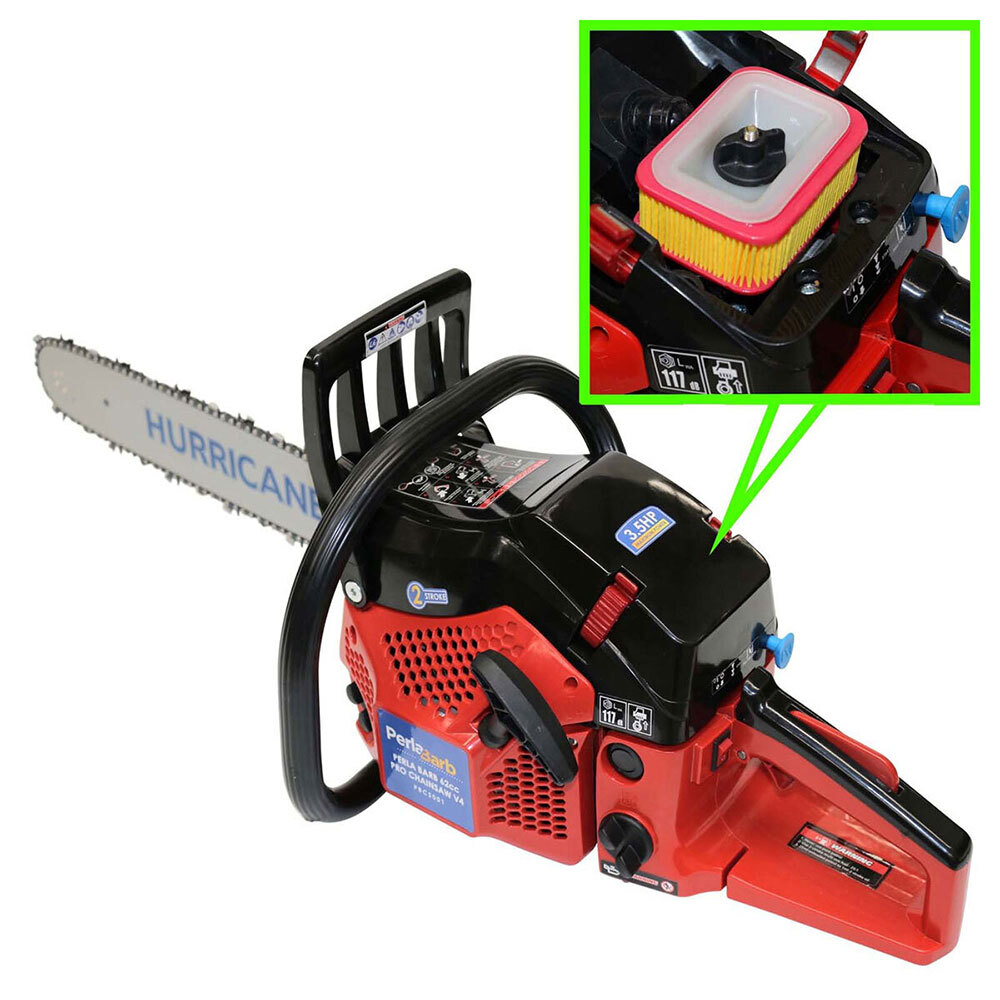

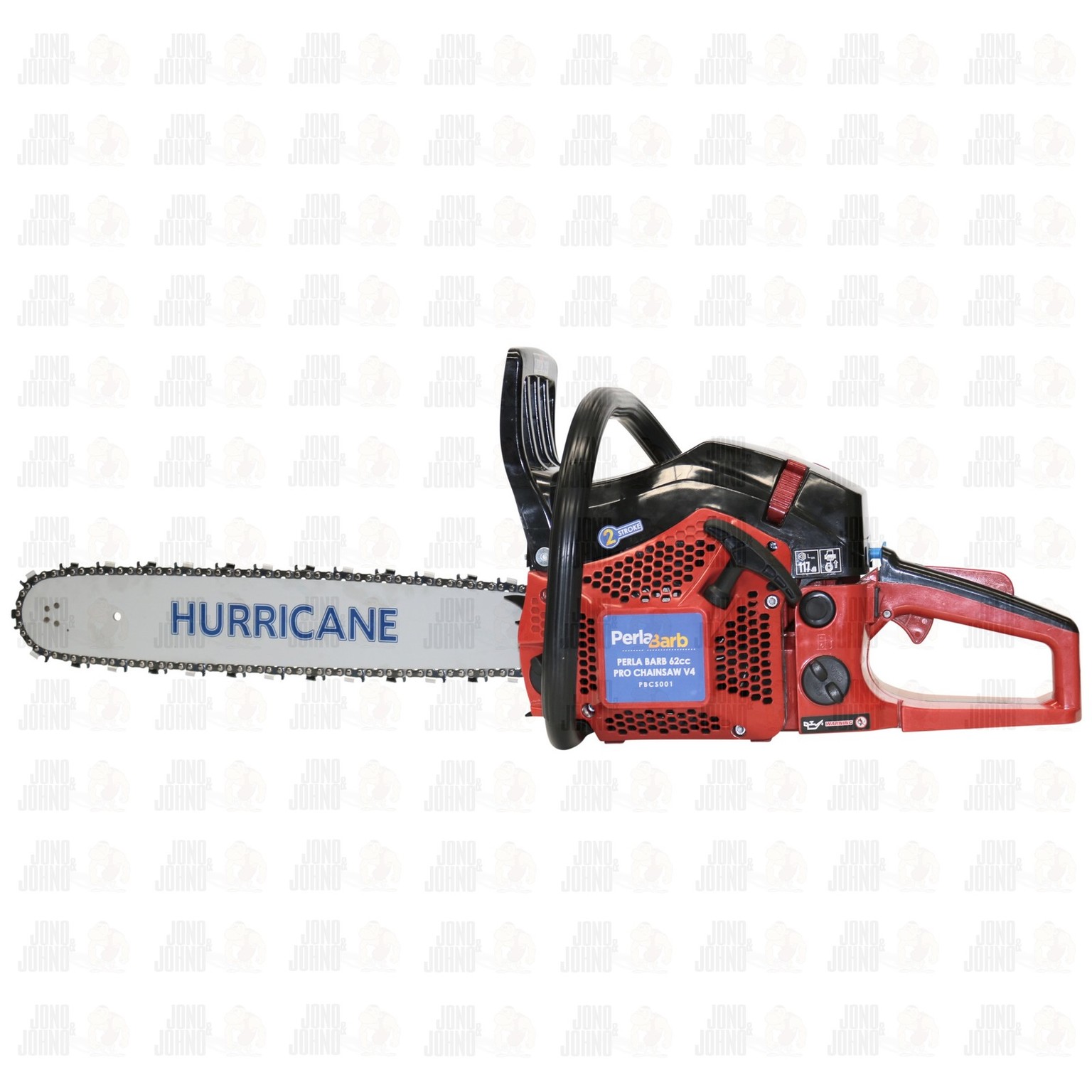

PERLA BARB 62CC V2 CHAINSAW WITH 20" BAR & CHAIN

Jono & Johno would like to present the 62cc Perla Barb V4 chainsaw.

This is a good solid saw which, with regular maintenance, will last a long time. This is not a throwaway saw.

We stock ALL spare parts in our warehouse, so should you ever have any issues with the saw, in or out of warranty period, we’ll be able to help you out. THAT’S A GUARANTEE!

The warranty on the saw is a 12-month parts warranty. So if something goes wrong with the saw in the first 12 months of use, we can send you the parts, free of charge.

Our bars are made from USA steel and our chains are made from German steel.

If you have any questions about our saw, don’t hesitate to give us a call or drop us an email.

For extra chains, please click here!

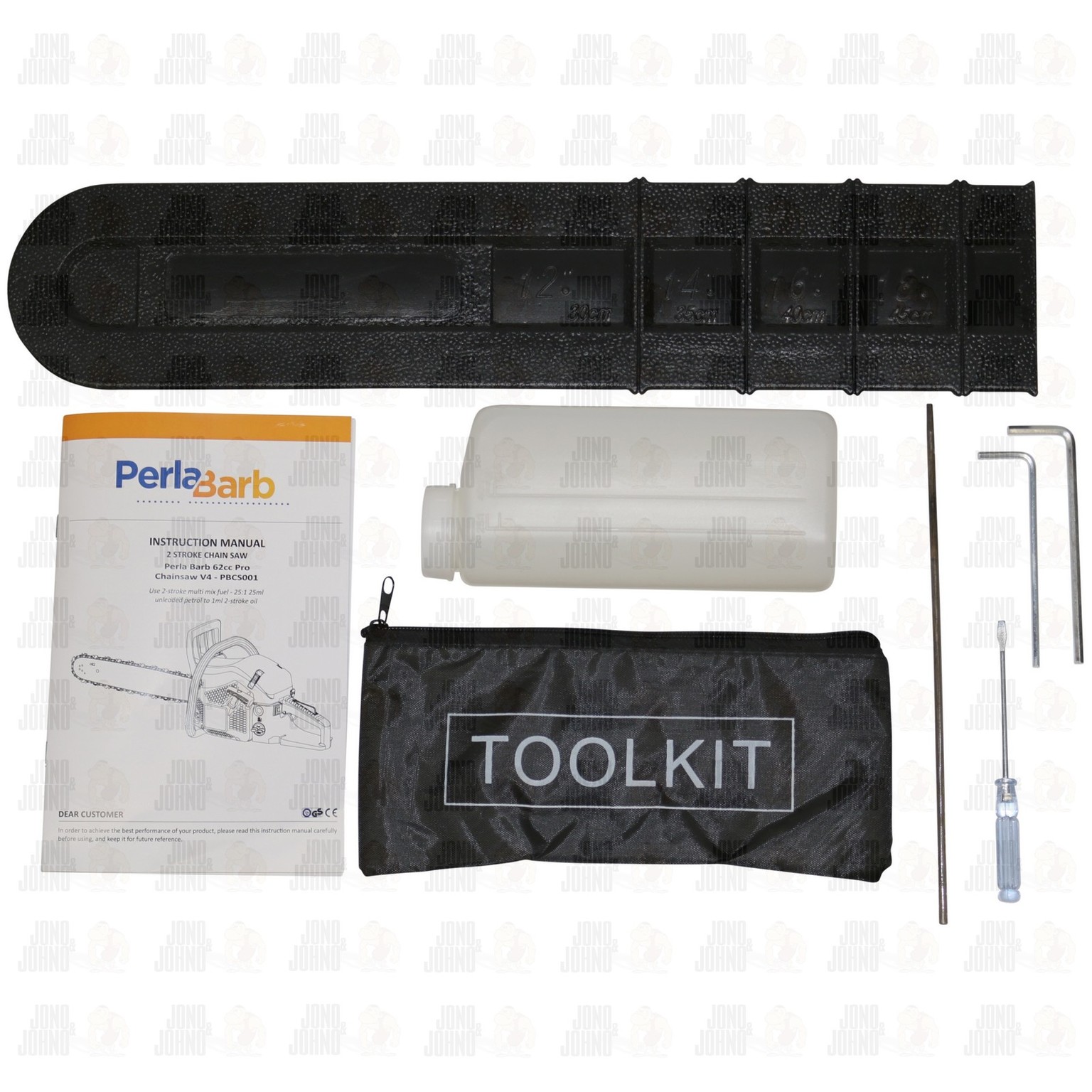

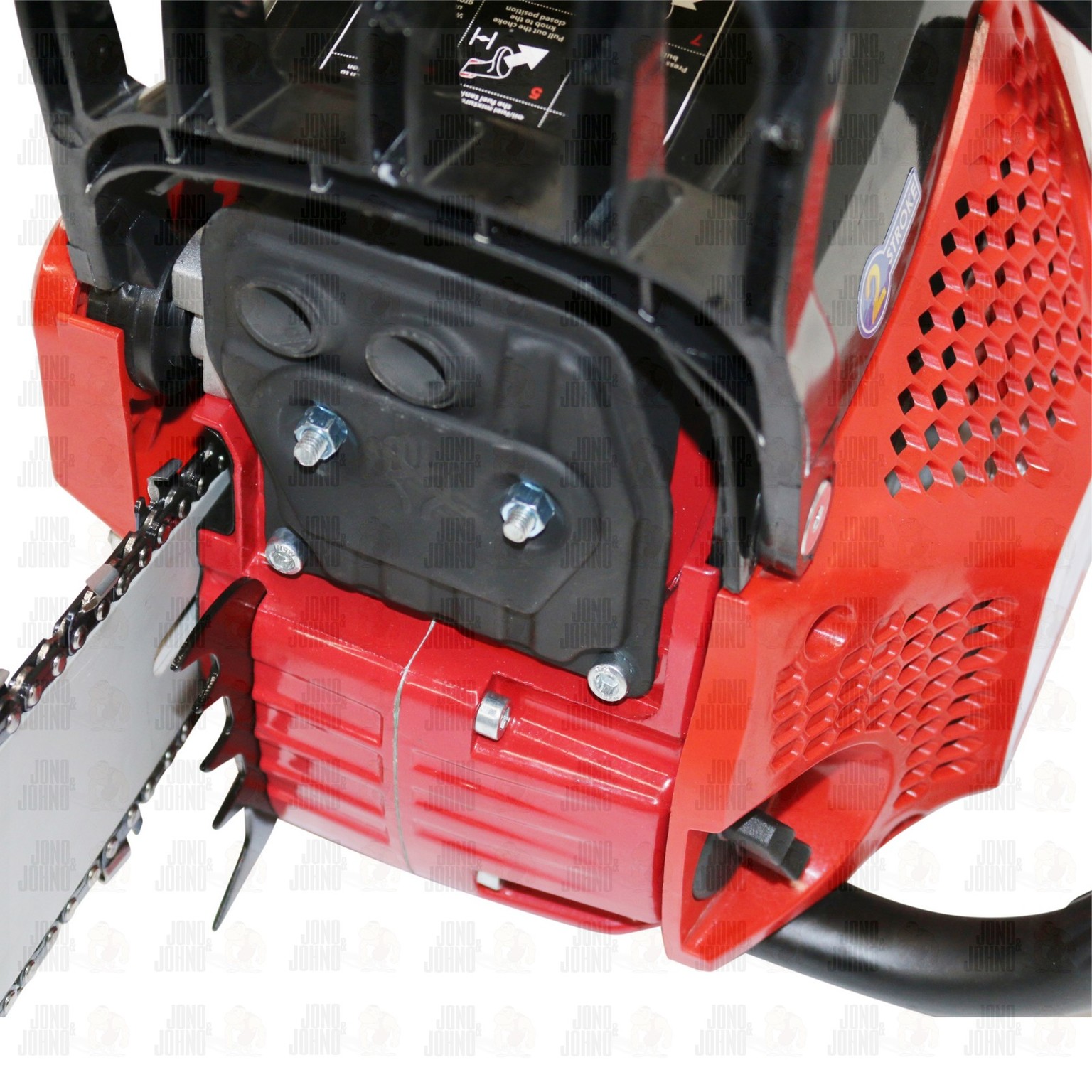

PLEASE NOTE: Felling dogs and mounting bolts come in the tool kit and must be manually fitted before use.

SPECIFICATIONS:

Model: Perla Barb 62cc V4
Engine: Single cylinder, two stroke, air cooled
Displacement: 62cc
KW: 2.85
Ignition system: C. D. I.
Engine Idling speed: 3000rpm + or - 300
Max engine speed: 10000rpm
Fuel tank capacity: 550ml (19.36 fl oz)
Bar oil tank capacity: 260ml (9.15 fl oz)
Recommended bar oil: Dedicated bar oil. Do not use motor or sump oil.
Fuel: Regular unleaded petrol and 2-stroke oil (25:1)
Carburettor: Diapghram type
Spark plug: NGK = BPMR7A, Champion = RCJ6Y
Oil feeding system: Automatic pump with adjuster

TUNING:

Low speed setting: between 2,700 and 3,300 rpm

High speed setting: between 10,200 and 11,100 rpm

CHAIN & BAR:

Sprocket: 7 tooth 0.325
Chain pitch: 0.325"
Chain gauge: 0.058"
Chain Length: 76 drive links
Guide bar type: Sprocket nose
Guide bar size: 20" (cutting length)
Oil feeding system: Automatic pump with adjuster

DIMENSIONS:

Gross weight of saw with 20" bar and chain, packaging and accessories: 8.05kgs (17.75lbs)
Net weight of saw with 20" bar and chain: 7kgs (15.43lbs)
Packing size: 51x26x29cm

SKU PBCS001-20
Model # PBCS001-20
Brand Perla Barb
Shipping Weight 8.0500kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.050m
Unit Of Measure ea
