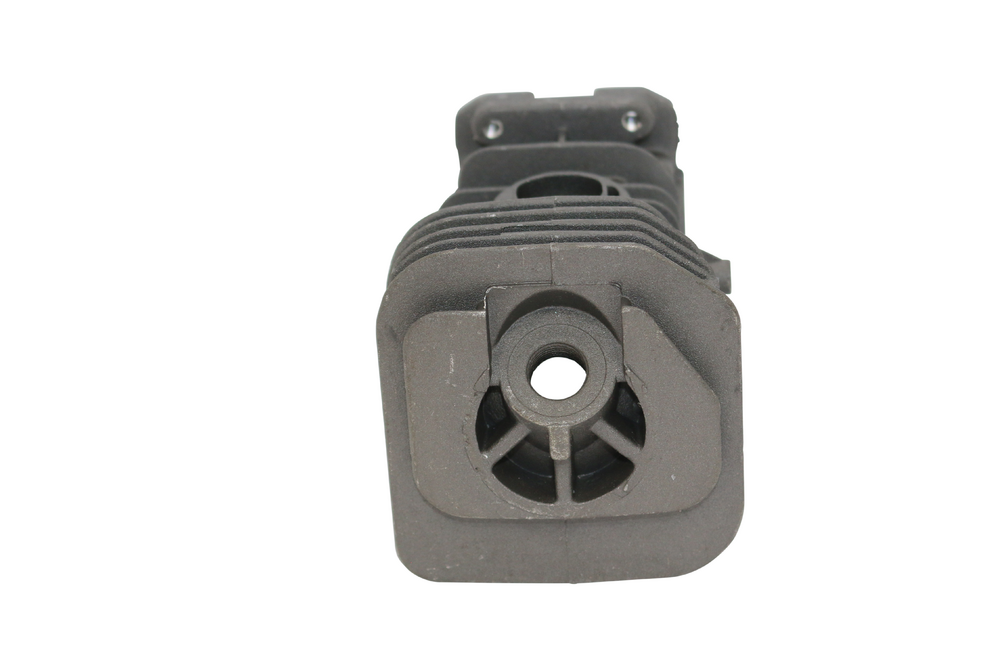

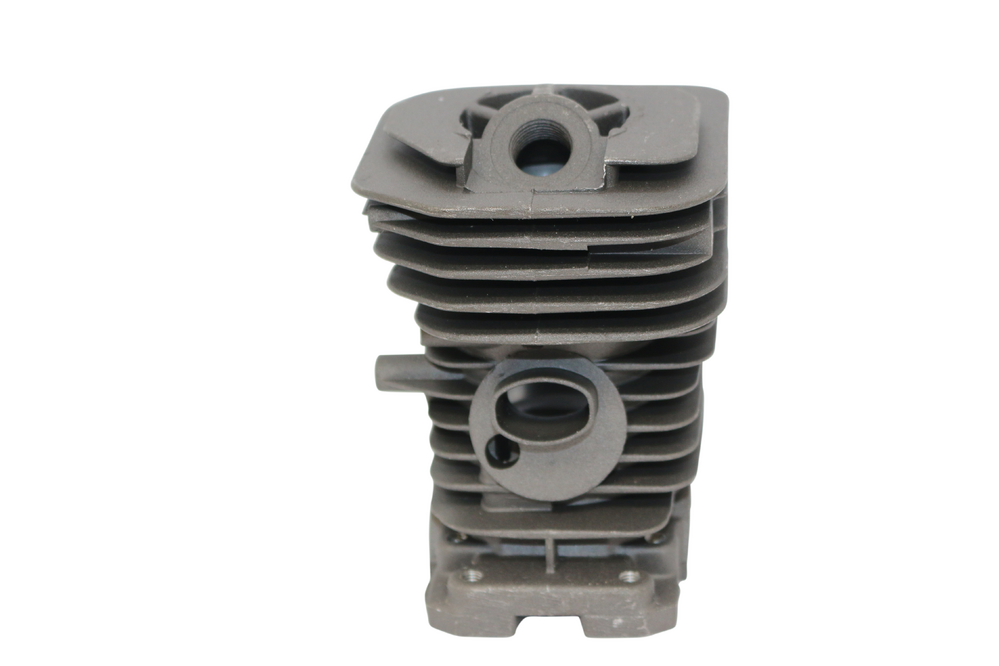

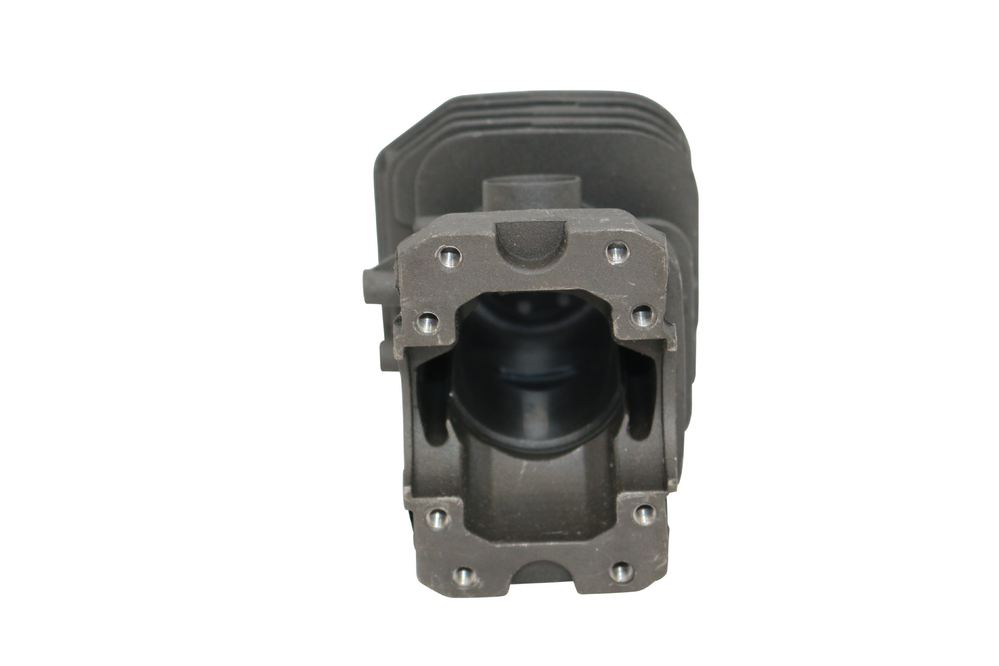

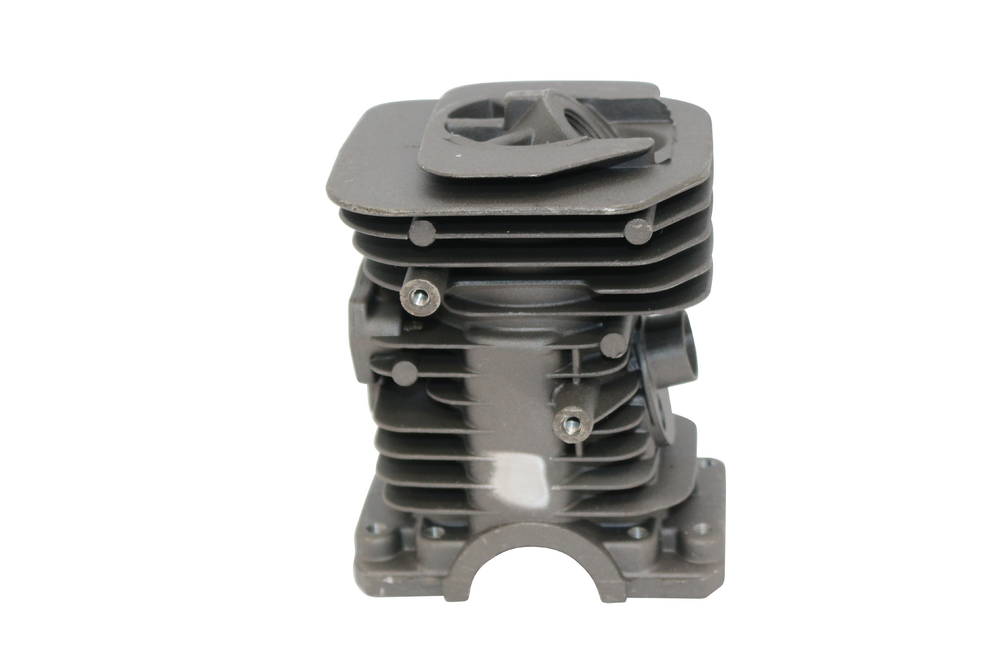

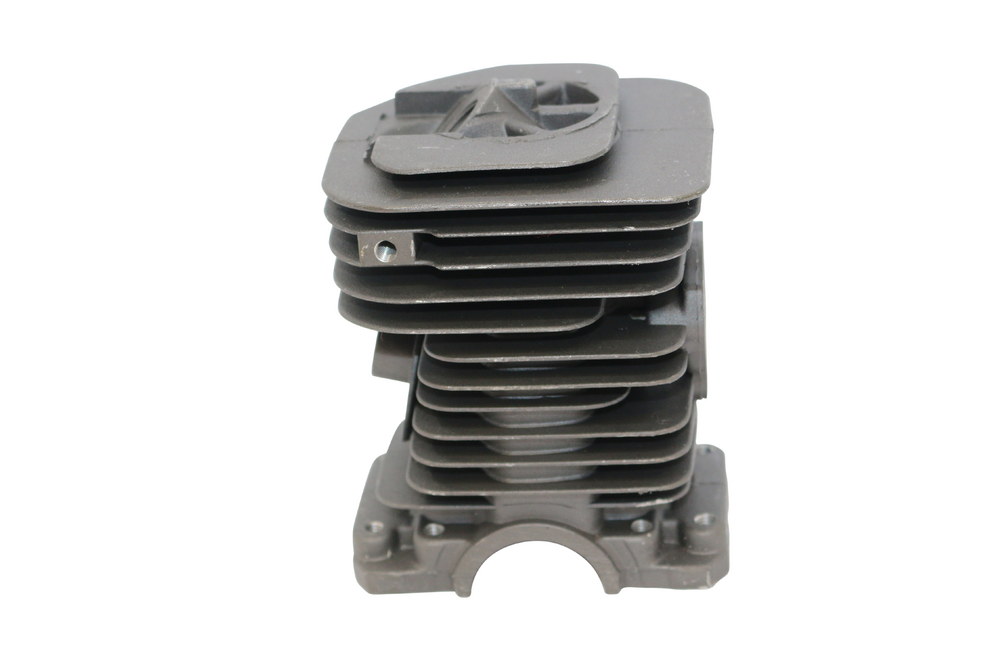

Piston Cylinder Kit 40mm for Husqvarna 41 141 142 136 137 Chainsaw Rebuild Top End

Piston and cylinder assembly kit for Husqvarna 41, 141 and 142 chainsaws — 40mm bore.

A complete top end in one box. When a saw has lost compression, scored a bore or swallowed something it shouldn't have, a new cylinder and piston brings it back without the cost of a replacement machine.

IMPORTANT: We STRONGLY recommend using a fuel mix ratio of 25:1. This cylinder has a chrome coating.

Specifications:

Spec	Detail
Bore	40mm
Cylinder coating	Chrome
Fuel mix	25:1 strongly recommended
Replaces OEM	530 06 99-41
Type	Aftermarket replacement part

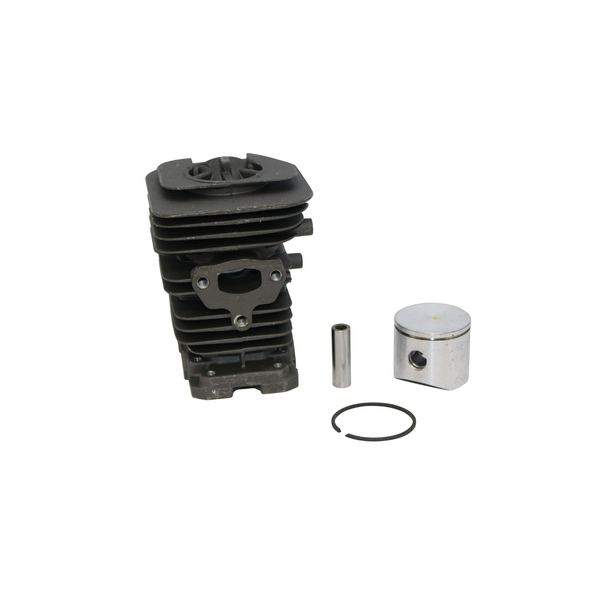

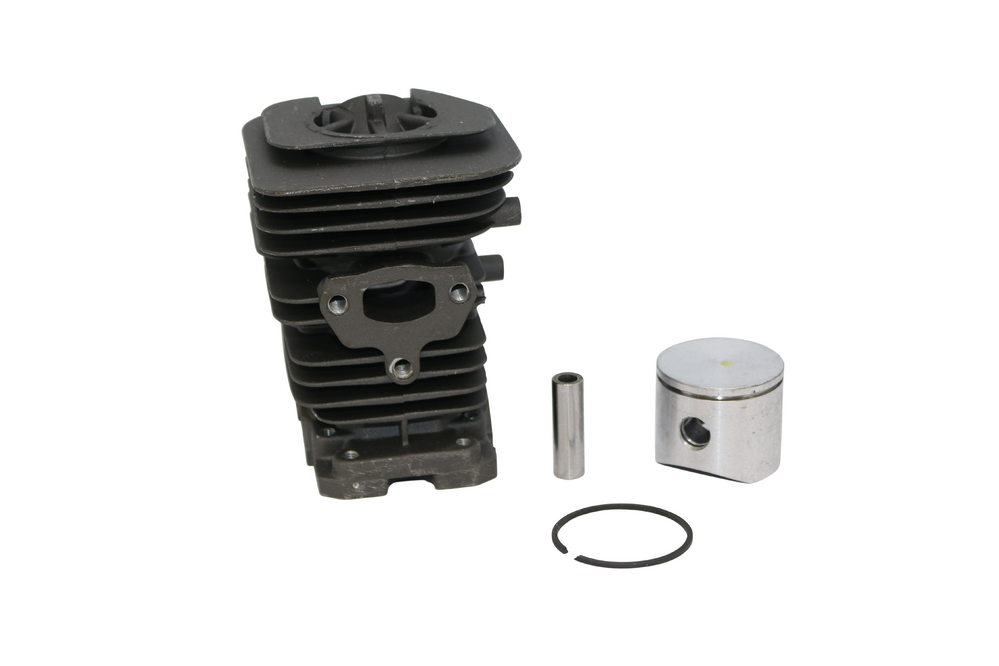

Kit includes:

Cylinder
Piston
Ring
Gudgeon pin
Circlips

Anything not listed above is not included.

Suits these 40mm models as standard:

Husqvarna 41 - 141 - 141LE - 142 - 142E

A 40mm upgrade for these models:

Husqvarna 36 - 136 - 137

These saws leave the factory with a 38mm bore. Fitting this kit takes them out to 40mm, which is a small capacity increase over standard — worth knowing before you order, and a popular upgrade on these saws. Everything bolts straight on.

Before you start:

This cylinder does not require a base gasket. Use gasket glue instead.
This cylinder does not have a decompression hole.

Fitting tip:

Two-stroke rings sit over a locating pin in the piston groove that stops the ring rotating into a port. Make sure the ring gap seats either side of that pin before sliding the piston into the cylinder — forcing it in misaligned will break the ring.

Replacement rings for this kit are available separately if you only need to refresh the ring.
