MTD CUB CADET SPINDLE RIDE ON MOWER 918-0624 618-0624 112-0460

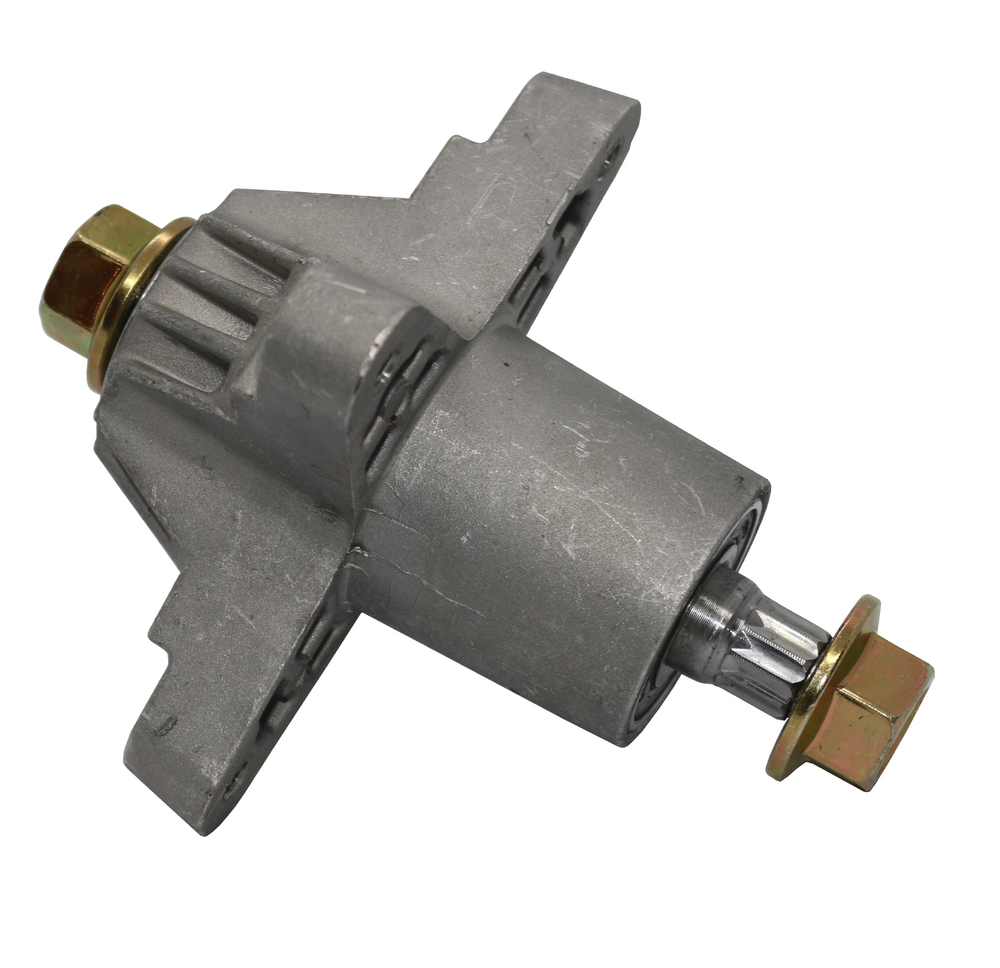

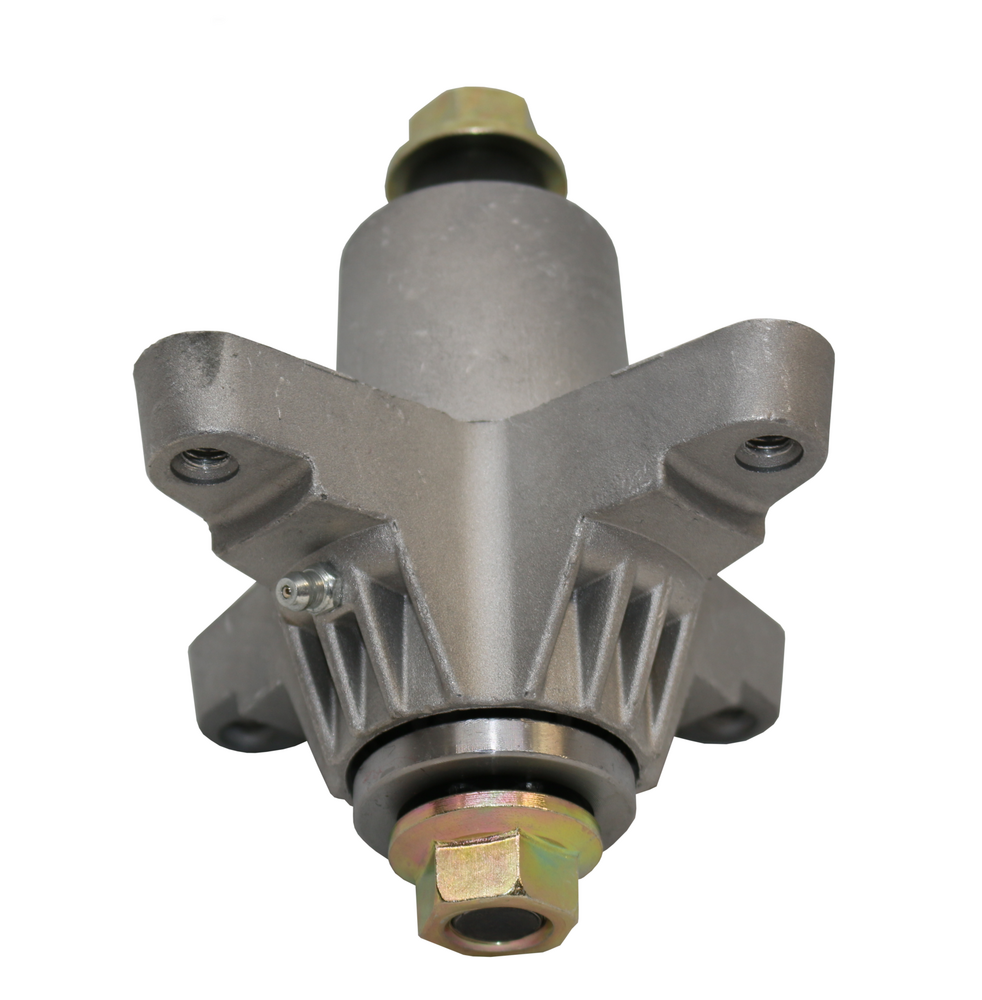

Spindle assembly to suit MTD, Cub Cadet & Toro 42" ride-on mowers

Replaces OEM part numbers 918-0624 and 618-0624, including the 918-0659 / 618-0659 equivalents and all A/B revisions. Also replaces Toro 112-0460.

Before you order — Cub Cadet uses two nearly identical spindles

This spindle suits older 42" Cub Cadets. Newer models use a different spindle (OEM 918-04822), even though the mower names look almost the same — in some cases they differ by a single letter. The two spindles also look and measure almost the same, so you can't tell them apart by eye or with a ruler.

The one reliable check is your mower's 11-character factory model code, printed on the ID label under the seat.

The look-alike models, side by side

✔ This spindle fits	✘ This spindle does NOT fit
Cub Cadet LT1040	Cub Cadet LTX1040
Cub Cadet LT1042	Cub Cadet LTX1042, LTX1045
Cub Cadet RZT 42 with factory code 17AC2ACG004 or 17AE2ACG330 — these two codes only	Cub Cadet RZT with any other factory code — including RZT-S 42, RZT-L 42, RZT-SX 42 and later RZT 42s

The models that don't fit use the later 918-04822 spindle. If your factory code isn't an exact match for one in the left column, send it to us and we'll check.

Suits these models

• Cub Cadet LT1040 and LT1042

• Cub Cadet RZT / ZTR 42 — factory codes 17AC2ACG004 and 17AE2ACG330 only

• MTD Yardman 42" — 13AV604G671 (16 & 20hp), 13AX604G671 (20hp), 13AO771G670 (18.5hp Black Beauty), 13AN771G729, 13A7771G670

• Troy-Bilt Super Bronco 42"

• Toro LX420 and LX425 (2006–07) — OEM 112-0460

Does not suit

• Cub Cadet LTX1040 / LTX1042 / LTX1045

• Cub Cadet RZT with any factory code other than the two listed above — including RZT-S 42 / RZT-L 42 / RZT-SX 42

• Cub Cadet Ultima ZT1 / ZT2 / ZTS1 / ZTS2

• Cub Cadet XT1 / XT2

• Cub Cadet Enduro series

These models all use a different spindle. If you own one of these, don't order this part — contact us and we'll point you to the right one.

Check yours in 60 seconds

1. Find the 11-character factory code on the ID label under your seat (it looks like 17AE2ACG330). If it matches a code above, this is your spindle.

2. Check the age. Made before 2009 — very likely this spindle. Made 2011 or later — almost certainly the newer 918-04822 instead. Made 2009–2010 — go by the factory code.

3. Check the number on your old spindle or in your parts manual. 918-0624, 618-0624 or 918-0659 means this one. 918-04822 with any letter means the newer spindle.

Not sure? Send us the factory code from the label under your seat and we'll confirm fitment before you order — it takes us two minutes and saves you a return.

What you get

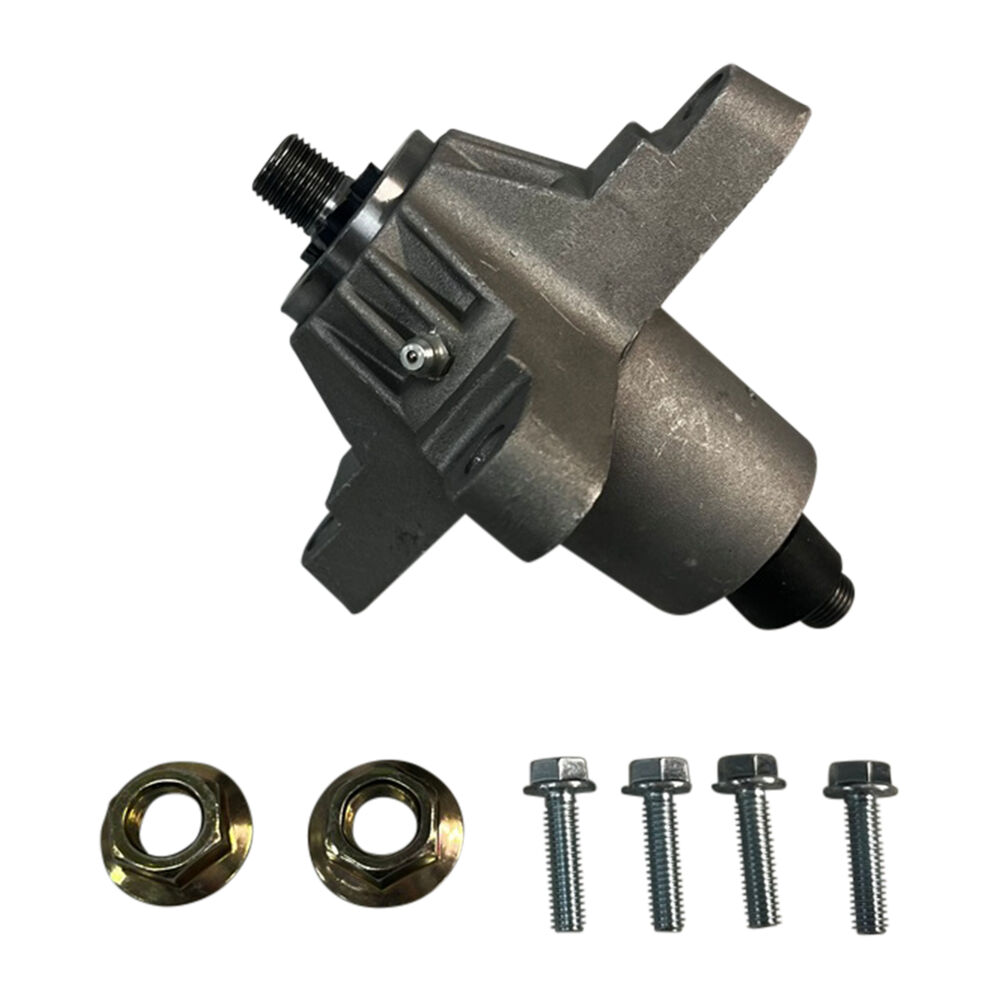

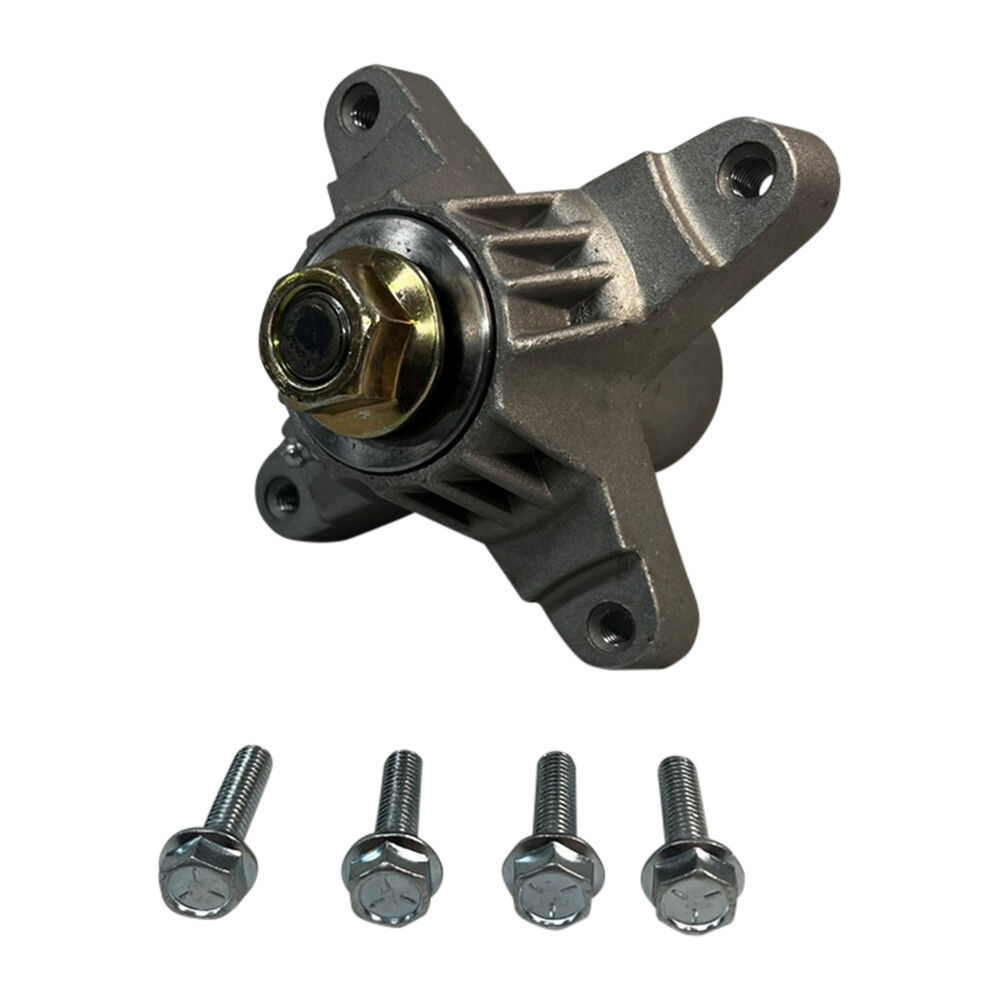

• One brand-new aftermarket spindle assembly, made to replace the OEM part numbers above

• Pulley fitted to the shaft, ready to install

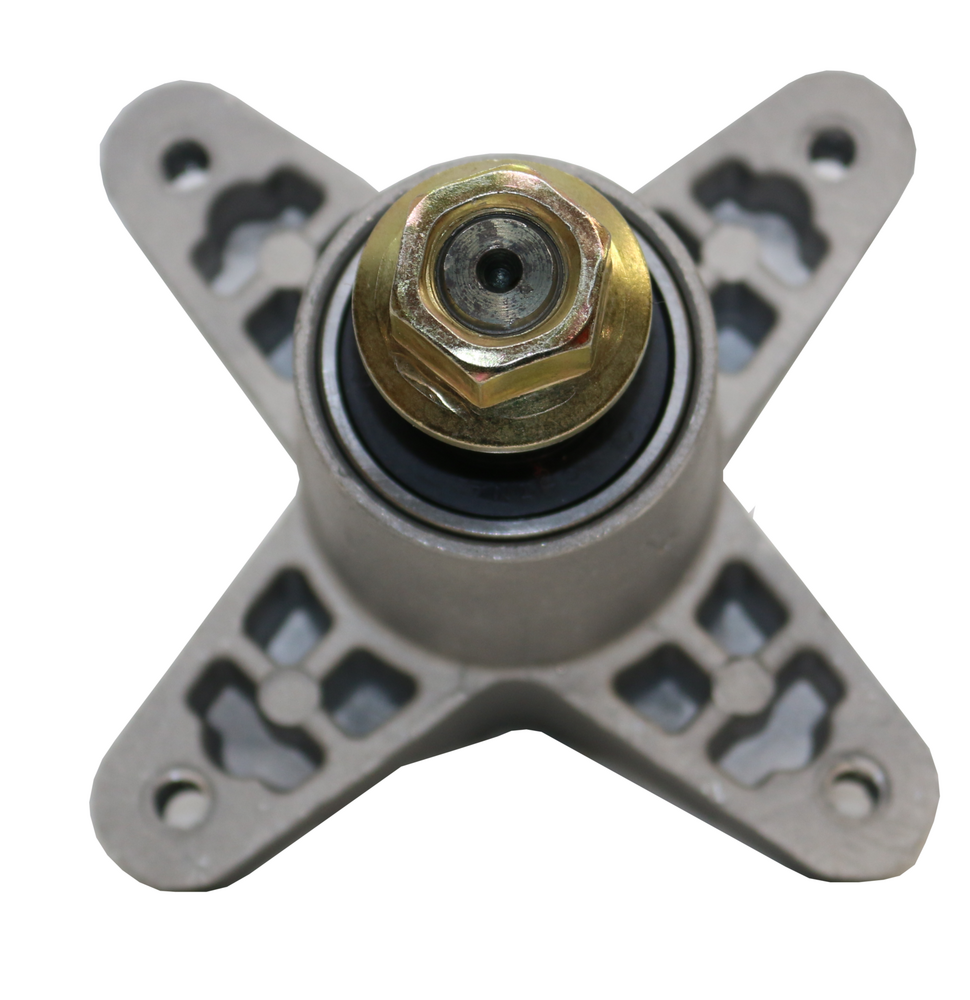

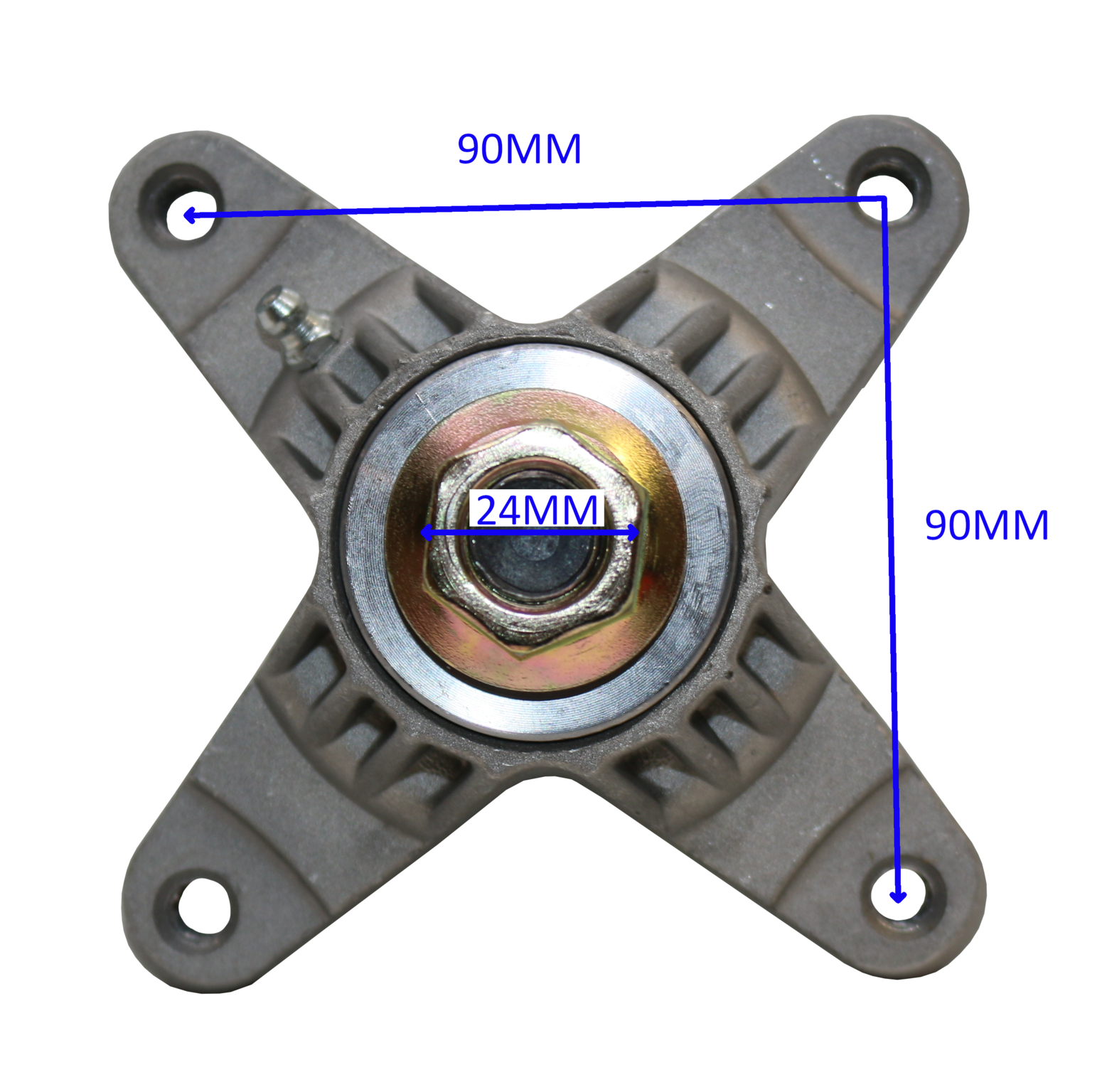

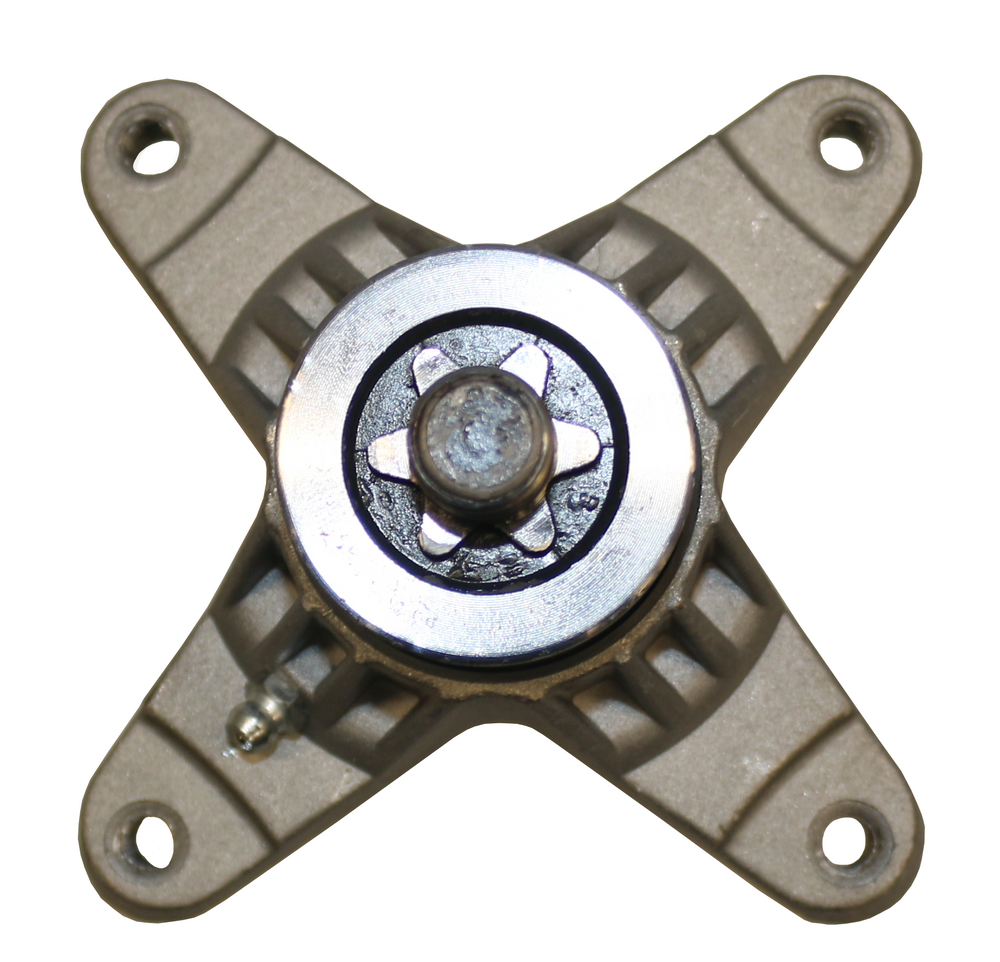

• 6-point star blade drive, 4-bolt deck mount

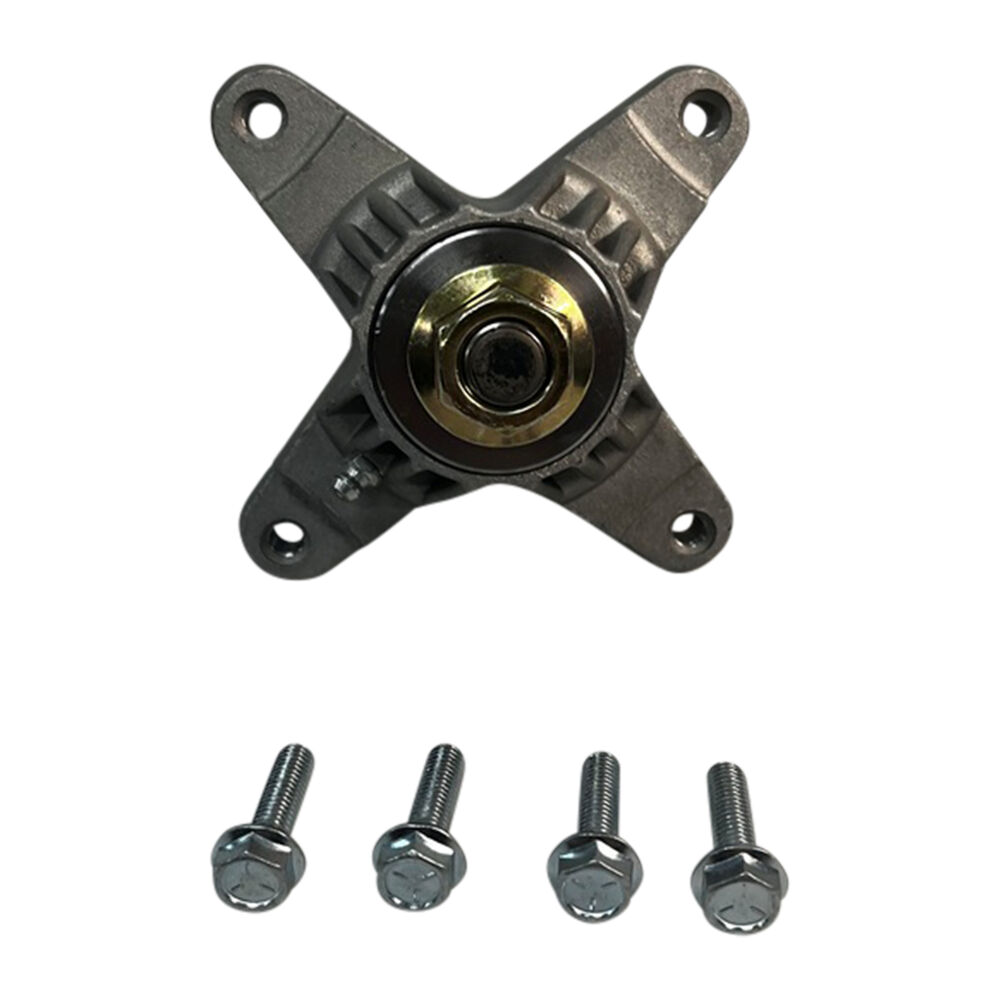

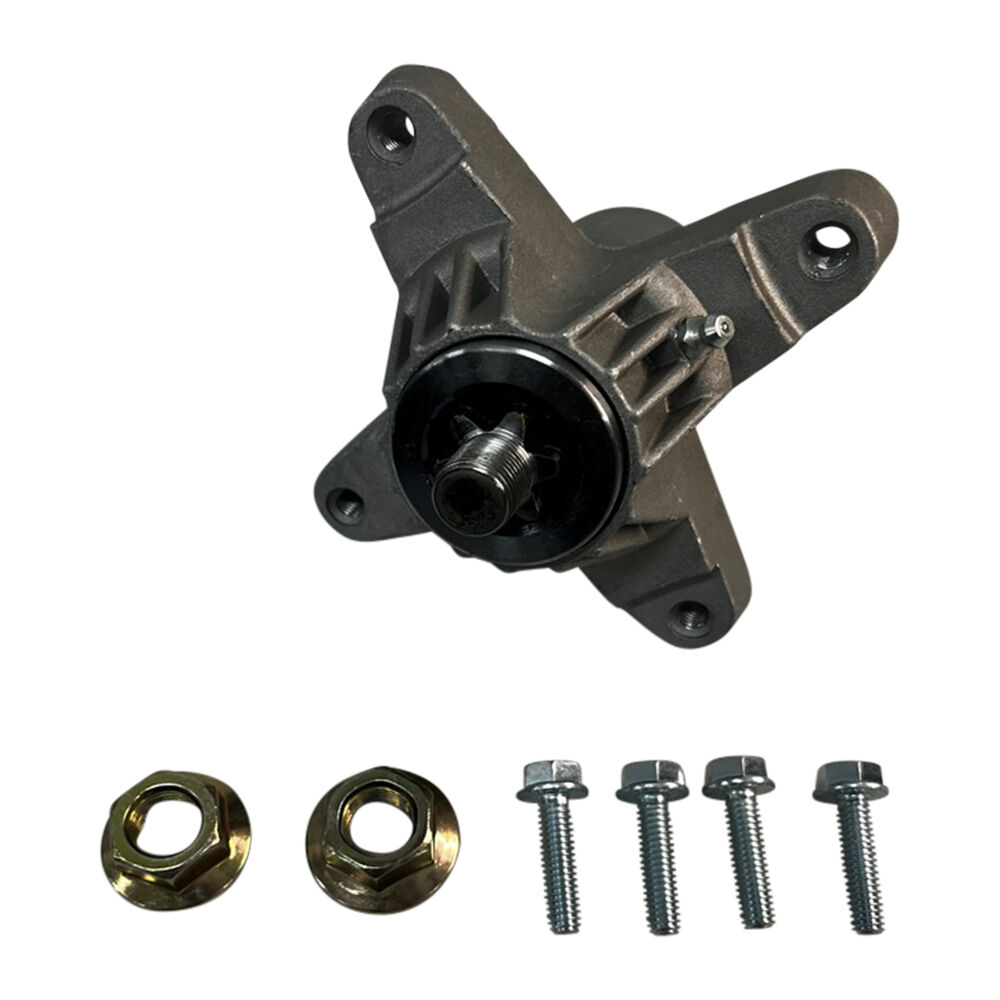

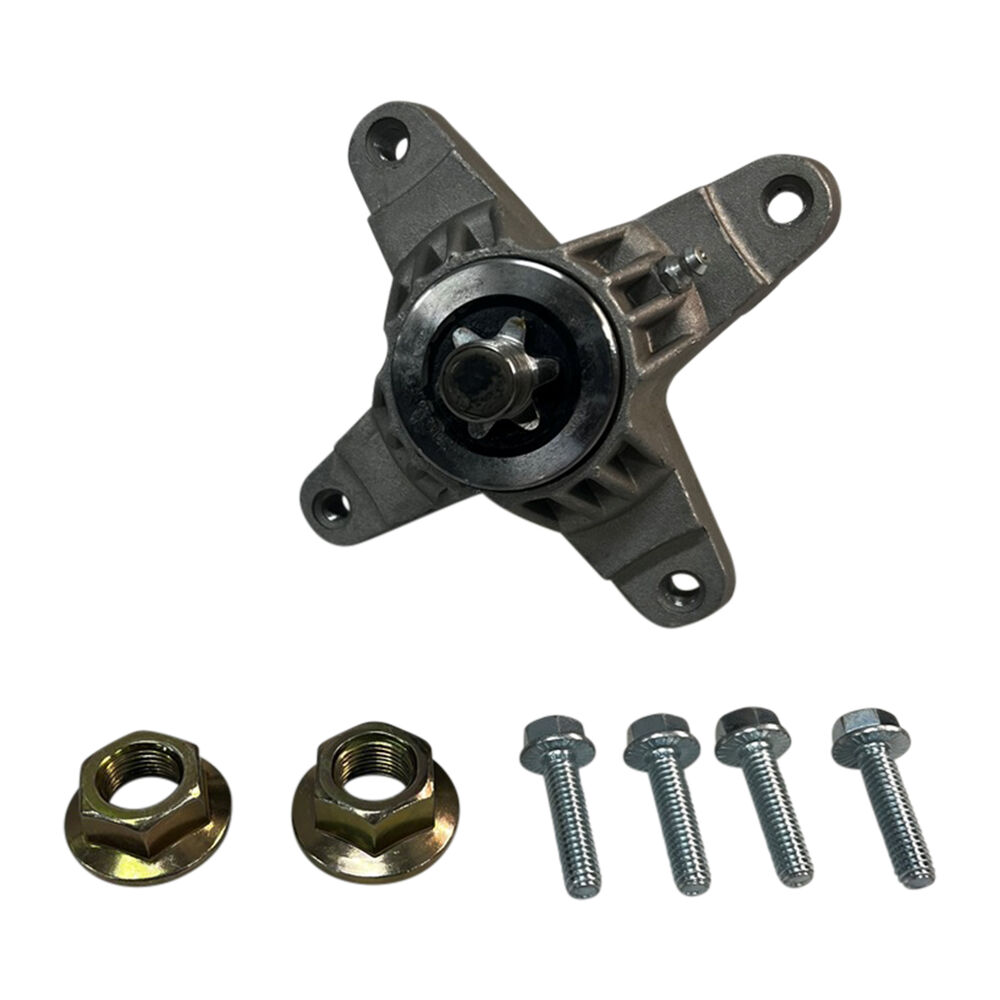

• Mounting bolt, nut and washer set available separately — SKU SPIN-054

WARRANTY OVERVIEW

Jono & Johno offers a 12-month warranty on most products.

We pride ourselves on selling good quality gear and will be fair and prompt in honouring our warranties. If you’re in trouble, we’ll help you out.

WHAT IS COVERED?

The exact warranty coverage depends on two factors:

Whether the fault is due to user error or a manufacturer defect
Whether the fault is minor or major

Minor faults caused by the user

Parts will be supplied for repair at the user's expense.

Minor faults caused by the manufacturer

Customers are expected to perform basic repairs as part of our warranty process.
Jono & Johno will provide replacement parts and instructions for simple repairs, such as installing a recoil starter.
Jono & Johno will determine whether a fault is classified as minor.
If unsure about a repair, contact us, and we’ll assist you.

Major faults caused by the manufacturer

Jono & Johno will arrange a return, refund, or replacement at our expense.
If preferred (and at our discretion), we may provide replacement parts and contribute to labour costs if you can perform the repair.

Major faults caused by the user

Where possible, parts will be supplied at the user's expense.
If the item cannot be repaired by the user, we offer repairs at our workshop at $80 AUD per hour.
The customer will need to cover return shipping costs for user-related faults.

RETURN PROCESS & SHIPPING COSTS

If you need to return your product:

In-store return: If you're near a Jono & Johno outlet, you can return the product in person. Contact us first to arrange a return authority.
Shipping return: If you are not within driving distance, we will provide a return address.
- If the fault is due to a manufacturer defect, we’ll cover return costs.
- If the fault is user-related, the customer is responsible for return shipping.

EXCEPTIONS TO THE RULE

Some products are not covered by warranty, including:

Engines used in go-karts and stump grinders

OUT-OF-WARRANTY PRODUCTS

If your product is out of warranty and has failed despite minimal use, contact us. We may assess it on a case-by-case basis. If a manufacturer defect is identified, we aim to be fair in resolving the issue—but this is at our discretion.

SKU	SPIN-006
Barcode #	688187199078
Brand	Unbranded
Shipping Weight	1.5000kg
Shipping Width	0.130m
Shipping Height	0.120m
Shipping Length	0.130m
Shipping Cubic	0.002028000m3
Unit Of Measure	ea
