SKU : START-007

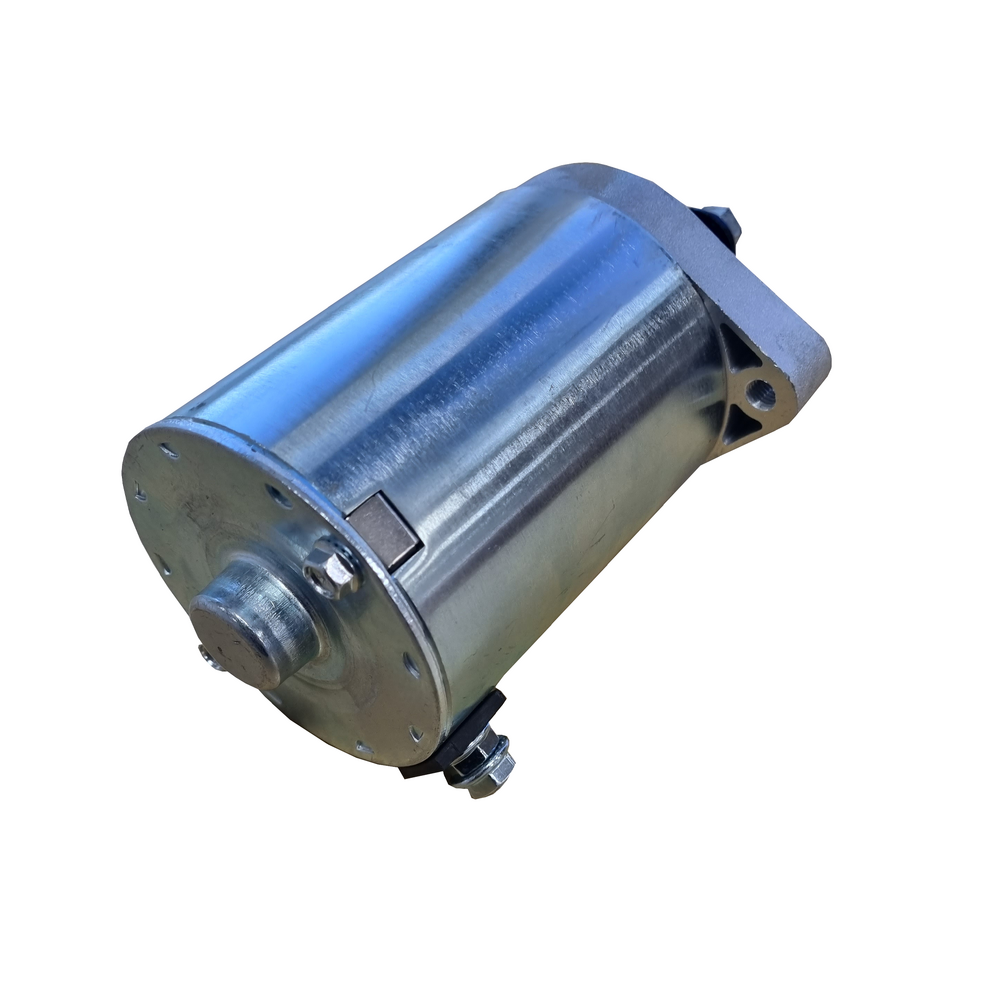

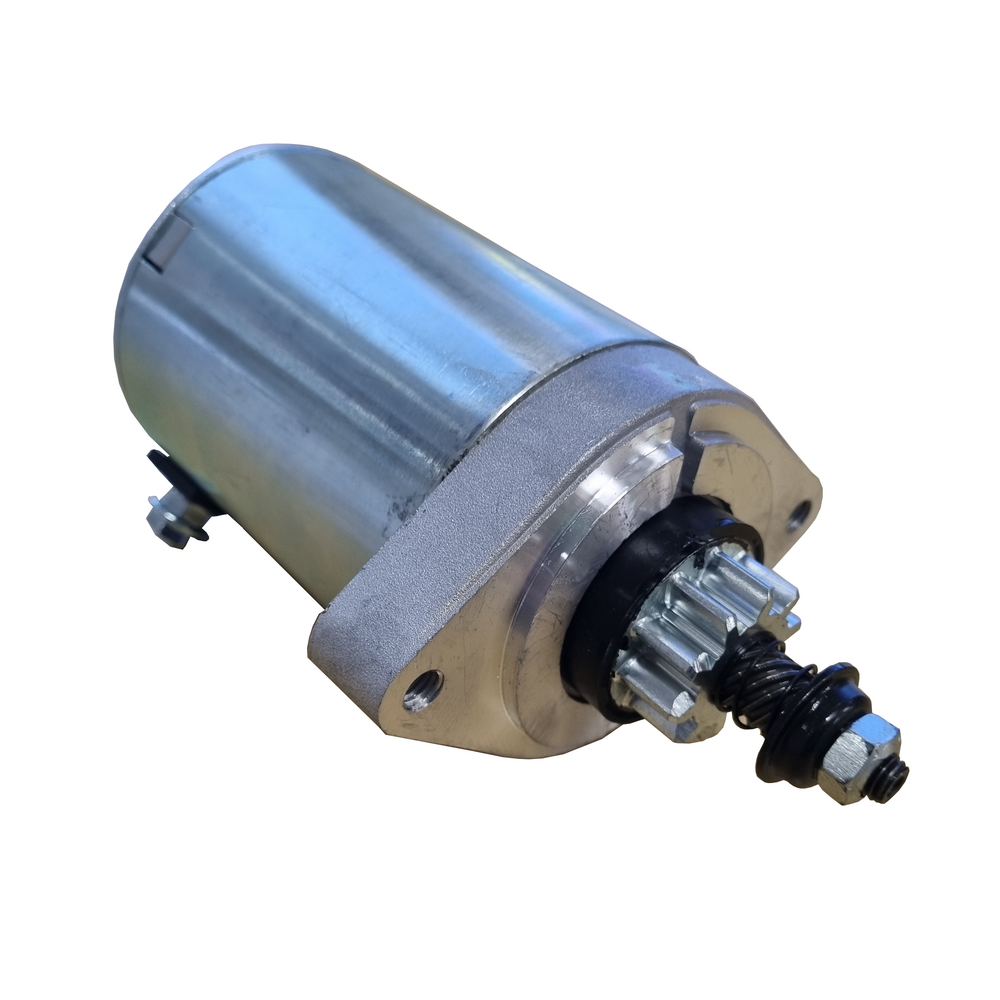

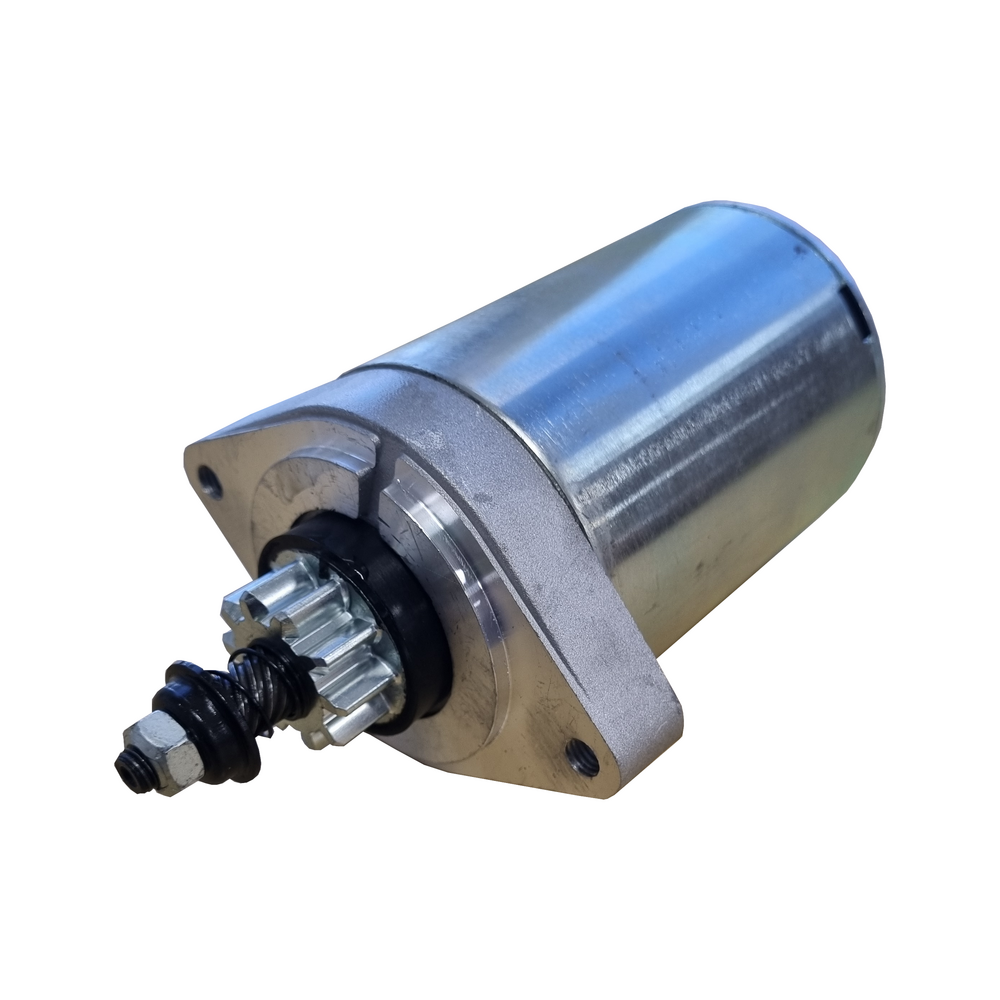

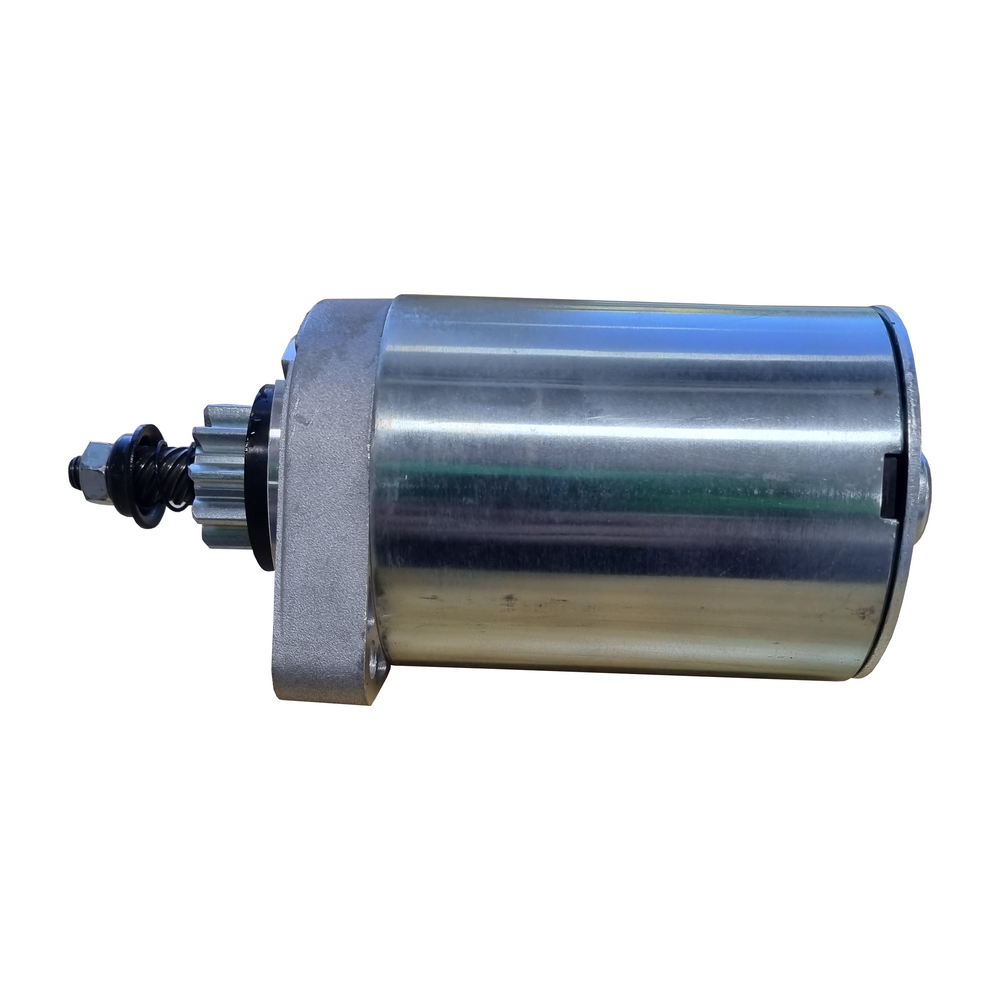

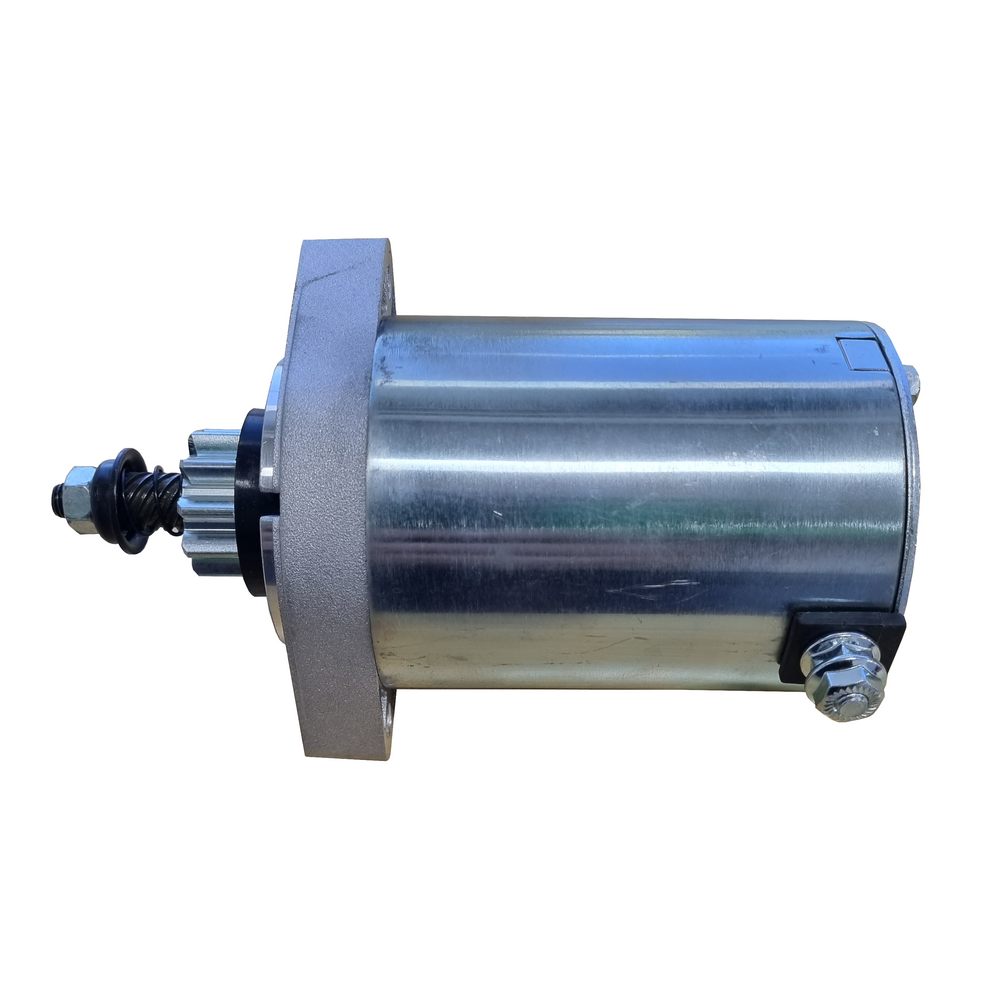

Starter Motor for select Kawasaki and Cub Cadet Mowers
Application:
For Cub Cadet Zero-Turn Lawn Mower Applications.
Suits the following Kawasaki models: FR651V - FR691V - FR730V - FS481V - FS541V - FS691V - FS730V - FX600V - FX651V - FX691V
Suits the following John Deere models: X300 - X300R - X305R - X304 - X310 - X320 - X324 - X360
Suits the following Cub Cadet Mower Zero Turn models: RZT46 2014 - RZT50 2012-2014 - RZT54 2012-2014 - Z-Force 48 2012-2014 - Z-Force 54 2012-2014 - Z-Force 48 2012-2014 - Z-Force 54 2012-2014 - Z-Force 60 2012-2014
Suits the following Cub Cadet Lawn Tractor models: LTX1046 2012-2014 - LTX1050 2012-2014
REPLACES THE FOLLOWING OEM PART NUMBERS:
Kawasaki: 21163-0711 - 21163-0714 - 21163-0727 - 21163-7024 - 21163-7034 - 21163-7035 - 21163-0743 - 21163-0749 - FR691V-AS04 - SAB0172 - 41021086
Lester: 5954
ARROWHEAD: SAB0176 (old) - SAB0172
J & N: 410-21086
JOHN DEERE: MIA11761 - MIA11949 - MIA11984 - MIA12214 - MIA12455 - MIA12485 - MIA12926
PIC: 106-239
REFERENCE NUMBER: 0D9005
ROTARY: 13473
STENS: 435-142
WAI: 5954N
WILSON SMALL ENGINE: 71-09-5954

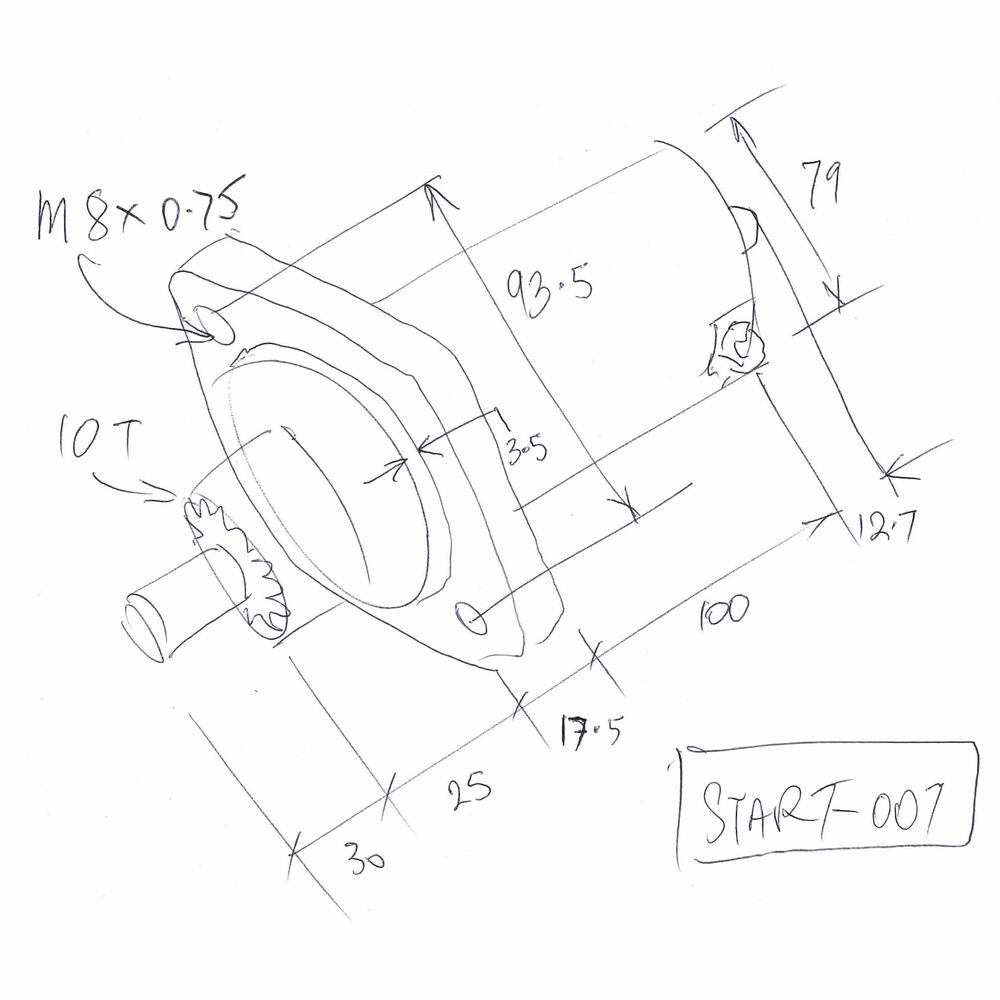

Specification:
Voltage: 12V
Power: 0.6kW / 0.8HP
Rotation: CCW
Starter Type: PMDD
Number of Teeth: 10
Gear OD: 1.26in / 32mm
Mtg Ear 1 Hole: M8-1.25 Threaded
Mtg Ear 2 Hole: M8-1.25 Threaded
Jono & Johno offers a 12-month warranty on most products.
We pride ourselves on selling good quality gear and will be fair and prompt in honouring our warranties. If you’re in trouble, we’ll help you out.
The exact warranty coverage depends on two factors:
Minor faults caused by the user
Minor faults caused by the manufacturer
Major faults caused by the manufacturer
Major faults caused by the user
If you need to return your product:
Some products are not covered by warranty, including:
If your product is out of warranty and has failed despite minimal use, contact us. We may assess it on a case-by-case basis. If a manufacturer defect is identified, we aim to be fair in resolving the issue—but this is at our discretion.
SKU | START-007 | |
Model # | START-007 | |
Barcode # | 726597614986 | |
Brand | JONO & JOHNO | |
Shipping Weight | 2.5500kg | |
Shipping Width | 0.250m | |
Shipping Height | 0.120m | |
Shipping Length | 0.140m | |
Shipping Cubic | 0.004200000m3 |
