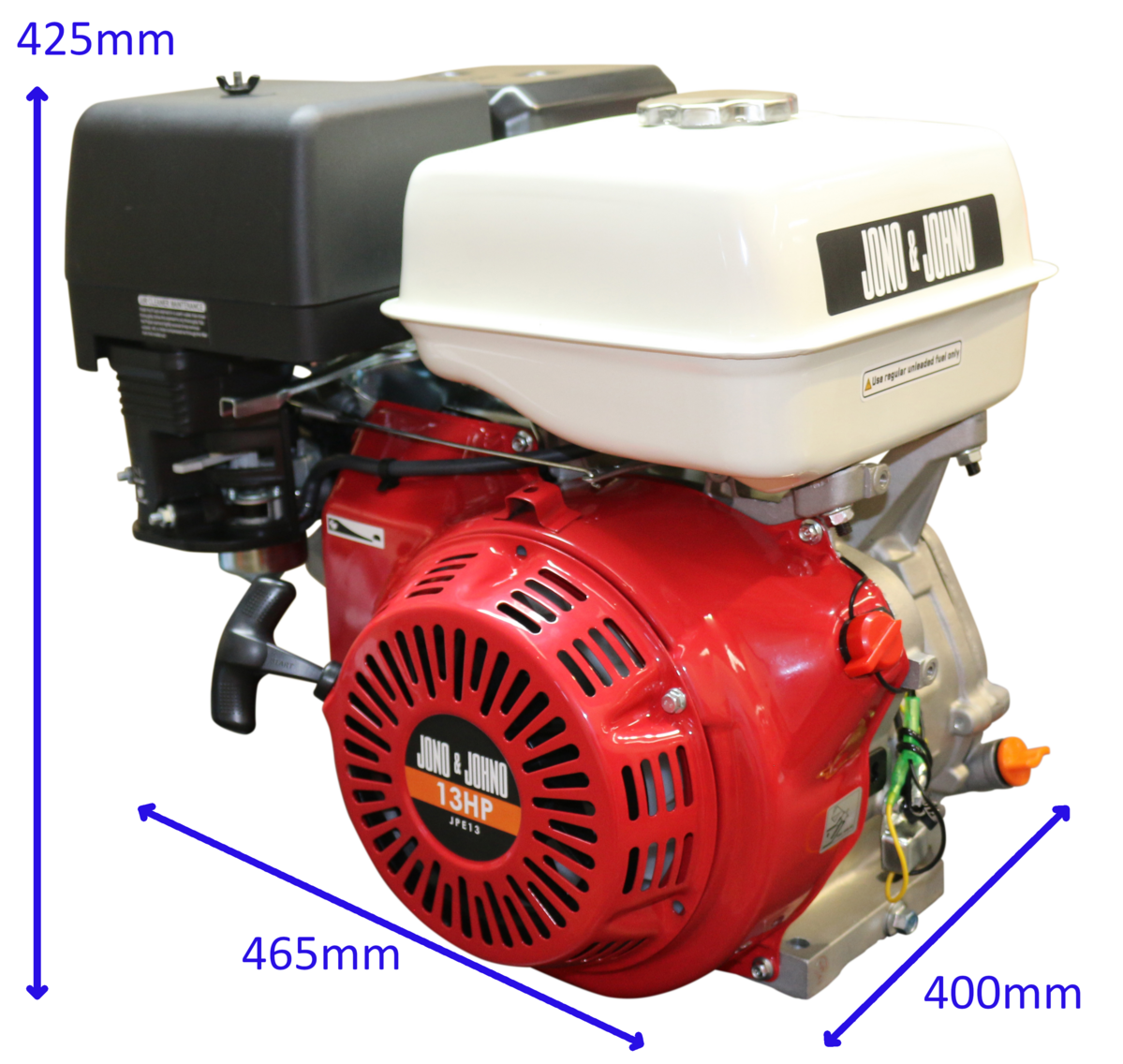

If you’re thinking industrial, agricultural or home use, this could be the engine for you. This engine is a Jono & Johno brand, recoil start, 4 stroke, single cylinder, petrol engine with a 13hp capacity. Suitable to power items such as generators, grinders, water pumps, saw benches, augers and a host of other machinery. The engine comes with a one year parts warranty and a lifetime of after sales service.
Air cooled, 4-stroke, OHV25 inclined single cylinder 13hp gasoline/petrol engine.
| Max Power Output: | 13hp / 3600rpm |
| Displacement: | 390cc |
| Bore x Stroke (mm): | 88 x 64 |
| Max Torque (n.m)/rpm] : | 26.5/2600 |
| Ignition system: | Transistor Electric / Inductive Firing |
| Spark Plug Type: | NGK: BPR6ES Champion: RN9YC Bosch: W7DCR |
| Starting system: | Recoil |
| Fuel Tank Capacity: | 6L |
| Oil capacity: | 1.1L |
| Fuel consumption: | 374g/kw.h |
| Air cleaner: | Semi dry, dual filter |
| Shaft Diameter: | 1" (25.4mm) |
| Shaft Length: | 89mm |
| Shaft Internal Thread: | 3/8-24 UNF |
| Keyway length: | 60mm |
| Keyway width: | 6mm - Keyway includes key |
| Distance from base to centre of output shaft: | 134mm |
| Shaft rotation: | Anti-clockwise (from output) |
| Weight: | 31kg |
| Package dimensions: | 500 x 500 x 460mm |
WARRANTY OVERVIEW
Jono & Johno offers a 12-month warranty on all products. Warranty period is 12 months for the home user and 6 months for commercial use.
We pride ourselves on selling good quality kit and will be fair and prompt honouring our warranties. If you’re in trouble, we’ll help you out.
WHAT IS COVERED?
Exactly what is covered by warranty will depend on 2 things:
Minor faults caused by user - Parts will be supplied for repair at user expense.
Minor faults caused by manufacturer - Parts will be supplied for repair, with instructions provided by us on how to carry out repair. If the repair is time consuming in nature, you can contact Jono & Johno to discuss labour cost compensation.
Major faults caused by manufacturer - Jono & Johno will facilitate a return of the product for refund or replacement at our expense. Or if you’d prefer (at our discretion and in consultation with you), we can send appropriate parts and compensate labour costs if you can carry out the repair yourself.
Major faults caused by user - Where possible parts will be supplied at user expense. Where the item cannot be repaired by the user, Jono & Johno will offer to have the item returned for repair at user expense. Our workshop rate is $60 per hour.
HOW DO I RETURN MY PRODUCT IF IT’S COVERED BY WARRANTY?
If you’re in reasonable driving distance of a Jono and Johno outlet, you can physically return the product yourself. Please contact us in advance to arrange a return authority.
If you are not within reasonable driving distance, Jono & Johno will provide you with a return authority and an address to return the product to. Where Jono & Johno is at fault a postage-paid return label will be provided.
EXCEPTIONS TO THE RULE
If your product is out of warranty and is buggered, even though you’ve hardly used it, give us a call or shoot us an email. If there is a manufacturer fault or the item should have lasted a lot longer than it has, we’re happy to assess it outside of the warranty period. We do this on a case-by-case basis.
| SKU | JPE13 |
| Model # | JPE13 |
| Barcode # | 682157254781 |
| Brand | JONO & JOHNO |
| Shipping Weight | 31.0000kg |
| Shipping Width | 0.500m |
| Shipping Height | 0.460m |
| Shipping Length | 0.500m |
| Shipping Cubic | 0.115000000m3 |
| Unit Of Measure | ea |
