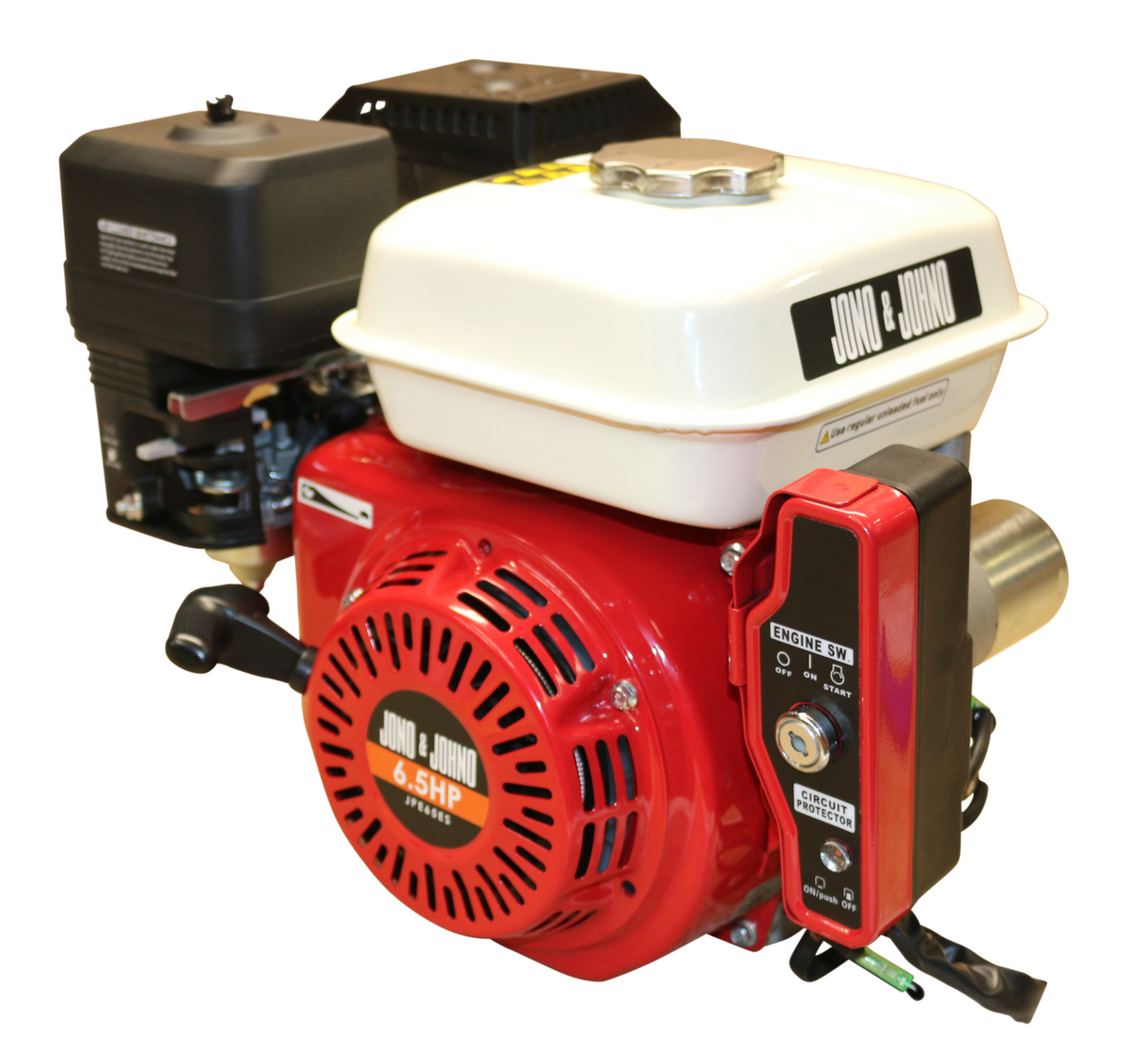

6.5HP GASOLINE ENGINE ELECTRIC AND RECOIL START

19mm shaft

Whether you’re thinking industrial, agricultural or home use, this could be the engine for you.
This engine is a Jono & Johno brand, recoil start, 4 stroke, single cylinder, petrol engine with a 6.5hp capacity.
Suitable to power items such as generators, grinders, water pumps and a host of other machinery.

It is equipped with electric start so all you need is a battery (not included) and you can say goodbye to pull starting your engine for good.

The engine comes with a one year parts warranty and a lifetime of after sales service.

PLEASE NOTE: BATTERY NOT INCLUDED! YOU'LL NEED A 12 VOLT, 6.5AH BATTERY (A 9AH BATTERY CAN ALSO BE USED IF YOU NEED THE EXTRA CHARGE FOR ACCESSORIES)

FEATURES:

Air cooled, 4-stroke, OHV25 inclined single cylinder

6.5hp gasoline/petrol engine

Max Power Output:	6.5hp/3600rpm
Displacement:	196cc
Bore x Stroke (mm):	68 x 54
Max Torque (n.m)/rpm] :	1.35 (13.2) / 2500
Ignition system:	Transistor Electric / Inductive Firing
Spark Plug Type:	NGK: BPR6ES Champion: RN9YC Bosch: W7DCR
Starting system:	Electric and Recoil
Fuel Tank Capacity:	3.6L
Oil capacity:	0.6L
Fuel consumption:	230g/hp.h (313g/kw.h)
Air cleaner:	Semi dry, dual filter
Shaft Diameter:	19mm
Shaft Length:	58mm (61mm from seal face)
Shaft Internal Thread:	5/16-24 UNF
Shaft has keyway:	Yes, key included
Keyway Length::	50mm
Keyway Width:	5mm
Distance from base to centre of output shaft:	105mm
Shaft rotation:	Anti-clockwise (from output)
Weight:	16kg

WARRANTY OVERVIEW

Jono & Johno offers a 12-month warranty on all products. Warranty period is 12 months for the home user and 6 months for commercial use.

We pride ourselves on selling good quality kit and will be fair and prompt honouring our warranties. If you’re in trouble, we’ll help you out.

WHAT IS COVERED?

Exactly what is covered by warranty will depend on 2 things:

If the fault is due to user or manufacturer
If the fault is minor or major

Minor faults caused by user - Parts will be supplied for repair at user expense.

Minor faults caused by manufacturer - Parts will be supplied for repair, with instructions provided by us on how to carry out repair. If the repair is time consuming in nature, you can contact Jono & Johno to discuss labour cost compensation.

Major faults caused by manufacturer - Jono & Johno will facilitate a return of the product for refund or replacement at our expense. Or if you’d prefer (at our discretion and in consultation with you), we can send appropriate parts and compensate labour costs if you can carry out the repair yourself.

Major faults caused by user - Where possible parts will be supplied at user expense. Where the item cannot be repaired by the user, Jono & Johno will offer to have the item returned for repair at user expense. Our workshop rate is $60 per hour.

HOW DO I RETURN MY PRODUCT IF IT’S COVERED BY WARRANTY?

If you’re in reasonable driving distance of a Jono and Johno outlet, you can physically return the product yourself. Please contact us in advance to arrange a return authority.

If you are not within reasonable driving distance, Jono & Johno will provide you with a return authority and an address to return the product to. Where Jono & Johno is at fault a postage-paid return label will be provided.

EXCEPTIONS TO THE RULE

If your product is out of warranty and is buggered, even though you’ve hardly used it, give us a call or shoot us an email. If there is a manufacturer fault or the item should have lasted a lot longer than it has, we’re happy to assess it outside of the warranty period. We do this on a case-by-case basis.

SKU	JPE65ES
Model #	JPE65ES
Barcode #	682157269747
Brand	JONO & JOHNO
Shipping Weight	17.9500kg
Shipping Width	0.050m
Shipping Height	0.050m
Shipping Length	0.050m
Shipping Cubic	0.000125000m3
Unit Of Measure	ea
