2x SPINDLE ASSEMBLY FOR 38 TO 54 INCH HUSQVARNA, CRAFTSMAN & POULAN PRO MOWERS

NEW AFTERMARKET PARTS

If your model mower is not listed below, then please check the measurements provided. We are unable to advise if these spindle assemblies will fit any specific model not mentioned in the above description.

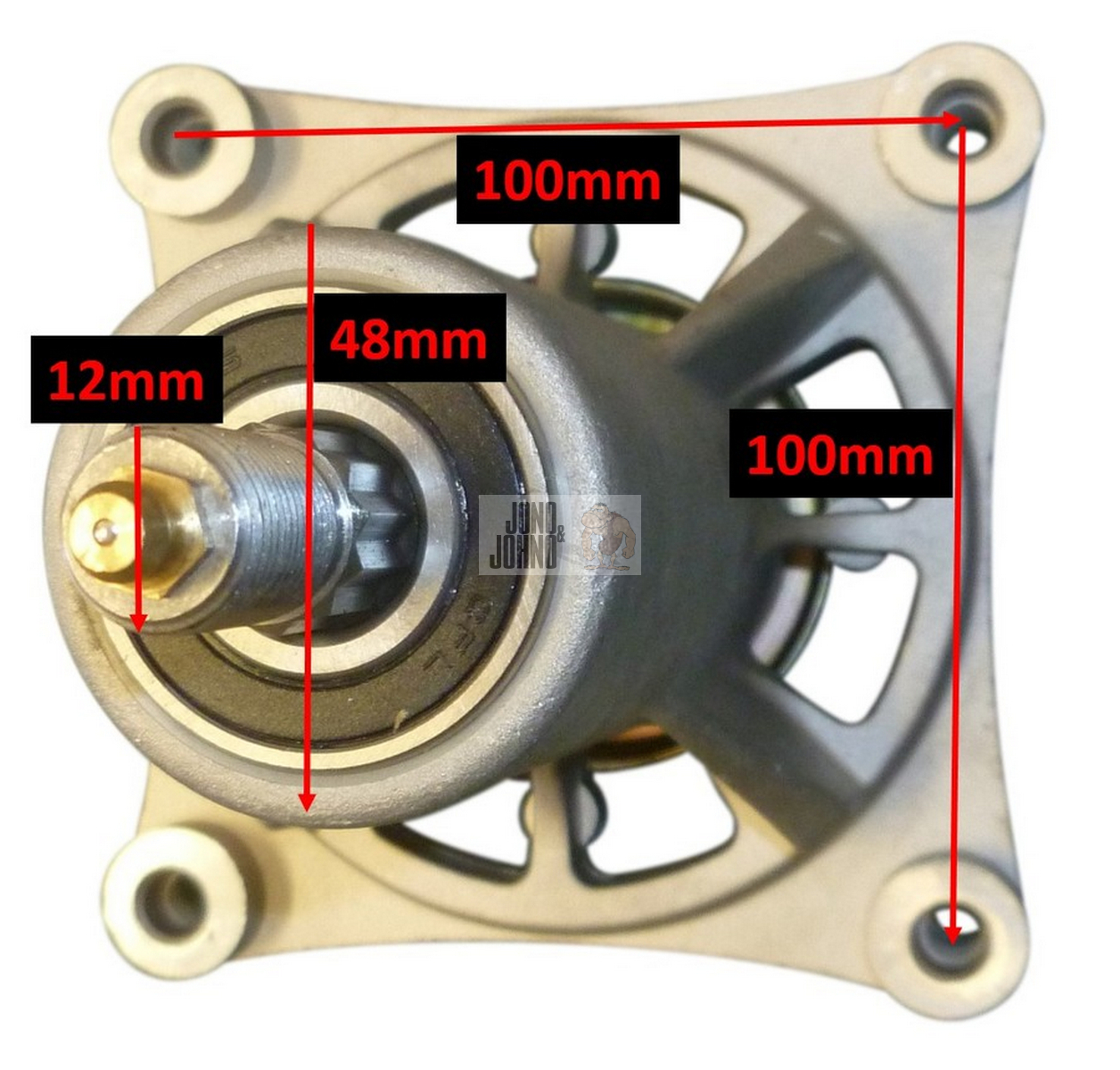

Please do not email or call asking if this will match your model. Check the dimensions in the pictures and see if they match up with your old spindle.

Please note: This sale is for two spindles. If you wish to purchase a single spindle then please click here.

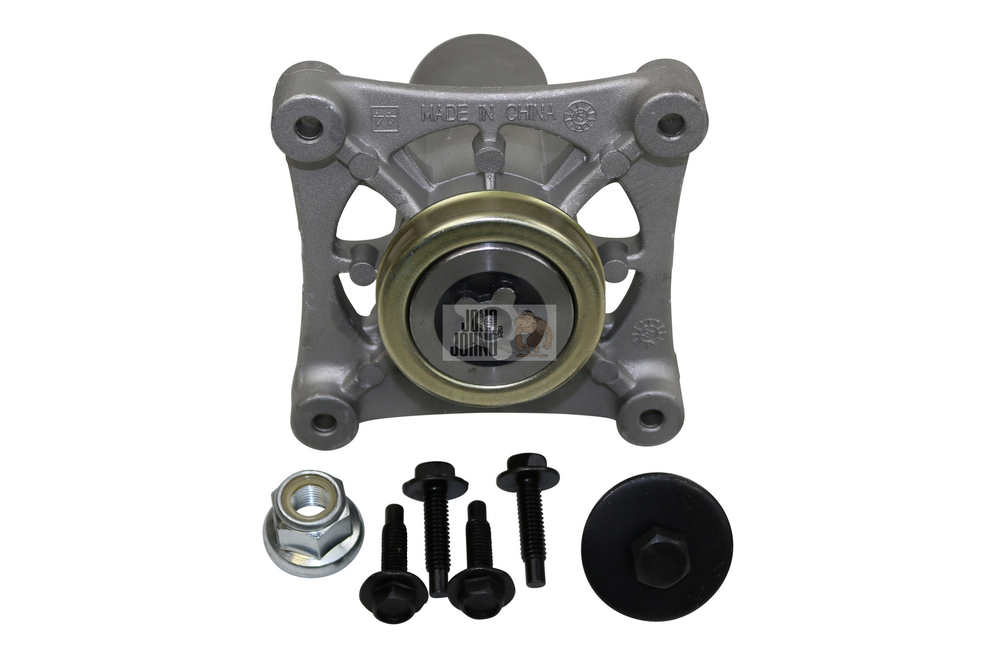

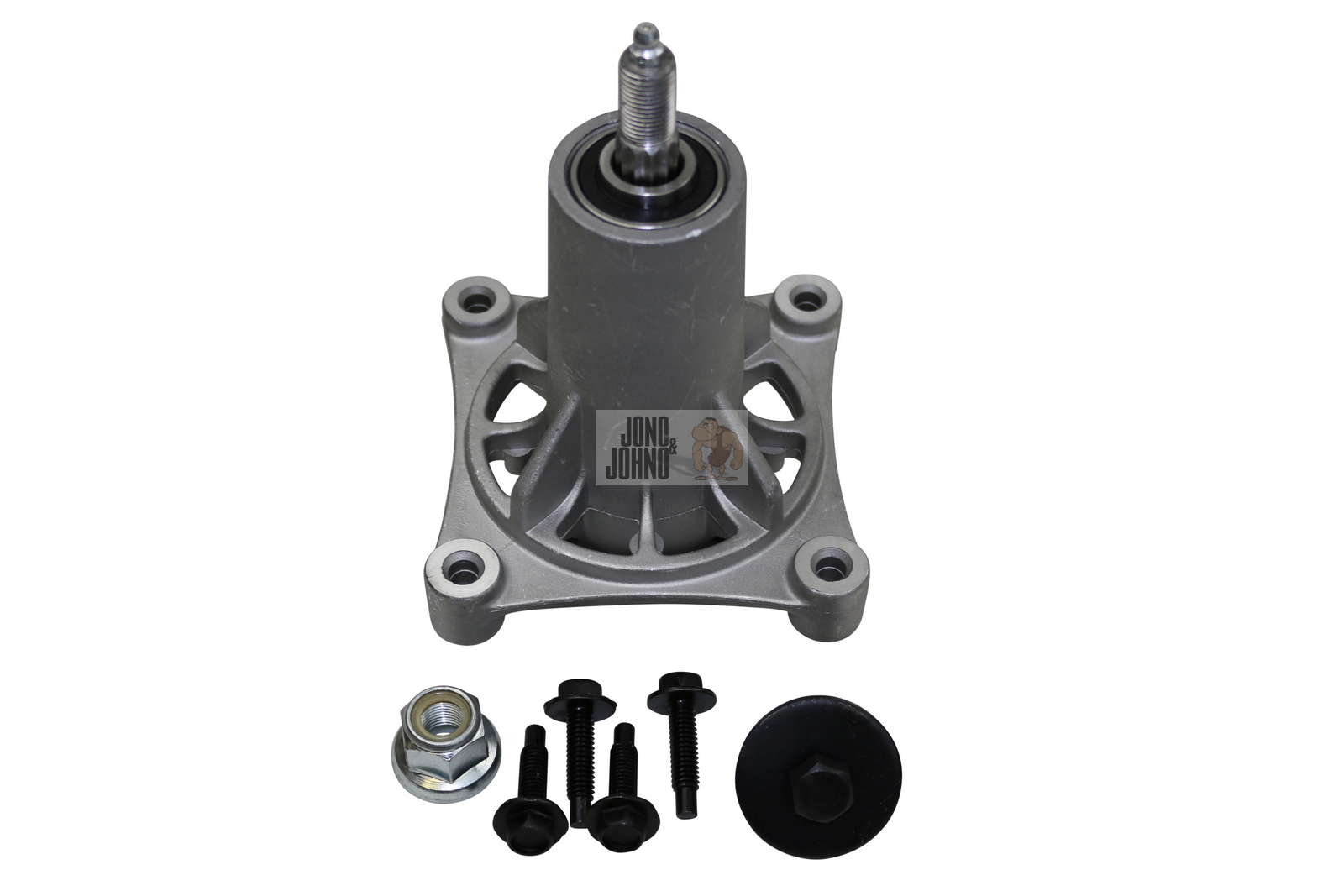

Comes with spindle shaft and grease nipple.

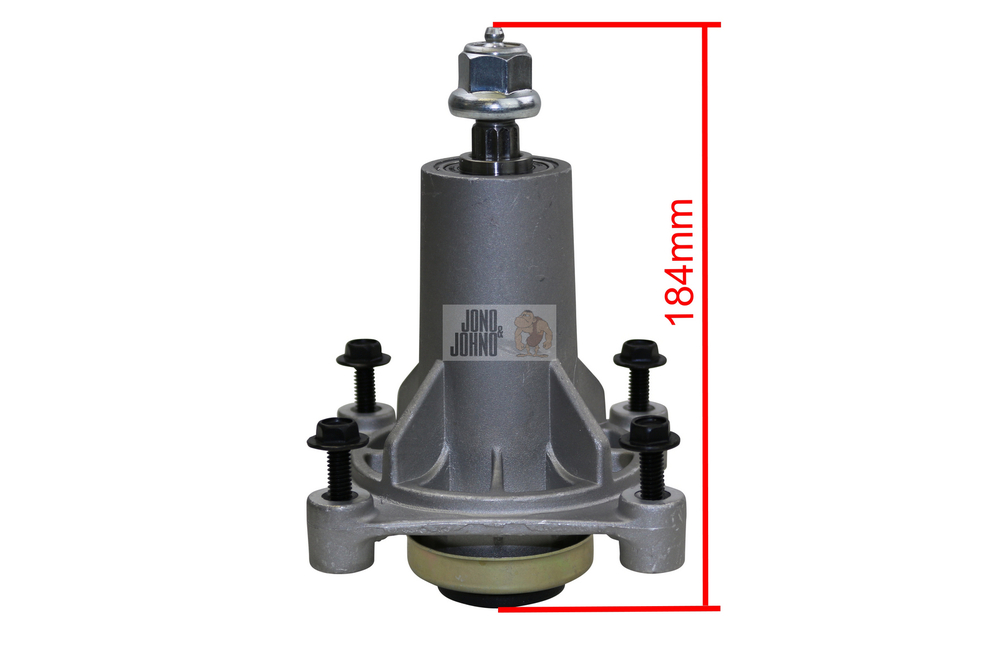

Shaft Length: 184mm

Includes pulley nut and blade mounting bolt.

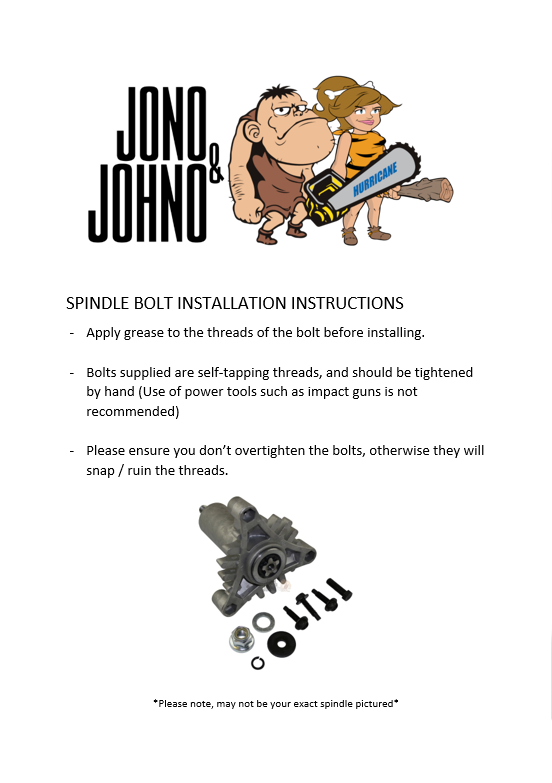

Takes 5/16" self-taping deck mounting bolts which are included in the package.

Fits late model 38 To 54 inch mowers including:

HUSQVARNA MODELS:

LT1597 - LTH1797 - LTH1742 - LTH1742T - LTH1842 - LTH1842T - LTH2142 - LTH2038 - LTH2038R - YTH1842 - YTH1842T - YTH2042XP - YTH204TD - YTH2546T - YTH2548XP - GTH2254XP - YTH21K46 - YTH2724T - YTH2754XP - LTH126 30" cut - zero turn models CTH19530 - GTH2554 - LT19538 - LT19538R - LTH126 - LTH1738 - LTH17538 - LTH1797 - LTH2142D - LTH2142DR - LTH19530 - RZ3016 - RZ3019 - RZ3815 - RZ4219 - RZ4220 - RZ4221BF - RZ5424T - TC130 - TC138 - TC142 - TC238 - TC239 - TC342 - TS138 - TS142 - TS142TX - TS142TXD - TS146 - TS242 - TS242TXD - TS246 - TS38 - YT42LS - YTH1942 - YTH2042 - YTH2042TD - YTH20K46 - YTH22V42 - YTH2246TDR - YTH22V46 - YTH2546 - YTH2548 - YTH2754.

POULAN PRO MODELS:

PP14538 - PP17538HP - PP22044HP

CRAFTSMAN MODELS:

PYT9000 - PP14538 - PP1753HP - PP22044HP - CMS1942S - CMV2242S - CMV2248S - CMV2454S - 20381 - 20382 - 20390 - 20391 - 28861 - 917203810 - 917203820 - 917203900 - 917203910 - 917288610 - 917250811 - 917203901 - 917253540 - 917288120 - 917288513 - 917288525 - T2200 - T3000 - YT3000

MCCHULLOCH MODELS:

M16538H 16.5HP 38" RIDE ON - M13538 - M14538 - M19542H - M22042H

Please check that your old spindle has 4 mounting bolt holes.

If your spindle has three mounting bolt holes then please click here.

OEM PART NUMBERS:

187292 - 192870 - 532187292 - 532192870 - 587253301 - 532 18 72-92 - 532 19 28-70 - 587125401 - 587819701 - 587 81 97-01

Takes an M6 grease nipple. Uses bearings 75-3220 & 75-3224 (included).

WARRANTY OVERVIEW

Jono & Johno offers a 12-month warranty on all products.

We pride ourselves on selling good quality kit and will be fair and prompt honouring our warranties. If you’re in trouble, we’ll help you out.

WHAT IS COVERED?

Exactly what is covered by warranty will depend on 2 things:

If the fault is due to user or manufacturer
If the fault is minor or major

Minor faults caused by user - Parts will be supplied for repair at user expense.

Minor faults caused by manufacturer - Parts will be supplied for repair, with instructions provided by us on how to carry out repair.

Major faults caused by manufacturer - Jono & Johno will facilitate a return of the product for refund or replacement at our expense. Or if you’d prefer (at our discretion and in consultation with you), we can send appropriate parts and compensate labour costs if you can carry out the repair yourself.

Major faults caused by user - Where possible parts will be supplied at user expense. Where the item cannot be repaired by the user, Jono & Johno will offer to have the item returned for repair at user expense. Our workshop rate is $60 per hour.

HOW DO I RETURN MY PRODUCT IF IT’S COVERED BY WARRANTY?

If you’re in reasonable driving distance of a Jono and Johno outlet, you can physically return the product yourself. Please contact us in advance to arrange a return authority.

If you are not within reasonable driving distance, Jono & Johno will provide you with a return authority and an address to return the product to. Where Jono & Johno is at fault, a postage-paid return label will be provided.

EXCEPTIONS TO THE RULE

If your product is out of warranty and is buggered, even though you’ve hardly used it, give us a call or shoot us an email. If there is a manufacturer fault or the item should have lasted a lot longer than it has, we’re happy to assess it outside of the warranty period. We do this on a case-by-case basis.

SKU	SPIN-002x2
Model #	532 18 72-92
Barcode #	682157251391
Brand	Unbranded
Shipping Weight	3.1000kg
Shipping Width	0.050m
Shipping Height	0.050m
Shipping Length	0.050m
Shipping Cubic	0.000125000m3
Unit Of Measure	ea
Items included in the kit
Product Name	Quantity	SKU
Spindle Assembly Husqvarna Craftsman & Poulan Pro Mowers 532187292 587819701	2	SPIN-002
