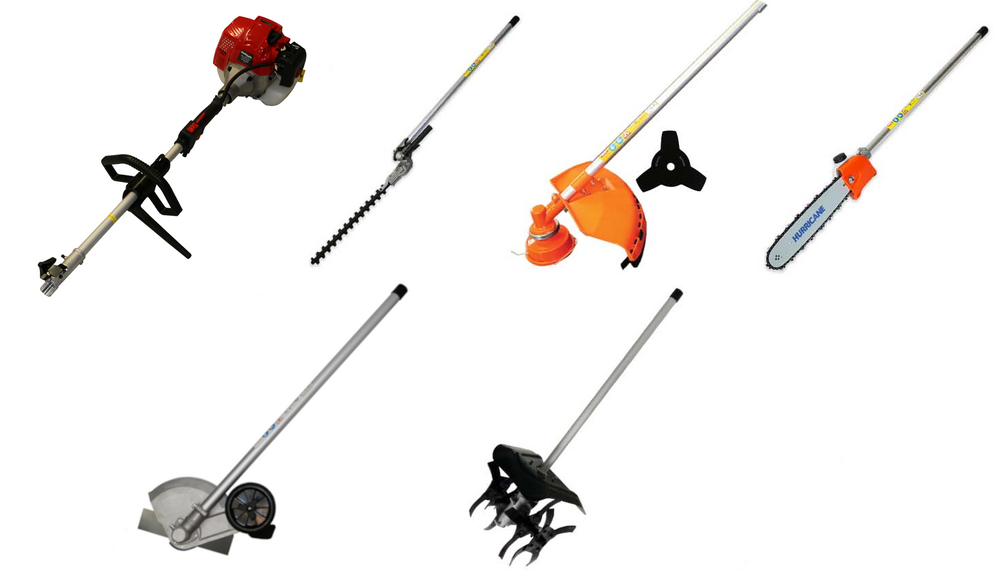

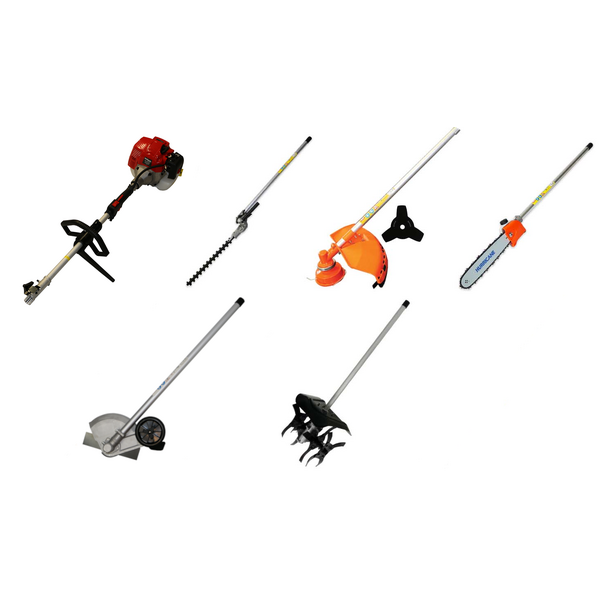

Perla Barb 65cc 6 in 1 Multi Tool Set

This is the ultimate multi-tool gardening machine, with all the attachments you'll ever need! Made with quality materials, the Perla Barb Multi-Tool features quick-connect shafts and couplings with ball-bearing floating centres. The power unit is a tough and proven Perla Barb 65cc engine surrounded by a flexible and strong motor housing. Extended use is made possible thanks to a large capacity fuel tank, which is also protected by a strong metal bracing.

This unit is perfect for any of your pruning, gardening, cultivating or even sculpting needs! Yet another tough and reliable Jono & Johno backed product with a 12 month warranty.

PLEASE NOTE: DOES NOT INCLUDE SAFETY GOGGLES.

Polesaw attachment is 9 spline. To purchase an extra extension for the polesaw please go to this link: https://www.chainsawspares.com.au/9-spline-1-metre-extension-shaft-for-hedge-trimmer

Other handy attachments available for this multitool: https://www.chainsawspares.com.au/?rf=kw&kw=multi+attachment

Jono & Johno are industry leaders for quality outdoor power machinery and unbeatable customer service.

Features:

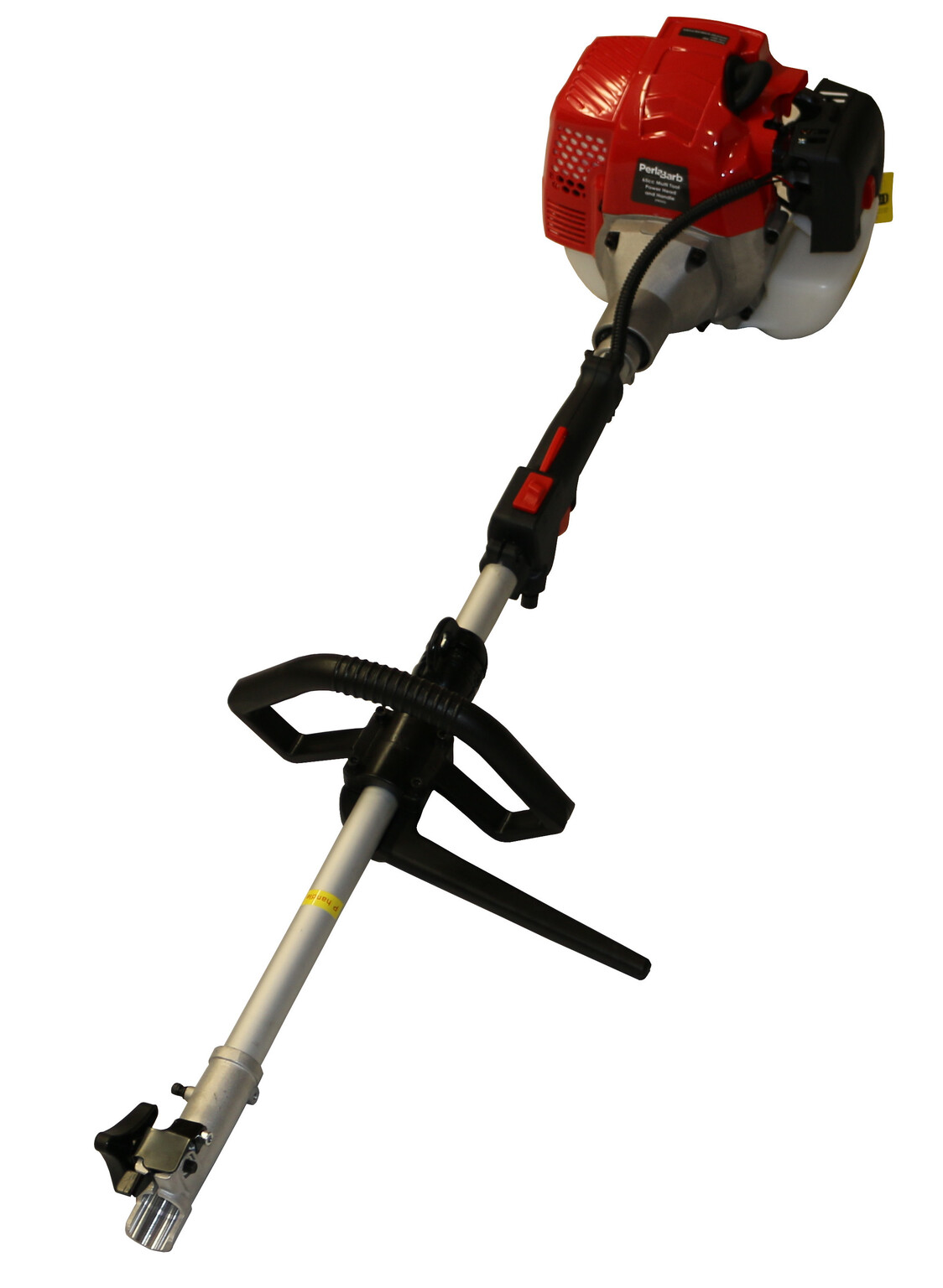

65cc Perla Barb two stroke 3.4hp motor with durable casing
26mm Commercial Anodised Alloy Shafts
Shafts with Quick-change commercial bearing couplings
Pole saw includes quality bar and chain
Pole Pruner bar length: 12" (300mm)
Bonus Hedge Trimmer blade covers
Quick start guide
Easy fill large capacity fuel tank
High torque
Light but powerful

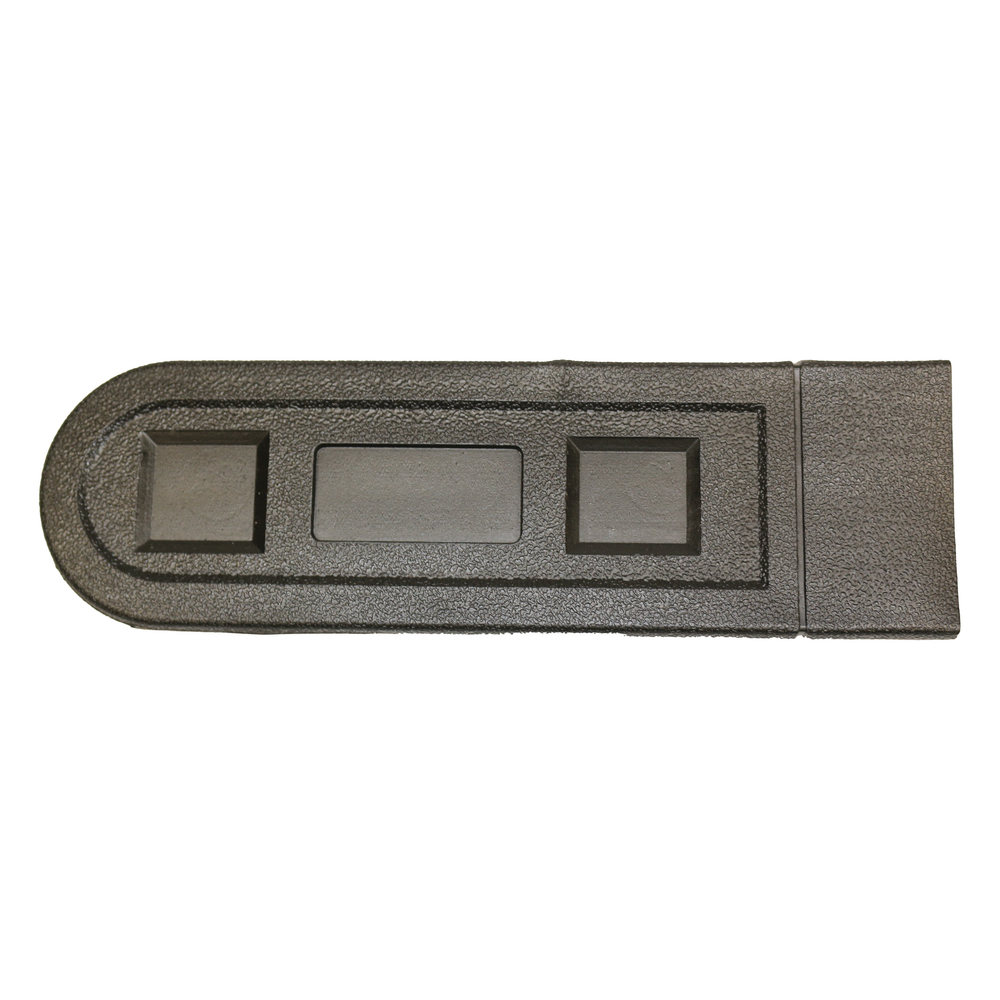

Includes bar cover

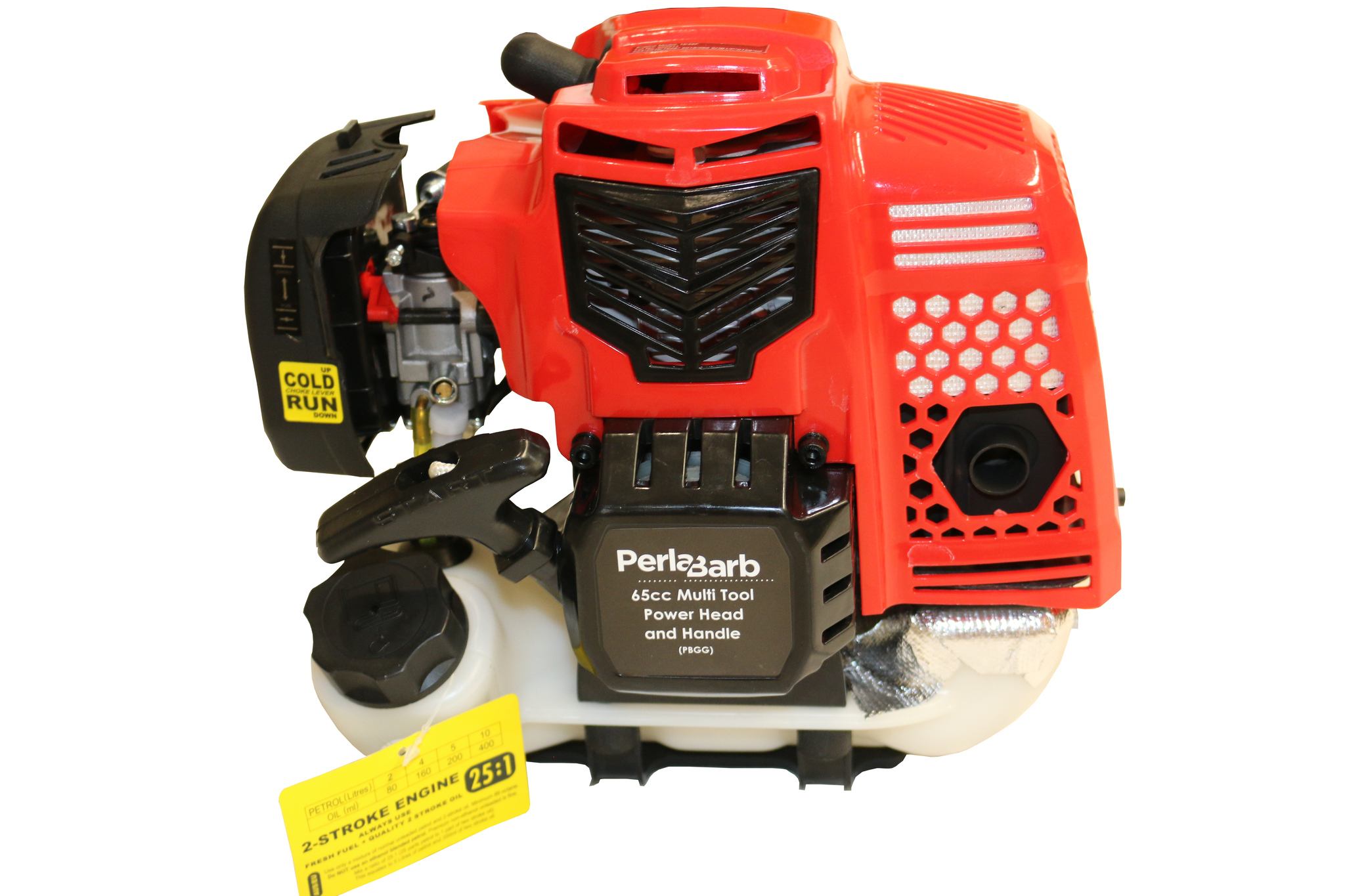

Engine specs:

Brand: Perla Barb
Engine Type: Petrol - Two Stroke Commercial
Dual Weighted Crank / Double Ringed Piston
Displacement / Maximum Power: 65CC / 3.4hp
Max. Engine Speed: 11,000 RPM w/Centrifugal clutch
Fuel Tank Capacity: 1.2 Litre
Fuel Mix: 25:1 (25 parts fuel to 1 part two stroke oil)
Fuel Type: Regular Unleaded

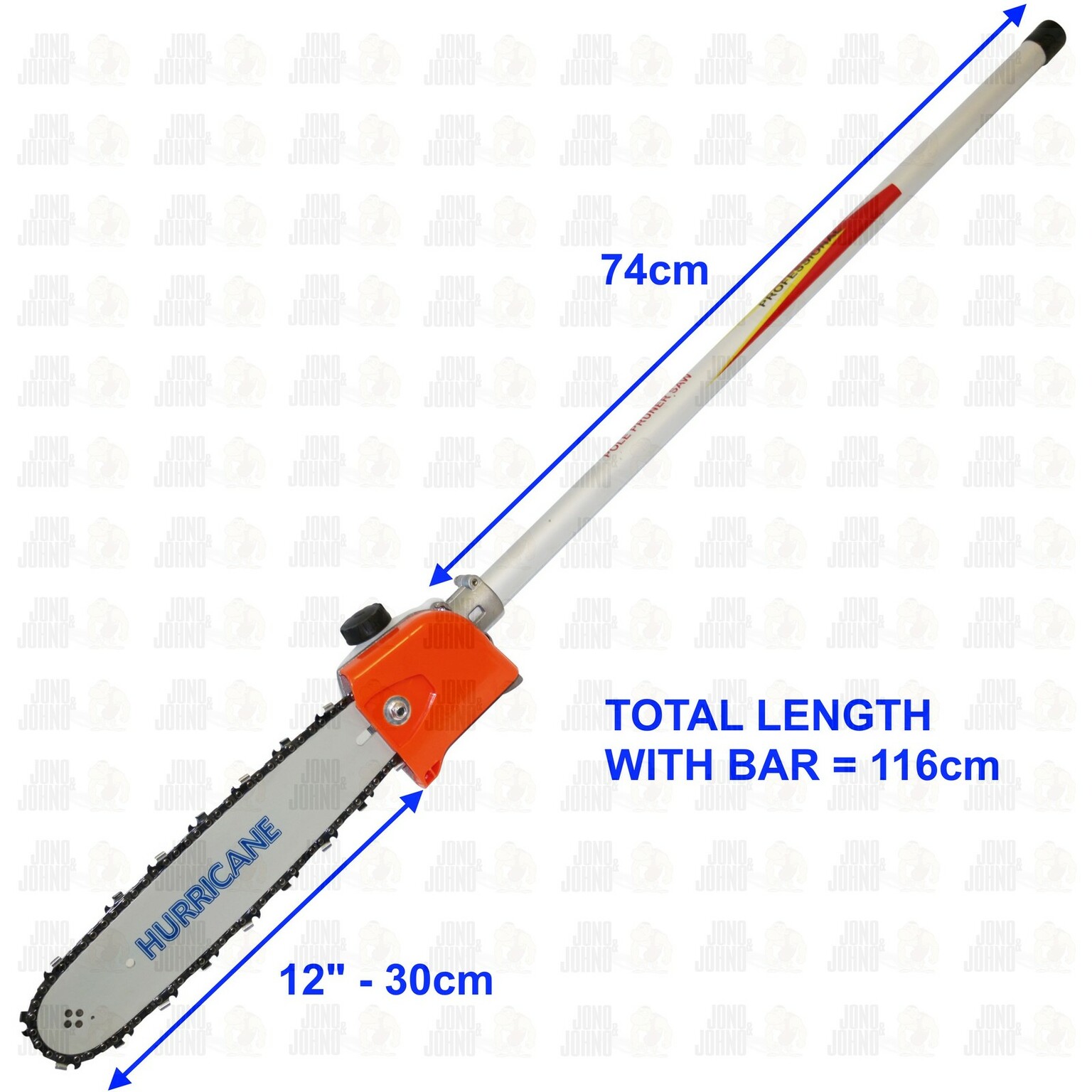

Polesaw attachment:

Bar Length / Type: 12" Sprocket Nose
Bar Oil Capacity / Type: 150mL SAE 10W-30 or Similar
Chain Type: High Quality Hurricane Semi Chisel
Chain Spec: 12", 3/8lp pitch, .050 gauge, 44 drive links
Total length without bar: 86cm from tip of shaft to tip of gearbox/head
Total length with 12" bar: 117cm
Total length of extension shaft: 1 metre

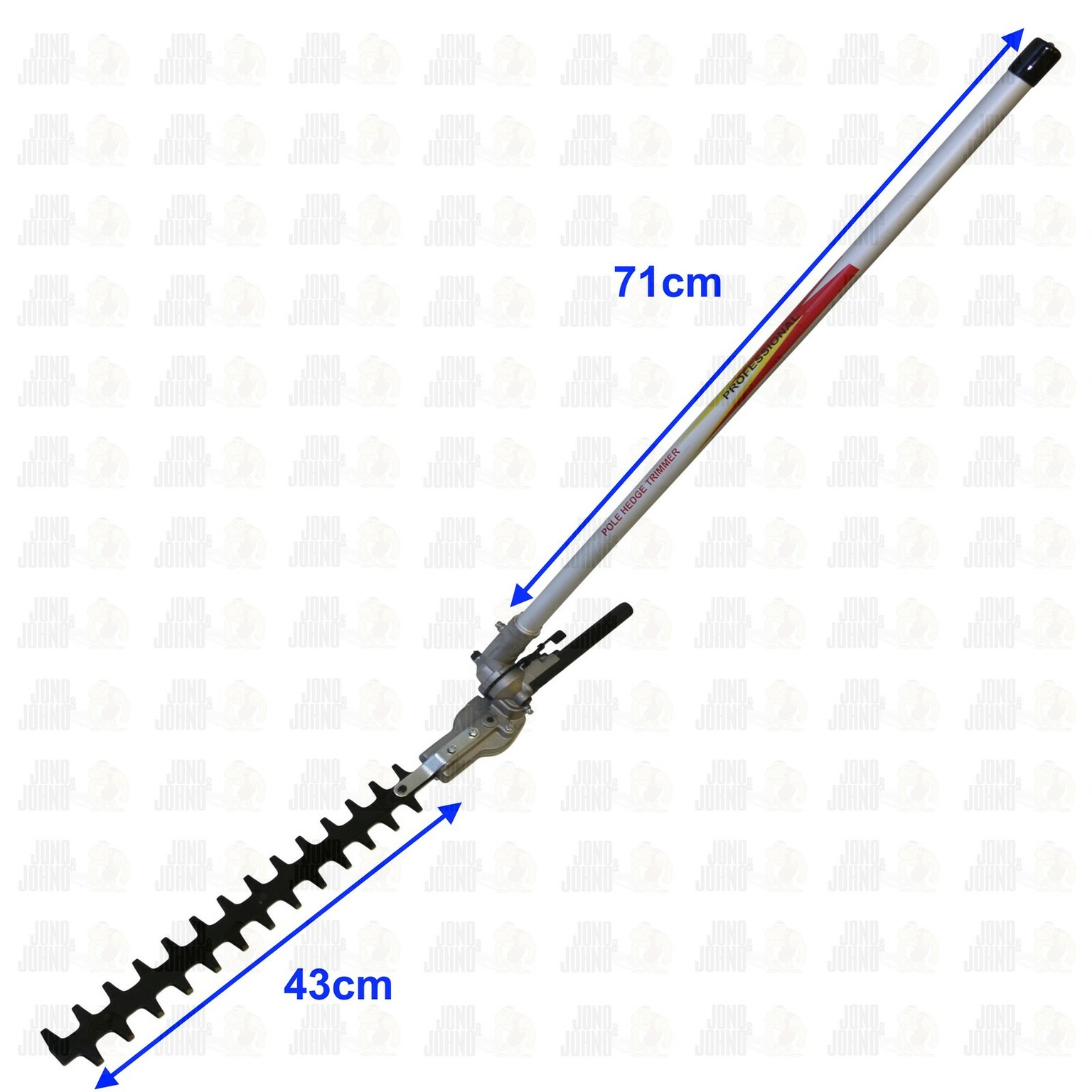

Hedge Trimmer attachment:

Gearbox Type: Ball Bearing Commercial grade - Greaseable
Blade Length / Type: 430mm Dual Oscillating
Blades Material: Ultra Hardened Knife Steel
Cutting Capacity: 430mm - max 15mm Diameter
Degrees of Rotation: 270 - 10 incremental positions

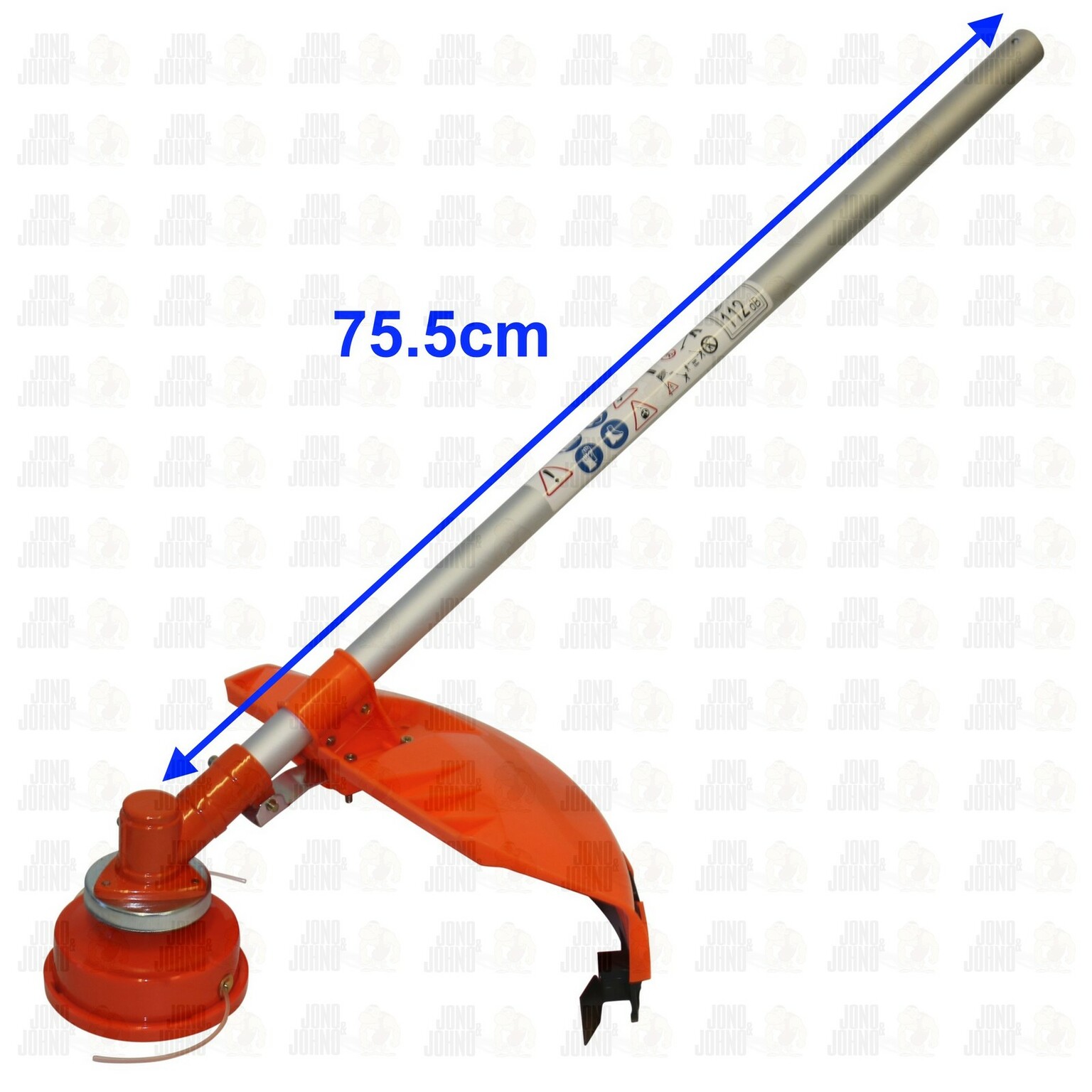

Brush Cutter attachment:

Gearbox Type: Ball Bearing Commercial grade - Greaseable
Arbor Size: 25.5mm (1 Inch) Counter-clockwise drive direction
Blade: (3T) 3 teeth slasher blade

Bump Feed Head:

Trimmer Line Diameter Fitting: 2.0-3.2mm
Thread: 10mm Left Hand Thread
Line material: Nylon

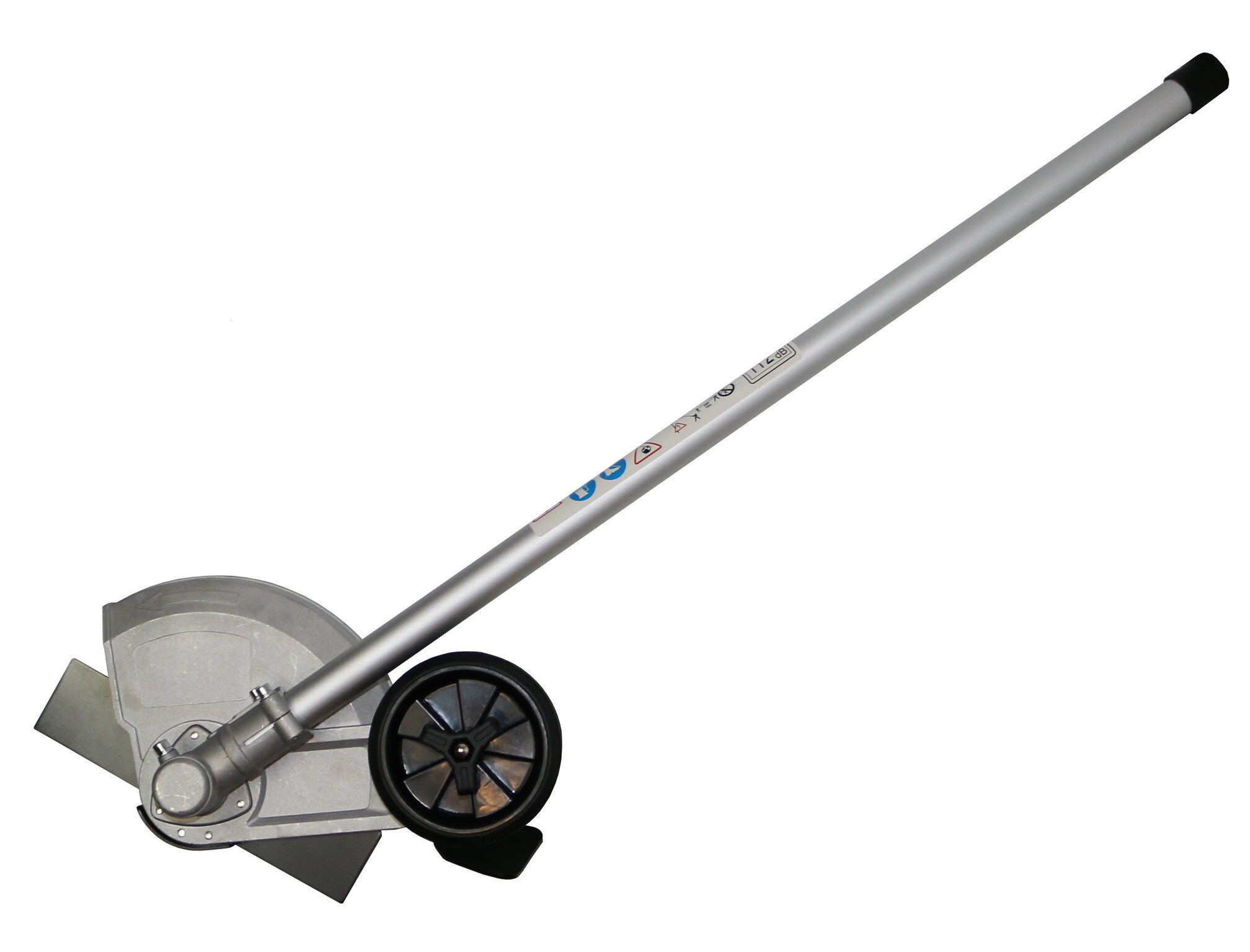

Lawn Edger:

Heavy duty quality construction and materials
Solid rubber guide wheel - suits any terrain
Adjustable guide for professional-looking edges
Shaft type: 9 Spline
Shaft external diameter: 25.8mm, 1.6mm wall thickness
Guide wheel: solid rubber, 115mm diameter, 31.5mm width
Adapter/coupling type: Spring quick connection

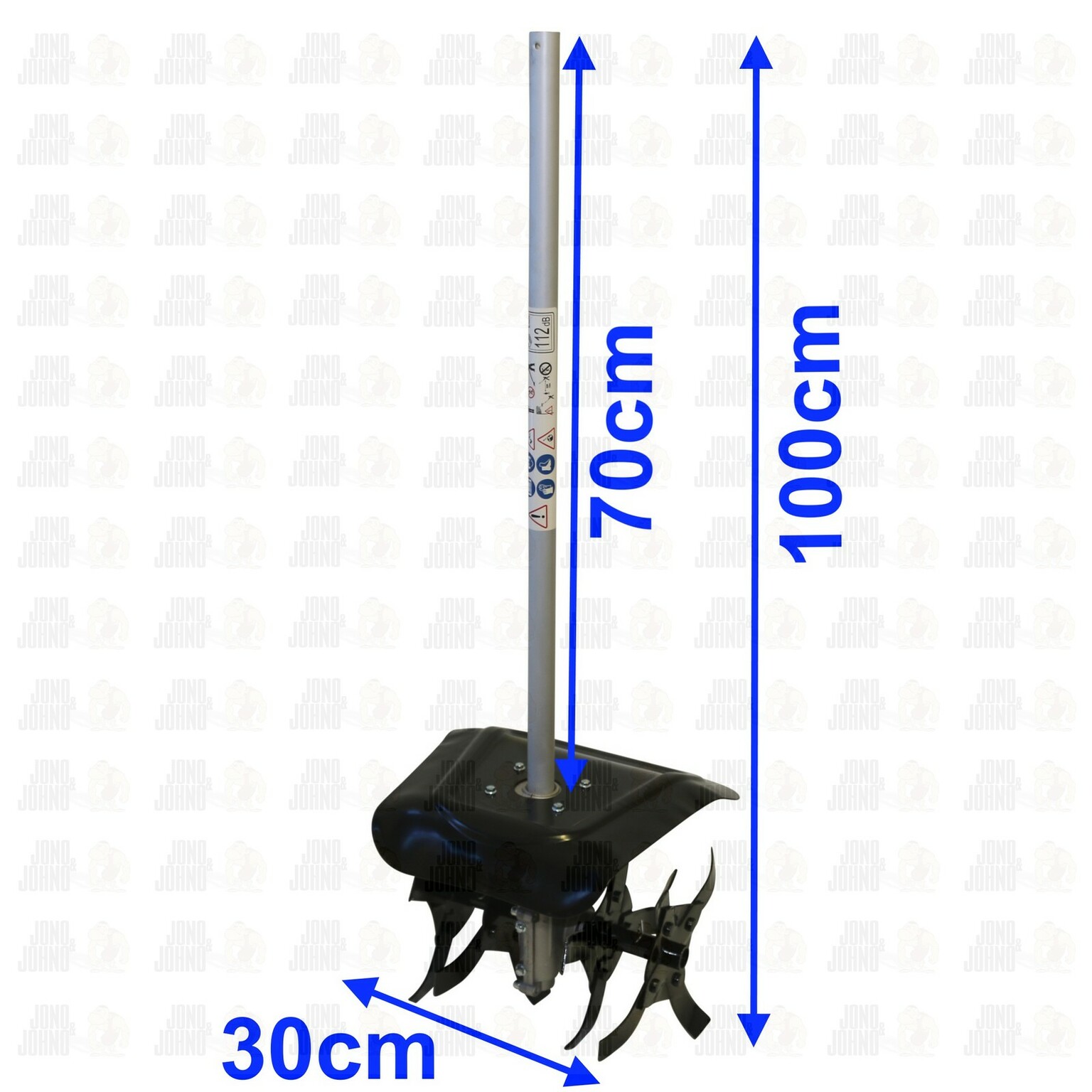

Tiller/Cultivator:

Four synchronous rotating heavy duty steel blades for deeper tilling and greater control
Convinient safety guard
Straight shaft/pole
Hard wearing powder coated finish
Heavy duty solid construction

Weights

Multi-Tool: 6.32kg
Multi-Tool with Brush Cutter: 7.52kg
Multi-Tool with Hedge Trimmer: 8.52kg
Multi-Tool with Pole Saw: 8.08kg
Multi-Tool with Tiller: 11.67kg

WARRANTY OVERVIEW

Jono & Johno offers a 12-month warranty on all products.

We pride ourselves on selling good quality kit and will be fair and prompt honouring our warranties. If you’re in trouble, we’ll help you out.

WHAT IS COVERED?

Exactly what is covered by warranty will depend on 2 things:

If the fault is due to user or manufacturer
If the fault is minor or major

Minor faults caused by user - Parts will be supplied for repair at user expense.

Minor faults caused by manufacturer - Parts will be supplied for repair, with instructions provided by us on how to carry out repair.

Major faults caused by manufacturer - Jono & Johno will facilitate a return of the product for refund or replacement at our expense. Or if you’d prefer (at our discretion and in consultation with you), we can send appropriate parts and compensate labour costs if you can carry out the repair yourself.

Major faults caused by user - Where possible parts will be supplied at user expense. Where the item cannot be repaired by the user, Jono & Johno will offer to have the item returned for repair at user expense. Our workshop rate is $60 per hour.

HOW DO I RETURN MY PRODUCT IF IT’S COVERED BY WARRANTY?

If you’re in reasonable driving distance of a Jono and Johno outlet, you can physically return the product yourself. Please contact us in advance to arrange a return authority.

If you are not within reasonable driving distance, Jono & Johno will provide you with a return authority and an address to return the product to. Where Jono & Johno is at fault, a postage-paid return label will be provided.

EXCEPTIONS TO THE RULE

If your product is out of warranty and is buggered, even though you’ve hardly used it, give us a call or shoot us an email. If there is a manufacturer fault or the item should have lasted a lot longer than it has, we’re happy to assess it outside of the warranty period. We do this on a case-by-case basis.

SKU	MTCOMBO22
Model #	MTCOMBO21
Barcode #	688187201245
Brand	Perla Barb
Shipping Weight	21.4000kg
Shipping Width	0.340m
Shipping Height	0.330m
Shipping Length	1.110m
Shipping Cubic	0.124542000m3

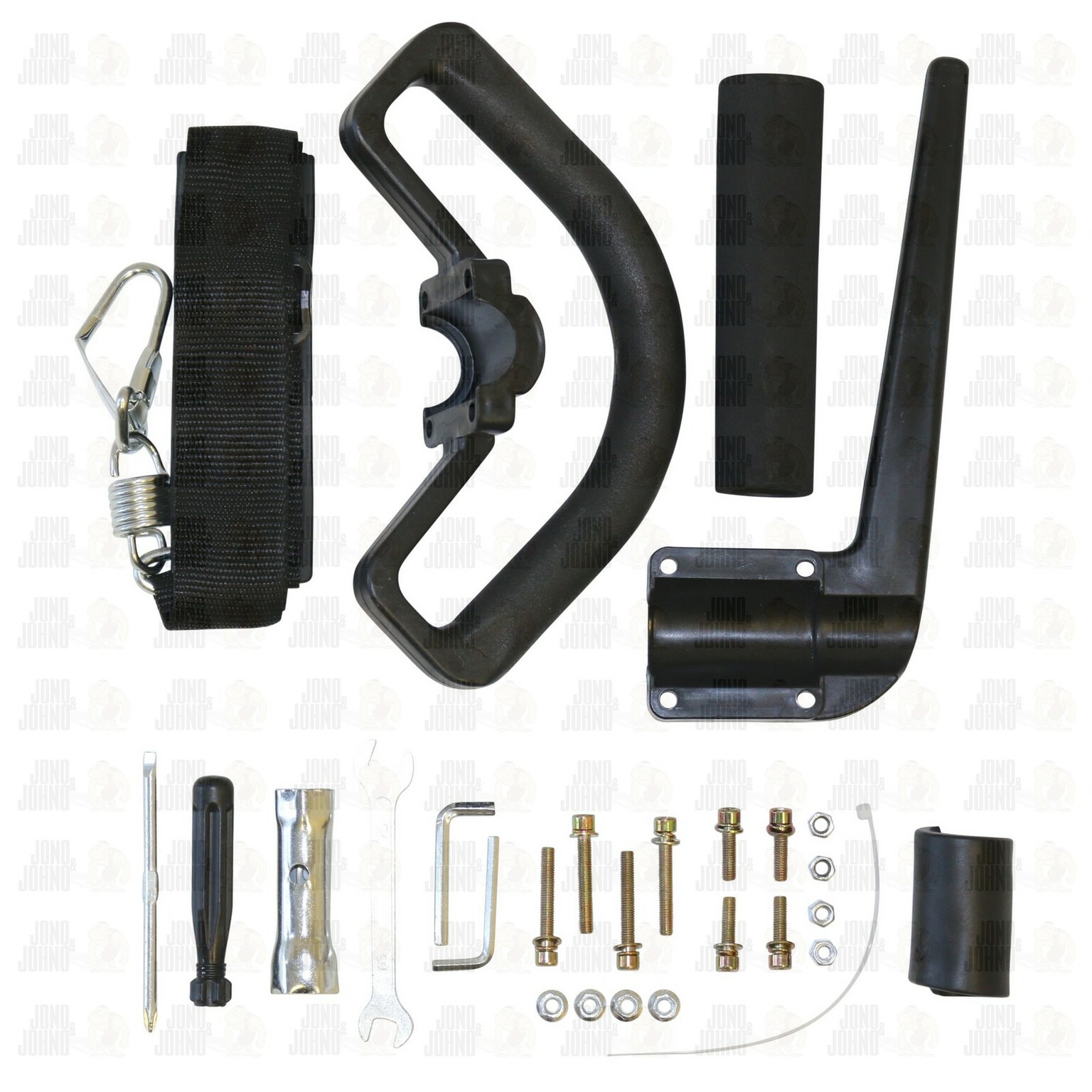

Items included in the kit
Product Name	Quantity	SKU
1x Chainsaw Semi Chisel Chain 3/8LP 050 44DL	1	44DL002
Bar only - M12-50NR	1	M12-50NR
3 Teeth Blade for Brush Cutter Whipper Snipper Trimmer Multi Tool Attachment	1	PBBB005
9 Spline 1 Metre Extension Shaft for Hedge Trimmer Pole Saw Multi Tool	1	PBBB008_9
Hedge Trimmer Attachment for Multi Tool Pole Saw Brush Cutter Petrol Trimmer	1	PBBB051
Brush Cutter Whipper Snipper Attachment for Multi Tool Pole Saw Petrol Trimmer	1	PBBB052
Pole Saw Attachment for Multi Tool - NO bar or chain	1	PBBB053
Lawn Edger Attachment for Multi Tool Pole Saw Brush Cutter Petrol Trimmer	1	PBBB061
Tiller Rotary Hoe Cultivator Attachment for Multi Tool	1	PBBB062
65cc Multi Tool Power Head Only Pole Chainsaw Brush Cutter Petrol Trimmer	1	PBGG
