Chainsaw Milling Attachment 18" to 36" Mill Slabbing

This Jono & Johno chainsaw mill will convert your chainsaw into a portable mill/slabbing machine! It comes with an adjustable chainsaw bar clamp so you can mount your chainsaw fitted with a 18" to 36" bar. Simply clamp your chainsaw bar to the milling attachment and you now have your very own portable saw mill.


Light but sturdy, this mill is designed to produce smooth-cut slabs from your logs and trees. It is made of heavy duty aluminium components and also includes a protective plate made of perspex.


This tool has a parallel bar that can have it's distance adjusted from the chainsaw bar to provide different thickness slabs. The first slab is cut by using a couple of guide rails placed and secured onto the top of the log. You can then mill slabs between 1/2" to 13" thick.

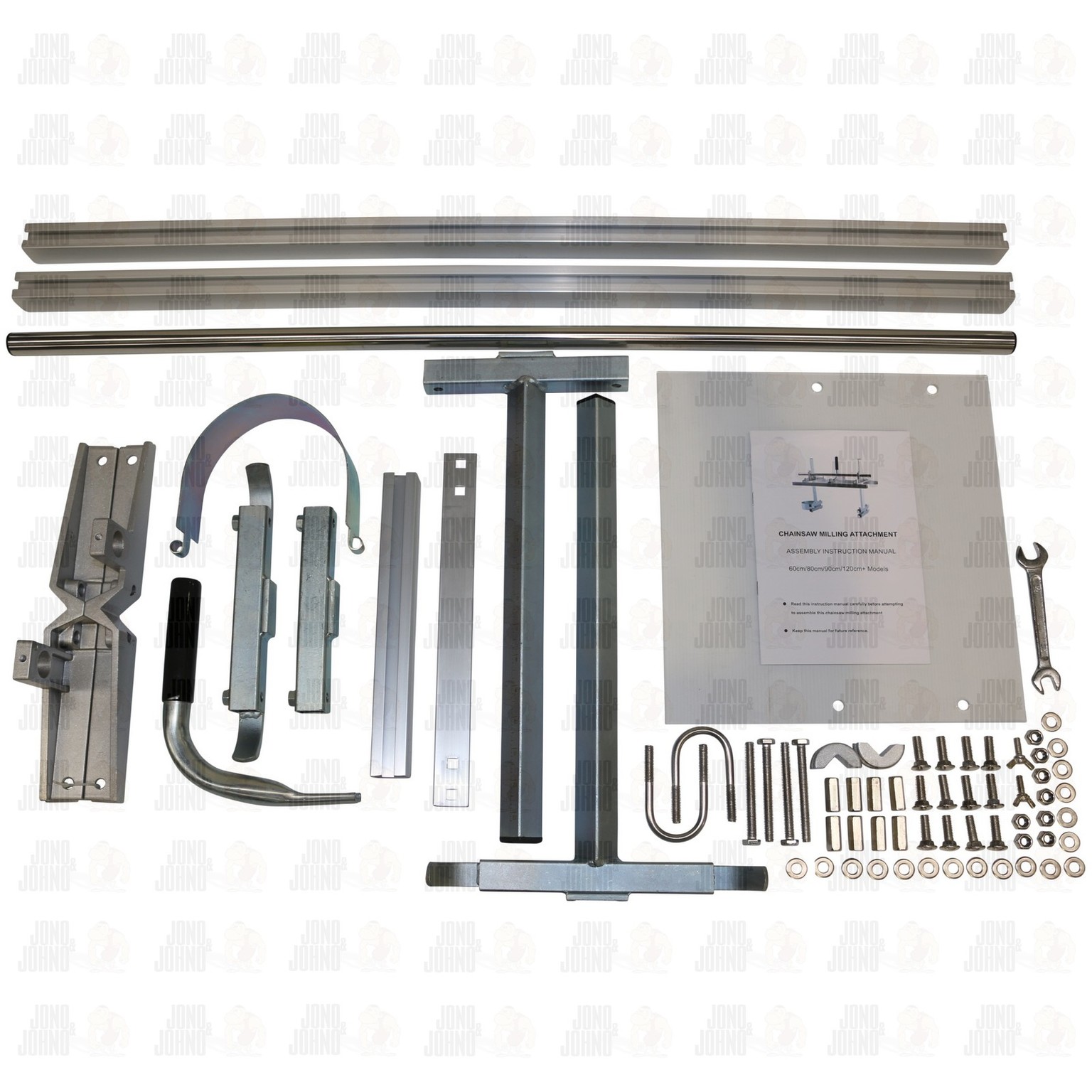

Includes instruction manual and operation guide detailing assembly of mill and how to use it, with colour pictures.


**Please note the chainsaw with Hurricane bar and chain shown in the photos above are for illustration purposes only and are NOT included with the mill.**

FEATURES:

  • Aircraft grade 29mm square aluminum mill frame
  • Square steel 25mm clamping pad brackets
  • Tubular steel 22mm handle bars

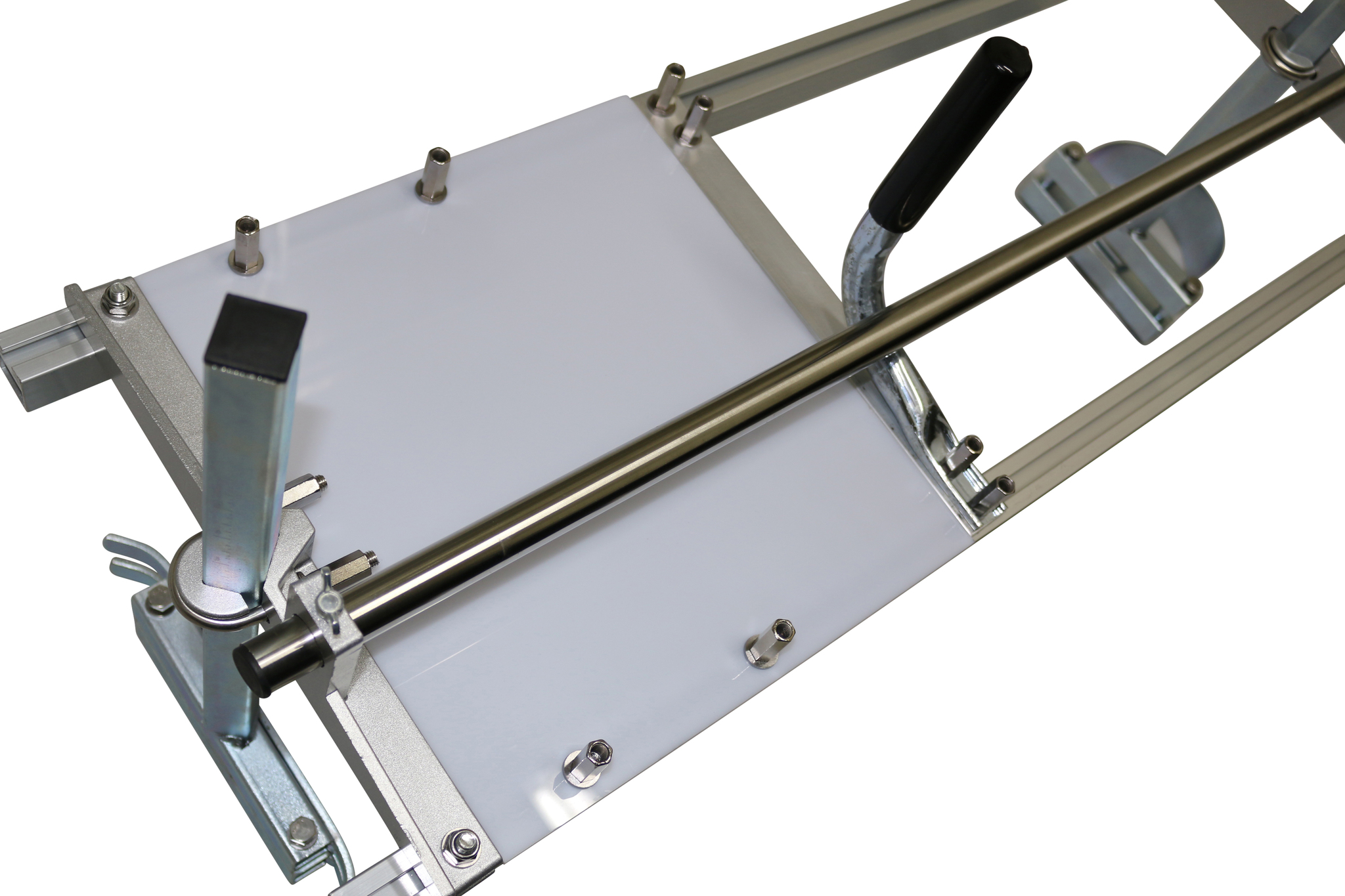

  • Protective perspex plate to guard against injury
  • Strong clamp to hold weight of all brand name chainsaws
  • Suitable for chainsaws with a bar length between 18" and 36"
  • Box dimmensions for shipping: 92cm x 33cm x 7cm
  • Maximum slabbing width: 795mm (31.3")
  • Maximum slabbing thickness: 1/2" to 13" (12.7mm to 330mm)

(SM72)

SKU SM72
Model # SM72
Brand JONO & JOHNO
Shipping Weight 7.3000kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.050m
Shipping Cubic 0.000125000m3
Unit Of Measure ea
