SKU : JWPFTWESKIT-10MHOSE
With bush-fires being an ever present danger throughout Australia, home owners are more aware than ever of the need to be ready to protect their properties.
This Jono & Johno fire pump comes equipped with a twin impeller to achieve maximum pressure. It has an electric start system so it is quick to start when the need arises. It also has a single 1.5" outlet or two 1" outlets if you wish to use two hoses at the one time.
Included in this kit:
PLEASE NOTE: assembly of hoses and camlocks is required.
Backed with a Jono & Johno one year parts warranty and a lifetime of ongoing advice, you can feel peace of mind in purchasing a premium piece of fire fighting equipment.
Jono & Johno are also including a battery with this purchase, setting us apart from other sellers.
Please note that the battery is not included in the warranty.
If you would like to see what other pumps Jono & Johno stocks then please scroll down the page.
PLEASE NOTE: Camlock colour may vary! Camlock may also come in orange!
ENGINE | |
Max Power Output: | 7hp/3600rpm |
Displacement: | 196cc |
Bore x Stroke (mm): | 68 * 54 |
Compression: | 8.5:1 |
Max Torque (n.m)/rpm] : | 1.35(13.2)/2500 |
Ignition system: | Transistor Electric / Inductive Firing |
Spark Plug Type: | NGK: BPR6ES Champion: RN9YC Bosch: W7DCR |
Starting system: | Electric and Recoil |
Fuel Tank Capacity: | 3.6 Ltr |
Oil capacity: | 0.6 Ltr |
Fuel consumption: | 395g/kw.h |
Air cleaner: | Semi dry, dual filter |
Shaft Diameter: | 19mm |
Shaft Length: | 70mm |
Shaft Thread: | 3/4-16UNF 2A threaded shaft |
Shaft Rotation: | Anti clockwise from output |
Weight: | 24.5kg (Pump only) 30.5kg (Pump, packaging and accessories) |
Package dimensions: | 57cm x 46cm x 45cm |
PUMP | |
Suction / discharge port diameter: | 2" inlet / 2 x 1" outlets and 1 x 1.5" outlet |
Lift: | 80m |
Maximum Suction: | 8 Mtrs |
Flow Rate: | 20,000 Liters Per Hour = 333.33 Liters Per Minute |
PLEASE NOTE: FIRE HOSE COLOUR MAY VARY! MAY BE A BLACK OR RED HOSE!
WARRANTY OVERVIEW
Jono & Johno offers a 12-month warranty on all products.
We pride ourselves on selling good quality kit and will be fair and prompt honouring our warranties. If you’re in trouble, we’ll help you out.
WHAT IS COVERED?
Exactly what is covered by warranty will depend on 2 things:
Minor faults caused by user - Parts will be supplied for repair at user expense.
Minor faults caused by manufacturer - Parts will be supplied for repair, with instructions provided by us on how to carry out repair.
Major faults caused by manufacturer - Jono & Johno will facilitate a return of the product for refund or replacement at our expense. Or if you’d prefer (at our discretion and in consultation with you), we can send appropriate parts and compensate labour costs if you can carry out the repair yourself.
Major faults caused by user - Where possible parts will be supplied at user expense. Where the item cannot be repaired by the user, Jono & Johno will offer to have the item returned for repair at user expense. Our workshop rate is $60 per hour.
HOW DO I RETURN MY PRODUCT IF IT’S COVERED BY WARRANTY?
If you’re in reasonable driving distance of a Jono and Johno outlet, you can physically return the product yourself. Please contact us in advance to arrange a return authority.
If you are not within reasonable driving distance, Jono & Johno will provide you with a return authority and an address to return the product to. Where Jono & Johno is at fault, a postage-paid return label will be provided.
EXCEPTIONS TO THE RULE
If your product is out of warranty and is buggered, even though you’ve hardly used it, give us a call or shoot us an email. If there is a manufacturer fault or the item should have lasted a lot longer than it has, we’re happy to assess it outside of the warranty period. We do this on a case-by-case basis.
SKU | JWPFTWESKIT-10MHOSE | |
Model # | JWPFTWESKIT-10MHOSE | |
Barcode # | 726597608312 | |
Brand | JONO & JOHNO | |
Shipping Weight | 68.4200kg | |
Shipping Width | 0.050m | |
Shipping Height | 0.050m | |
Shipping Length | 0.050m | |
Shipping Cubic | 0.000125000m3 | |
Unit Of Measure | ea | |
Items included in the kit | ||
Product Name | Quantity | SKU |
Adjustable Nozzle for Fire Fighting | 1 | 3708H |
2x 21-44mm Hose Clamps For 1" Hose | 1 | AAHC-21-44 |
2x 52-76mm Hose Clamps For 2" Hose | 1 | AAHC-52-76 |
Barb Fitting To Adapt Firefighting Nozzle To 1 inch Hose Water Pump | 1 | BARB_F_1 |
Fire Fighting Pump - 7HP Electric Start Twin Impeller with OHV Petrol Engine | 1 | JWPFTWES |
Nylon Camlock Fitting Type A 1" Cam Lock Irrigation Fitting | 1 | PCLA1 |
Nylon Camlock Fitting Type A 2" Cam Lock Irrigation Fitting | 1 | PCLA2 |
Nylon Camlock Fitting Type C 1" Cam Lock Irrigation Fitting | 1 | PCLC1 |
Nylon Camlock Fitting Type C 2" Cam Lock Irrigation Fitting | 1 | PCLC2 |

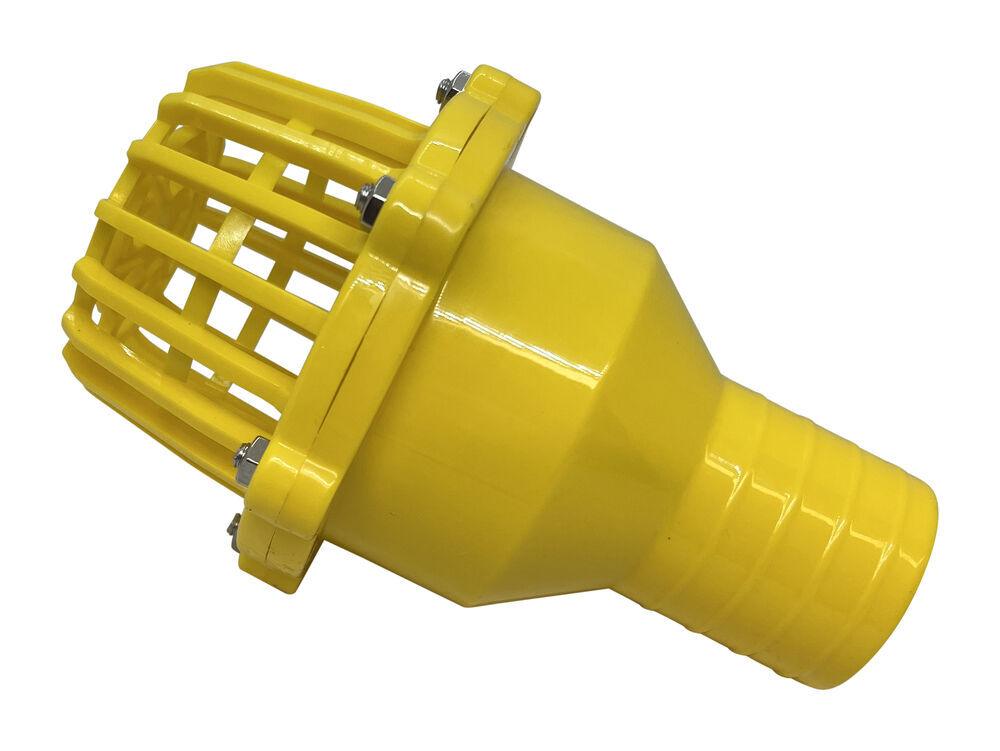

2" Poly Foot Valve and Strainer with Barb Water Pump Hose Suction | 1 | POLYFV2 |
10m x 2" 50mm ID Suction Hose 4 Transfer High Pressure Fire Fighting Water Pump | 1 | WH-4 |
Fire Fighting Hose 20m x 1 inch 25mm ID Fire Rated Outlet Fighter Water Pump Red | 1 | WH-7 |
