Drive Gear Repair Kit for Briggs and Stratton Starter Motor 5 to 16HP Models

HOW TO CHECK IF THIS STARTER MOTOR DRIVE GEAR REPAIR KIT IS THE ONE YOU NEED:

  1. Count the number of drive teeth on your starter motor’s drive gear. There should be 16 teeth.
  2. Check what the drive gear on your old starter motor is made from. If it is plastic then this starter is suitable.

This is an aftermarket replacement starter motor drive gear repair kit.

Suits many Briggs And Stratton models and replaces OEM 497606 and 696541.

Email or call us with any questions using below contact details.

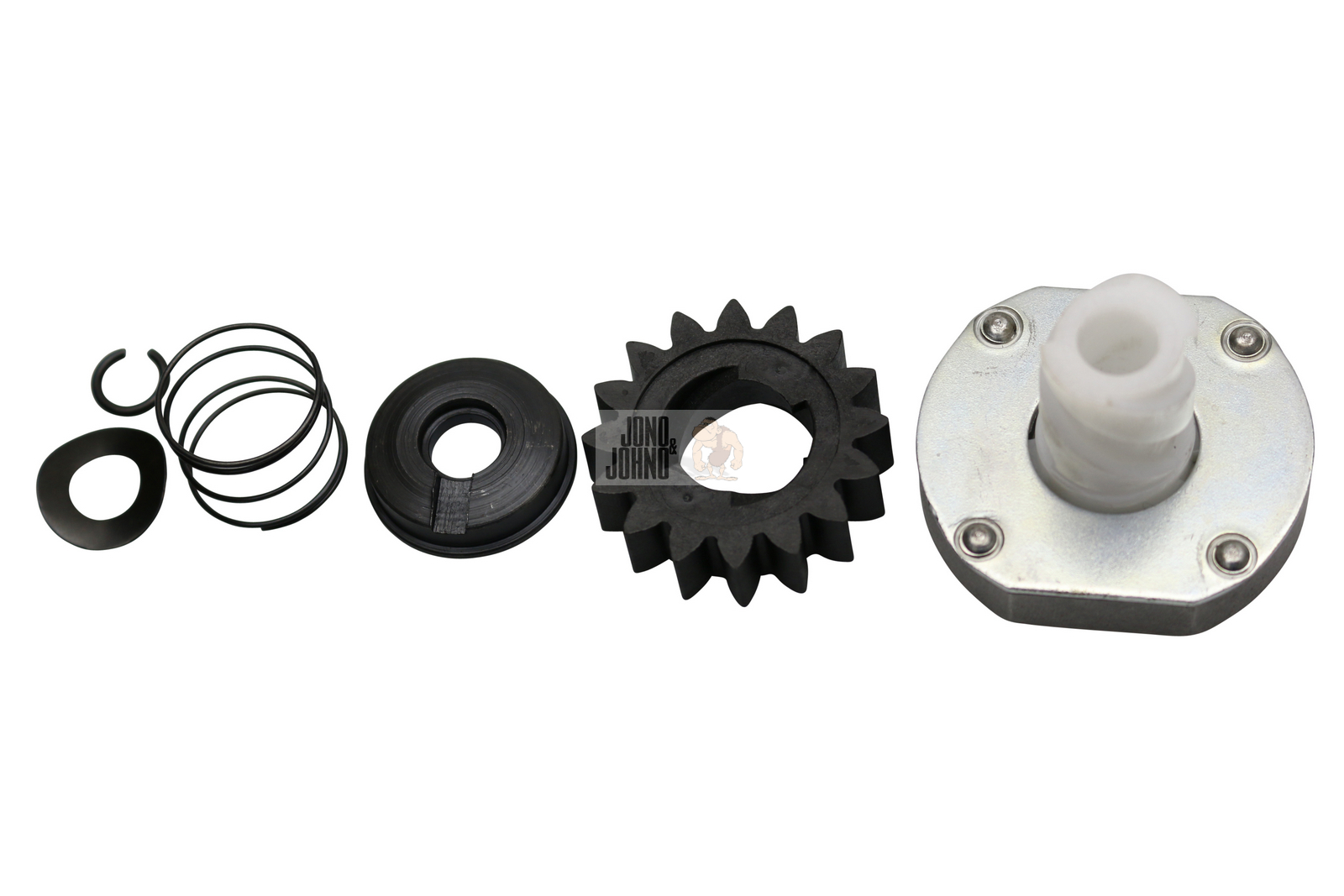

Kit includes:

  • starter gear
  • 16 teeth drive gear
  • return spring
  • clutch drive
  • retention plate
  • washer
  • "C" ring clip/retainer

Specifications:

  • Drive 16 Teeth - Counter Clockwise Rotation.
  • Drive Pinion Dia. 40MM
  • For single and twin cylinder engines.
  • Replacement Part

Replaces the following (OEM Interchange):

Briggs & Stratton: 176432, 176437, 176452, 196402, 196412, 196417, 196422, 196427, 196432, 196436, 196437, 196452, 196457, 197402, 197412, 197415, 197417, 28A707, 28B702, 28B705, 28B707, 28C702, 28C707, 28D702, 28D707, 28M076, 28M707, 28N707, 28N777, 28P777, 28Q777, 40A777, 42E707, 497606, 696541

Green Line 54854

J. Thomas 497606

Laser 97648

Napa 7-03421

NHC 269-1259

Oregon 33-006

Prime Line 7-03421

Ratio Parts 003-477

Rotary 9854

SKU Start-031
Model # 54-7005
Brand JONO & JOHNO
Shipping Weight 0.1500kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.050m
Shipping Cubic 0.000125000m3
Unit Of Measure ea

Excellent service

By: on 13 August 2019
Excellent service & order exactly as I ordered and very quick
(5)

Briggs and Stratton Starter Pinion Repair Kit

By: on 17 June 2019
Well priced product, good quality. Easy to fit. I suggest doing a Youtube search for installation tips. Replacing the circlip is the hardest part of the operation, but using a 3/8" socket to tap it into place was a breeze!
(5)
