Chainsaw Milling Attachment 18" to 48" With 42" Bar and 3/8 063 FULL Chisel Skip Tooth Ripping Chain

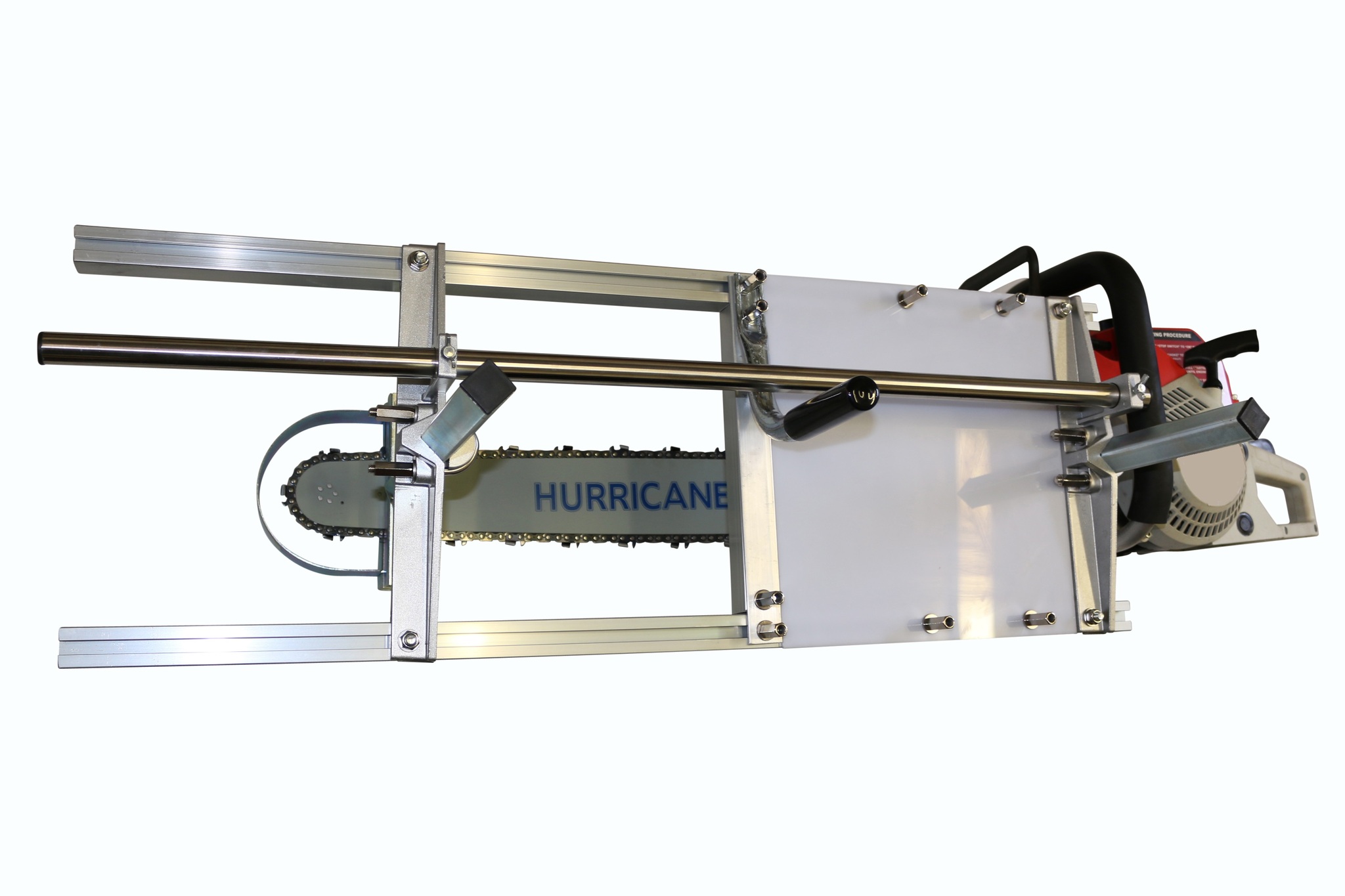

This Jono & Johno chainsaw mill will convert your chainsaw into a portable mill/slabbing machine! It comes with an adjustable chainsaw bar clamp so you can mount your chainsaw fitted with a 18" to 48" bar. Simply clamp your chainsaw bar to the milling attachment and you now have your very own portable saw mill.

SUITS THE FOLLOWING HUSQVARNA CHAINSAWS: 288 371 372 380 390 394 395 3120

THIS KIT INCLUDES:

  • 18" to 48" Milling attachment
  • 42" Hurricane Pro bar

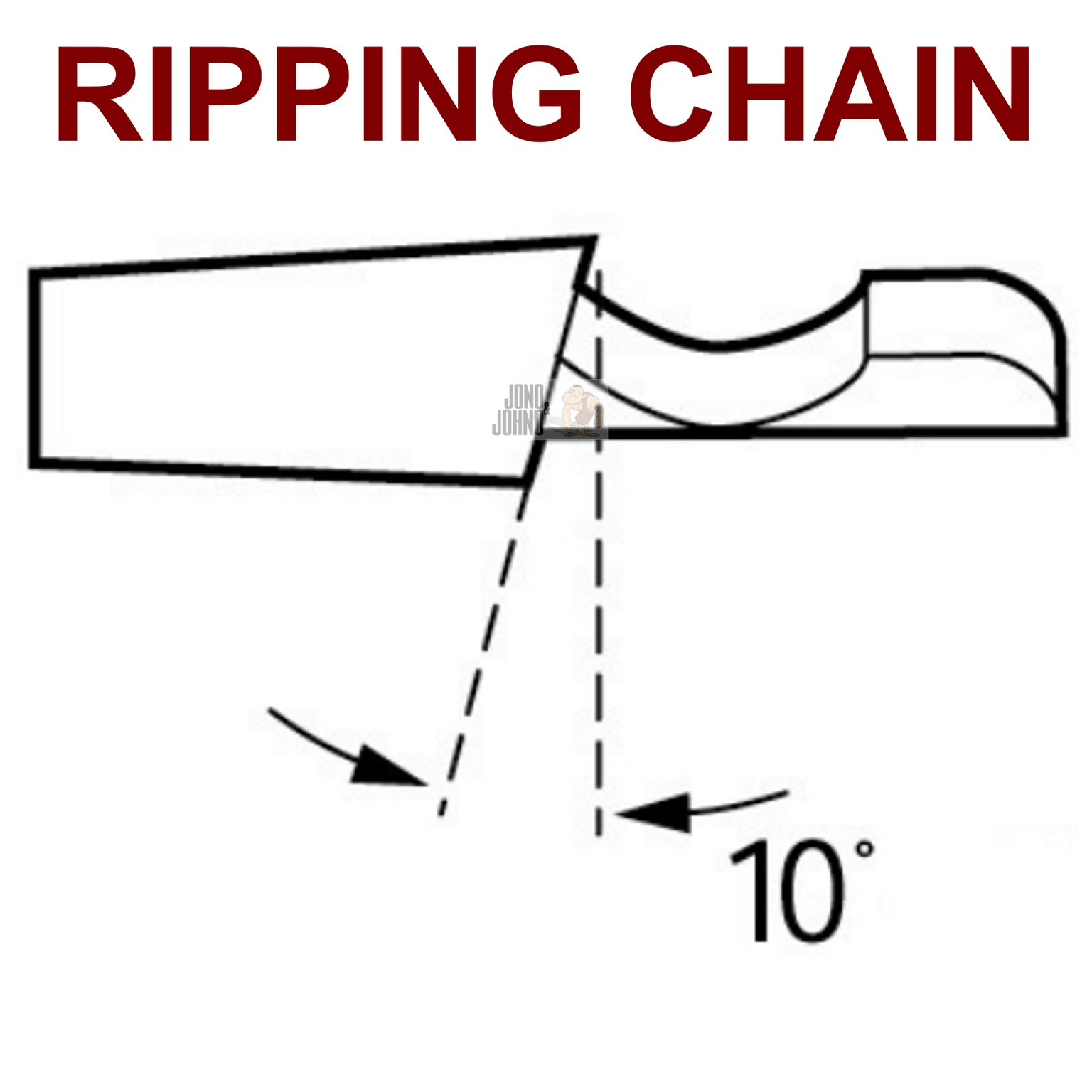

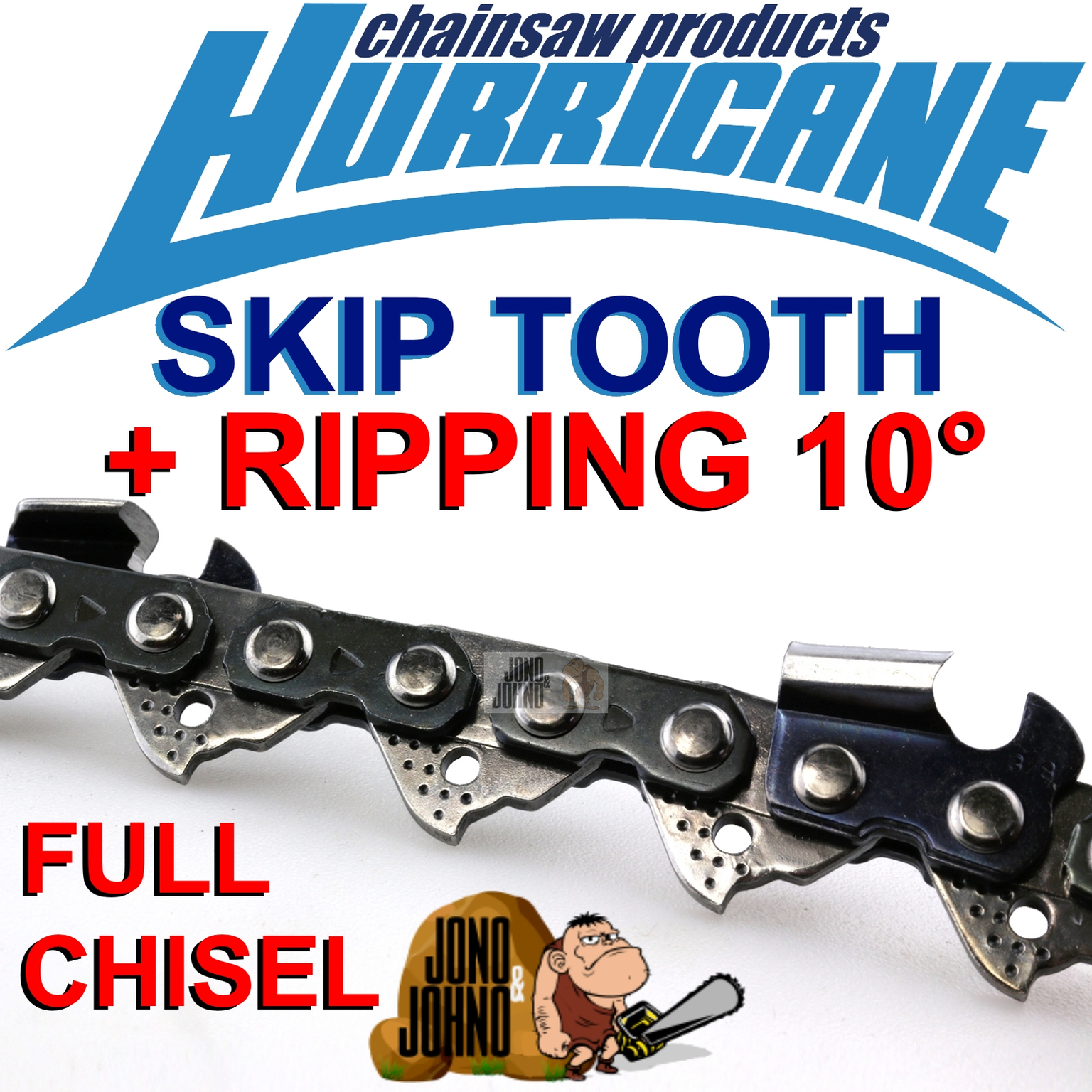

  • 3/8 063 135DL Hurricane FULL Chisel Skip Tooth Ripping chain.

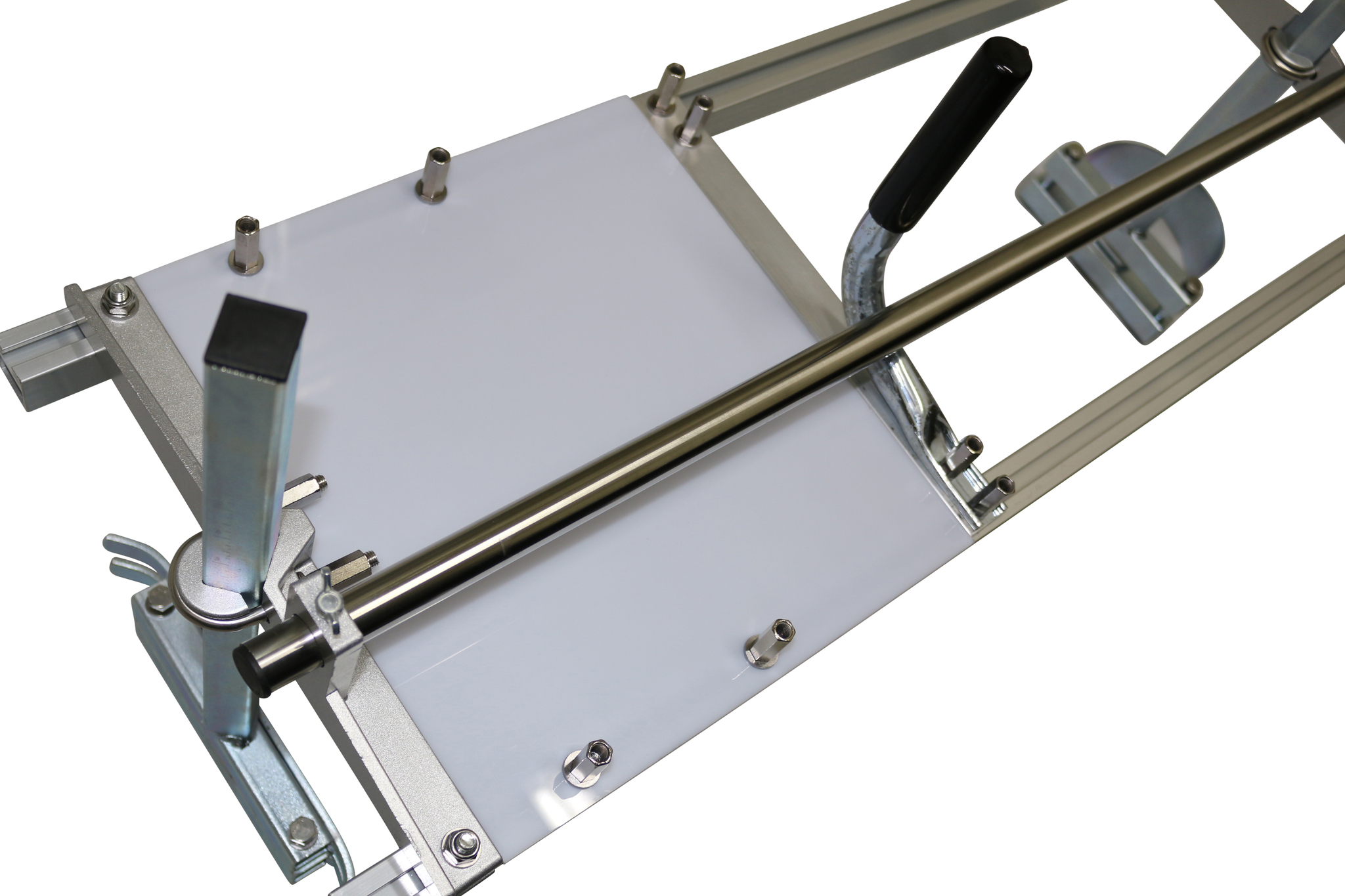

Light but sturdy, this mill is designed to produce smooth-cut slabs from your logs and trees. It is made of heavy duty aluminium components and also includes a protective plate made of perspex.

This tool has a parallel bar that can have it's distance adjusted from the chainsaw bar to provide different thickness slabs. The first slab is cut by using a couple of guide rails placed and secured onto the top of the log. You can then mill slabs between 1/2" to 13" thick.

As part of this combo, you also get a quality Hurricane Pro laser cut bar and 3/8 063 135DL Hurricane FULL Chisel Skip Tooth Ripping chain. Simply bolt it all up to your chainsaw and you have all you need for your slabbing and milling needs!

Includes instruction manual and operation guide detailing assembly of mill and how to use it, with colour pictures.

**Please note the chainsaw shown in the photos above are for illustration purposes only and is NOT included with the mill.**

FEATURES:

  • Aircraft grade 29mm square aluminum mill frame
  • Square steel 25mm clamping pad brackets
  • Tubular steel 22mm handle bars

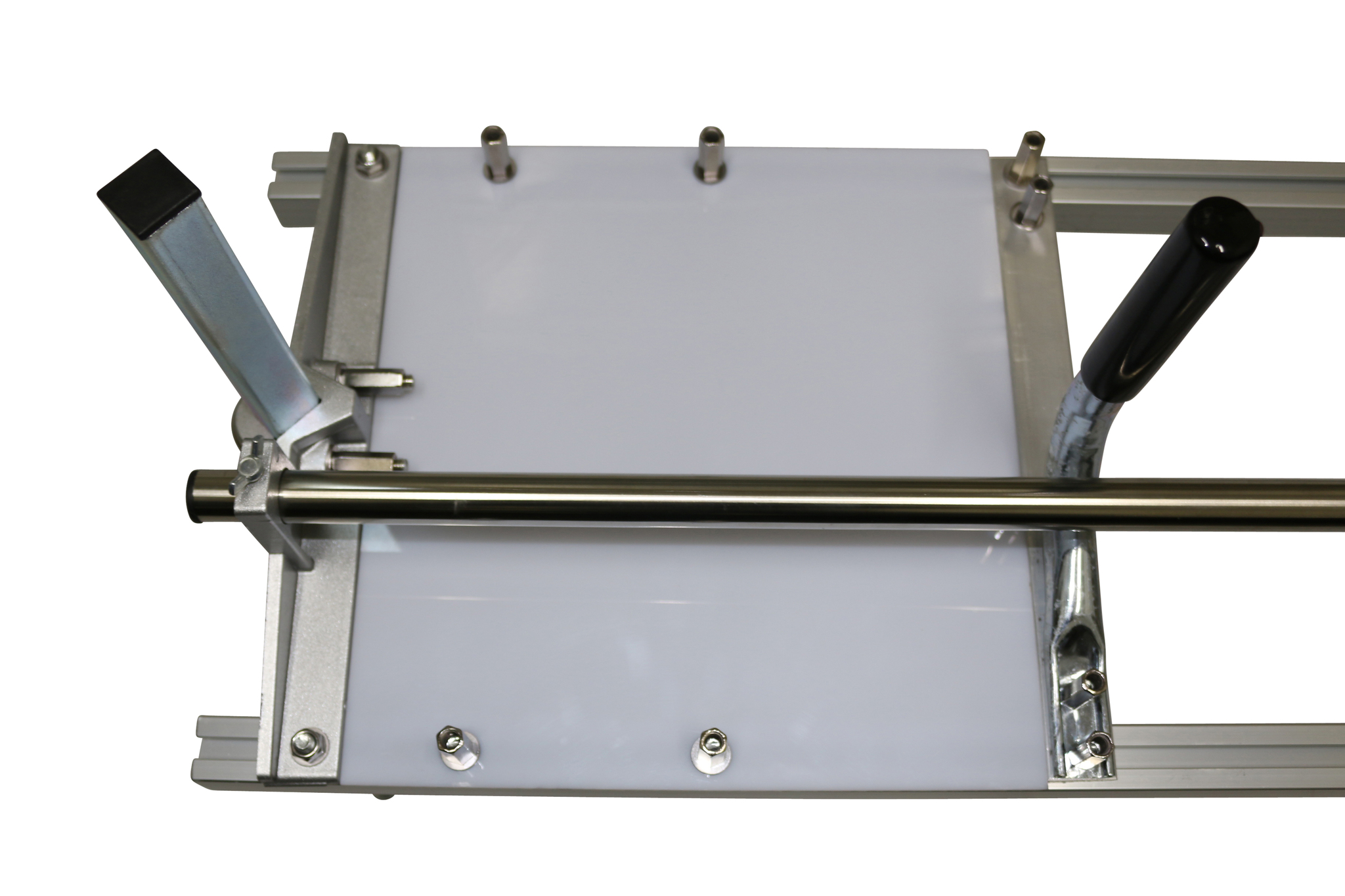

  • Protective perspex plate to guard against injury

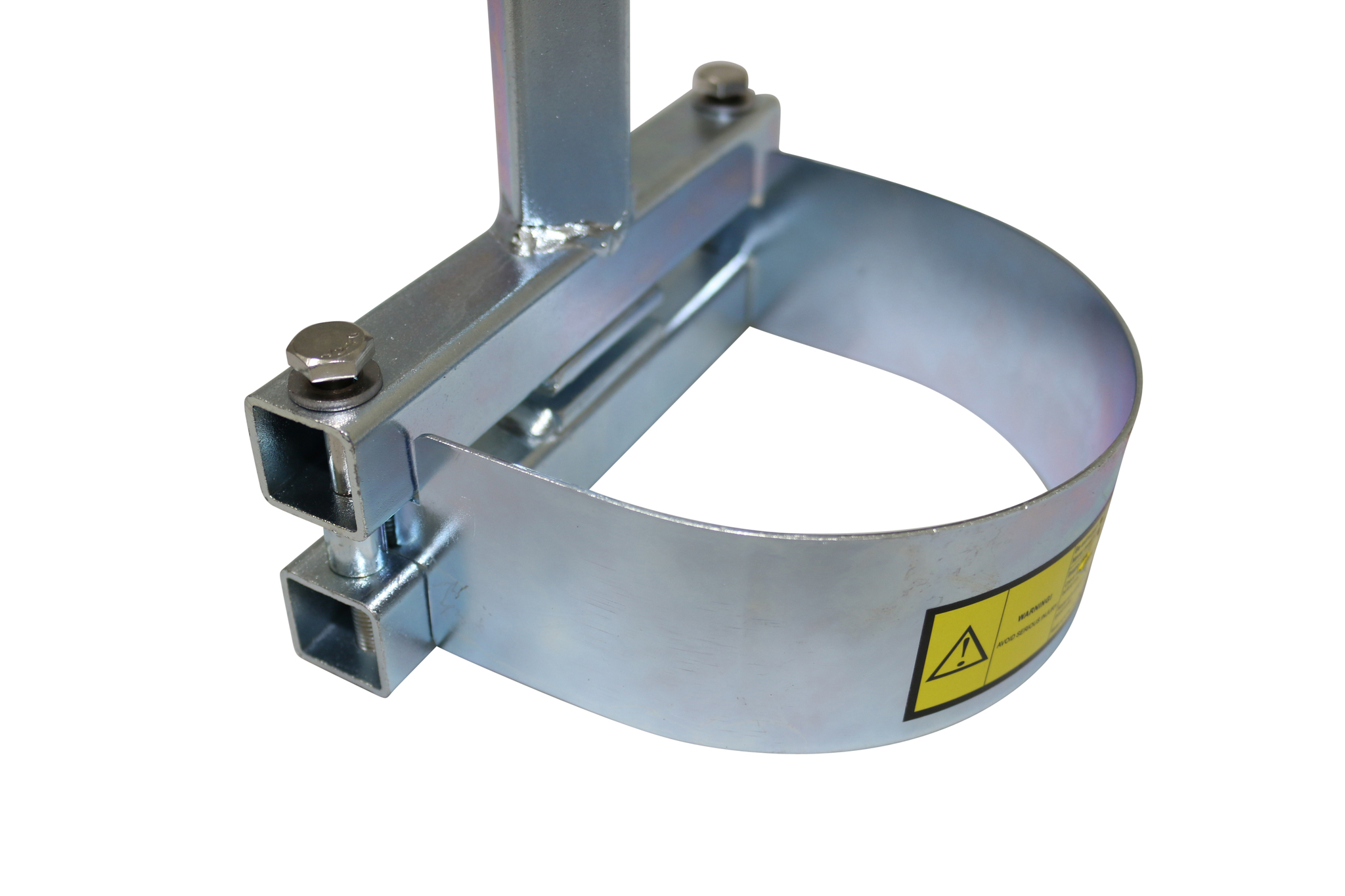

  • Strong clamp to hold weight of all brand name chainsaws
  • Suitable for chainsaws with a bar length between 18" and 48"
  • Box dimmensions for shipping: 123cm x 33cm x 7cm
  • Maximum slabbing width: 1100mm (43.3")
  • Maximum slabbing thickness: 1/2" to 13" (12.7mm to 330mm)
  • 42" Hurricane Pro bar and 3/8 063 135DL Hurricane FULL Chisel Skip Tooth Ripping chain.

Please call us if you wish to purchase a different variation to the one we have listed. Please do not purchase online and then call us wanting to make changes. If you purchase a package online then that is exactly what you will receive.

SKU MK024
Model # MK024
Barcode # 682157270545
Brand Hurricane
Shipping Weight 13.1500kg
Shipping Width 0.330m
Shipping Height 0.080m
Shipping Length 1.240m
Shipping Cubic 0.032736000m3
Unit Of Measure ea
