Replacement Kohler Courage Single Cylinder Starter Motor

Brand New Replacement Starter to suit Kohler Courage 15 HP to 22 HP engines with steel ring gear (see list of models below). - If your model is not listed, do not assume it will fit! Please carefully check all the info and photos in this listing before purchasing.

BONUS: 1 extra gear!

HOW TO CHECK IF THIS STARTER MOTOR IS THE ONE YOU NEED:

  1. Count the number of drive teeth on your starter motor’s drive gear.
  2. There should be 14 teeth.
  3. Check what the drive gear on your old starter motor is made from. If it is steel then this starter is suitable.
  4. Measure the housing of your starter motor. If it is aroung 130mm then this starter is suitable.
  5. Measure the mounting bolt spacing. It should be approx. 68mm.

Email or call us with any questions using below contact details.

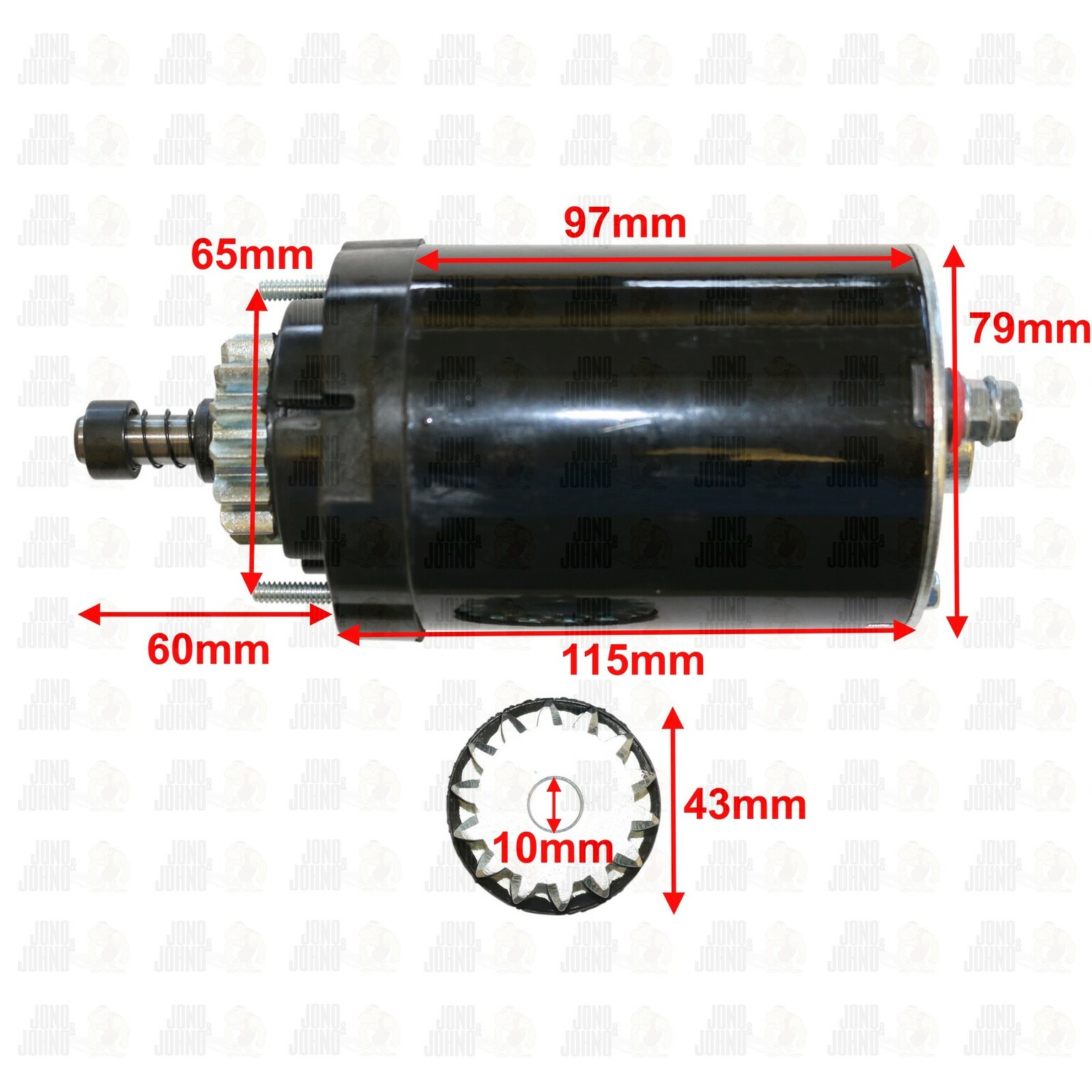

SPECIFICATIONS:

  • 12 Volt
  • 14 Tooth Steel Drive Gear - Counter Clockwise Rotation.
  • Drive Pinion Dia. 43.6mm / 1.717"
  • 5" (127.1mm) housing
  • Battery Stud 1/4-20
  • x2 10-24 External Mounting Studs in DE Housing
  • 12 month warranty from date of sale

Quality Replacement Aftermarket (non-genuine) part.

Replaces the following OEM numbers:

Case/New Holland: K0H2009805S

Cub Cadet: KH20-098-05S

Kohler: 20-098-01 - 20-098-01S - 20-098-05 - 20-098-05S - 20-098-06 - 20-098-06S - 20-098-08 - 20-098-08S - 20-098-10 - 20-098-10S - 20-098-11 - 20-098-11S - K2009811S

Lester: 5796

Suits the following models:

SV470 15 HP
SV470-0004 15 HP
SV470-0005 15 HP
SV470-0006 15 HP
SV470-0011 15 HP
SV470-0104 15 HP
SV470-0105 15 HP
SV470-0123 15 HP
SV470-0213 15 HP
SV470-3213 15 HP
SV471-3211 15 HP

SV530 17 HP
SV530-0007 17 HP
SV530-0008 17 HP
SV530-0016 17 HP
SV530-0017 17 HP
SV530-0025 17 HP
SV530-0034 17 HP
SV530-0213 17 HP
SV530-3213 17 HP
SV530-3224 17 HP
SV530-3225 17 HP

SV540 18 HP
SV540-0004 18 HP
SV540-0009 18 HP
SV540-0011TURFCARE 18 HP
SV540-0024 18 HP
SV540-0025 18 HP
SV540-0026 TURFCARE 18 HP
SV540-0212 18 HP
SV540-0213 18 HP
SV540-3032 KUBOTA 18 HP
SV540-3202 RFI 18 HP
SV540-3210 COX INDUSTRIES 18 HP
SV540-3212 HUSQVARNA 18 HP
SV540-3216 GGP ITALY 18 HP
SV540-3217 GGP SWEDEN 18 HP
SV540-3219 MTD 18 HP
SV540-3220 MTD 18 HP
SV540-3222 HOP 18 HP
SV540-3223 KUBOTA 18 HP
SV540-3225 SIMPLICITY 18 HP
SV540-3226 MTD 18 HP
SV540-3227 MTD 18 HP
SV540-3228 MTD 18 HP
SV540-3230 MTD 18 HP
SV540-3231 SHIVVERS 18 HP
SV540-3232 KUBOTA 18 HP
SV540-3233 KUBOTA 18 HP
SV540-3234 KUBOTA 18 HP
SV541-3200 MARKETING 18 HP
SV541-3210 HUSQVARNA 18 HP
SV541-3212 MTD 18 HP
SV541-3213 KUBOTA 18 HP
SV541-3214 KUBOTA 18 HP
SV541-3216 GGP ITALY 18 HP

SV590-0001 ELECTROLUX HOME PRODUCTS 19 HP
SV590-0002 EHP - SEARS 19 HP (2004)
SV590-0003 MTD 19 HP
SV590-0004 HUSQVARNA 19 HP
SV590-0005 CUB CADET 19 HP
SV590-0006 HUSQVARNA 19 HP
SV590-0007 HUSQVARNA 19 HP
SV590-0008 CUB CADET 19 HP
SV590-0009 EHP 19 HP
SV590-0010 SEARS 19 HP
SV590-0011 MTD 19 HP
SV590-0012 POULAN PRO 19 HP
SV590-0013 MTD 19 HP
SV590-0014 ARIENS 19 HP
SV590-0015 BASIC 19 HP
SV590-0016 MTD 19 HP
SV590-0017 MTD 19 HP
SV590-0018 YARDMAN/GUTBROD 19 HP
SV590-0019 TORO 19 HP
SV590-0020 HUSQVARNA 19 HP
SV590-0021 HUSQVARNA 19 HP
SV590-0022 EXCEL HUSTLER 19 HP
SV590-0023 TORO 19 HP
SV590-0024 MTD 19 HP
SV590-0200 BASIC 19 HP
SV590-0210 HUSQVARNA 19 HP
SV590-0211 EXCEL HUSTLER 19 HP
SV590-0212 TORO 19 HP
SV590-0213 TORO 19 HP
SV590-0218 HOP 19 HP
SV590-0219 MTD 19 HP
SV590-0220 MTD 19 HP
SV590-0221 MTD 19 HP
SV590-0223 MTD 19 HP
SV590-0224 MTD 19 HP

Be sure to check out our other listings by clicking here

SKU Start-006
Model # Start-006
Barcode # 682157251544
Brand JONO & JOHNO
Shipping Weight 2.4500kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.050m
Unit Of Measure ea
