SKU : QG36147-P-Rings

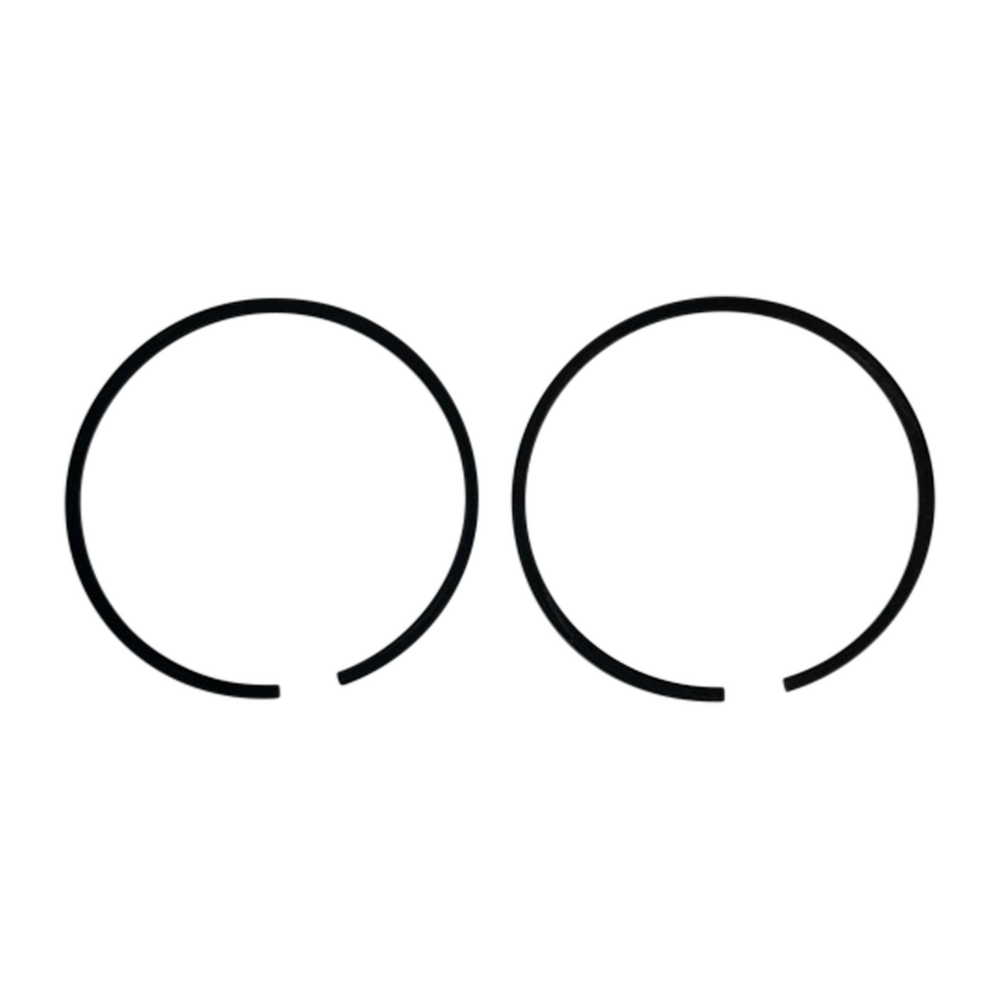

Piston ring set for Stihl MS361 chainsaws — 47mm x 1.2mm, two rings.
Rings wear out long before the piston does. A fresh set restores lost compression and brings a tired saw back to life, at a fraction of the cost of a full top end rebuild.
This is the same ring set supplied in our 47mm piston and cylinder kit (QG36147), available here on its own.
| Spec | Detail |
|---|---|
| Diameter | 47mm |
| Thickness | 1.2mm |
| Quantity | 2 rings |
| Replaces OEM | 1135 034 3000 |
| Type | Aftermarket replacement part |
MS361
If your saw is not listed, get in touch before ordering and we will check it for you.
Piston, gudgeon pin and circlips are not included. For a full top end, see our Stihl MS361 piston and cylinder assembly kit.
Two-stroke rings sit over a locating pin in the piston groove that stops the ring rotating into a port. Make sure each ring gap seats either side of its pin before sliding the piston into the cylinder — forcing it in misaligned will break the ring.
Jono & Johno offers a 12-month warranty on most products.
We pride ourselves on selling good quality gear and will be fair and prompt in honouring our warranties. If you’re in trouble, we’ll help you out.
The exact warranty coverage depends on two factors:
Minor faults caused by the user
Minor faults caused by the manufacturer
Major faults caused by the manufacturer
Major faults caused by the user
If you need to return your product:
Some products are not covered by warranty, including:
If your product is out of warranty and has failed despite minimal use, contact us. We may assess it on a case-by-case basis. If a manufacturer defect is identified, we aim to be fair in resolving the issue—but this is at our discretion.
| SKU | QG36147-P-Rings | |
| Model # | QG36147-P-Rings | |
| Barcode # | 721814475418 | |
| Brand | JONO & JOHNO | |
| Shipping Weight | 0.0500kg | |
| Shipping Width | 0.050m | |
| Shipping Height | 0.050m | |
| Shipping Length | 0.050m | |
| Shipping Cubic | 0.000125000m3 | |
