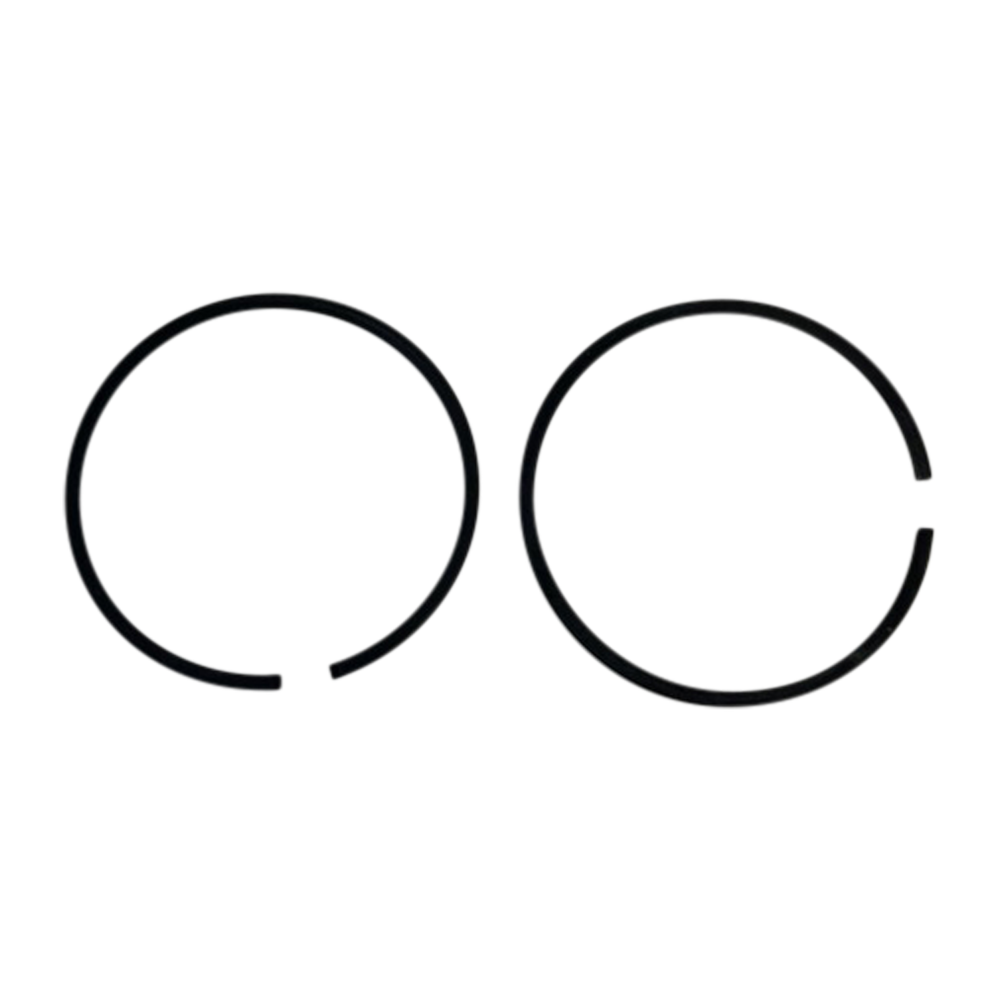

Stihl 066 MS660 Piston Ring Set 54mm

Piston ring set for Stihl 066 and MS660 chainsaws — 54mm x 1.2mm, two rings.

Rings wear out long before the piston does. A fresh set restores lost compression and brings a tired saw back to life, at a fraction of the cost of a full top end rebuild.

These are the same rings supplied in our Stihl 066 MS660 piston and cylinder kits, available here on their own.

Specifications:

Spec	Detail
Diameter	54mm
Thickness	1.2mm
Quantity	2 rings
Replaces OEM	1122 034 3001
Type	Aftermarket replacement part

Suits Stihl:

066 - MS660

Also suits an 046 or MS460 that has been fitted with a 54mm big bore cylinder. A standard 046 or MS460 is 52mm and takes a different ring — see our 52mm set.

Also suits the following makes and models:

Make	Models
Husqvarna	385 - 385XP (1.2mm ring version)
Jonsered	2186
Dolmar / Makita	7900 fitted with a 54mm big bore cylinder

A note on the Husqvarna 385: two piston versions were built, one running 1.2mm rings and one running 1.5mm. Measure your old ring before ordering, or count on replacing the piston as well.

What you get:

2x piston rings

Piston, gudgeon pin and circlips are not included. If you need the complete piston, see our Stihl 066 MS660 piston kit. For a full top end, see our 54mm piston and cylinder assembly kit.

Fitting tip:

Two-stroke rings sit over a locating pin in the piston groove that stops the ring rotating into a port. Make sure each ring gap seats either side of its pin before sliding the piston into the cylinder — forcing it in misaligned will break the ring.
