70cc Perla Barb V1 Chainsaw with 20" bar & carbide chain

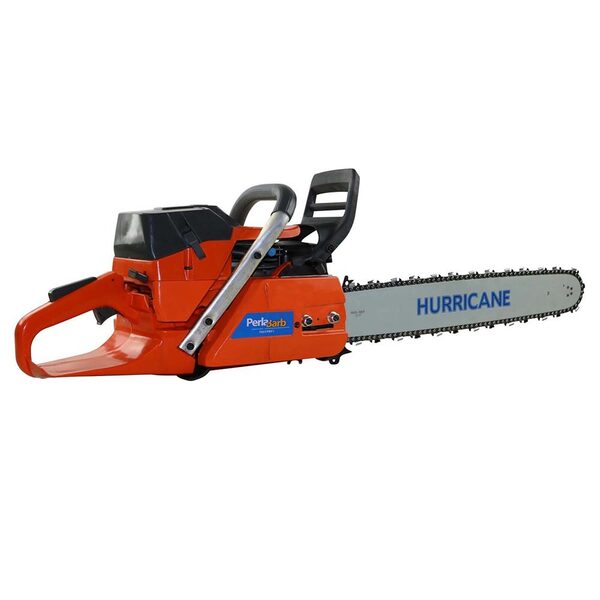

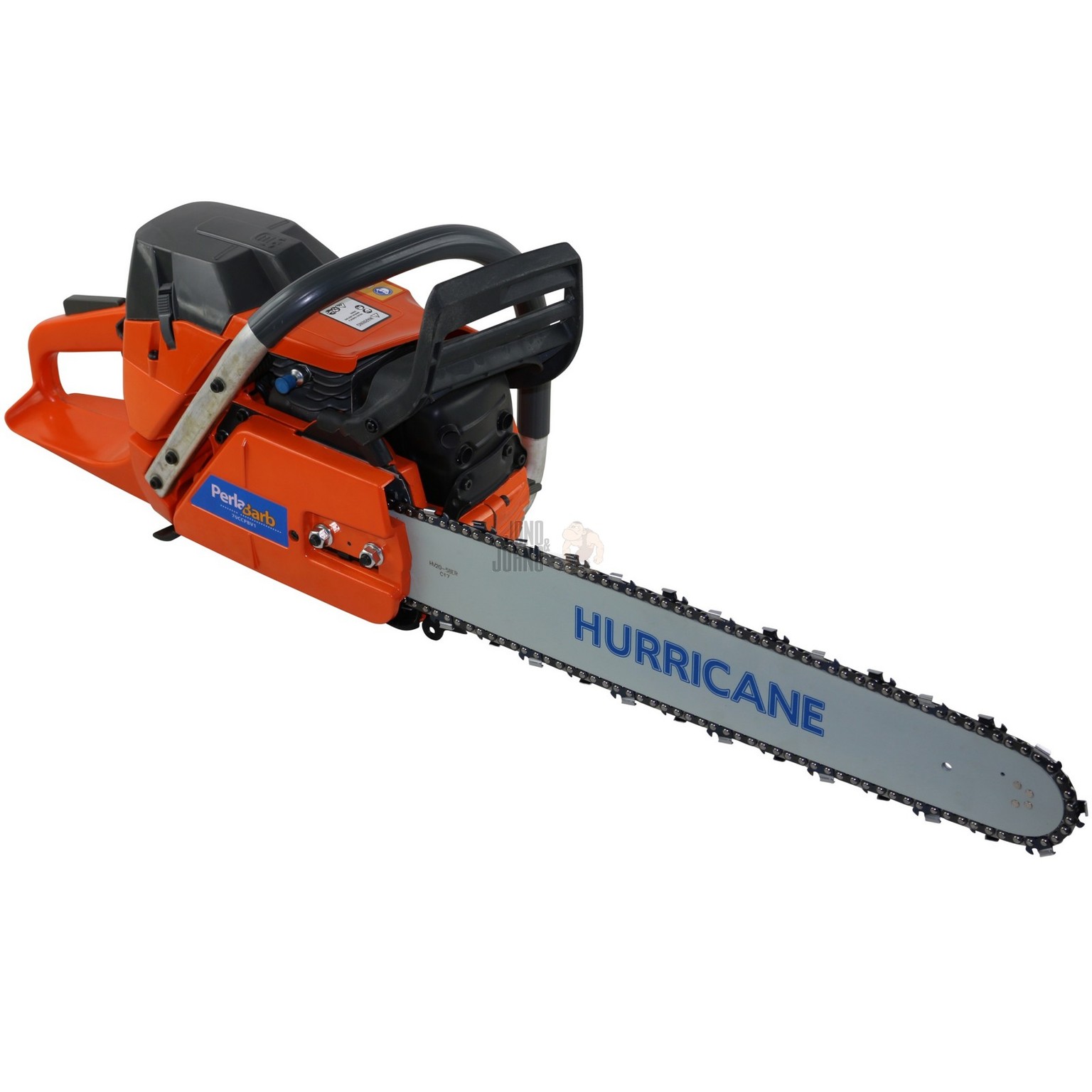

Jono & Johno would like to present the 70cc Perla Barb V1 chainsaw.

The 70cc Perla Barb V1 chainsaw is part of the Jono & Johno professional range of saws.

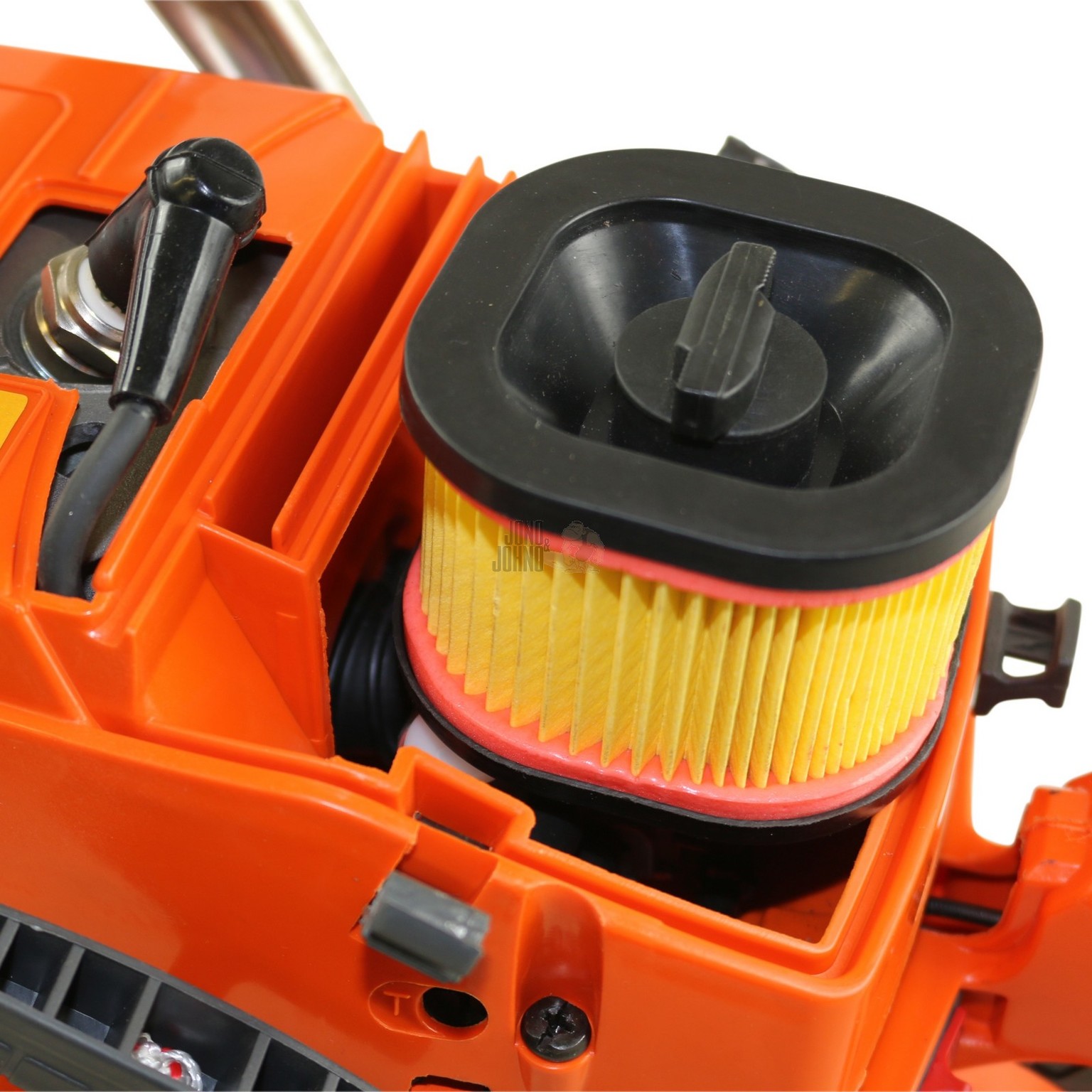

It comes equipped with an easy start mechanism, a premium, easy access air filter, and a top quality anti-vibration system.

This saw is sold with a 20" Hurricane bar and carbide chain. Hurricane is now one of Australia's leading brands in the chainsaw accessories market.

We stock ALL spare parts in our warehouse, so should you ever have any issues with the saw, in or out of warranty period, we’ll be able to help you out. THAT’S A GUARANTEE!

The warranty on the saw is a 12-month parts warranty. So if something goes wrong with the saw in the first 12 months of use, we can send you the parts, free of charge.

If you have any questions about our saw, don’t hesitate to give us a call or drop us an email.

Includes tool kit and bonus bar cover.

SPECIFICATIONS:

Model: Perla Barb 70cc V1
Engine: Single cylinder, two stroke, air cooled
Displacement: 70cc
Bore x Stroke: 50mm x 36.4mm
Ignition system: C. D. I.
Maximum Engine Idling speed: 2700rpm
Maximum Engine Power: 3.9kw (5.23hp) at 9600rpm
Chain speed at max power: 21.4 m/sec
Fuel tank capacity: 900ml
Bar oil tank capacity: 500ml
Recommended bar oil: Dedicated bar oil. Do not use motor or sump oil.
Fuel: Regular unleaded petrol and 2-stroke oil (25:1)
Carburettor: Diapghram type
Spark plug: NGK = BPMR7A, Champion = RCJ7Y (0.5mm gap)
Oil feeding system: Automatic pump with adjuster

TUNING:

Low speed setting: between 3,000 and 3,100 rpm

High speed setting: between 10,700 and 11,700 rpm

CHAIN & BAR:

Sprocket: 7 tooth 3/8 centre-drive sprocket

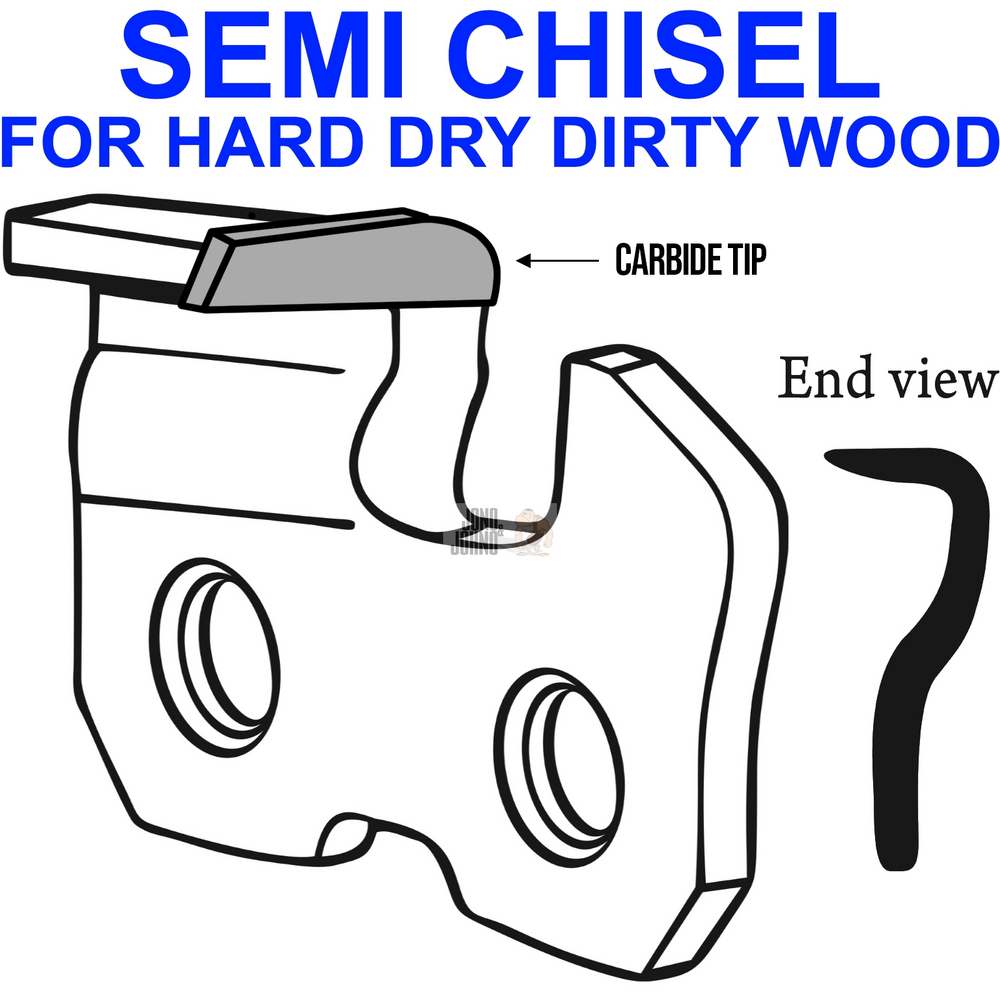

Chain Cutter: Carbide Semi Chisel
Chain pitch: 3/8"
Chain gauge: .058"
Chain length: 72 drive links
Guide bar type: Hurricane sprocket nose
Guide bar size: 20" (cutting length)

DIMENSIONS:

Gross weight of saw (includes packaging and accessories): 9.6kgs (21.16lbs)
Net weight (weight of saw +bar & chain): 8.45kgs (18.63lbs)
Packing size: 60x26x33cm

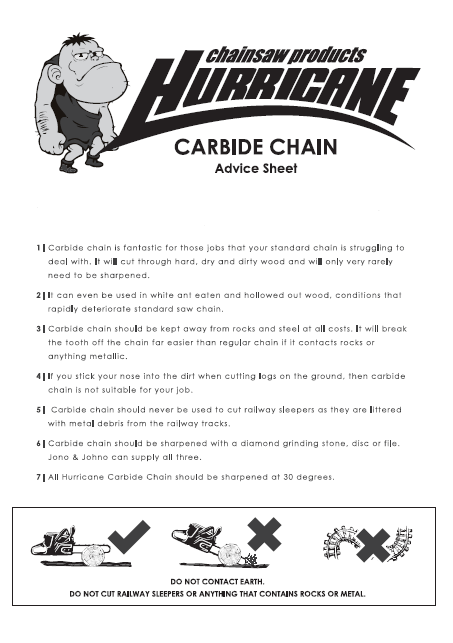

CARBIDE WARNING:

1. Carbide chain is fantastic for those jobs that your standard chain is struggling to deal with. It will cut through hard, dry and dirty wood and will only very rarely need to be sharpened.

2. It can even be used in white ant eaten and hollowed out wood, conditions that rapidly deteriorate standard chainsaw chain.

3. Carbide chain should be kept away from rocks and steel at all costs. It will break the tooth off the chain far easier than regular chain if it contacts rocks or anything metallic.

4. If you stick your nose into the dirt when cutting logs on the ground, then carbide chain is not suitable for your job.

5. Carbide chain should never be used to cut railway sleepers as they are littered with metal debris from the railway tracks.

6. Carbide chain should be sharpened with a diamond grinding stone, disc or file. Jono & Johno can supply all three.

7. All Hurricane carbide chain should be sharpened at 30 degrees.

Warning: This is a non-safety chain capable of kick-back. Use only if you’re a trained and experienced chainsaw operator.

WARRANTY OVERVIEW

Jono & Johno offers a 12-month warranty on most products.

We pride ourselves on selling good quality gear and will be fair and prompt in honouring our warranties. If you’re in trouble, we’ll help you out.

WHAT IS COVERED?

The exact warranty coverage depends on two factors:

Whether the fault is due to user error or a manufacturer defect
Whether the fault is minor or major

Minor faults caused by the user

Parts will be supplied for repair at the user's expense.

Minor faults caused by the manufacturer

Customers are expected to perform basic repairs as part of our warranty process.
Jono & Johno will provide replacement parts and instructions for simple repairs, such as installing a recoil starter.
Jono & Johno will determine whether a fault is classified as minor.
If unsure about a repair, contact us, and we’ll assist you.

Major faults caused by the manufacturer

Jono & Johno will arrange a return, refund, or replacement at our expense.
If preferred (and at our discretion), we may provide replacement parts and contribute to labour costs if you can perform the repair.

Major faults caused by the user

Where possible, parts will be supplied at the user's expense.
If the item cannot be repaired by the user, we offer repairs at our workshop at $80 AUD per hour.
The customer will need to cover return shipping costs for user-related faults.

RETURN PROCESS & SHIPPING COSTS

If you need to return your product:

In-store return: If you're near a Jono & Johno outlet, you can return the product in person. Contact us first to arrange a return authority.
Shipping return: If you are not within driving distance, we will provide a return address.
- If the fault is due to a manufacturer defect, we’ll cover return costs.
- If the fault is user-related, the customer is responsible for return shipping.

EXCEPTIONS TO THE RULE

Some products are not covered by warranty, including:

Engines used in go-karts and stump grinders

OUT-OF-WARRANTY PRODUCTS

If your product is out of warranty and has failed despite minimal use, contact us. We may assess it on a case-by-case basis. If a manufacturer defect is identified, we aim to be fair in resolving the issue—but this is at our discretion.

SKU	70CCPBV1_20CARB
Model #	70CCPBV1_20
Barcode #	726597615020
Brand	Perla Barb
Shipping Weight	9.6000kg
Shipping Width	0.050m
Shipping Height	0.050m
Shipping Length	0.050m
Unit Of Measure	ea
Items included in the kit
Product Name	Quantity	SKU
70cc Perla Barb V1 Chainsaw Power Head only	1	70ccPBV1
1x 3/8" 058 72DL 20" SEMI CHISEL TUNGSTEN CARBIDE CHAINSAW CHAIN	1	72CARB7
Bar only - HV20-58ER	1	HV20-58ER
Chainsaw 24" 60cm Universal Chain Bar Cover Wide Stihl Husqvarna Echo Scabbard	1	JY003
