Chainsaw Bar & Chain Finder

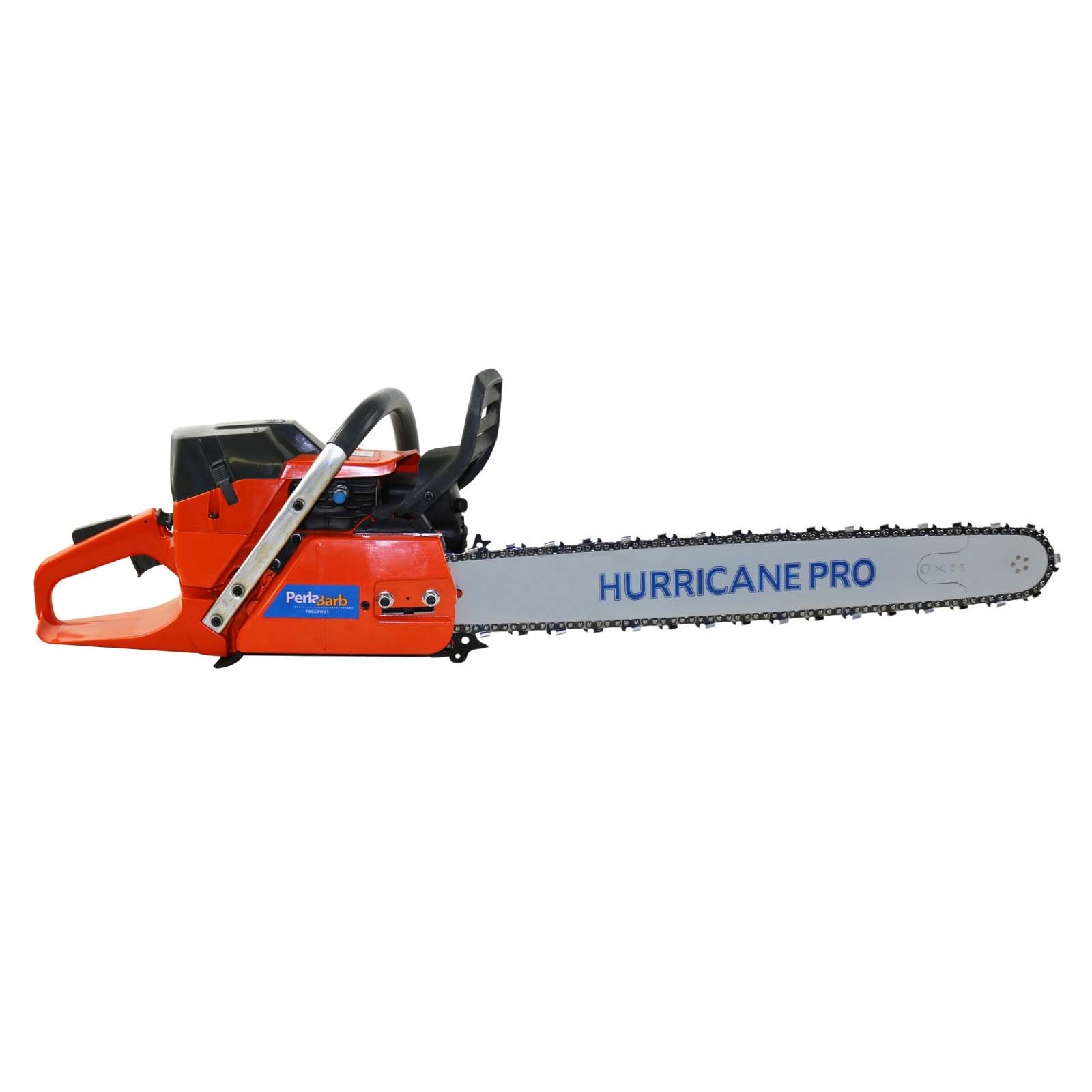

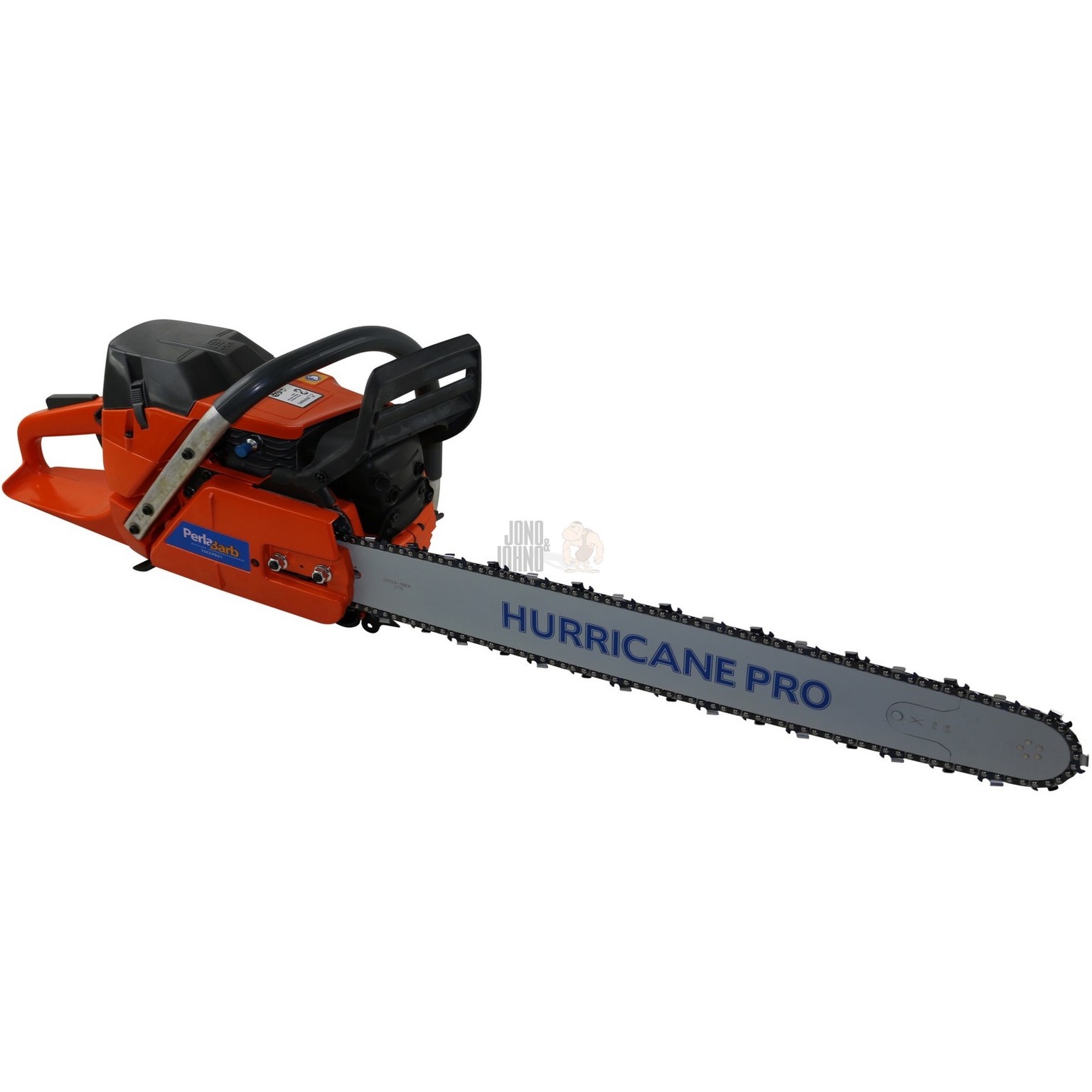

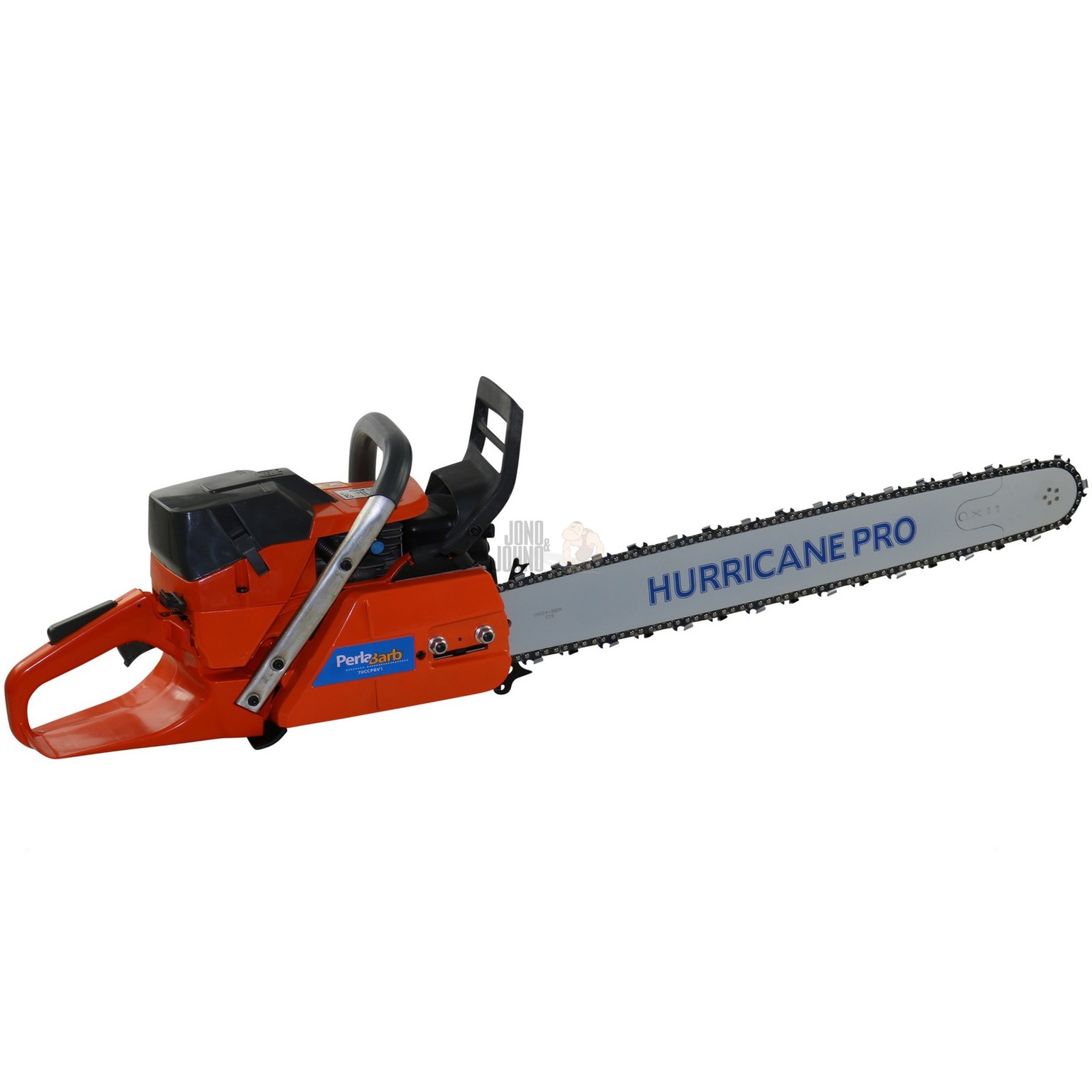

70cc Perla Barb V1 Chainsaw with 24" bar & chain

Jono & Johno would like to present the 70cc Perla Barb V1 chainsaw.

The 70cc Perla Barb V1 chainsaw is part of the Jono & Johno professional range of saws.

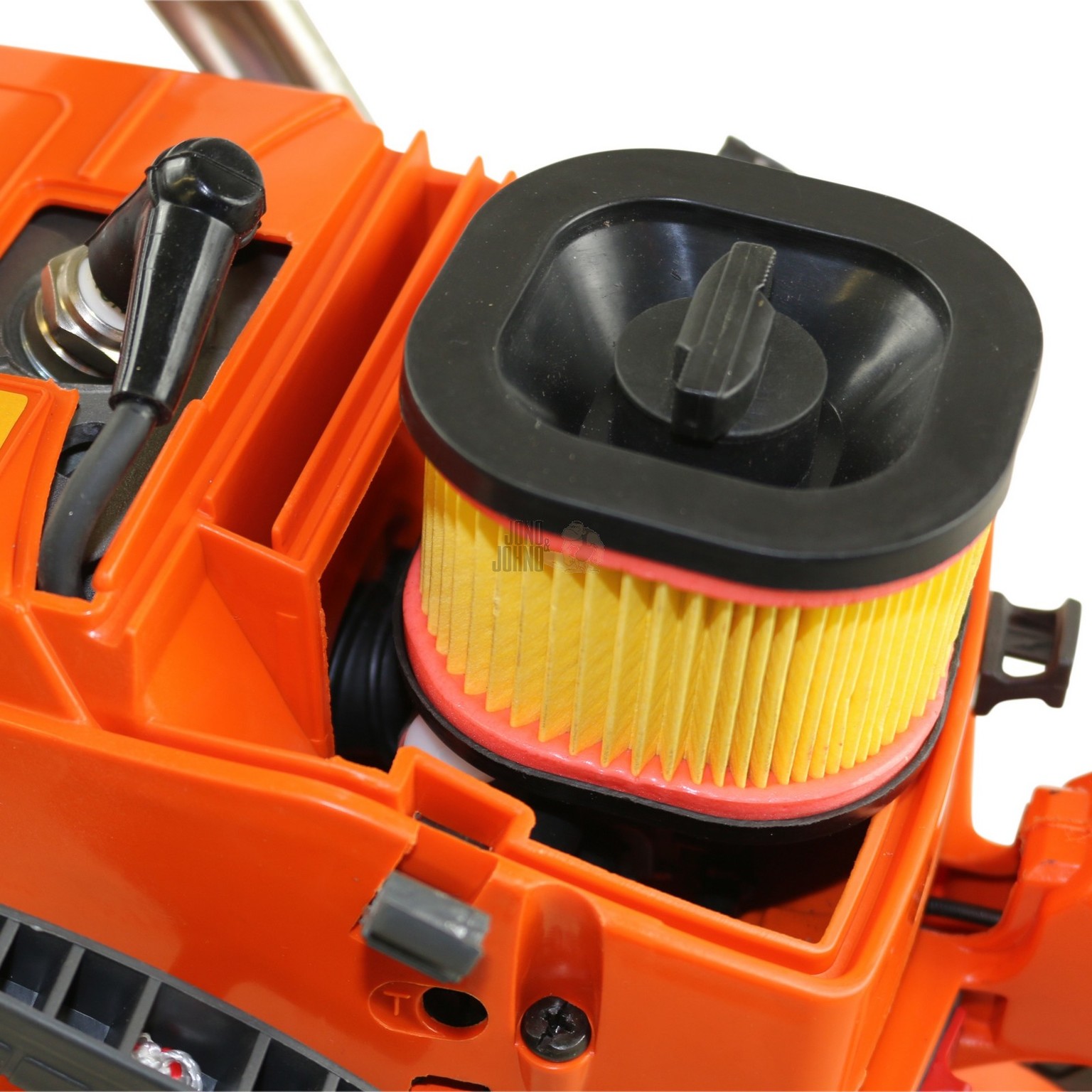

It comes equipped with an easy start mechanism, a premium, easy access air filter, and a top quality anti-vibration system.

This saw is sold with a 24" Hurricane bar and chain. Hurricane is now one of Australia's leading brands in the chainsaw accessories market.

We stock ALL spare parts in our warehouse, so should you ever have any issues with the saw, in or out of warranty period, we’ll be able to help you out. THAT’S A GUARANTEE!

The warranty on the saw is a 12-month parts warranty. So if something goes wrong with the saw in the first 12 months of use, we can send you the parts, free of charge.

If you have any questions about our saw, don’t hesitate to give us a call or drop us an email.

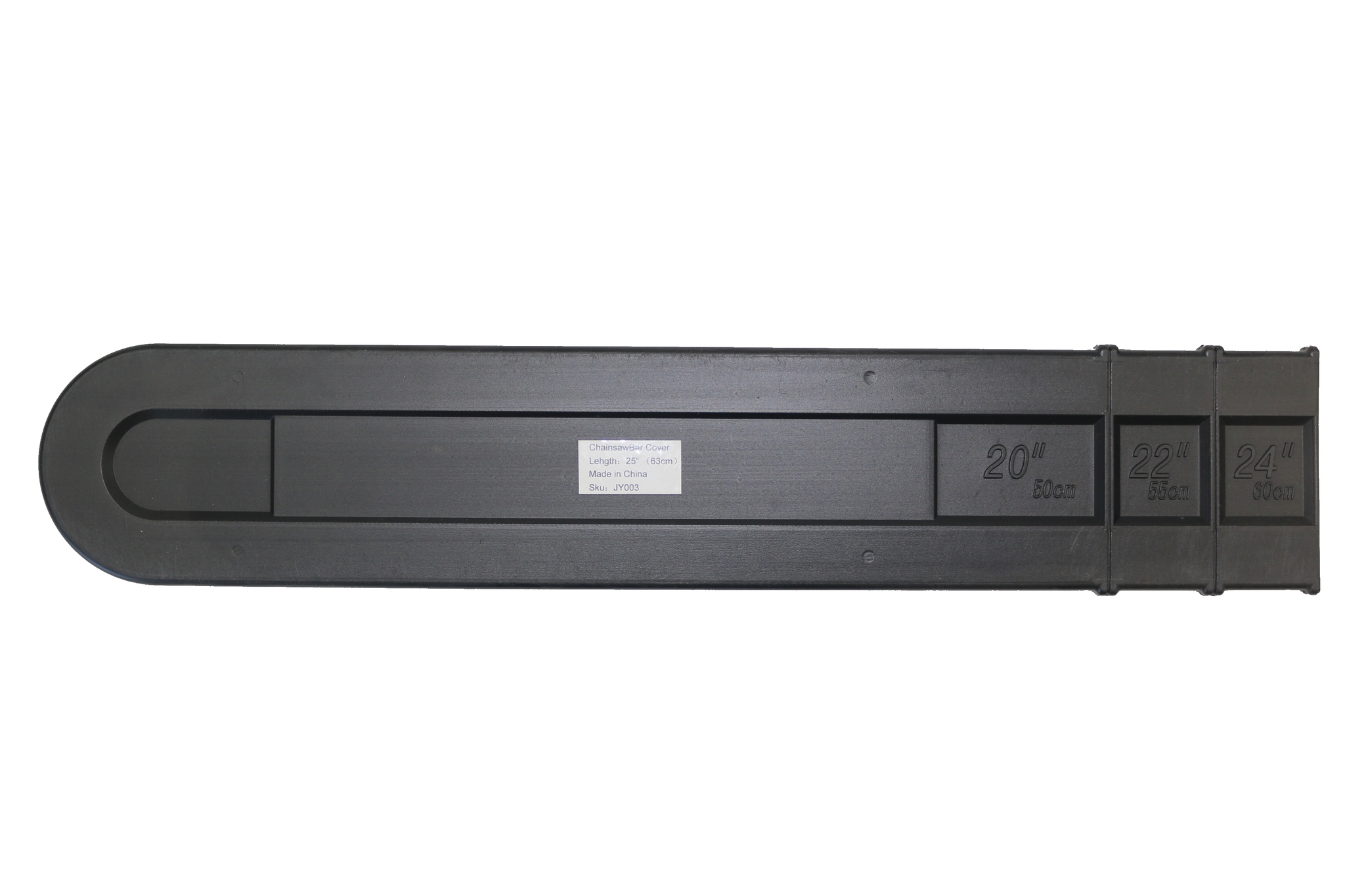

Includes tool kit and bonus 24" bar cover.

SPECIFICATIONS:

Model: Perla Barb 70cc V1
Engine: Single cylinder, two stroke, air cooled
Displacement: 70cc
Bore x Stroke: 50mm x 36.4mm
Ignition system: C. D. I.
Maximum Engine Idling speed: 2700rpm
Maximum Engine Power: 3.9kw (5.23hp) at 9600rpm
Chain speed at max power: 21.4 m/sec
Fuel tank capacity: 900ml
Bar oil tank capacity: 500ml
Recommended bar oil: Dedicated bar oil. Do not use motor or sump oil.
Fuel: Regular unleaded petrol and 2-stroke oil (25:1)
Carburettor: Diapghram type
Spark plug: NGK = BPMR7A, Champion = RCJ7Y (0.5mm gap)
Oil feeding system: Automatic pump with adjuster

TUNING:

Low speed setting: between 3,000 and 3,100 rpm

High speed setting: between 10,700 and 11,700 rpm

CHAIN & BAR:

Sprocket: 7 tooth 3/8 centre-drive sprocket
Chain Cutter: Semi Chisel
Chain pitch: 3/8"
Chain gauge: .058"
Chain length: 84 drive links
Guide bar type: Professional Hurricane - Solid laser cut bar with replaceable sprocket nose
Guide bar size: 24" (cutting length)

DIMENSIONS:

Gross weight of saw (includes packaging and accessories): 9.9kgs (21.83lbs)
Net weight (weight of saw +bar & chain): 8.75kgs (19.29lbs)
Packing size: 75x25x33cm

SKU 70CCPBV1_24
Model # 70CCPBV1_24
Brand Perla Barb
Shipping Weight 9.9000kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.050m
Unit Of Measure ea
