Jono & Johno would like to present the 91.6cc Perla Barb V1 chainsaw.

The 91.6 cc Perla Barb V1 chainsaw is part of the Jono & Johno professional range of saws.

We stock ALL spare parts in our warehouse, so should you ever have any issues with the saw, in or out of warranty period, we’ll be able to help you out. THAT’S A GUARANTEE!

The warranty on the saw is a 12-month parts warranty. So if something goes wrong with the saw in the first 12 months of use, we can send you the parts, free of charge.

If you have any questions about our saw, don’t hesitate to give us a call or drop us an email.

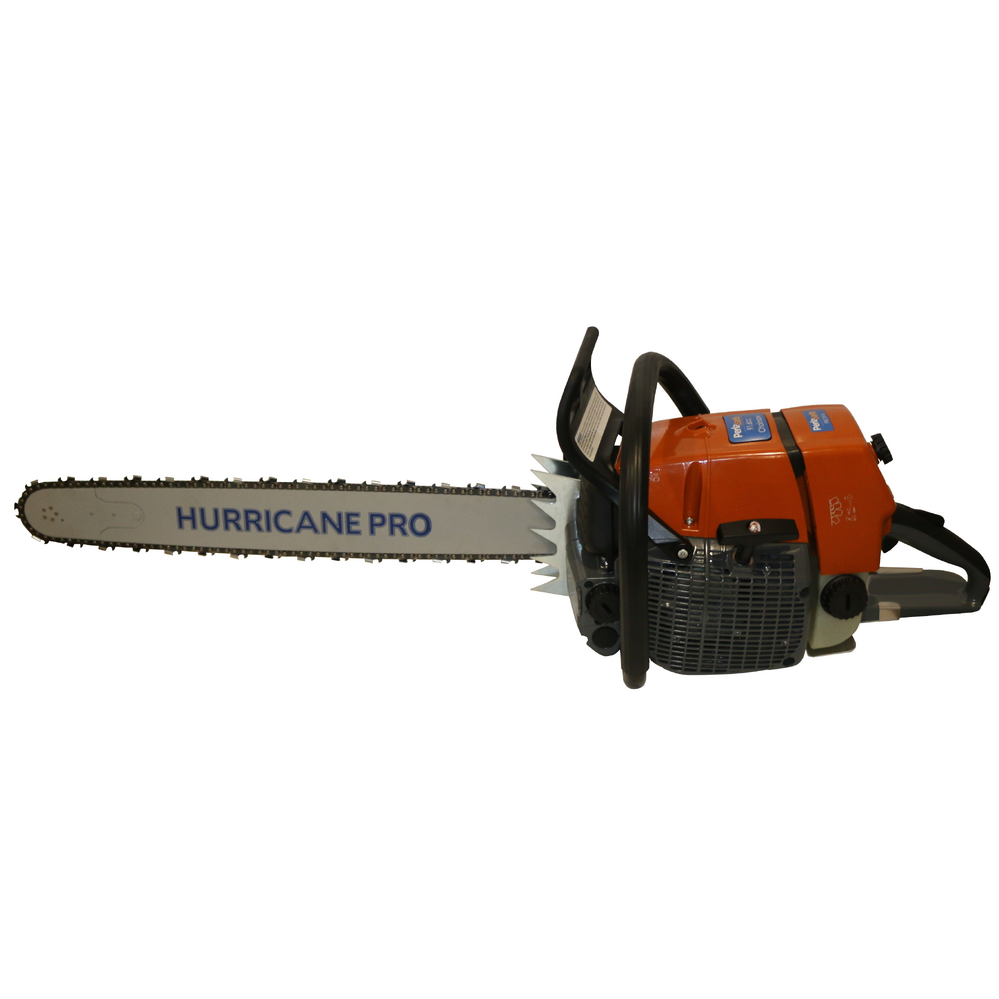

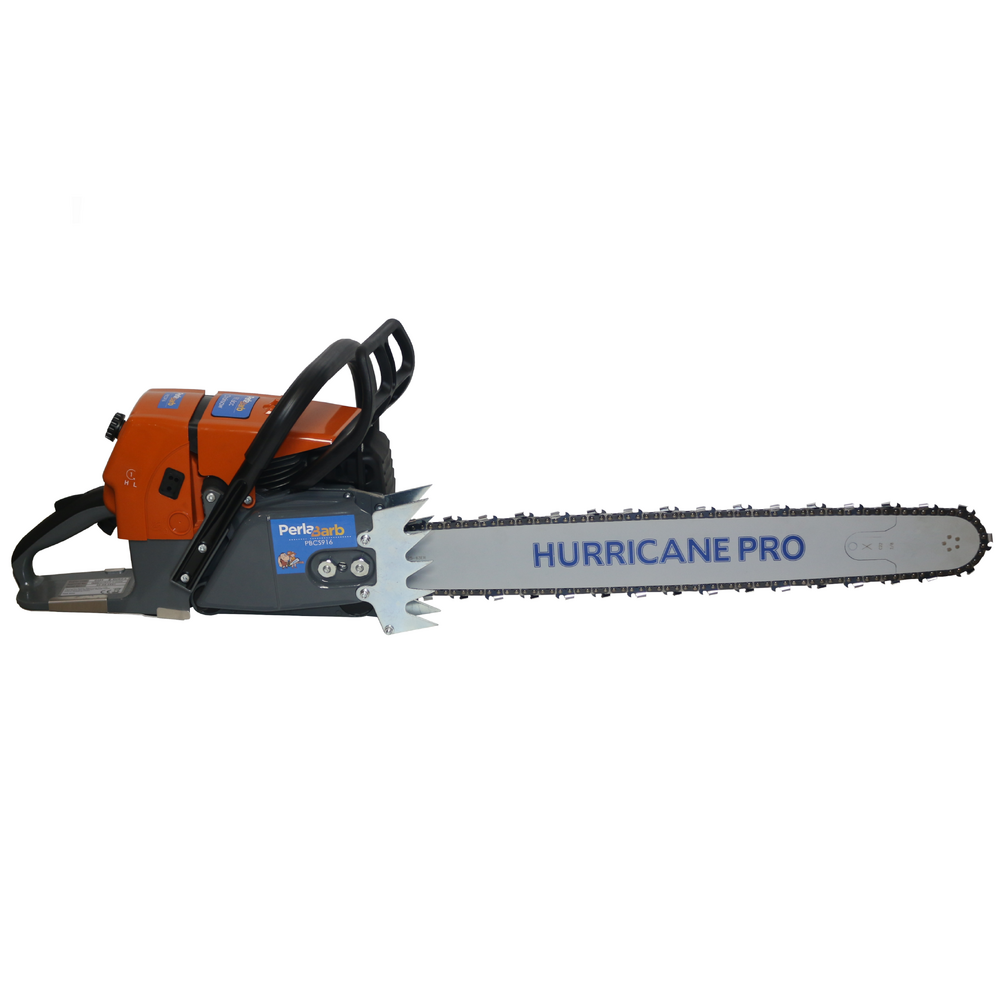

This combo comes with a 42" Bar and a 3/8 063 135DL Semi Chisel Carbide Chain

Technical Specs:

Model: PBCS916 Perla Barb 91.6cc V1

Engine Type - Single Cylinder 2-Stroke Engine

Total Weight - 8KG (NO bar and chain)

Cylinder Displacement - 91.6cc

Power Output - 7.0HP

Idle Speed - 2500 RPM

Maximum Power Speed - 13,500 RPM

Cylinder Bore - 54mm (2.13 inches)

Cylinder Stroke - 40mm (1.57 inches)

Spark plug: NGK = BPMR7A, Champion = RCJ7Y (0.5mm gap)

Fuel System:

Carburettor Type - Diaphragm Carburettor

Air Filter - Heavy Duty Type

Fuel Type - Unleaded 90+

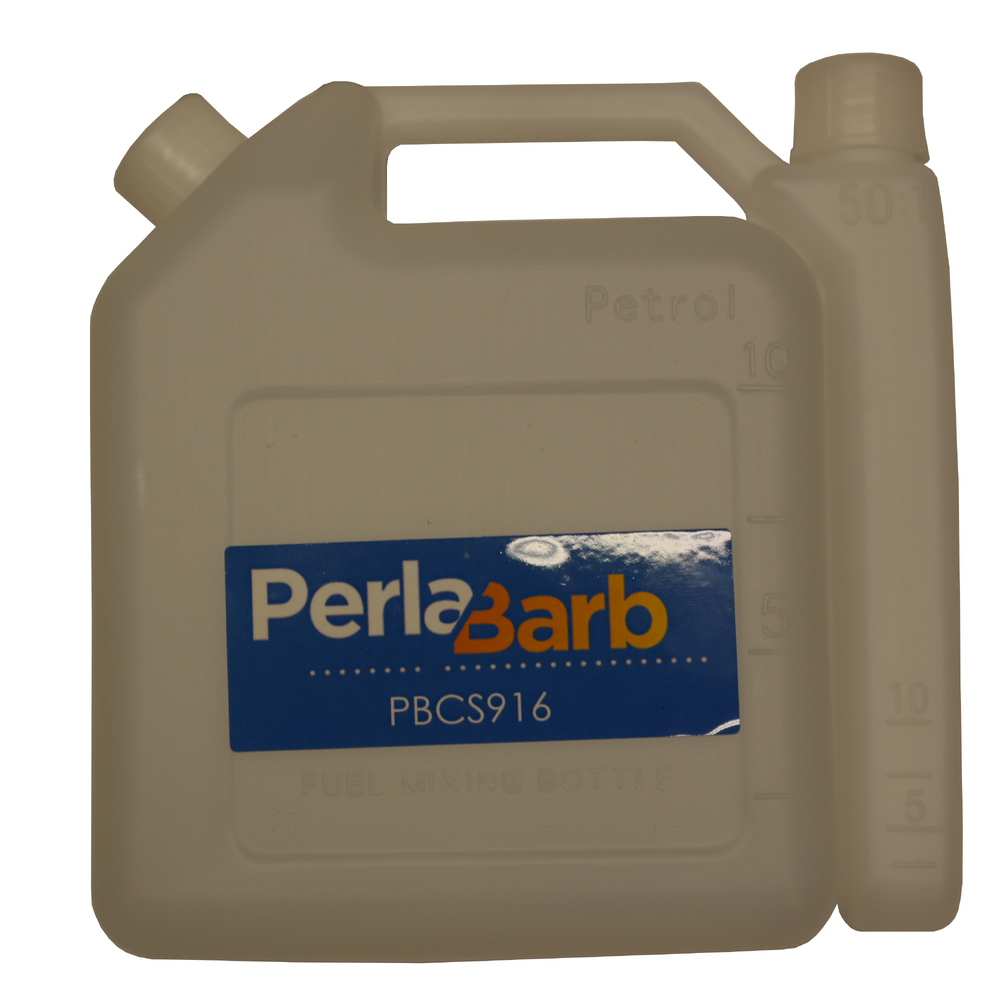

Fuel Mix - 2 Stroke 25:1

Fuel Tank Volume - 825mL

Cutting Attachments:

Guide Bar - 16" to 42"

Bar Mount - Hurricane (QR)

Chain Sprocket - Standard 7 Tooth .3/8" Pitch

Chain Lubrication - Fully Automatic Oil Pump

Bar Oil Type - Bar and Chain Oil

Oil Tank Capacity - 360mL

Available Bar and Chain Combos
PART No.	LENGTH	PITCH	GAUGE	D/LINKS
PBCS916-20BC/PBCS916-20BC-CARB	20'' /50CM	3/8''	.063''	72
PBCS916-25BC/PBCS916-25BC-CARB	25''/63CM	3/8''	.063''	84
PBCS916-30BC/PBCS916-30BC-CARB	30''/76CM	3/8''	.063''	98
PBCS916-36BC/PBCS916-36BC-CARB	36''/91CM	3/8''	.063''	114
PBCS916-42BC/PBCS916-42BC-CARB	42''/106CM	3/8''	.063''	135

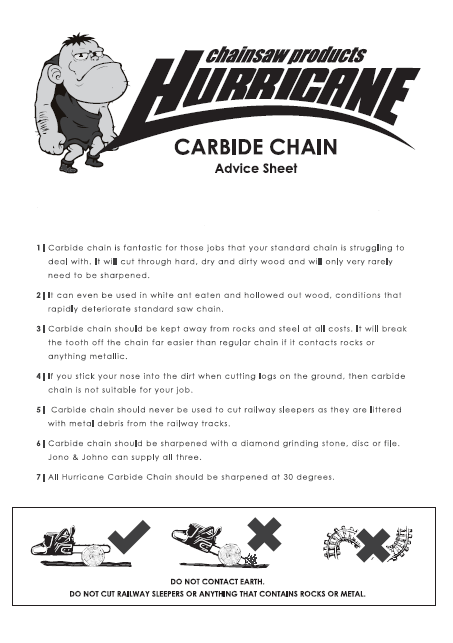

CARBIDE WARNING:

1. Carbide chain is fantastic for those jobs that your standard chain is struggling to deal with. It will cut through hard, dry and dirty wood and will only very rarely need to be sharpened.

2. It can even be used in white ant eaten and hollowed out wood, conditions that rapidly deteriorate standard chainsaw chain.

3. Carbide chain should be kept away from rocks and steel at all costs. It will break the tooth off the chain far easier than regular chain if it contacts rocks or anything metallic.

4. If you stick your nose into the dirt when cutting logs on the ground, then carbide chain is not suitable for your job.

5. Carbide chain should never be used to cut railway sleepers as they are littered with metal debris from the railway tracks.

6. Carbide chain should be sharpened with a diamond grinding stone, disc or file. Jono & Johno can supply all three.

7. All Hurricane carbide chain should be sharpened at 30 degrees.

Warning: This is a non-safety chain capable of kick-back. Use only if you’re a trained and experienced chainsaw operator.

WARRANTY OVERVIEW

Jono & Johno offers a 12-month warranty on most products.

We pride ourselves on selling good quality gear and will be fair and prompt in honouring our warranties. If you’re in trouble, we’ll help you out.

WHAT IS COVERED?

The exact warranty coverage depends on two factors:

Whether the fault is due to user error or a manufacturer defect
Whether the fault is minor or major

Minor faults caused by the user

Parts will be supplied for repair at the user's expense.

Minor faults caused by the manufacturer

Customers are expected to perform basic repairs as part of our warranty process.
Jono & Johno will provide replacement parts and instructions for simple repairs, such as installing a recoil starter.
Jono & Johno will determine whether a fault is classified as minor.
If unsure about a repair, contact us, and we’ll assist you.

Major faults caused by the manufacturer

Jono & Johno will arrange a return, refund, or replacement at our expense.
If preferred (and at our discretion), we may provide replacement parts and contribute to labour costs if you can perform the repair.

Major faults caused by the user

Where possible, parts will be supplied at the user's expense.
If the item cannot be repaired by the user, we offer repairs at our workshop at $80 AUD per hour.
The customer will need to cover return shipping costs for user-related faults.

RETURN PROCESS & SHIPPING COSTS

If you need to return your product:

In-store return: If you're near a Jono & Johno outlet, you can return the product in person. Contact us first to arrange a return authority.
Shipping return: If you are not within driving distance, we will provide a return address.
- If the fault is due to a manufacturer defect, we’ll cover return costs.
- If the fault is user-related, the customer is responsible for return shipping.

EXCEPTIONS TO THE RULE

Some products are not covered by warranty, including:

Engines used in go-karts and stump grinders

OUT-OF-WARRANTY PRODUCTS

If your product is out of warranty and has failed despite minimal use, contact us. We may assess it on a case-by-case basis. If a manufacturer defect is identified, we aim to be fair in resolving the issue—but this is at our discretion.

SKU	PBCS916-42BC-CARB
Barcode #	726597615167
Brand	Perla Barb
Shipping Weight	13.7500kg
Shipping Width	0.050m
Shipping Height	0.050m
Shipping Length	0.050m
Shipping Cubic	0.000125000m3
Items included in the kit
Product Name	Quantity	SKU

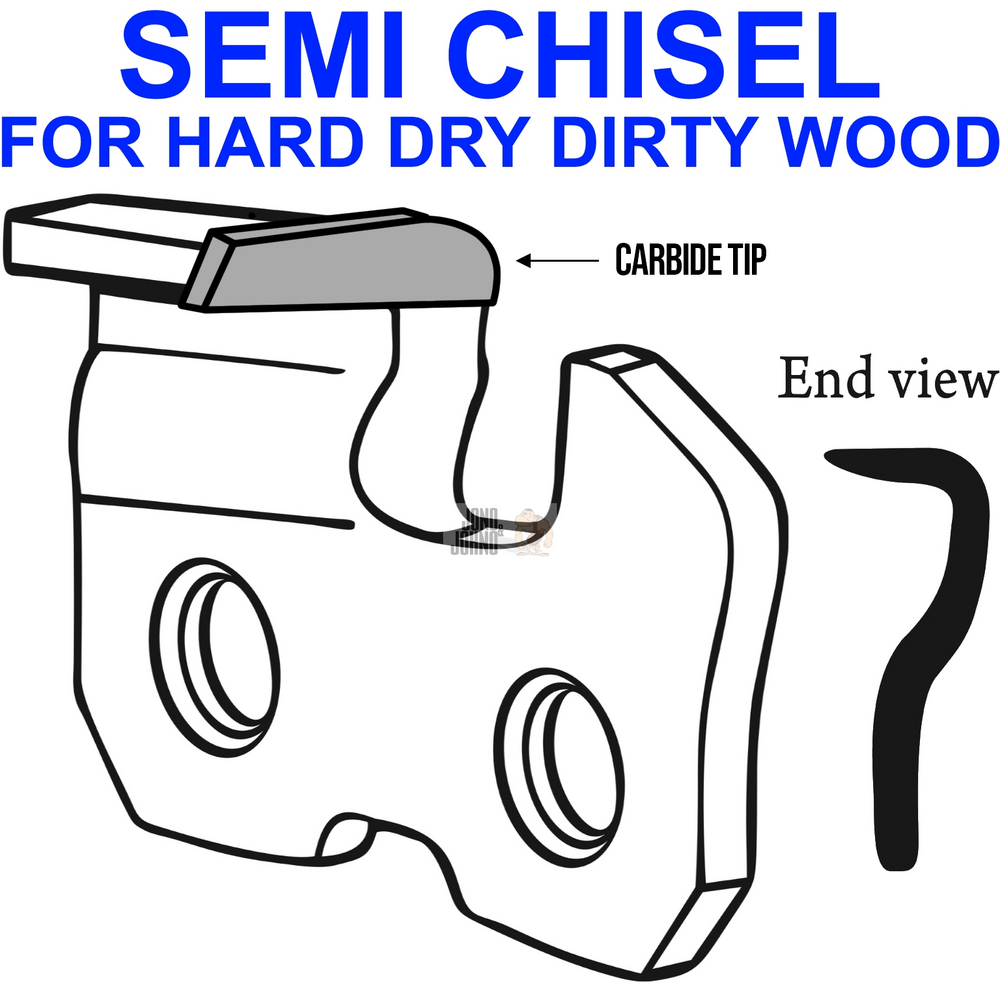

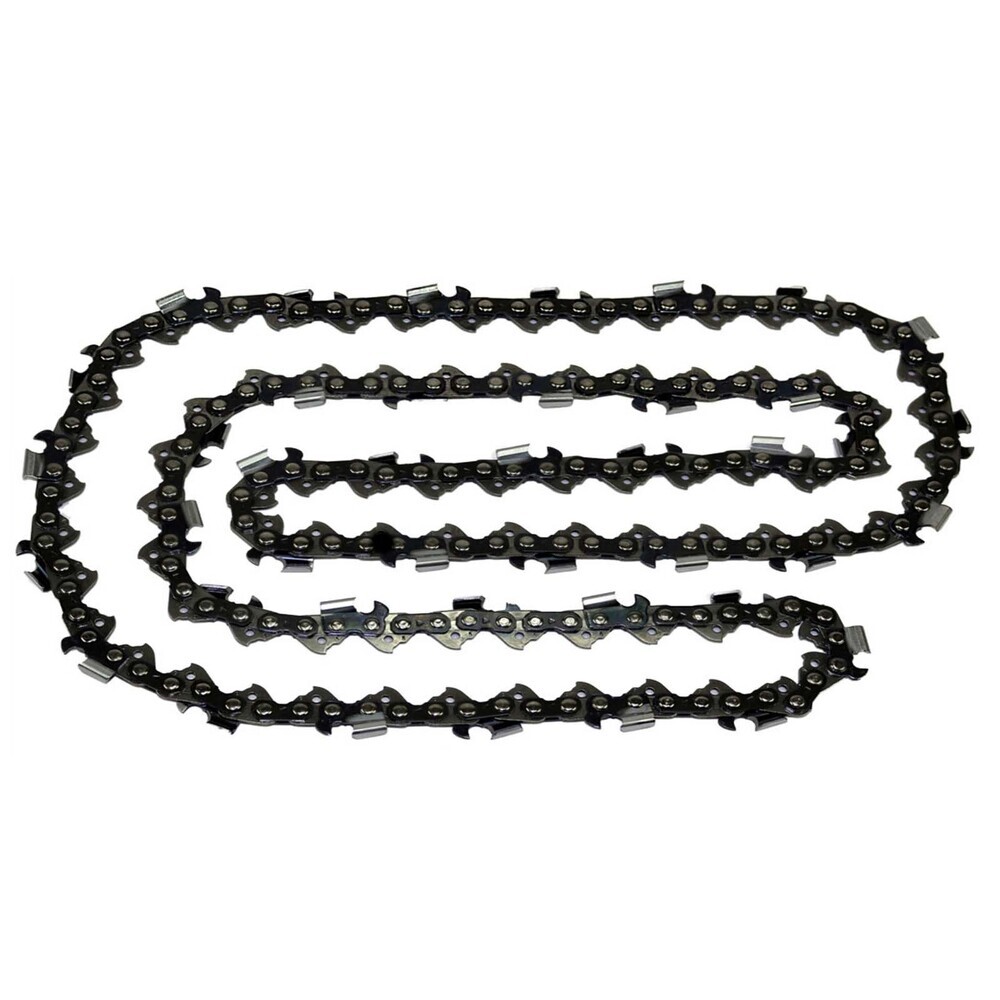

1x 3/8" 063 135DL SEMI CHISEL TUNGSTEN CARBIDE CHAINSAW CHAIN	1	135CARB8

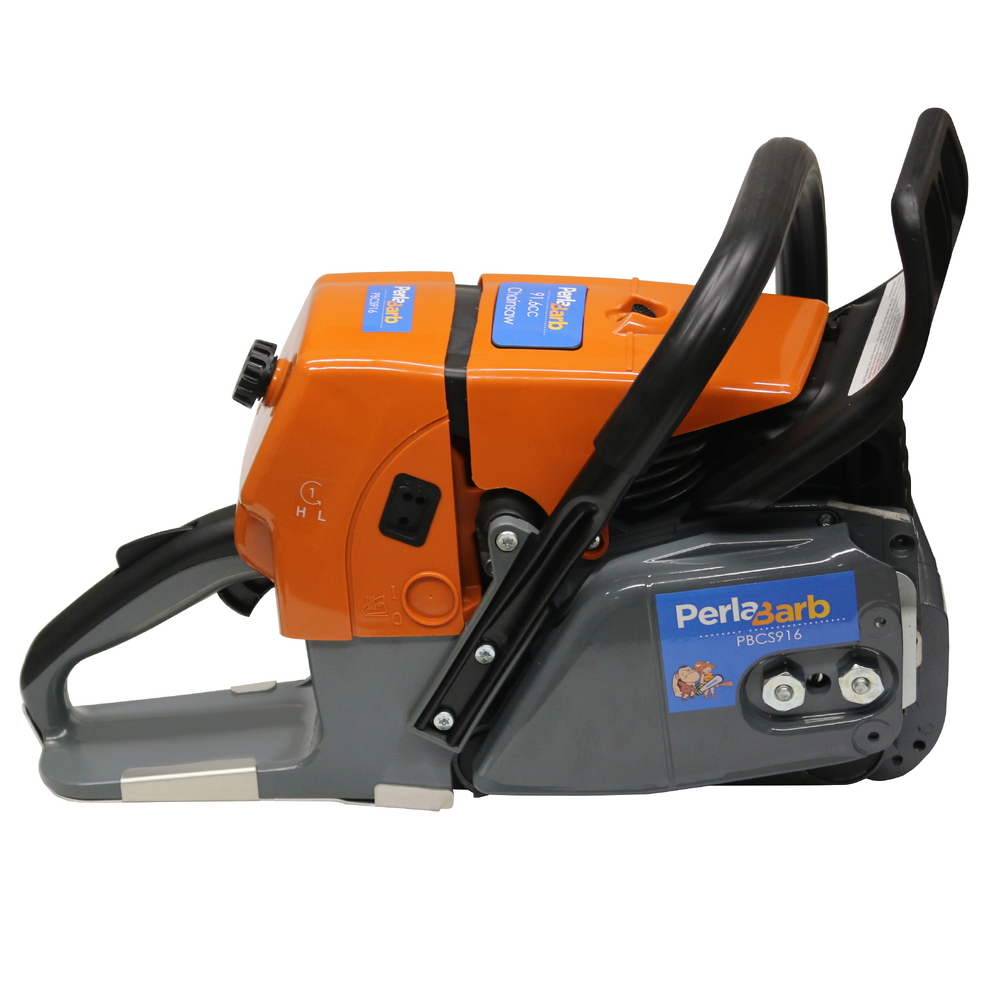

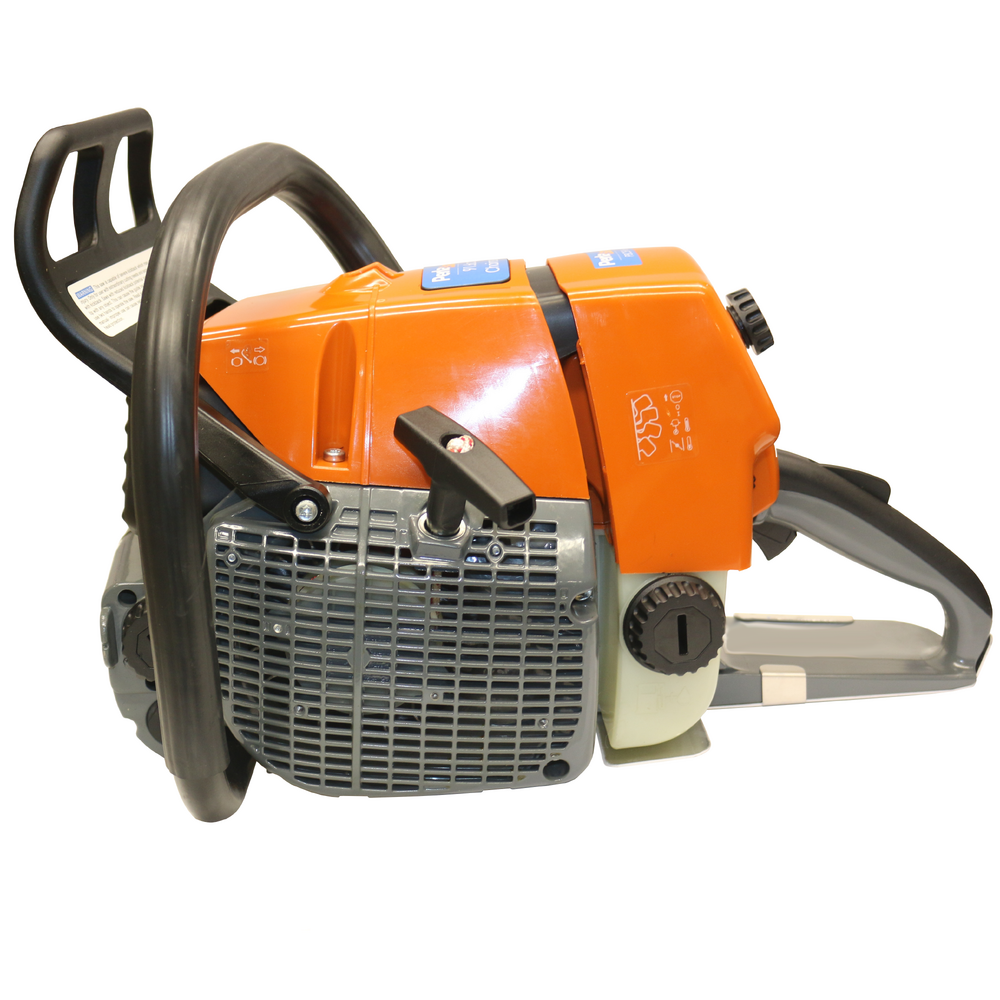

Perla Barb 91.6cc Chainsaw Power Head Only	1	PBCS916

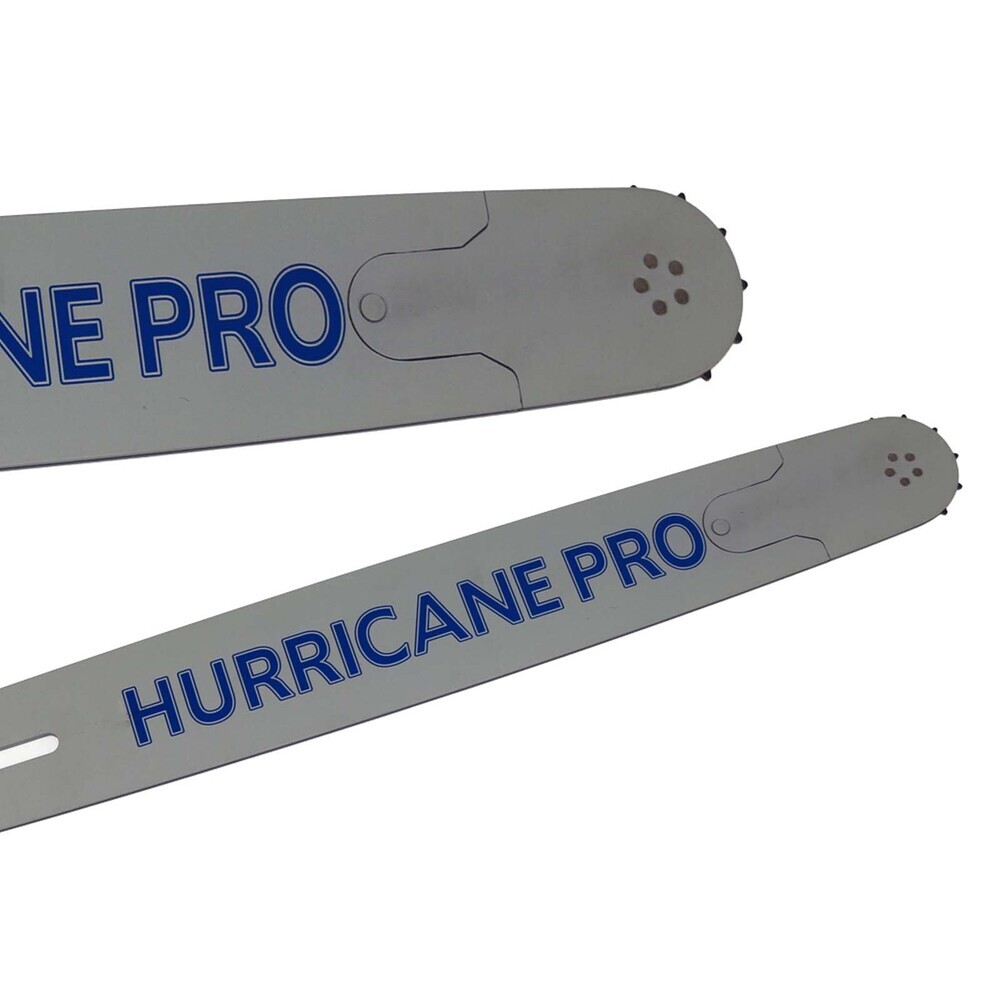

42" Hurricane Pro Bar only for Stihl Chainsaw 3/8" Sprocket Nose 3/8 063 135DL	1	SQR42-63ER
