JONO & JOHNO 1" WATER PUMP 2.5HP ENGINE & HOSE KIT WITH 10m SUCTION HOSE

BASED IN BALLARAT. SAVE ON POSTAGE.

12 Month WarratnyThis Jono & Johno water pump is top of the range. It is made from the best materials on the market and you can expect it to last as long as any brand name pump being sold today.

We stock spare parts for the pump should any part ever become damaged.

We offer a 12 month warranty as well as ongoing support and advice.

All details are below but should you have any further questions then don’t hesitate to contact us using the details at the bottom of this form.

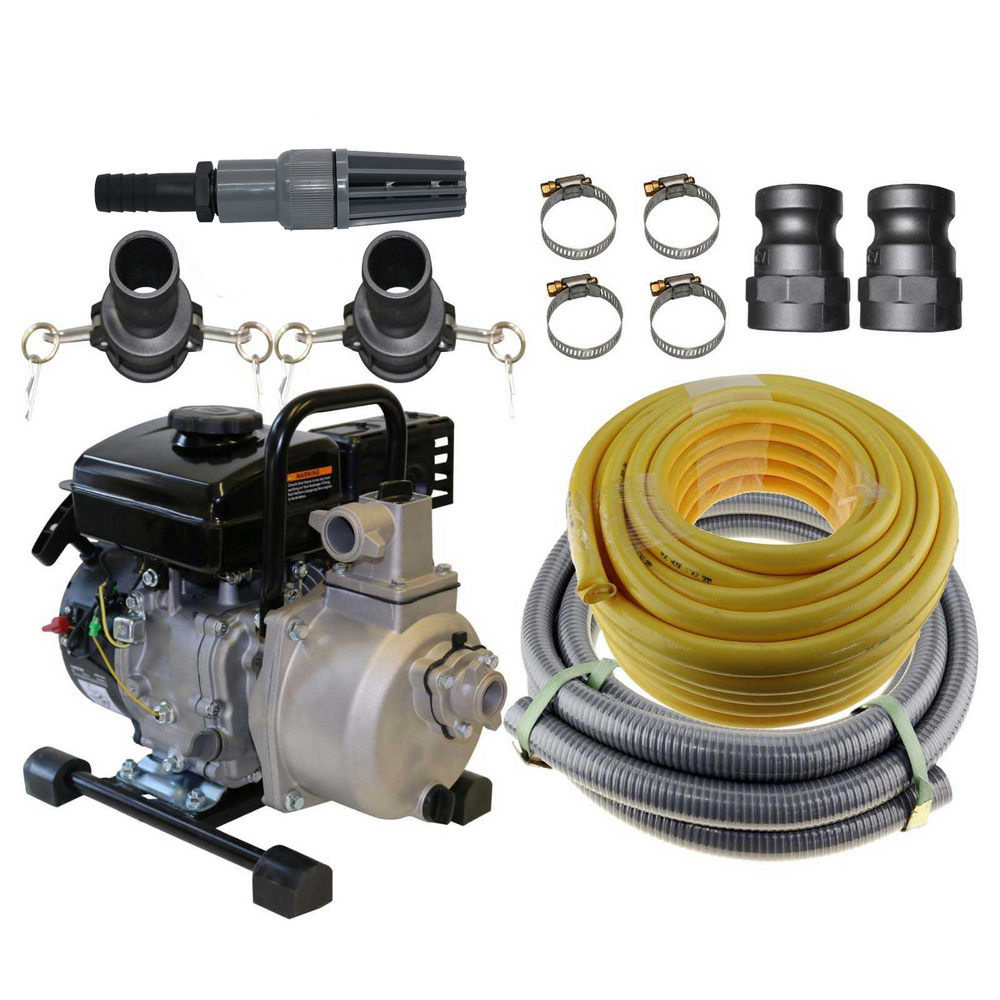

Included in this kit:

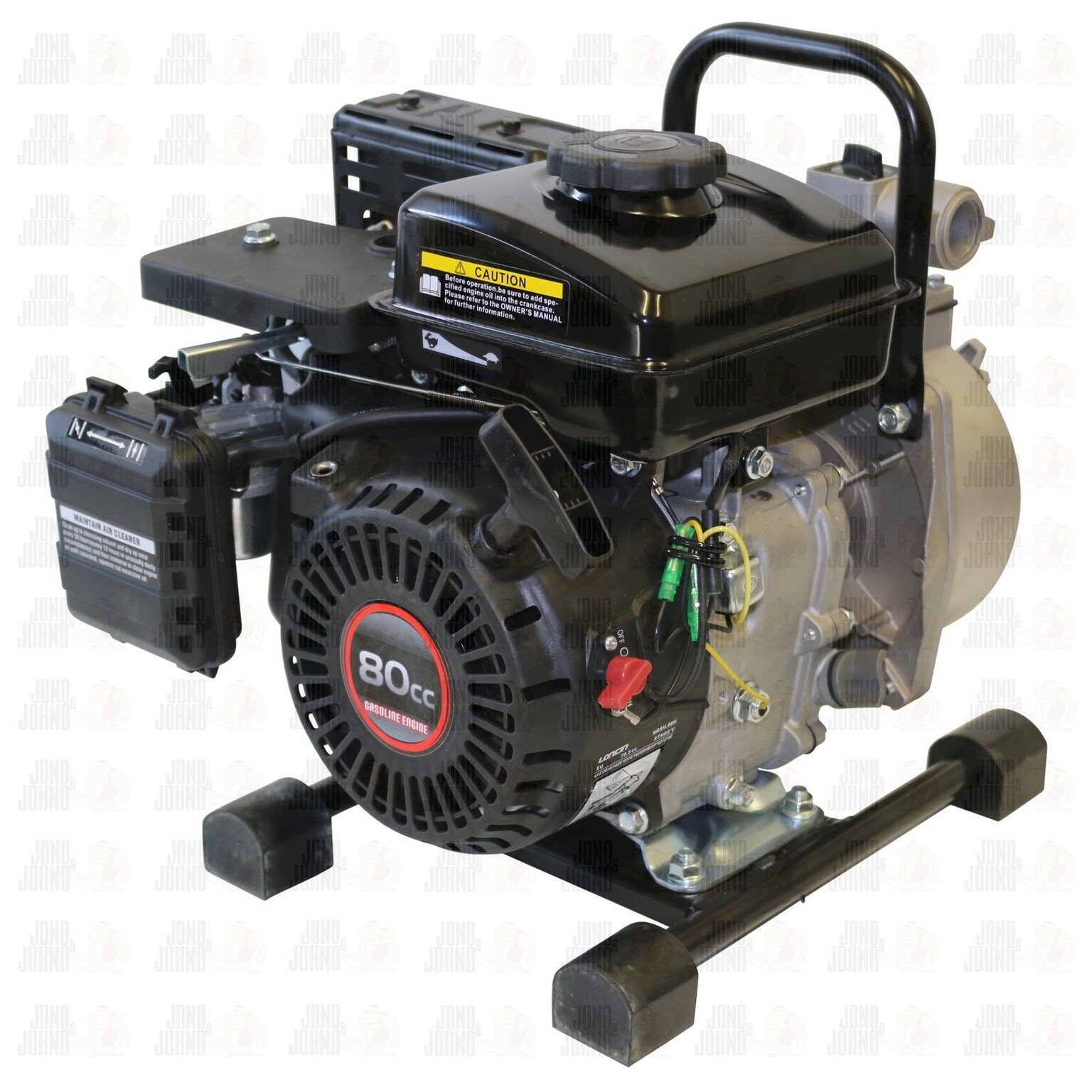

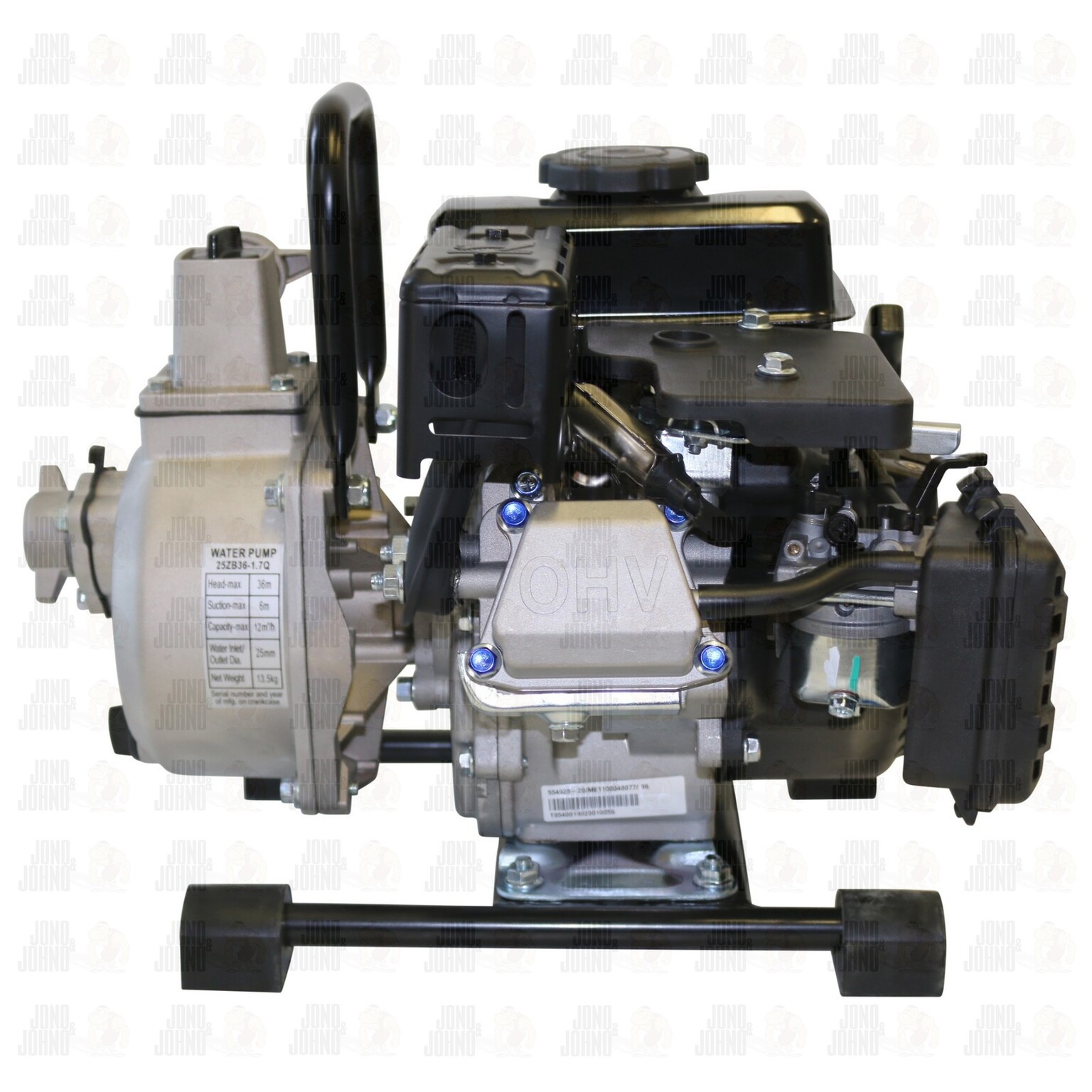

  • 1x 1" Jono & Johno 2.5hp Petrol 4 Stroke Water Pump

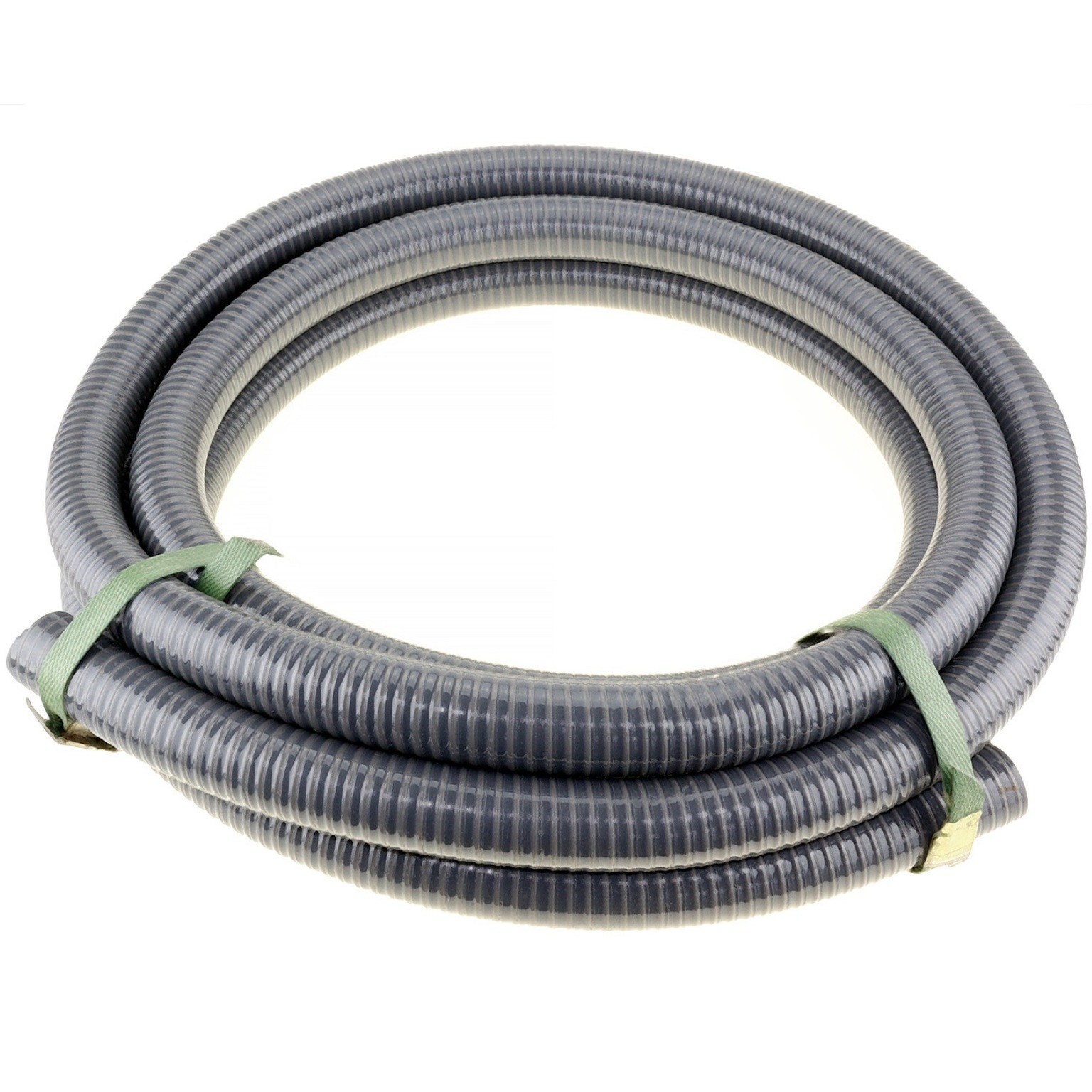

  • 1x 1" Suction Hose 10 metre

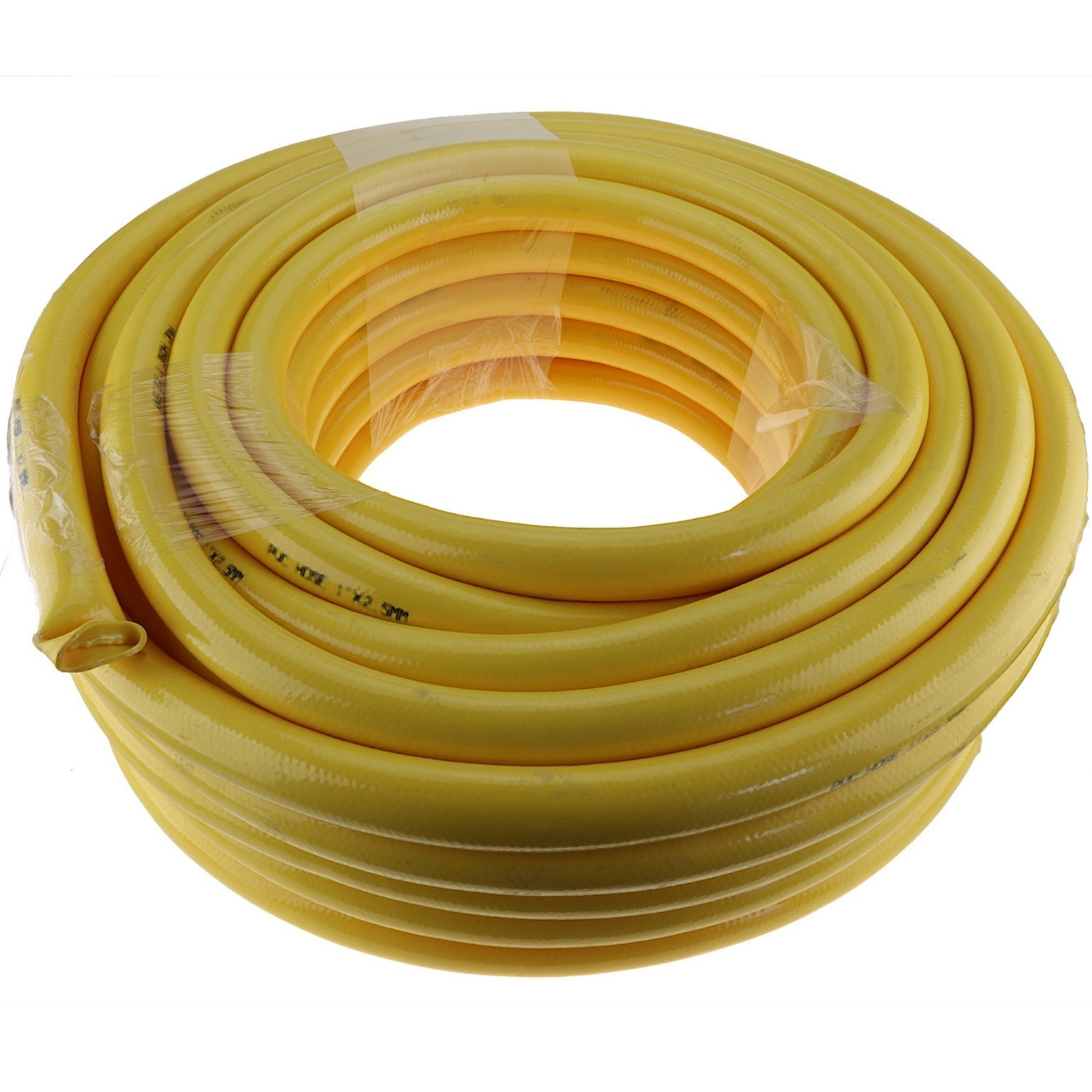

  • 1x 1" 15 metre yellow wash down hose

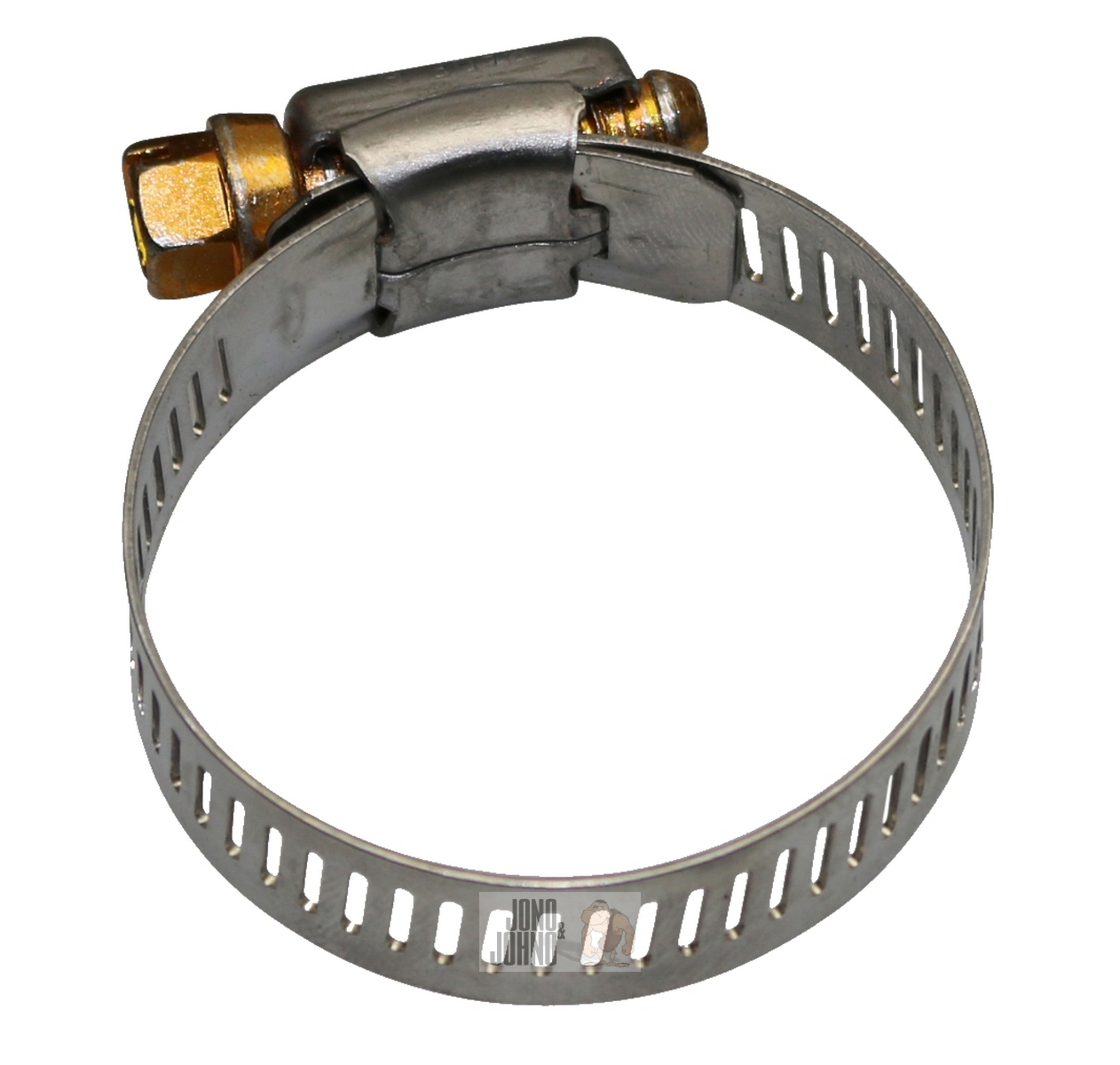

  • 4x 19-44mm Hose clamp

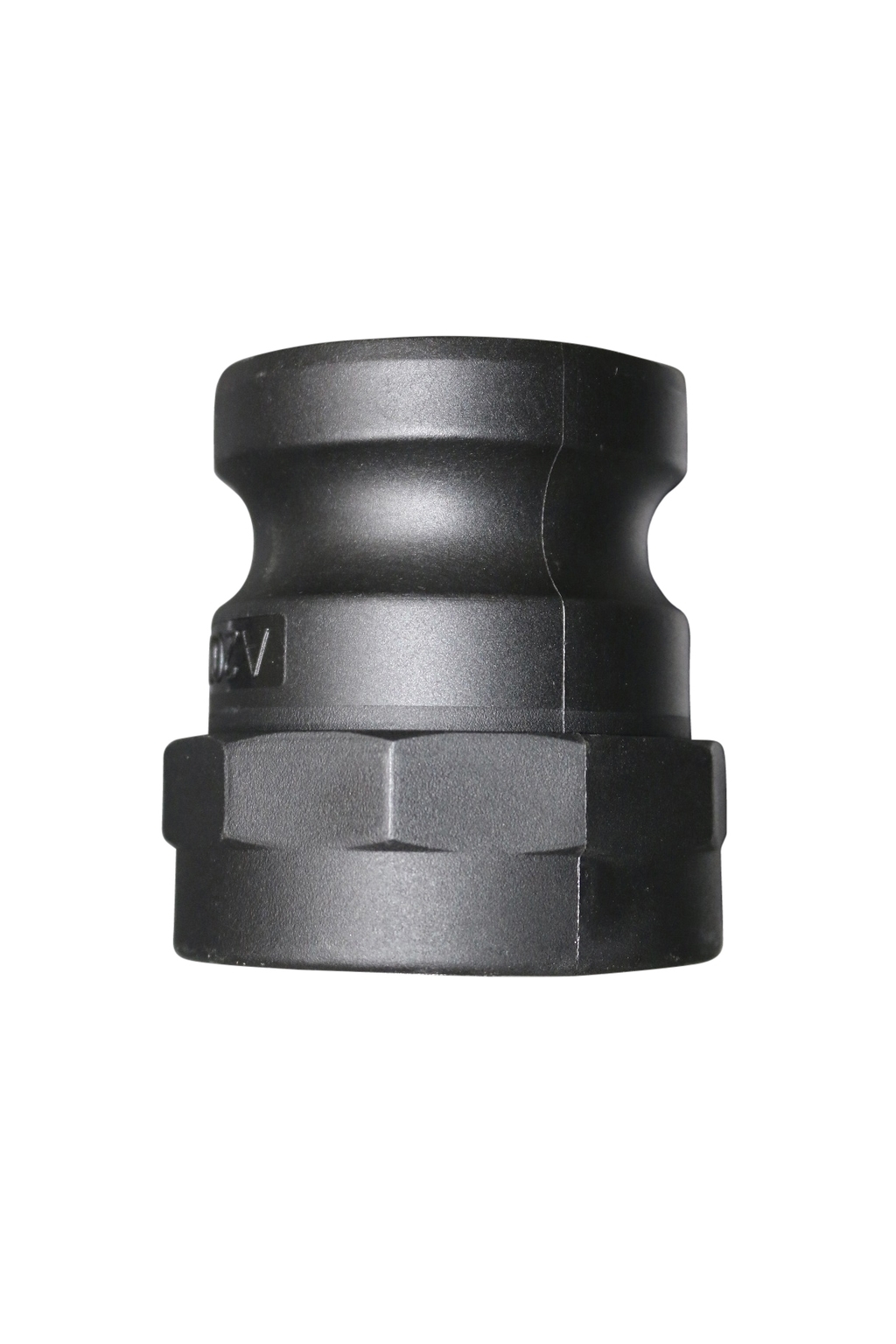

  • 2x 1" Camlock Type A

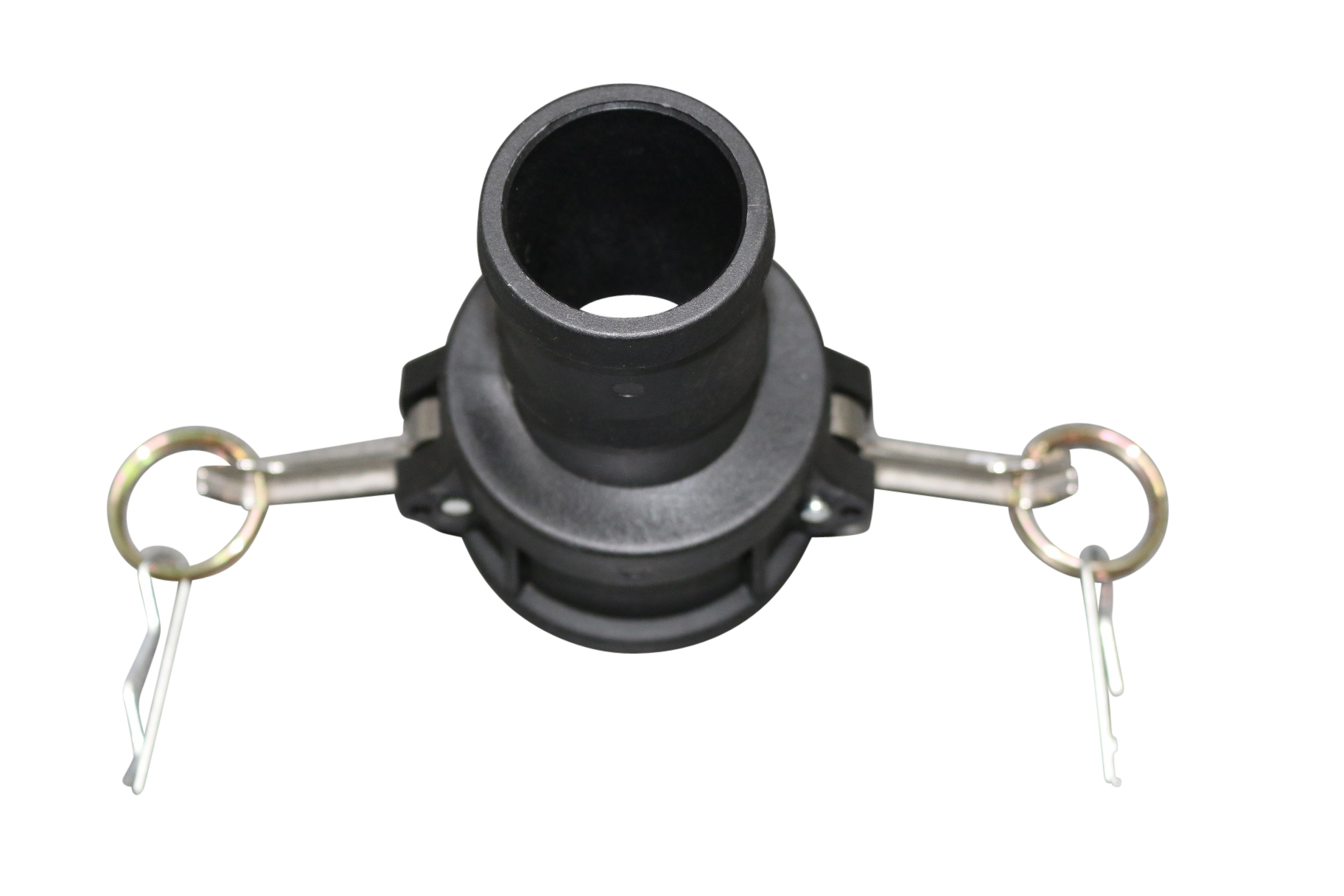

  • 2x 1" Camlock Type C
  • 1x 1" brass foot valve with 1" barb fitting
ENGINE
Max Power Output:  2.5hp @ 3600rpm
Displacement: 79.8cc
Bore x Stroke (mm):  48.63 x 43mm
Compression: 8.5:1
Max Torque (n.m)/rpm] :  5.06nm @ 3200rpm
Ignition system: Transistorized magneto ignition
Spark Plug Type: NGK: BPR6HS - Champion: RL82YC - Bosch: WR7BC
Starting system: Recoil
Fuel Tank Capacity: 1.6 Ltr
Oil capacity: 0.35 (SAE10W30)
Fuel consumption: ≤395 g/kw.h (minimum specific fuel consumption)
Air cleaner:  Single element
Shaft Diameter: 5/8" (15.8mm)
Shaft Length: 53mm from flange, 58mm from seal face
Keyway size: 3/16" (4.8mm) wide by 45mm long
Shaft rotation: Anti-clockwise (from output)
Pump weight:  13.5kg
Package dimensions: 445mm x 340mm x 365mm



PUMP
Suction / discharge port diameter: 1” / 25mm
Lift: 36m
Maximum Suction: 6 Mtrs
Flow Rate: 200 Litres per minute
SKU CP361_KIT_10M
Model # CP361_KIT_10M
Barcode # 682157269563
Brand JONO & JOHNO
Shipping Weight 24.0000kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.050m
Shipping Cubic 0.000125000m3
Unit Of Measure ea
