JONO & JOHNO 1" TRANSFER PUMP

4 Stroke Engine

12 Month Warranty

12 Month WarratnyThis Jono & Johno transfer pump is designed for easy transportation. It weighs only 7kg (pump only, not including hoses and fittings) making it an ideal pump for gold sluicing, camping, water tank transfers, gardening or any other application that requires regular movement of the pump.

We guarantee that this pump will stand the test of time. It comes with a 12-month warranty and we keep all spare parts in stock.

Included in this kit:

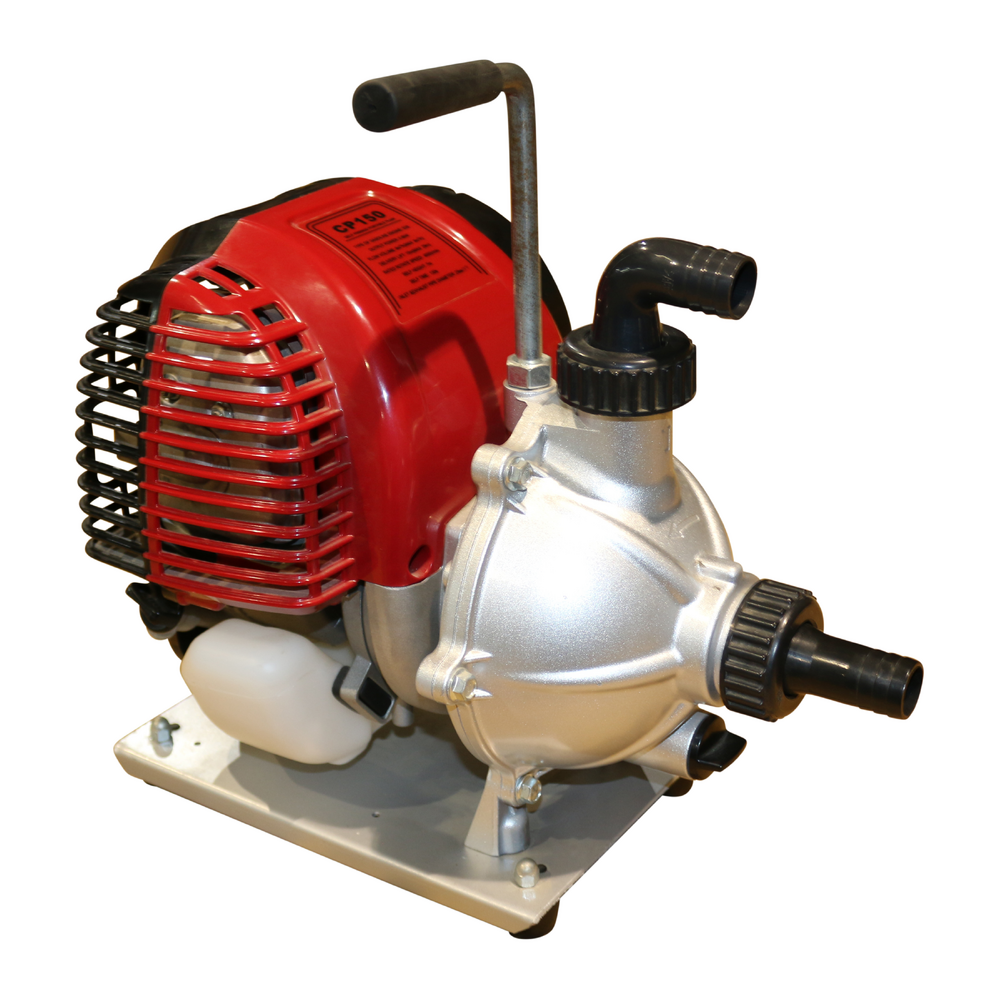

  • 1x 1" Jono & Johno 2.5hp Petrol 4 Stroke Water Pump
  • 1x 1" Suction Hose 5 metre

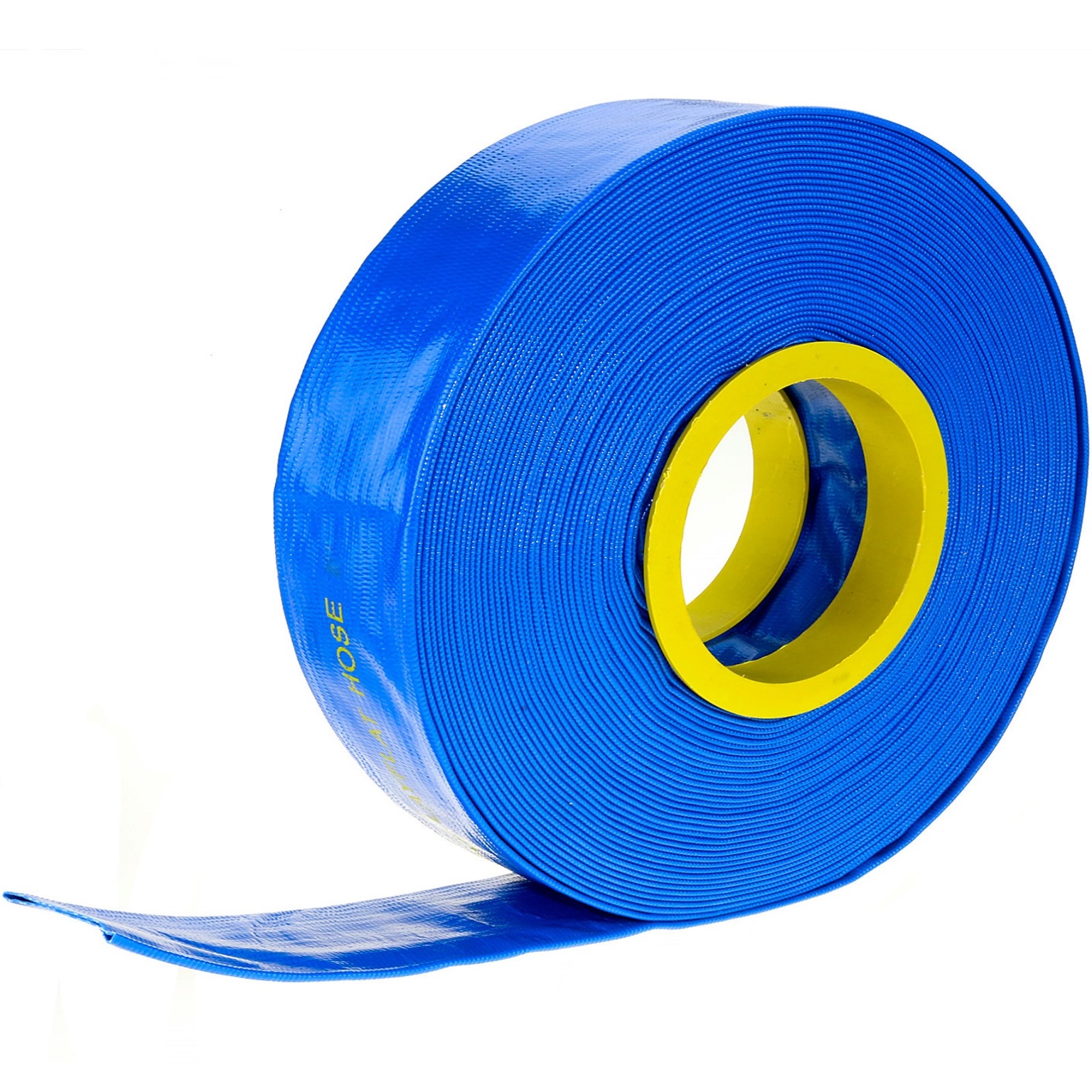

  • 1x 1" Layflat hose 30 metre
  • 1x 19-44mm Hose clamp
  • 1x 1" Camlock Type E

ENGINE
Max Power Output:  2.5hp @ 6000rpm
Displacement: 31cc
Bore x Stroke (mm):  92 x 26mm
Compression: 8:1
Max Torque (nm)/rpm] :  1.1nm @ 4500
Ignition system: Transistorized magneto ignition
Spark Plug Type: NGK: CMR5H Champion: RZ7C Bosch: USR7AC
Starting system: Recoil
Fuel Tank Capacity: 0.6 Ltr
Oil capacity: 0.05 Ltr
Fuel consumption (g/kw.h) : ≤ 480
Air cleaner:  Semi-dry, oil bath, foam filter
Shaft Diameter: 12mm
Shaft Length: 33.5mm from the mounting surface to the end of shaft
Keyway length: threaded shaft, no keyway
Keyway width: threaded shaft, no keyway
Shaft rotation: Anti-clockwise (from output)
Weight:  7kg without packaging
Package dimensions (cm): 34 x 27 x 30



PUMP
Suction / discharge port diameter: 1" / 1"
Lift: 15m
Maximum Suction: 5 Mtrs
Max Flow Rate: 80 Litres per minute
SKU CP150_KIT
Model # CP150_KIT
Barcode # 682157269556
Brand JONO & JOHNO
Shipping Weight 10.5510kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.050m
Unit Of Measure ea
