SKU : CP361_KIT
This Jono & Johno water pump is top of the range. It is made from the best materials on the market and you can expect it to last as long as any brand name pump being sold today.
We stock spare parts for the pump should any part ever become damaged.
We offer a 12 month warranty as well as ongoing support and advice.
All details are below but should you have any further questions then don’t hesitate to contact us using the details at the bottom of this form.
SUCTION HOSE SPECS:
Operating temperature range: -5℃ to 65℃ - UV Resistant
Included in this kit:

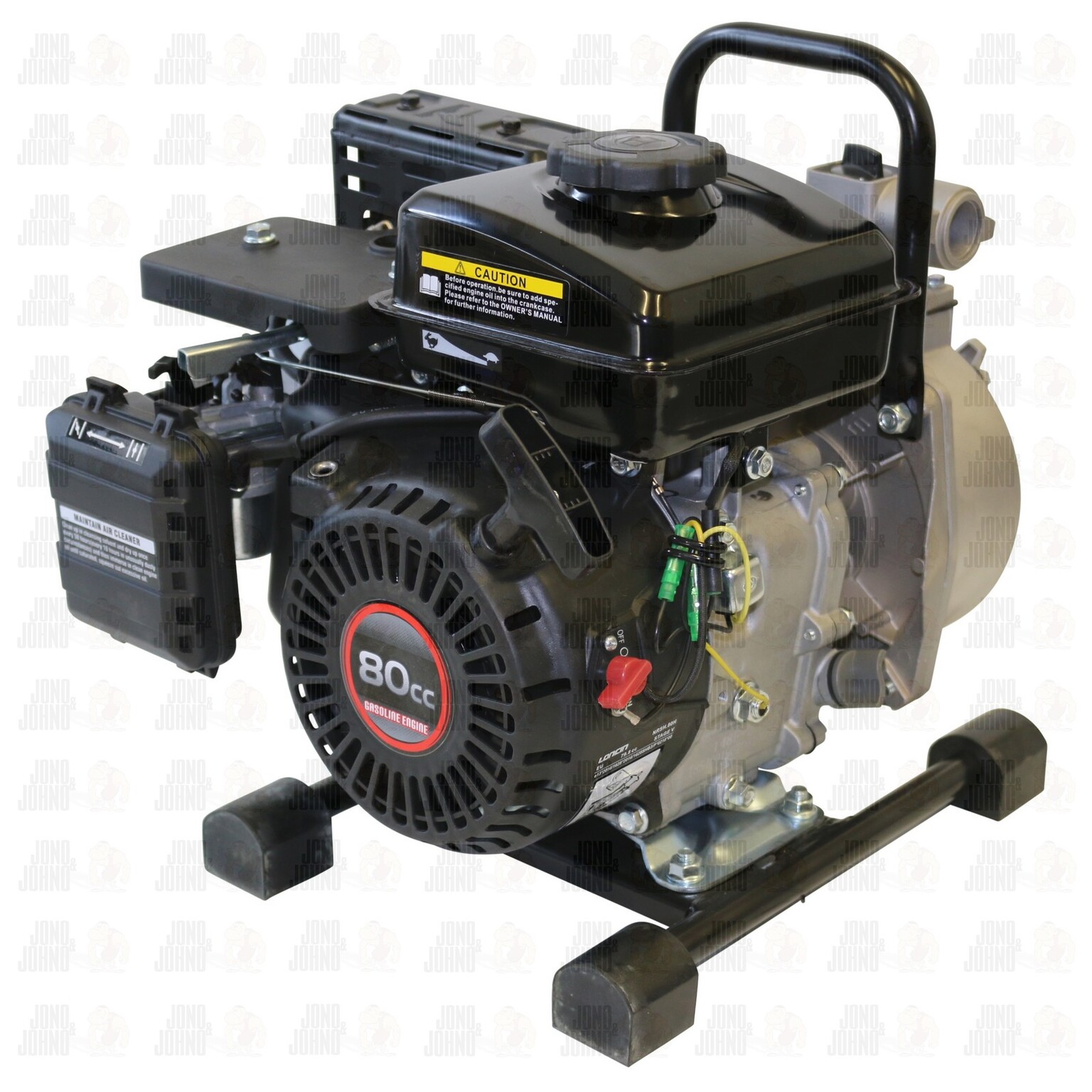

ENGINE | |
Max Power Output: | 2.5hp @ 3600rpm |
Displacement: | 80cc |
Bore x Stroke (mm): | 48.63 x 43mm |
Compression: | 8.5:1 |
Max Torque (n.m)/rpm] : | 5.06nm @ 3200rpm |
Ignition system: | Transistorized magneto ignition |
Spark Plug Type: | NGK: BPR6HS - Champion: RL82YC - Bosch: WR7BC |
Starting system: | Recoil |
Fuel Tank Capacity: | 1.6 Ltr |
Oil capacity: | 0.35 (SAE10W30) |
Fuel consumption: | ≤395 g/kw.h (minimum specific fuel consumption) |
Air cleaner: | Single element |
Shaft Diameter: | 5/8" (15.8mm) |
Shaft Length: | 53mm from flange, 58mm from seal face |
Keyway size: | 3/16" (4.8mm) wide by 45mm long |
Shaft rotation: | Anti-clockwise (from output) |
Pump weight: | 13.5kg |
Package dimensions: | 445mm x 340mm x 365mm |

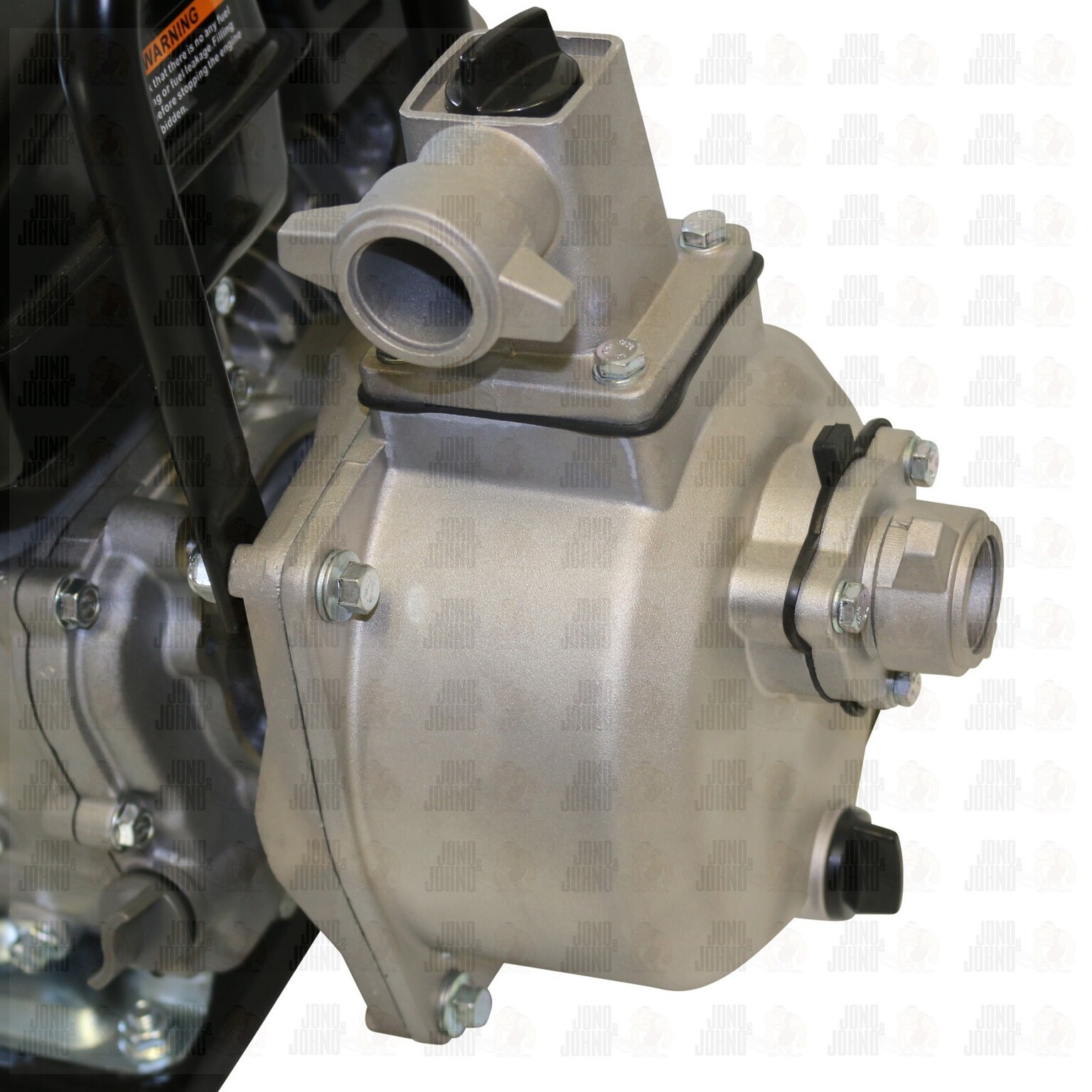

PUMP | |
Suction / discharge port diameter: | 1” / 25mm |
Lift: | 36m |
Maximum Suction: | 6 Mtrs |
Flow Rate: | 100 Litres per minute |
Output Pressure | 52psi |
Jono & Johno offers a 12-month warranty on most products.
We pride ourselves on selling good quality gear and will be fair and prompt in honouring our warranties. If you’re in trouble, we’ll help you out.
The exact warranty coverage depends on two factors:
Minor faults caused by the user
Minor faults caused by the manufacturer
Major faults caused by the manufacturer
Major faults caused by the user
If you need to return your product:
Some products are not covered by warranty, including:
If your product is out of warranty and has failed despite minimal use, contact us. We may assess it on a case-by-case basis. If a manufacturer defect is identified, we aim to be fair in resolving the issue—but this is at our discretion.
SKU | CP361_KIT | |
Model # | CP361_KIT | |
Barcode # | 682157269563 | |
Brand | JONO & JOHNO | |
Shipping Weight | 23.3000kg | |
Shipping Width | 0.050m | |
Shipping Height | 0.050m | |
Shipping Length | 0.050m | |
Shipping Cubic | 0.000125000m3 | |
Unit Of Measure | ea | |

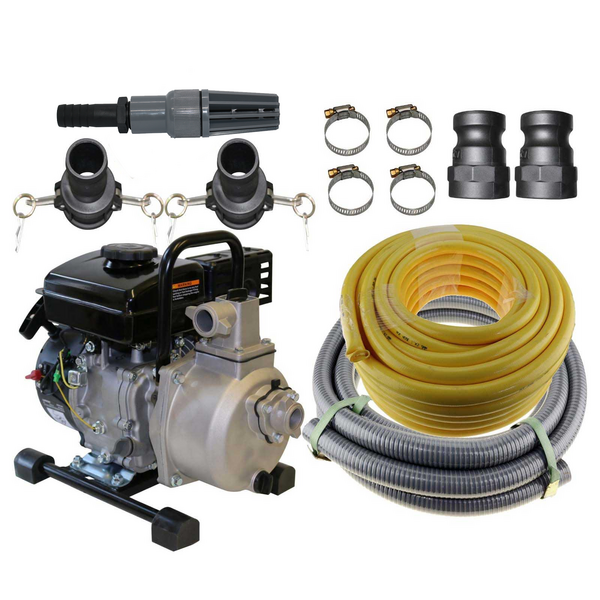

Items included in the kit | ||
Product Name | Quantity | SKU |

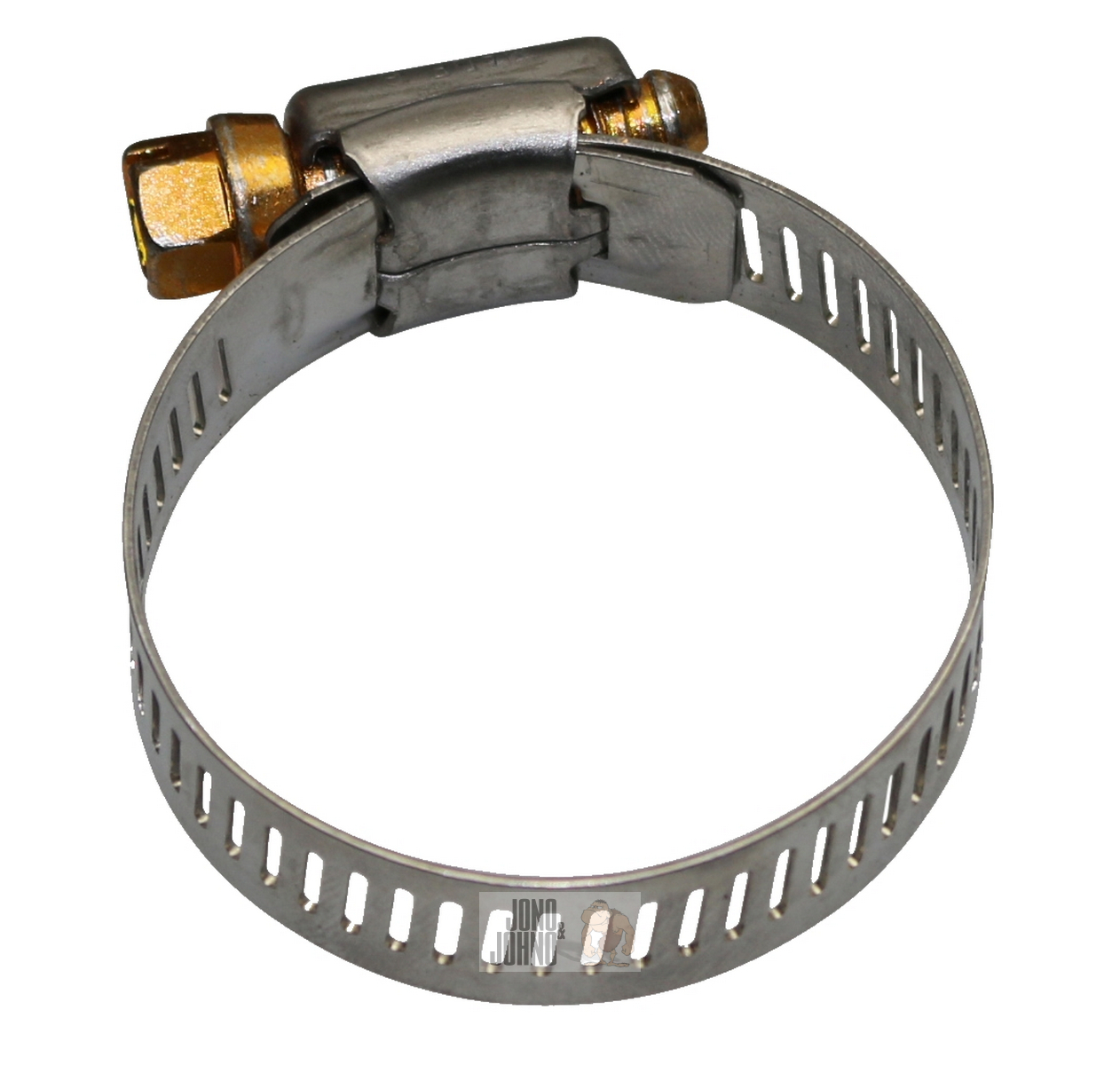

2x 21-44mm Hose Clamps For 1" Hose | 2 | AAHC-21-44 |

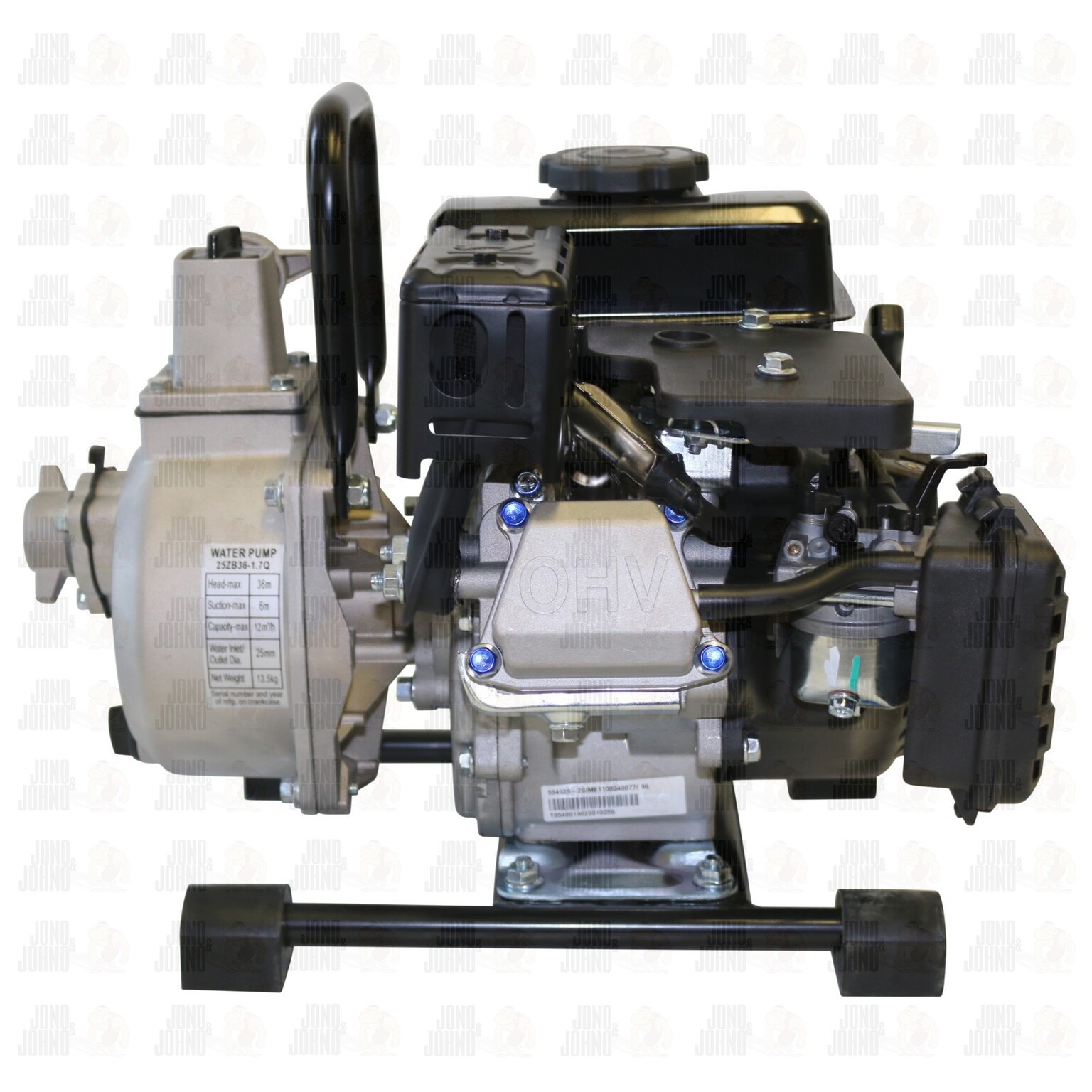

1" Petrol 2.5HP Water Pump with 4 Stroke Motor Engine Transfer Camping Garden | 1 | CP361 |

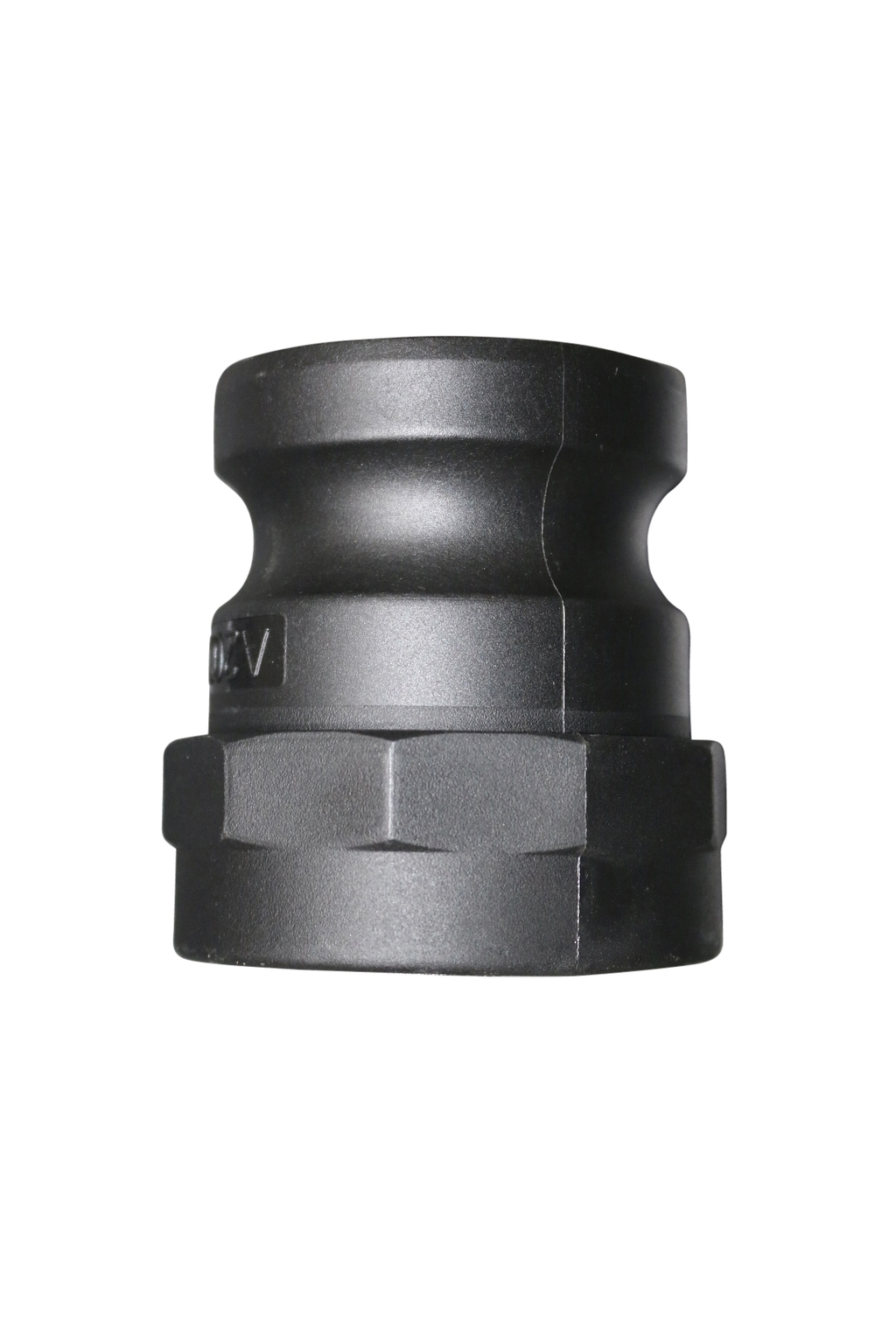

Nylon Camlock Fitting Type A 1" Cam Lock Irrigation Fitting | 2 | PCLA1 |

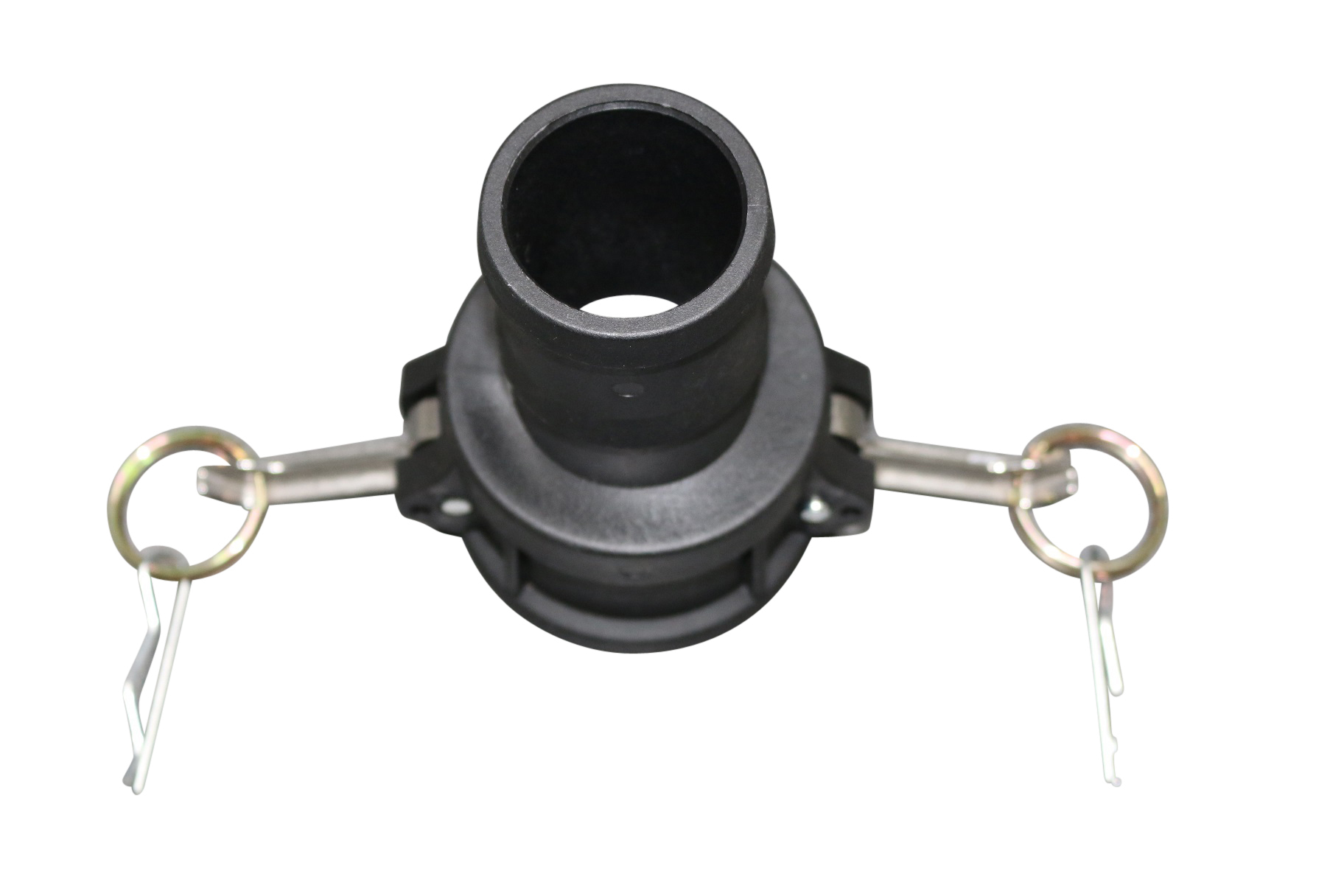

Nylon Camlock Fitting Type C 1" Cam Lock Irrigation Fitting | 2 | PCLC1 |

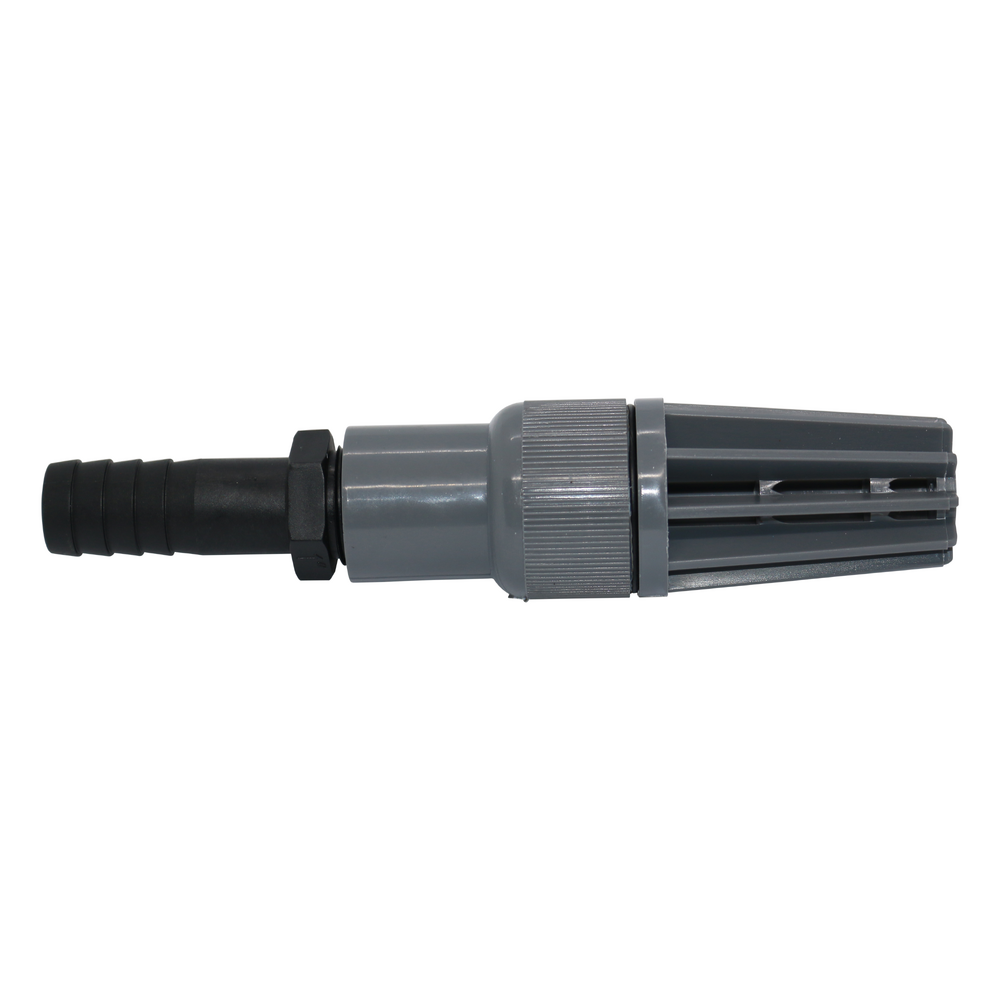

1" Poly Foot Valve and Strainer with Barb Water Pump Hose Suction | 1 | POLYFV1 |

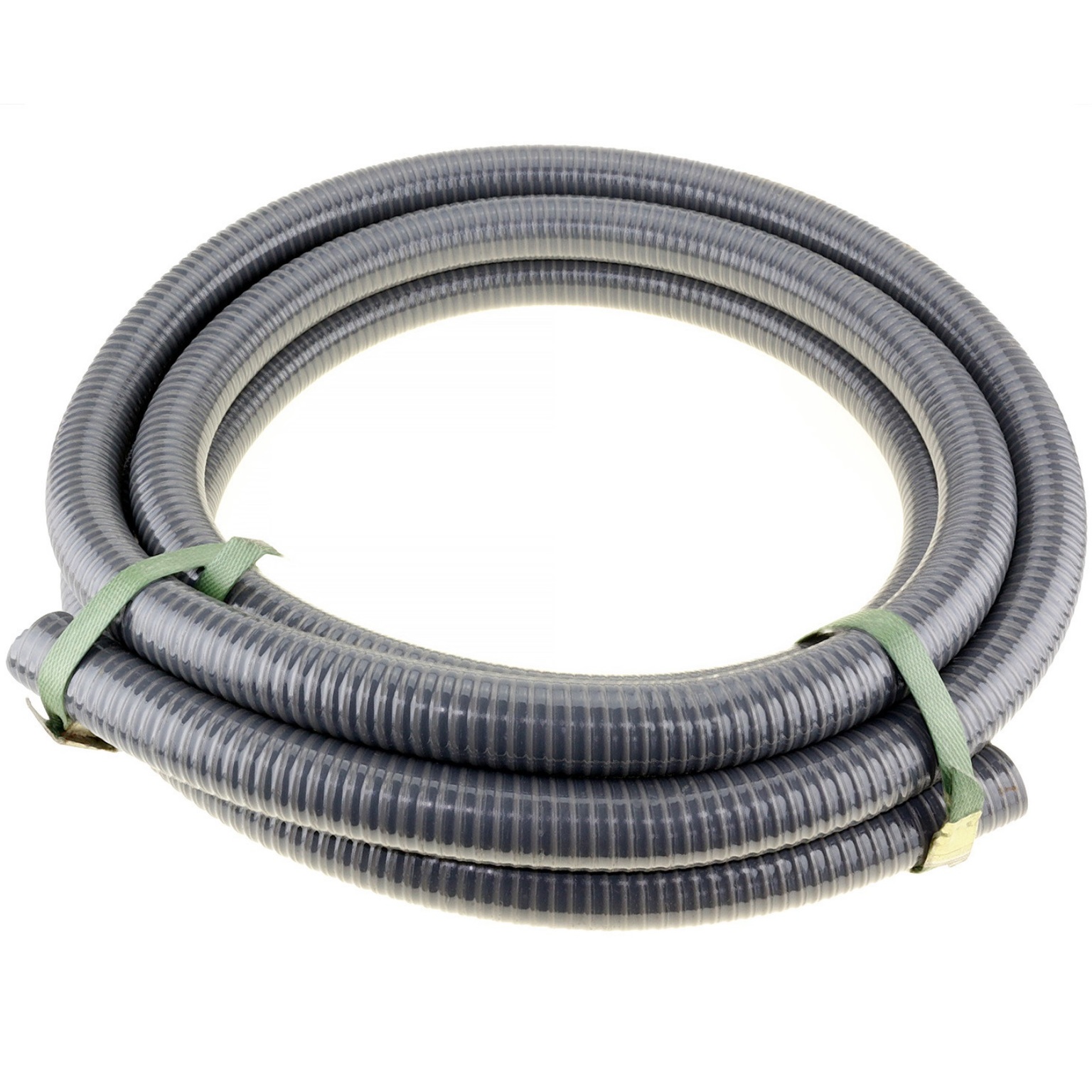

5m x 1" 25mm ID Suction Hose for Transfer High Pressure Fire Fighting Water Pump | 1 | WH-1 |

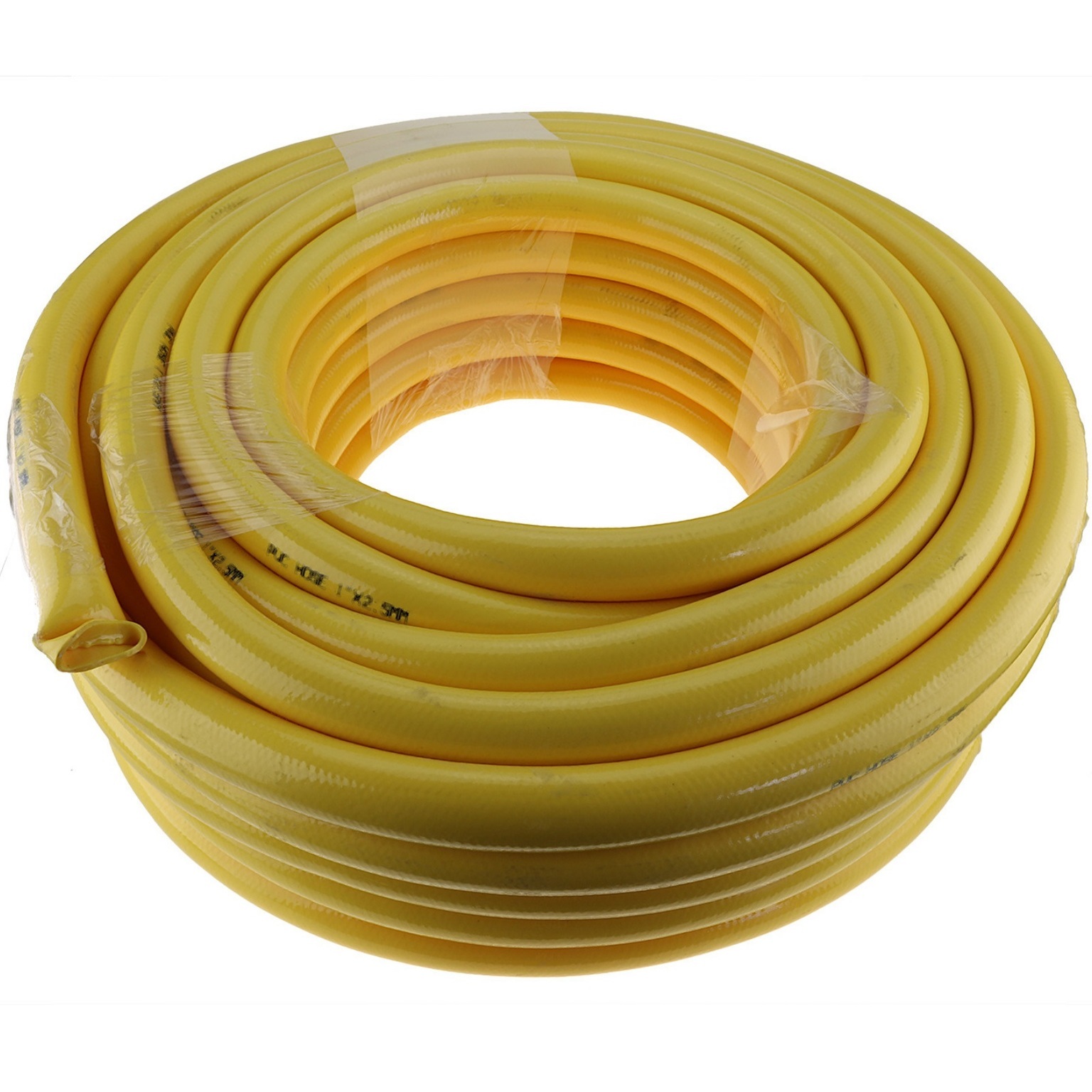

15m x 1" 25mm ID Outlet Wash Down Hose Water Pump Yellow | 1 | WH-19 |
