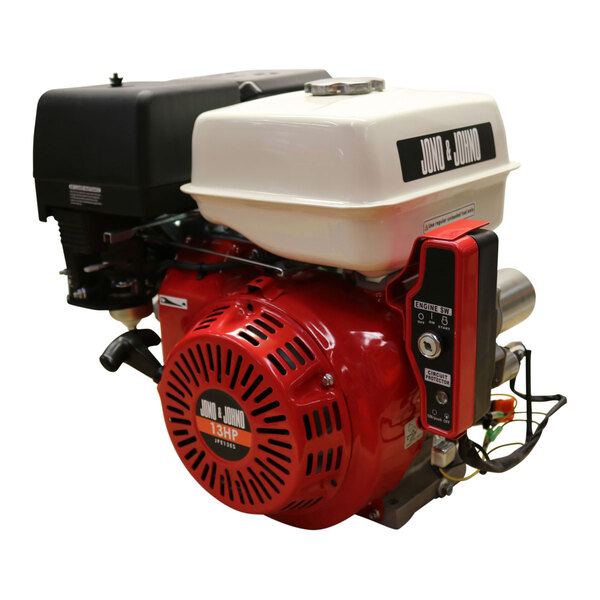

JONO & JOHNO 13HP ELECTRIC START ENGINE

Whether you’re thinking industrial, agricultural or home use, this could be the engine for you.

Suitable to power items such as generators, grinders, saw benches, augers and a host of other machinery.

This engine is a Jono & Johno brand, recoil start, 4 stroke, single cylinder, petrol engine with a 13hp capacity.

This engine is also sold with electric start, making the starting process entirely effortless.

The engine comes with a one year parts warranty and a lifetime of after sales service.

PLEASE NOTE: BATTERY NOT INCLUDED! YOU'LL NEED A 12 VOLT, 9AH BATTERY (A 12AH OR 14AH BATTERY CAN ALSO BE USED IF YOU NEED THE EXTRA CHARGE FOR ACCESSORIES)

SPECIFICATIONS:

Air cooled, 4-stroke, OHV25 inclined single cylinder 13hp gasoline/petrol engine.

Max Power Output:	13hp/3600rpm
Displacement:	390cc
Bore x Stroke (mm):	88 x 64
Max Torque (n.m)/rpm] :	26.5/2600
Ignition system:	Transistor Electric / Inductive Firing
Spark Plug Type:	NGK: BPR6ES Champion: RN9YC Bosch: W7DCR
Starting system:	Electric and Recoil
Fuel Tank Capacity:	6L
Oil capacity:	1.1L
Fuel consumption:	374g/kw.h
Air cleaner:	Semi dry, dual filter
Shaft Diameter:	1" (25.4mm)
Shaft Length:	89mm
Shaft Internal Thread:	3/8-24 UNF
Keyway length:	60mm
Keyway width:	6mm - Keyway includes key
Distance from base to centre of out put shaft:	134mm
Shaft rotation:	Anti-clockwise (from output)
Weight:	35kg (including box and packaging)
Package dimensions:	530 x 450 x 500mm

WARRANTY OVERVIEW

Jono & Johno offers a 12-month warranty on all products. Warranty period is 12 months for the home user and 6 months for commercial use.

We pride ourselves on selling good quality kit and will be fair and prompt honouring our warranties. If you’re in trouble, we’ll help you out.

WHAT IS COVERED?

Exactly what is covered by warranty will depend on 2 things:

If the fault is due to user or manufacturer
If the fault is minor or major

Minor faults caused by user - Parts will be supplied for repair at user expense.

Minor faults caused by manufacturer - Parts will be supplied for repair, with instructions provided by us on how to carry out repair. If the repair is time consuming in nature, you can contact Jono & Johno to discuss labour cost compensation.

Major faults caused by manufacturer - Jono & Johno will facilitate a return of the product for refund or replacement at our expense. Or if you’d prefer (at our discretion and in consultation with you), we can send appropriate parts and compensate labour costs if you can carry out the repair yourself.

Major faults caused by user - Where possible parts will be supplied at user expense. Where the item cannot be repaired by the user, Jono & Johno will offer to have the item returned for repair at user expense. Our workshop rate is $60 per hour.

HOW DO I RETURN MY PRODUCT IF IT’S COVERED BY WARRANTY?

If you’re in reasonable driving distance of a Jono and Johno outlet, you can physically return the product yourself. Please contact us in advance to arrange a return authority.

If you are not within reasonable driving distance, Jono & Johno will provide you with a return authority and an address to return the product to. Where Jono & Johno is at fault a postage-paid return label will be provided.

EXCEPTIONS TO THE RULE

If your product is out of warranty and is buggered, even though you’ve hardly used it, give us a call or shoot us an email. If there is a manufacturer fault or the item should have lasted a lot longer than it has, we’re happy to assess it outside of the warranty period. We do this on a case-by-case basis.

SKU	JPE13ES
Model #	JPE13ES
Barcode #	682157254798
Brand	JONO & JOHNO
Shipping Weight	35.0000kg
Shipping Width	0.530m
Shipping Height	0.500m
Shipping Length	0.450m
Shipping Cubic	0.119250000m3
Unit Of Measure	ea
