SKU : VS175ES
Top of the range, 17.5HP vertical shaft engine. 1 year warranty.
Equal to any brand name engine on the market today.
There are a few things you need to check before purchasing any vertical-shaft engine to ensure it fits your mower.
Our engine has a Briggs & Stratton bolt pattern. You can view a schematic of the bolt pattern in our thumbnail pictures. If you have a Briggs engine then the bolt pattern will be a perfect match. All four mounting bolt holes are threaded. M10 x 1.5x 70 (bolts not included).
If you are switching from a v-twin to a single cylinder you may need to drill new bolt holes in the chassis.
OUTPUT SHAFT SIZE:
The output shaft on our engine is 1” (25.4mm). Almost all ride-on-mower engines with a HP rating between 9hp and 18hp will have 1” shafts. The thread pitch for the output shaft is 7/16 20 UNF -2B.
PHYSICAL SIZE OF ENGINE:

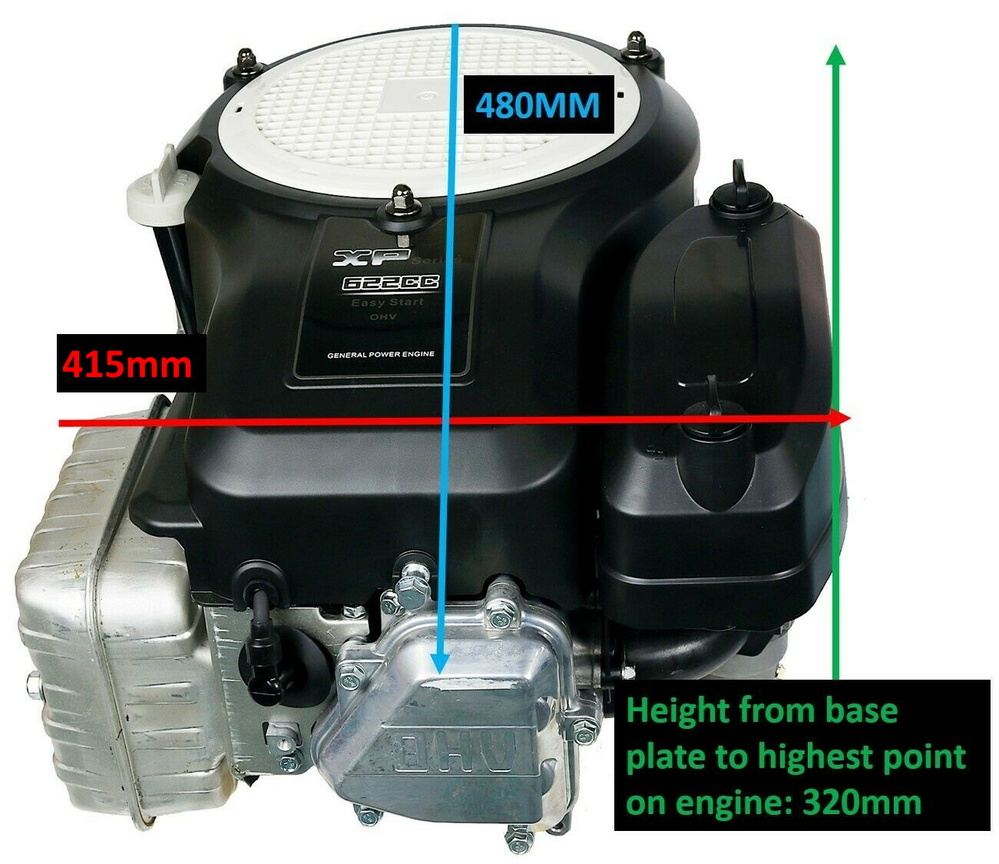

If your mower has only a limited amount of space for the engine to fit into (i.e. it is under a bonnet) then you will need to check the physical dimensions of our engine before purchasing. A schematic of the engine’s physical dimensions can be found in the thumbnail pictures of our listing.
PLEASE NOTE: THIS IS AN UNIVERSAL FITMENT ENGINE AND SOME MODIFICATIONS TO THE MOWER MIGHT BE NEEDED, INCLUDING (BUT NOT LIMITED TO) THE MUFFLER AND EXHAUST SYSTEM.
Optimized balance system, vibration reduction and more stable operation.
Overhead valve (OHV) design and lower engine temperature
Secondary oil filtration system enables better lubrication of engine, reduces wear and prolongs engine life
Cast iron casing does not only effectively improve lubrication, but also makes engine more resistant to wear and prolongs engine life
Metal cam and forged crankshaft makes engine more reliable and durable.
|Engine type||Single cylinder, 4stroke, forced cooling, OHV|
|KW/RPM||12.5 KW / 3600 RPM|
|Bore x stroke||96mm × 86mm|
|Bore material||Cast iron|
|Net power||17.5HP / 3600rpm|
|Net torque||36 Nm / 2750rpm|
|Fuel consumption||≤ 380 grams per killowatt hour|
|PTO shaft rotation||Anti-clockwise (from PTO side)|
|Output Shaft Size||25.4mm|
|Output Shaft Length||79.5mm|
|Output Shaft Thread Pitch||7/16 – 20 UNF-2B|
|Output Shaft Keyway||6.34mm|
|Ignition system||Transistorized magneto ignition|
|Spark plug||NGK - BPR6ES - Champion RN9YC|
|Starting system||Electric-start, 12V (battery not included)|
|Charging coil||4A, 14V|
|Cooling type||Fan forced, air cooled|
|Fuel pump||Vacuum type|
|Lubrication system||Oil Pump and Pressure Feed|
|Governor system||Centrifugal mass type|
|Air cleaner||Semi-dry, dual element|
|Net weight||33kg (36kg packed)|
|Dimension(mm)||W: 410 × L: 475 × H: 320mm (Check photos for schematic)|
NO FUEL TANK IS INCLUDED WITH THIS ENGINE
Jono & Johno offers a 12-month warranty on all products. Warranty period is 12 months for the home user and 6 months for commercial use.
We pride ourselves on selling good quality kit and will be fair and prompt honouring our warranties. If you’re in trouble, we’ll help you out.
WHAT IS COVERED?
Exactly what is covered by warranty will depend on 2 things:
Minor faults caused by user - Parts will be supplied for repair at user expense.
Minor faults caused by manufacturer - Parts will be supplied for repair, with instructions provided by us on how to carry out repair. If the repair is time consuming in nature, you can contact Jono & Johno to discuss labour cost compensation.
Major faults caused by manufacturer - Jono & Johno will facilitate a return of the product for refund or replacement at our expense. Or if you’d prefer (at our discretion and in consultation with you), we can send appropriate parts and compensate labour costs if you can carry out the repair yourself.
Major faults caused by user - Where possible parts will be supplied at user expense. Where the item cannot be repaired by the user, Jono & Johno will offer to have the item returned for repair at user expense. Our workshop rate is $60 per hour.
HOW DO I RETURN MY PRODUCT IF IT’S COVERED BY WARRANTY?
If you’re in reasonable driving distance of a Jono and Johno outlet, you can physically return the product yourself. Please contact us in advance to arrange a return authority.
If you are not within reasonable driving distance, Jono & Johno will provide you with a return authority and an address to return the product to. Where Jono & Johno is at fault a postage-paid return label will be provided.
EXCEPTIONS TO THE RULE
If your product is out of warranty and is buggered, even though you’ve hardly used it, give us a call or shoot us an email. If there is a manufacturer fault or the item should have lasted a lot longer than it has, we’re happy to assess it outside of the warranty period. We do this on a case-by-case basis.
