SKU : JPE750HDF
IMPORTANT FREIGHT NOTE
This engine will need to be delivered to a premises with forklift access or to a StarTrack freight depot. Please call us if you wish to have the generator delivered to a StarTrack freight depot.
Whether you’re thinking industrial, agricultural or home use, this could be the engine for you.
This engine is a Jono & Johno brand, Electric start, 4 stroke, Twin cylinder, petrol engine with a Large 22hp output.

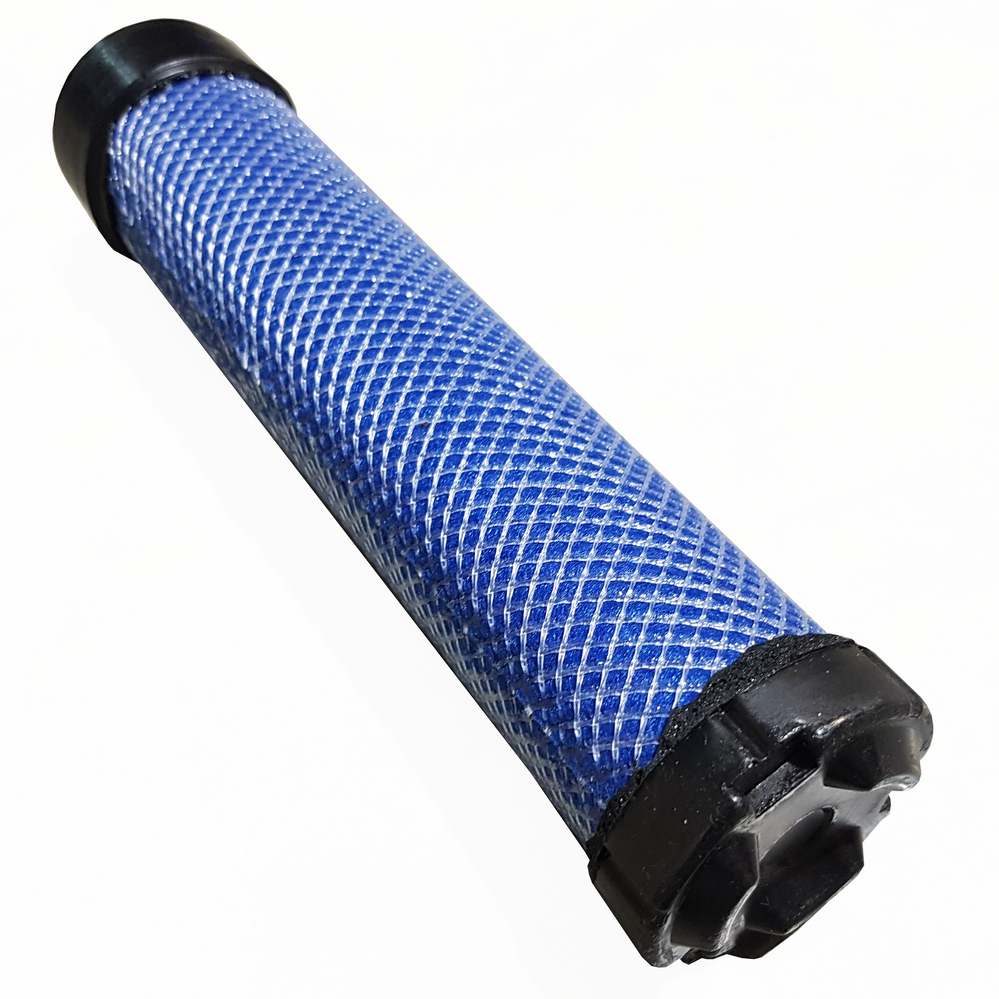

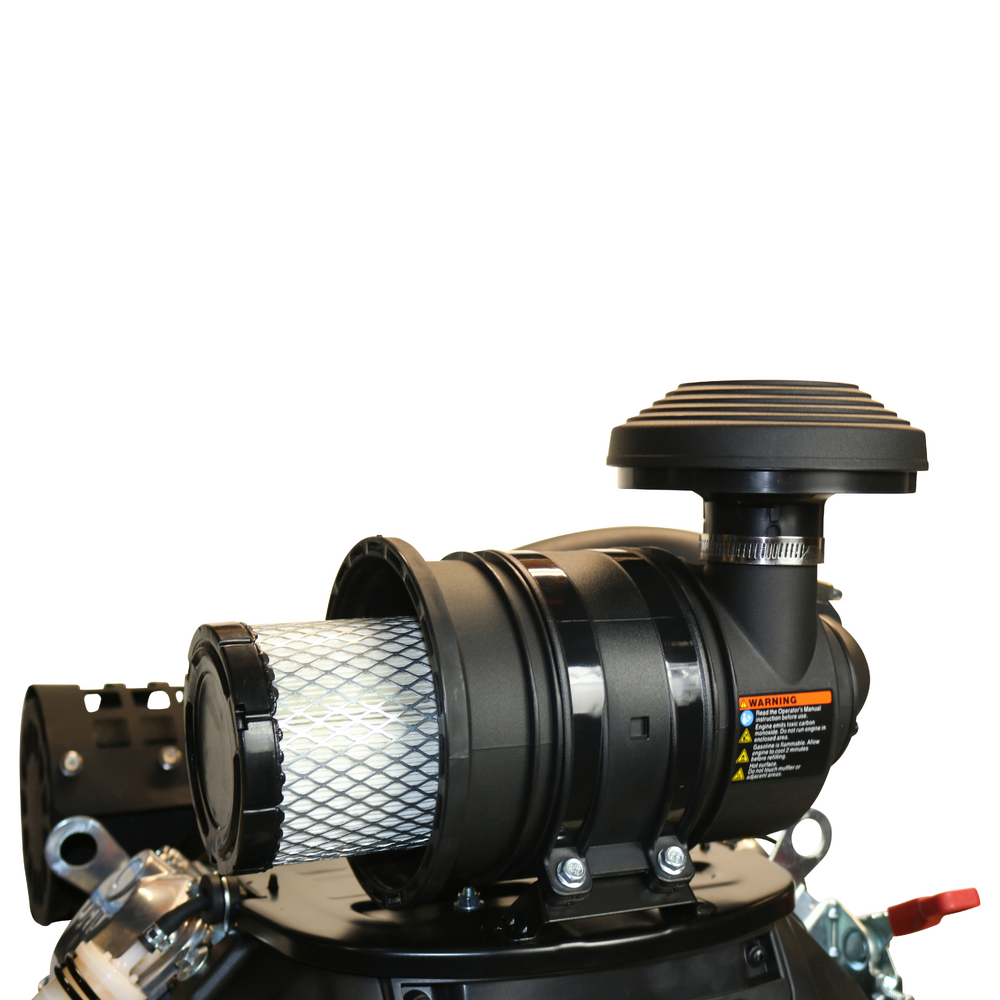

It comes with a super heavy duty double layered air filter.
Suitable to power items such as generators, water pumps, saw benches, augers and a host of other machinery.
Air-forced cooling + oil cooling
Electric Start 12 volt
Transistor Magneto Ignition
Vacuum pulse fuel pump (sits under the top engine cover)
Height: 470mm (500mm including Air Filter)
Depth: 470mm
Width: 480mm
Width of muffler: 440mm
Distance between center of PTO shaft and base of engine: 135mm
PTO Shaft Rotation | Counter clockwise (from PTO shaft side) |
PTO Shaft size | 1'' (25.4mm) |
PTO Shaft length | 79mm |
PTO Shaft type | Keyway groove 6.3mm x 50mm |
PTO Shaft thread | 3/8-24UNF-2B |
Net power | 22hp @ 3600rpm / 16.0 KW |
Max Torque / RPM | ≥ 40 Nm @ 2650 (1±5%) |
Idle Speed | 1650 RPM |
Cylinder type | 2-cylinder, engine angle 90° |
Bore | 82mm |
Stroke | 71mm |
Cylinder Sleeves | Cast Iron |
Displacement | 750cc |
Compression Ratio | 8.8:1 |
Spark Plug Type | NGK: BPR6ES Champion: RN9YC Bosch: W7DCR |
Fuel Pump Type | Vacuum pulse fuel pump (sits under the top engine cover) |
Fuel Consumption | 370 g/kW.h |
Oil Consumption | 6.8 g/kW.h |
Oil grade and capacity | 10W30, 1.1L without oil filter, 1.5L with oil filter |
Charging coil (alternator) | 12V - 1.5A - 15 Watts |
Weight | 58kg |
Total Weights:
GENERATOR + CARTON + SKID = 63KG
GENERATOR + CARTON = 60KG
GENERATOR ONLY = 52KG
WARRANTY OVERVIEW
Jono & Johno offers a 12-month warranty on all products.
We pride ourselves on selling good quality kit and will be fair and prompt honouring our warranties. If you’re in trouble, we’ll help you out.
WHAT IS COVERED?
Exactly what is covered by warranty will depend on 2 things:
Minor faults caused by user - Parts will be supplied for repair at user expense.
Minor faults caused by manufacturer - Parts will be supplied for repair, with instructions provided by us on how to carry out repair.
Major faults caused by manufacturer - Jono & Johno will facilitate a return of the product for refund or replacement at our expense. Or if you’d prefer (at our discretion and in consultation with you), we can send appropriate parts and compensate labour costs if you can carry out the repair yourself.
Major faults caused by user - Where possible parts will be supplied at user expense. Where the item cannot be repaired by the user, Jono & Johno will offer to have the item returned for repair at user expense. Our workshop rate is $60 per hour.
HOW DO I RETURN MY PRODUCT IF IT’S COVERED BY WARRANTY?
If you’re in reasonable driving distance of a Jono and Johno outlet, you can physically return the product yourself. Please contact us in advance to arrange a return authority.
If you are not within reasonable driving distance, Jono & Johno will provide you with a return authority and an address to return the product to. Where Jono & Johno is at fault, a postage-paid return label will be provided.
EXCEPTIONS TO THE RULE
If your product is out of warranty and is buggered, even though you’ve hardly used it, give us a call or shoot us an email. If there is a manufacturer fault or the item should have lasted a lot longer than it has, we’re happy to assess it outside of the warranty period. We do this on a case-by-case basis.
SKU | JPE750HDF | |
Model # | JPE750HDF | |
Barcode # | 795154964314 | |
Brand | JONO & JOHNO | |
Shipping Weight | 63.0000kg | |
Shipping Width | 0.595m | |
Shipping Height | 0.675m | |
Shipping Length | 0.595m | |
Shipping Cubic | 0.238967000m3 | |
Unit Of Measure | ea |
