SKU : JPE25-B
Ideal for small machinery.
The unit has a One year Parts warranty for domestic use and spare parts are available.
PLEASE NOTE: OFF SWITCH IS BUILT IN WITH THE THROTTLE.
ENGINE | |
Max Power Output: | 2.5hp at 3600rpm |
Displacement: | 79.8cc OHV (Overhead Valve) |
Bore x Stroke (mm): | 48.63 x 40 |
Compression: | 8.5:1 |
Max Torque (n.m)/rpm] : | 5.06nm at 3200rpm |
Ignition system: | Transistorized magneto ignition |
Spark Plug Type: | NGK: BPR6HS - Champion: RL82YC - Bosch: WR7BC |
Starting system: | Recoil |
Fuel Tank Capacity (L): | 1.6 |
Oil capacity (L): | 0.35 (SAE10W30) |
Fuel consumption (g/kw.h): | ≤395 |
Air cleaner: | single element |

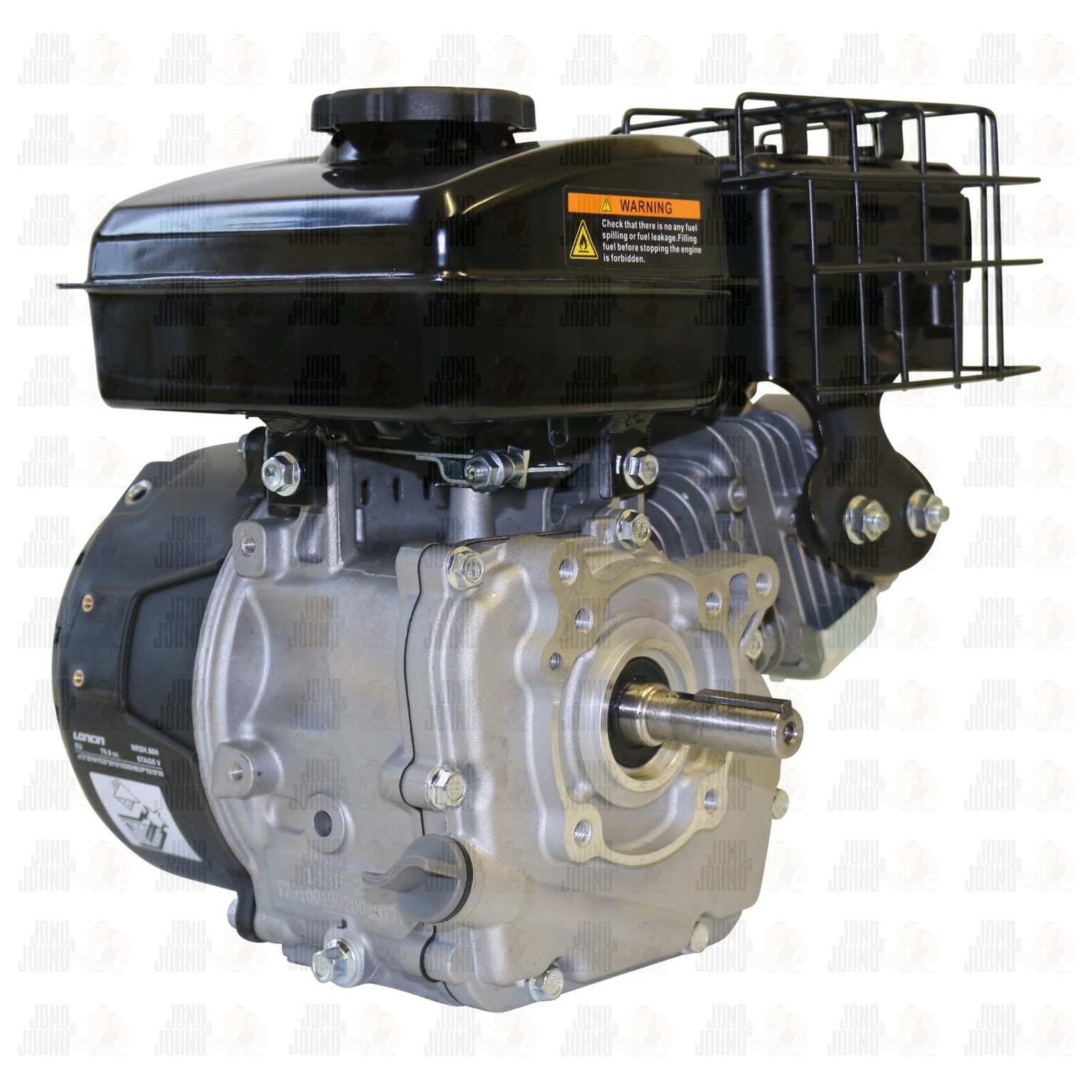

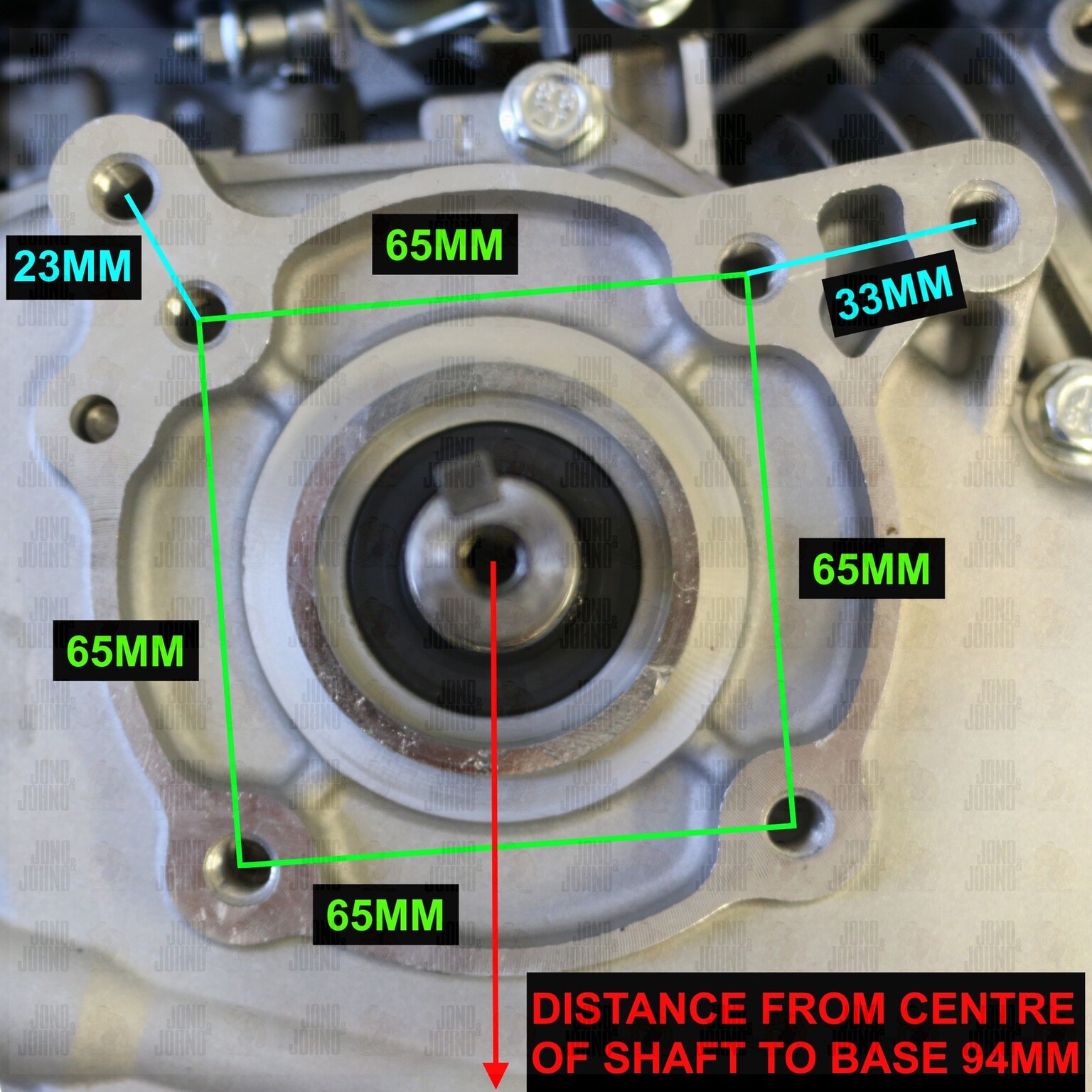

Shaft Diameter: | 16mm |
Shaft Length: | 53mm from flange, 58mm from seal face |
Shaft Internal Thread: | WH 8.8 bolt with 6mm diameter thread and 1mm thread pitch |
Keyway: | 3/16" (4.8mm) wide by 45mm long |
Shaft rotation: | Anti-clockwise (from output) |
Net Weight: | 9.5kg |

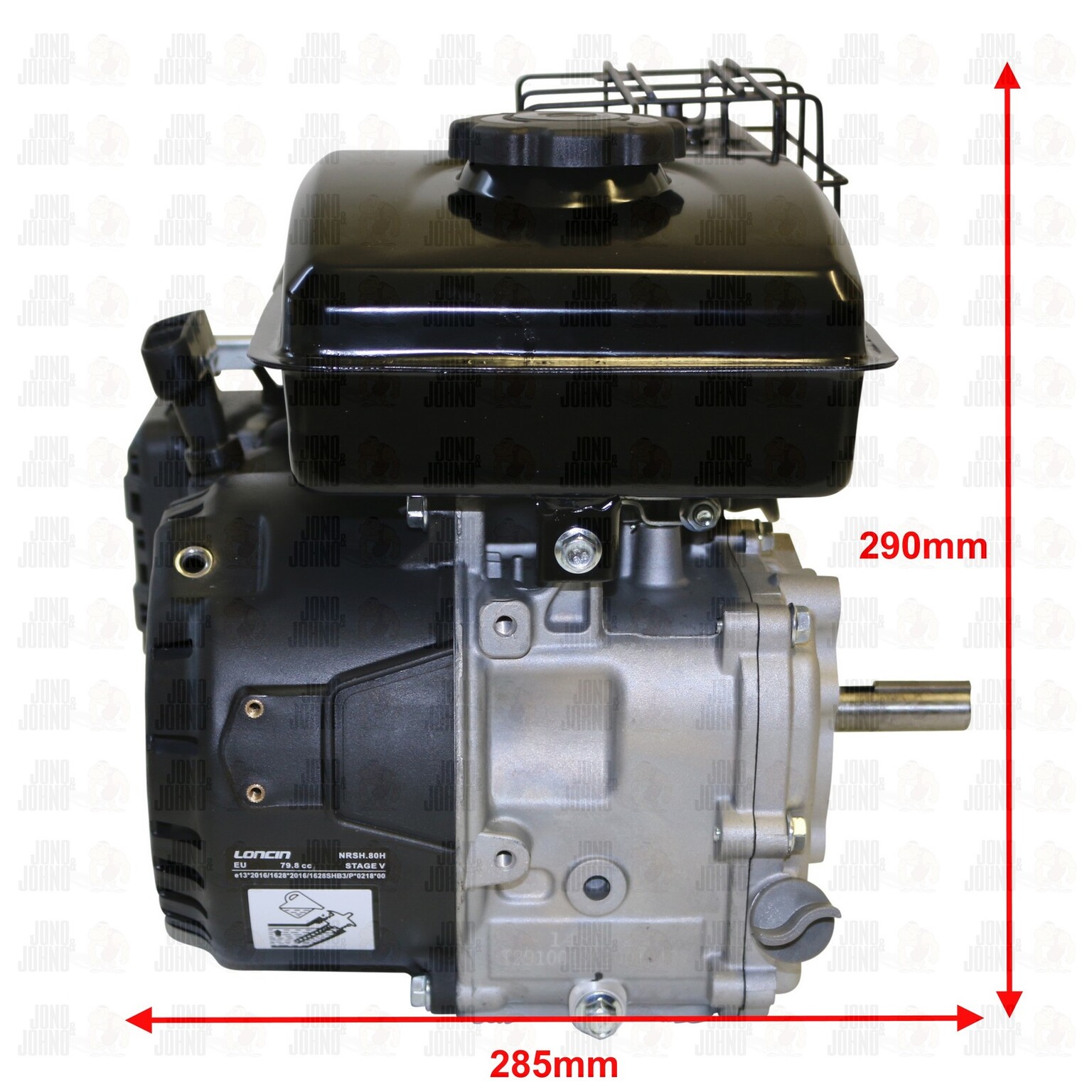

Package dimensions: | 360x315x350 |
WARRANTY OVERVIEW
Jono & Johno offers a 12-month warranty on all products.
We pride ourselves on selling good quality kit and will be fair and prompt honouring our warranties. If you’re in trouble, we’ll help you out.
WHAT IS COVERED?
Exactly what is covered by warranty will depend on 2 things:
Minor faults caused by user - Parts will be supplied for repair at user expense.
Minor faults caused by manufacturer - Parts will be supplied for repair, with instructions provided by us on how to carry out repair.
Major faults caused by manufacturer - Jono & Johno will facilitate a return of the product for refund or replacement at our expense. Or if you’d prefer (at our discretion and in consultation with you), we can send appropriate parts and compensate labour costs if you can carry out the repair yourself.
Major faults caused by user - Where possible parts will be supplied at user expense. Where the item cannot be repaired by the user, Jono & Johno will offer to have the item returned for repair at user expense. Our workshop rate is $60 per hour.
HOW DO I RETURN MY PRODUCT IF IT’S COVERED BY WARRANTY?
If you’re in reasonable driving distance of a Jono and Johno outlet, you can physically return the product yourself. Please contact us in advance to arrange a return authority.
If you are not within reasonable driving distance, Jono & Johno will provide you with a return authority and an address to return the product to. Where Jono & Johno is at fault, a postage-paid return label will be provided.
EXCEPTIONS TO THE RULE
If your product is out of warranty and is buggered, even though you’ve hardly used it, give us a call or shoot us an email. If there is a manufacturer fault or the item should have lasted a lot longer than it has, we’re happy to assess it outside of the warranty period. We do this on a case-by-case basis.
SKU | JPE25-B | |
Model # | JPE25-B | |
Barcode # | 681087038829 | |
Brand | JONO & JOHNO | |
Shipping Weight | 10.7000kg | |
Shipping Width | 0.360m | |
Shipping Height | 0.350m | |
Shipping Length | 0.315m | |
Shipping Cubic | 0.039690000m3 |
