SKU : JPE1000HDF-A
IMPORTANT FREIGHT NOTE
This engine will need to be delivered to a premises with forklift access or to a StarTrack freight depot. Please call us if you wish to have the generator delivered to a StartTrack freight depot.

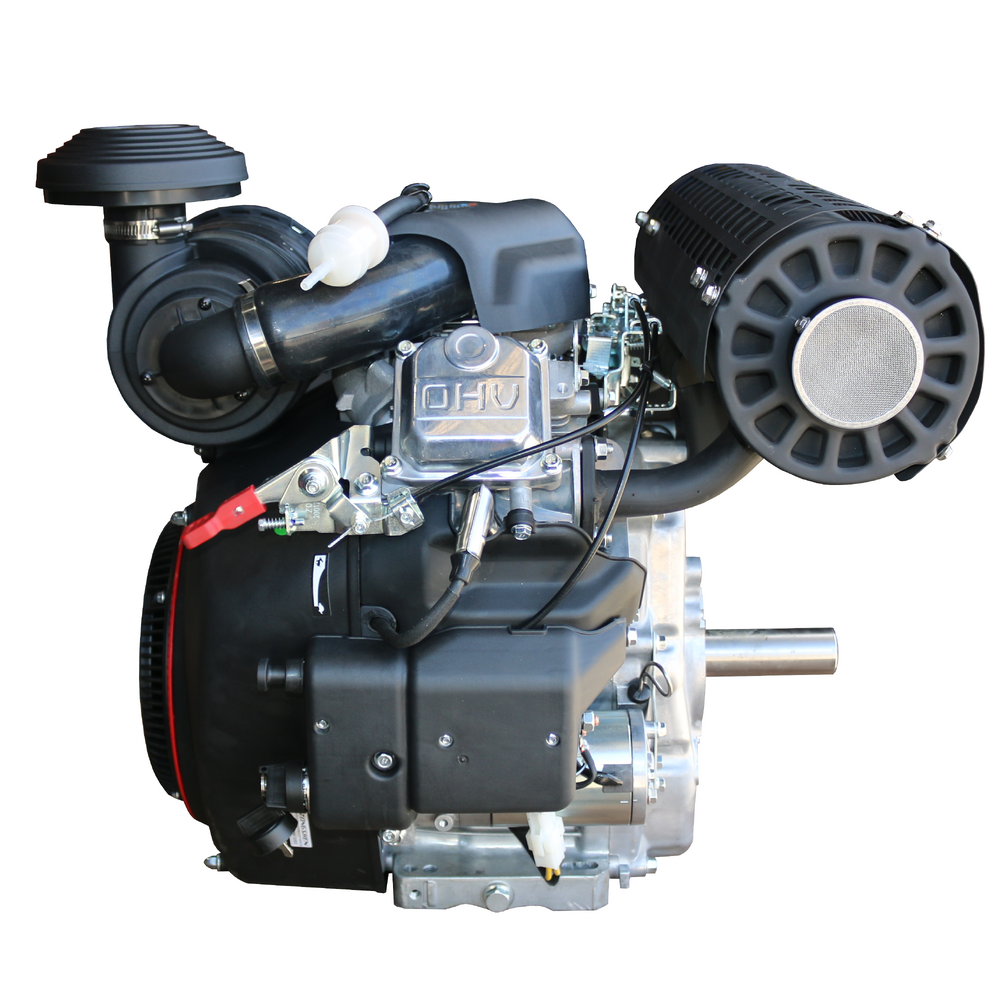

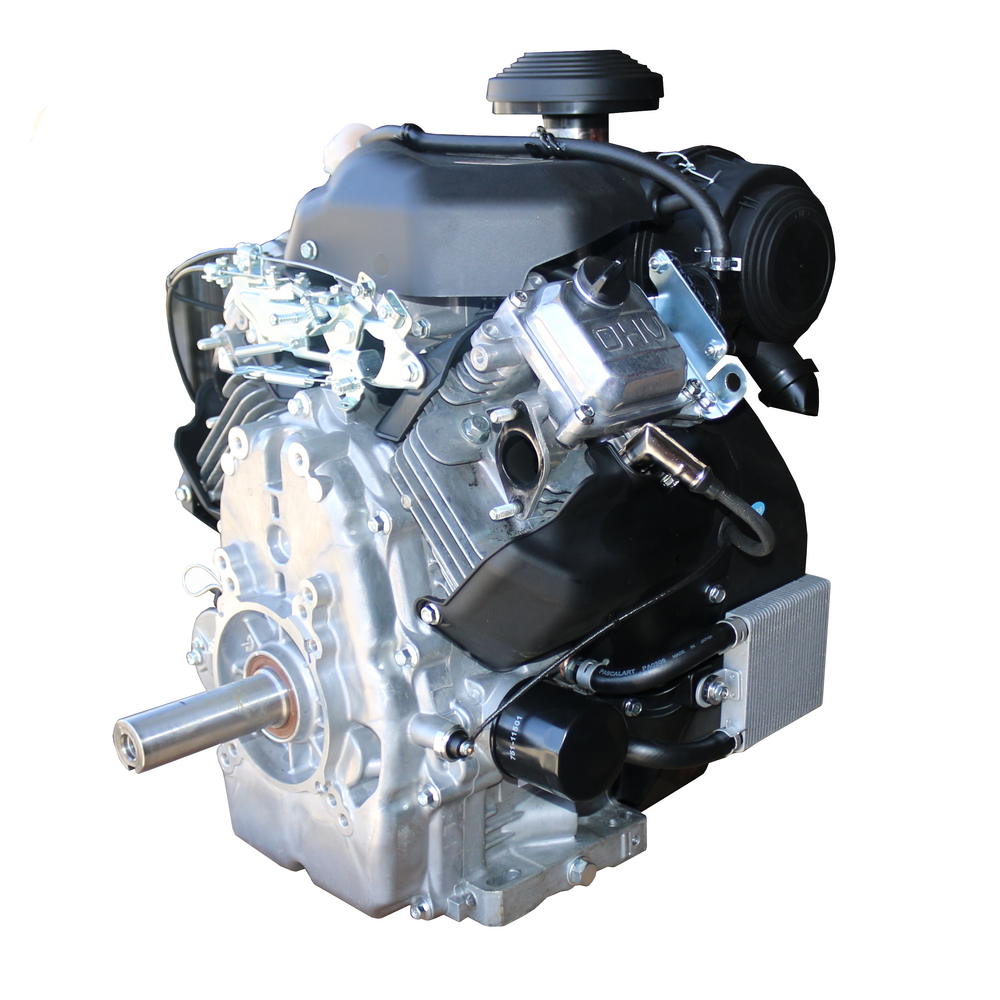

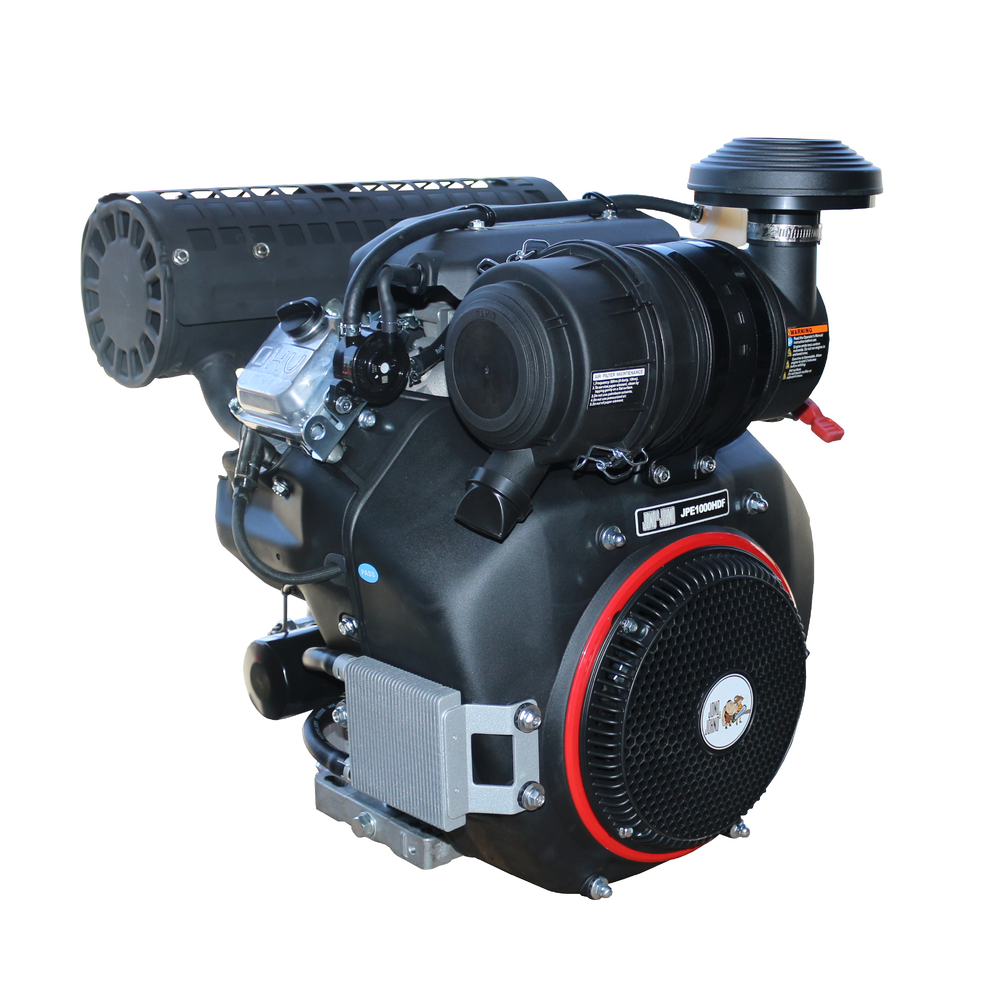

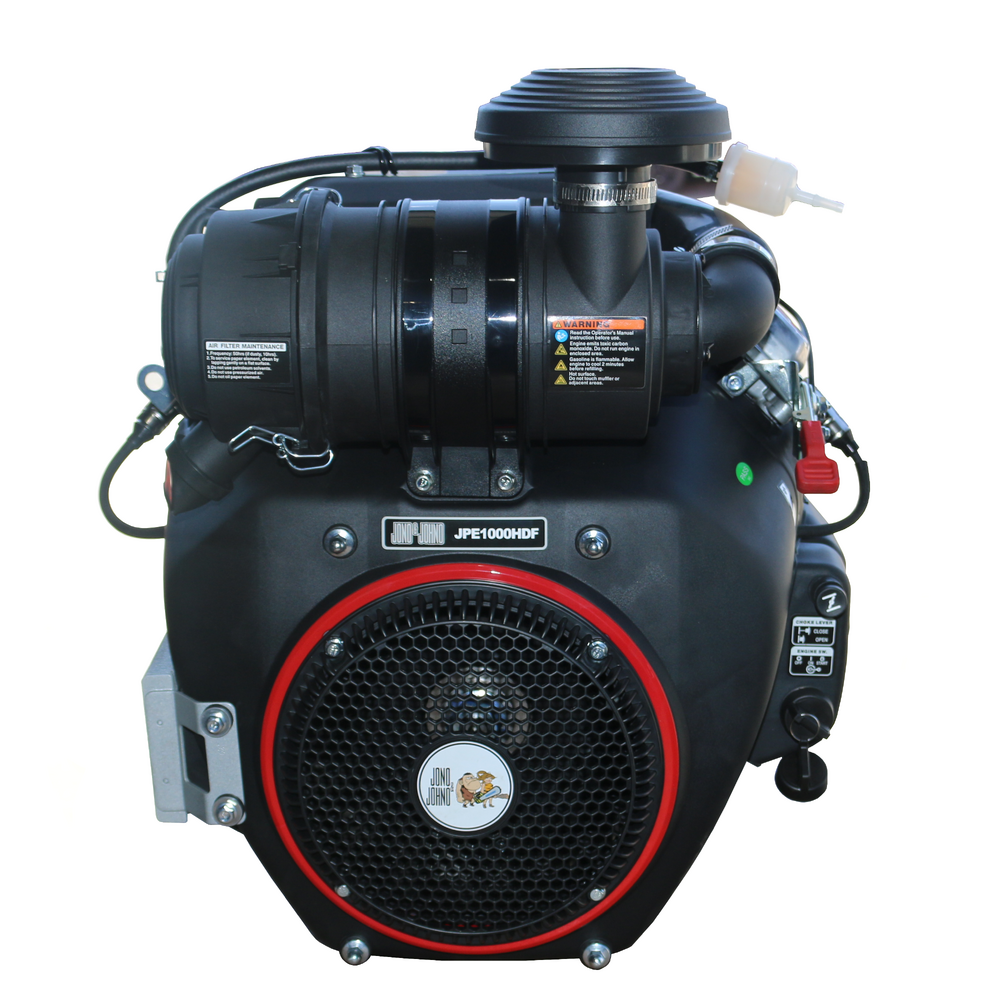

33HP Horizontal Shaft 1000cc Electric Start Engine
This 33hp Electric Start Petrol Engine is the most powerful engine in the Johno & Jono range. When you need maximum power for big machinery and equipment, this 1000cc engine offers all the performance and reliability you need. It’s a universal fit, self contained and designed for commercial use. We have included a high efficiency air filter, oil cooler, low tone muffler.
Our engines are manufactured in a state-of-the-art factory to a high standard and quality. We carry spare parts and offer a 1 year warranty against manufacturing defects.
These V Twin engines are great in larger, agricultural applications.

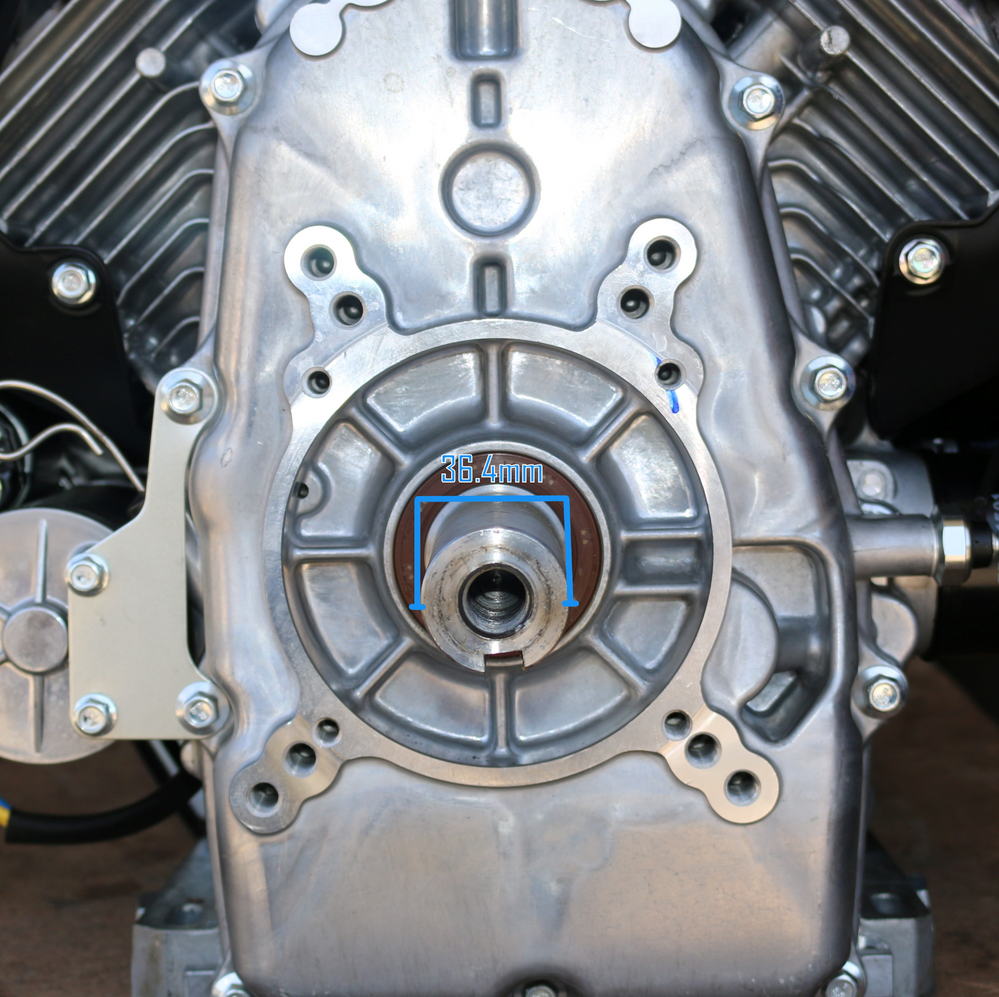

It has a 36.4mm PTO shaft (1 7/16” ) that is 108mm long.

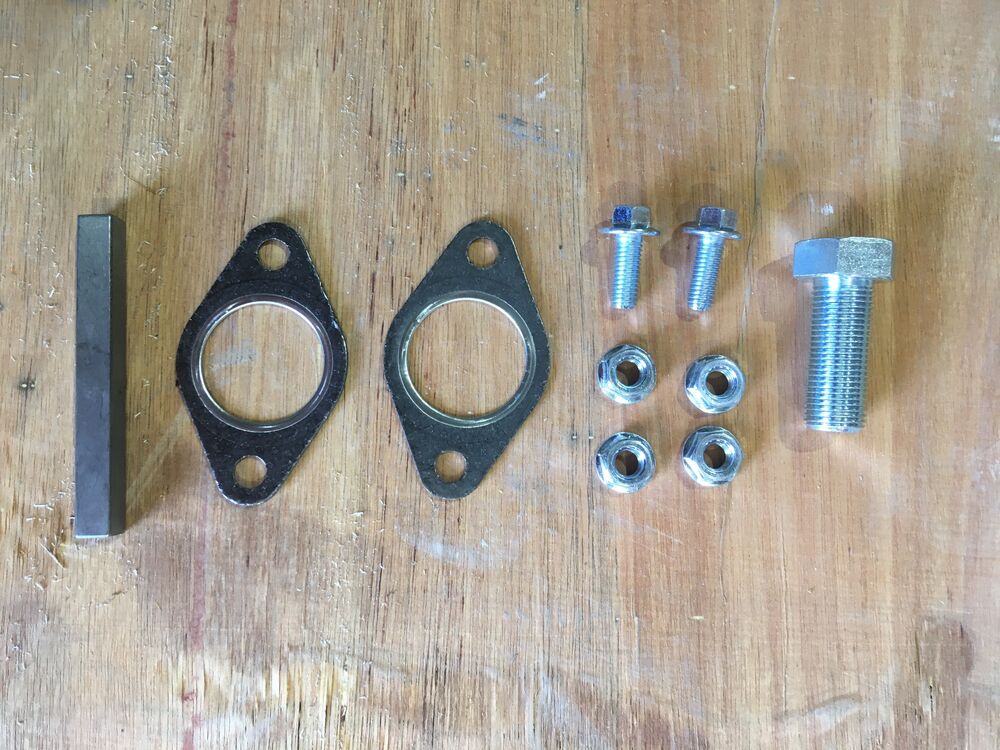

It comes with a 9.5mm (3/8”) key 85mm long and threaded crankshaft bolt M16 (16mm x 1.5mm.)

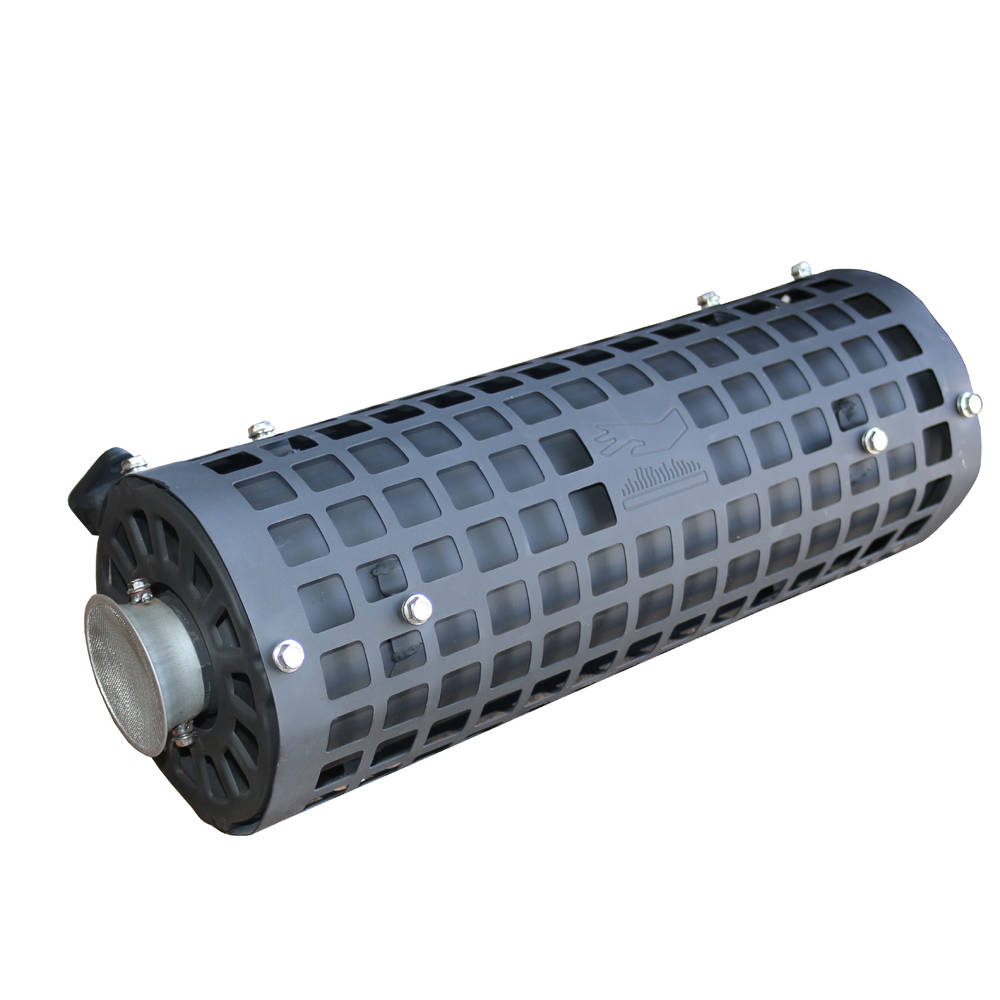

The muffler, parcelled separate. It mounts above the PTO shaft with two M8 bolts that are included.
The engine weighs 54kg, needs 2.5 litres of SAE 10w-30 oil and requires you to provide fuel tank and battery.
The engines running speed is around 3600 RPM. And output is anticlockwise looking at the shaft.
Air-forced cooling + oil cooling
Electric Start 12 volt
Transistor Magneto Ignition
Vacuum pulse fuel pump (sits under the top engine cover)

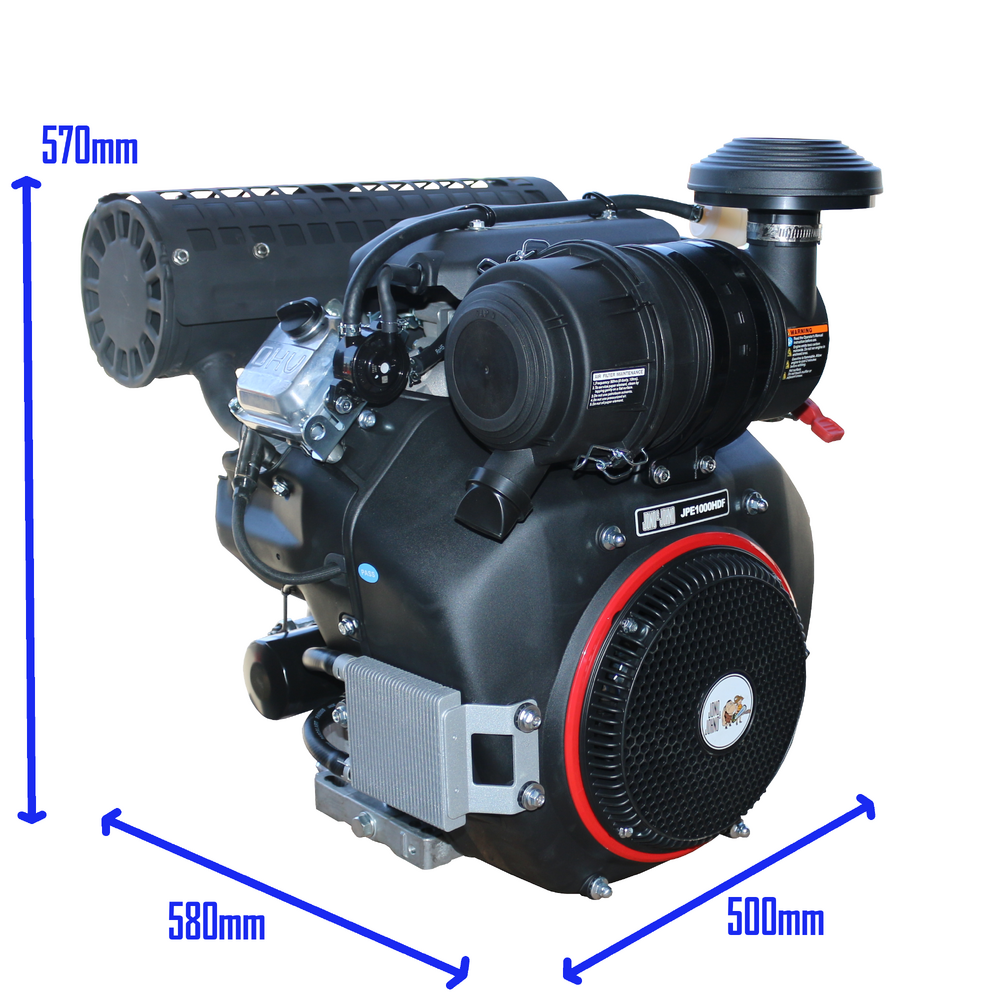

Height: 465mm (500mm including Air Filter)
Depth: 575mm
Width: 515mm

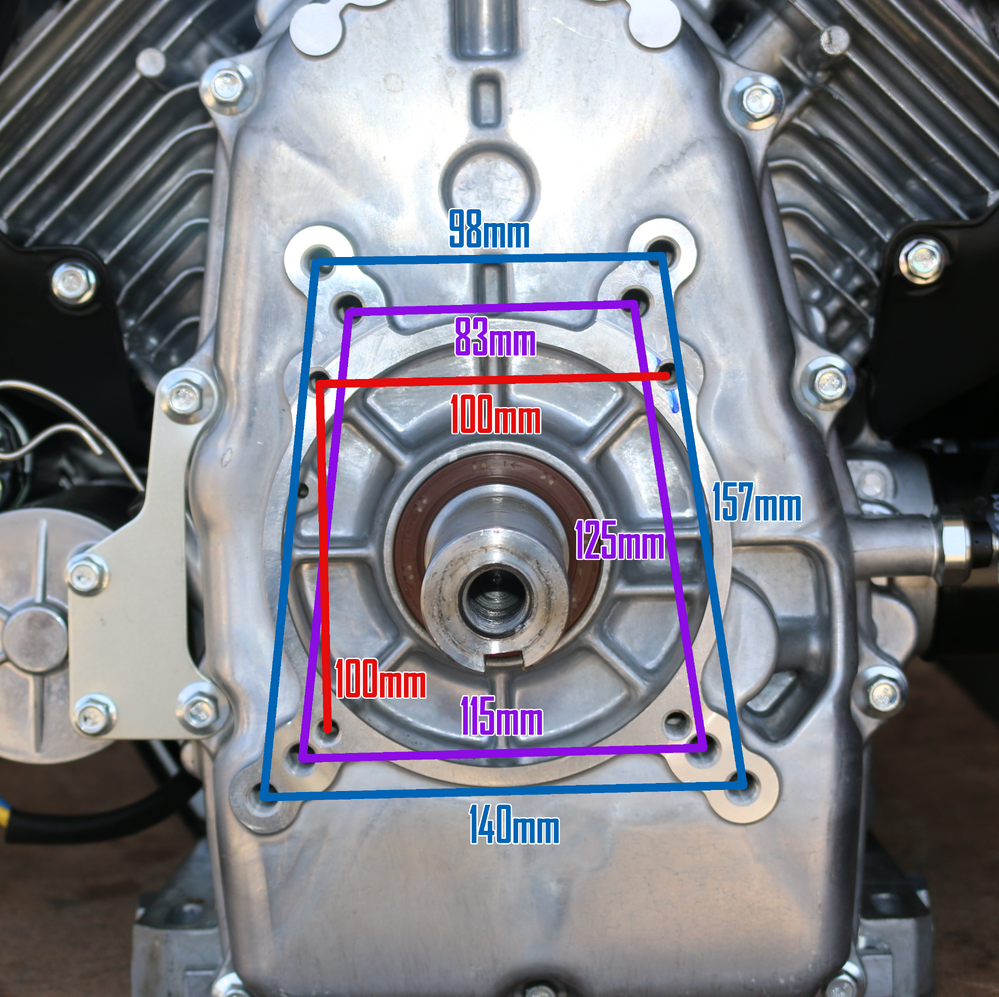

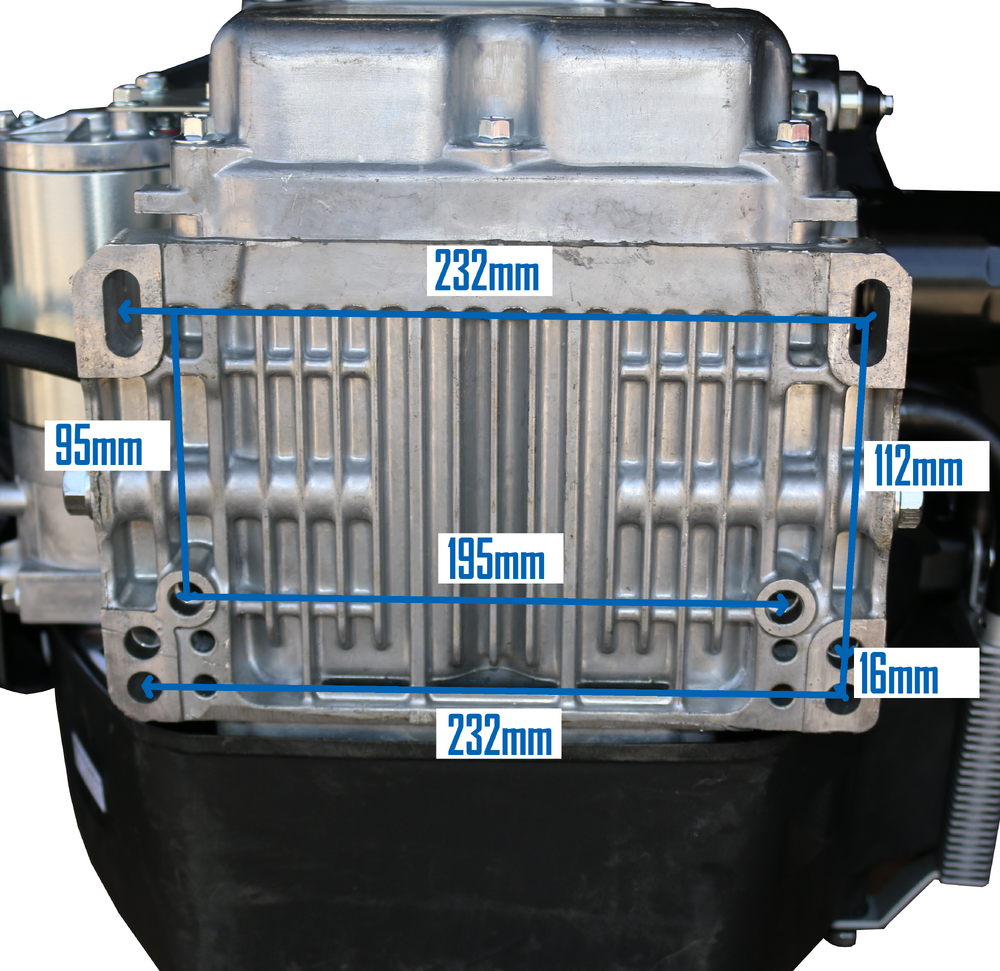

Distance between center of PTO shaft and base of engine: 156mm
PTO Shaft Rotation | Anti-Clockwise (from the crankshaft output side) |
PTO Shaft size | 1 7/16'' (36.4mm) |
PTO Shaft length | 108mm |
PTO Shaft type | Key 9.5mm x 85mm |
Idle Speed | 1600RPM |

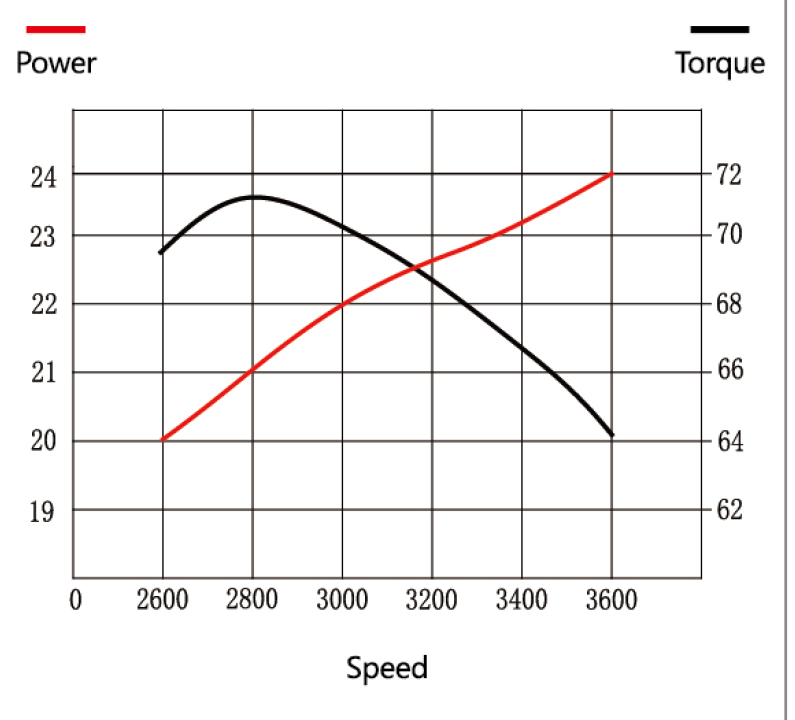

Net power | 33hp @ 3600rpm / 24.0 KW |
Cylinder type | 2-cylinder, engine angle 90°\ |
Fuel Type | Unleaded Petrol |
Displacement | 999cc |
Compression Ratio | 9.0:1 |
Fuel Pump Type | Vacuum pulse fuel pump (sits under the top engine cover) |
Oil grade and capacity | 10W30, 2.5L |
Weight | 55kg |
Total Weights:
ENGINE + CARTON + SKID = 66KG
ENGINE + CARTON = 63KG
ENGINE ONLY = 55KG
Jono & Johno offers a 12-month warranty on most products.
We pride ourselves on selling good quality gear and will be fair and prompt in honouring our warranties. If you’re in trouble, we’ll help you out.
The exact warranty coverage depends on two factors:
Minor faults caused by the user
Minor faults caused by the manufacturer
Major faults caused by the manufacturer
Major faults caused by the user
If you need to return your product:
Some products are not covered by warranty, including:
If your product is out of warranty and has failed despite minimal use, contact us. We may assess it on a case-by-case basis. If a manufacturer defect is identified, we aim to be fair in resolving the issue—but this is at our discretion.
