SKU : JPE9ES
Whether you’re thinking industrial, agricultural or home use, this could be the engine for you.

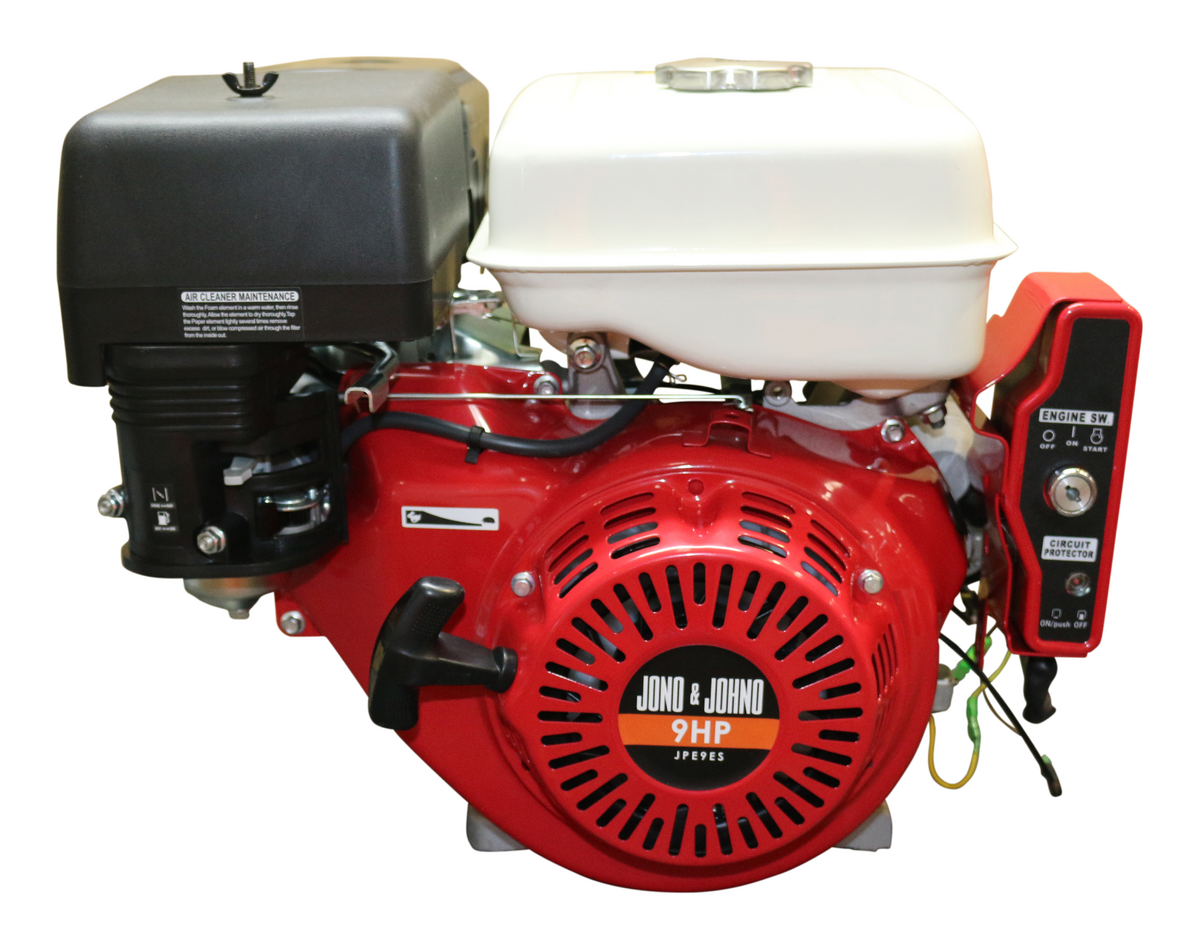

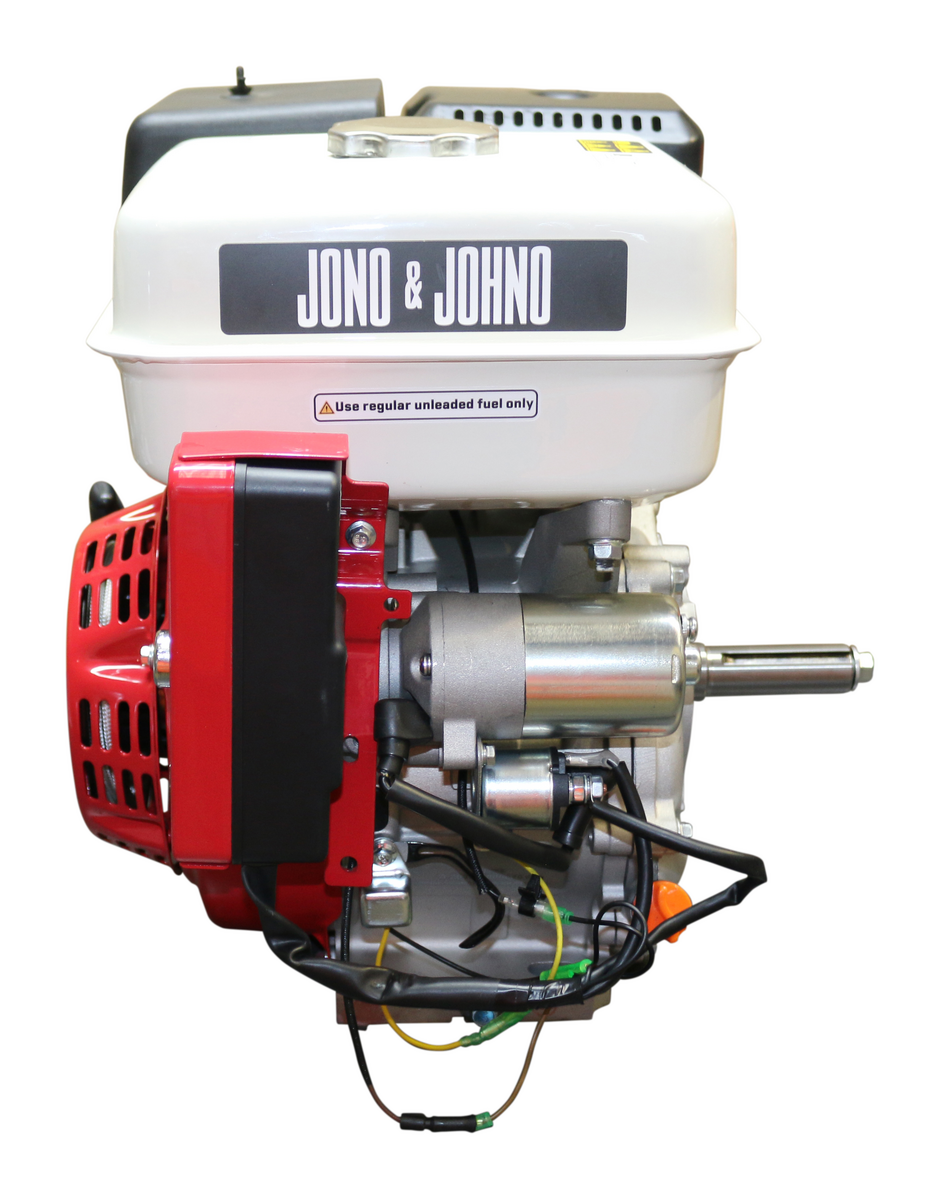

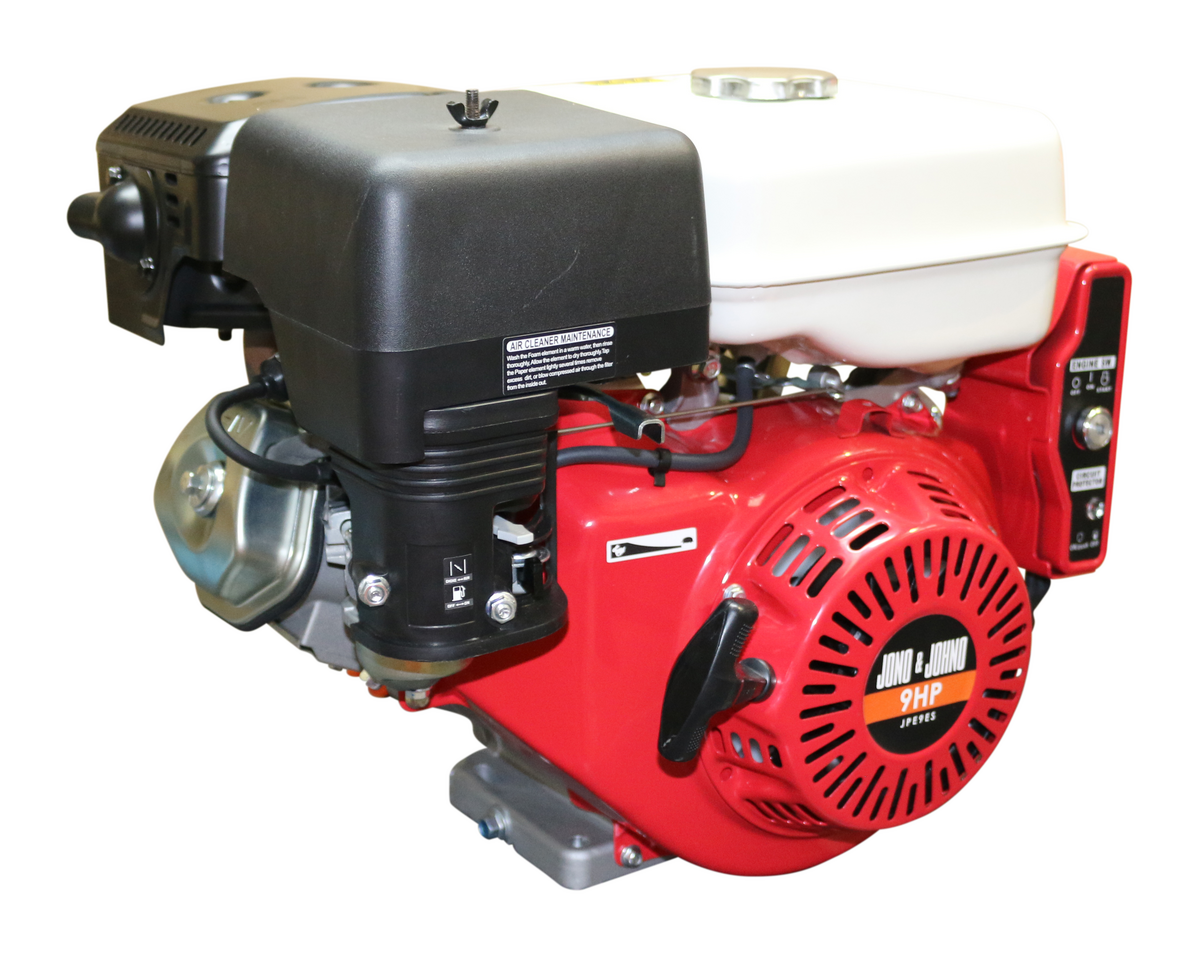

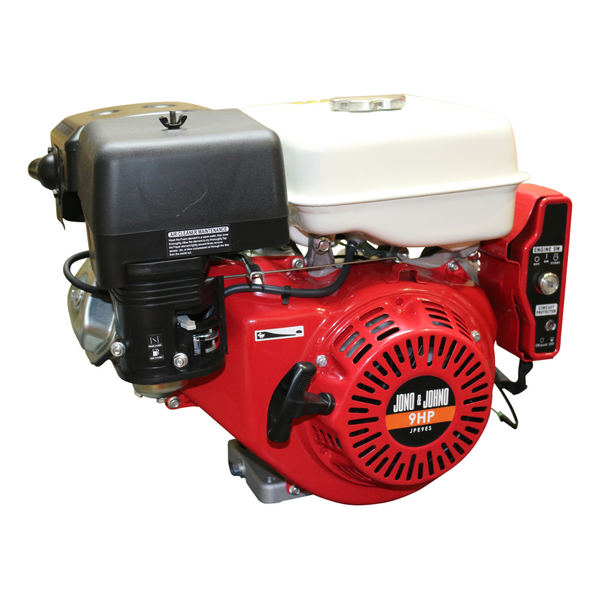

This engine is a Jono & Johno brand, Electric / Recoil start, 4 stroke, single cylinder, petrol engine with a 9hp capacity.
Suitable to power items such as generators, grinders, water pumps, saw benches, augers and a host of other machinery.
This engine is also sold with electric start, making the starting process entirely effortless (battery not included).
The engine comes with a one year parts warranty and a lifetime of after sales service.
PLEASE NOTE: BATTERY NOT INCLUDED! YOU'LL NEED A 12 VOLT, 9AH BATTERY (A 12AH BATTERY CAN ALSO BE USED IF YOU NEED THE EXTRA CHARGE FOR ACCESSORIES)

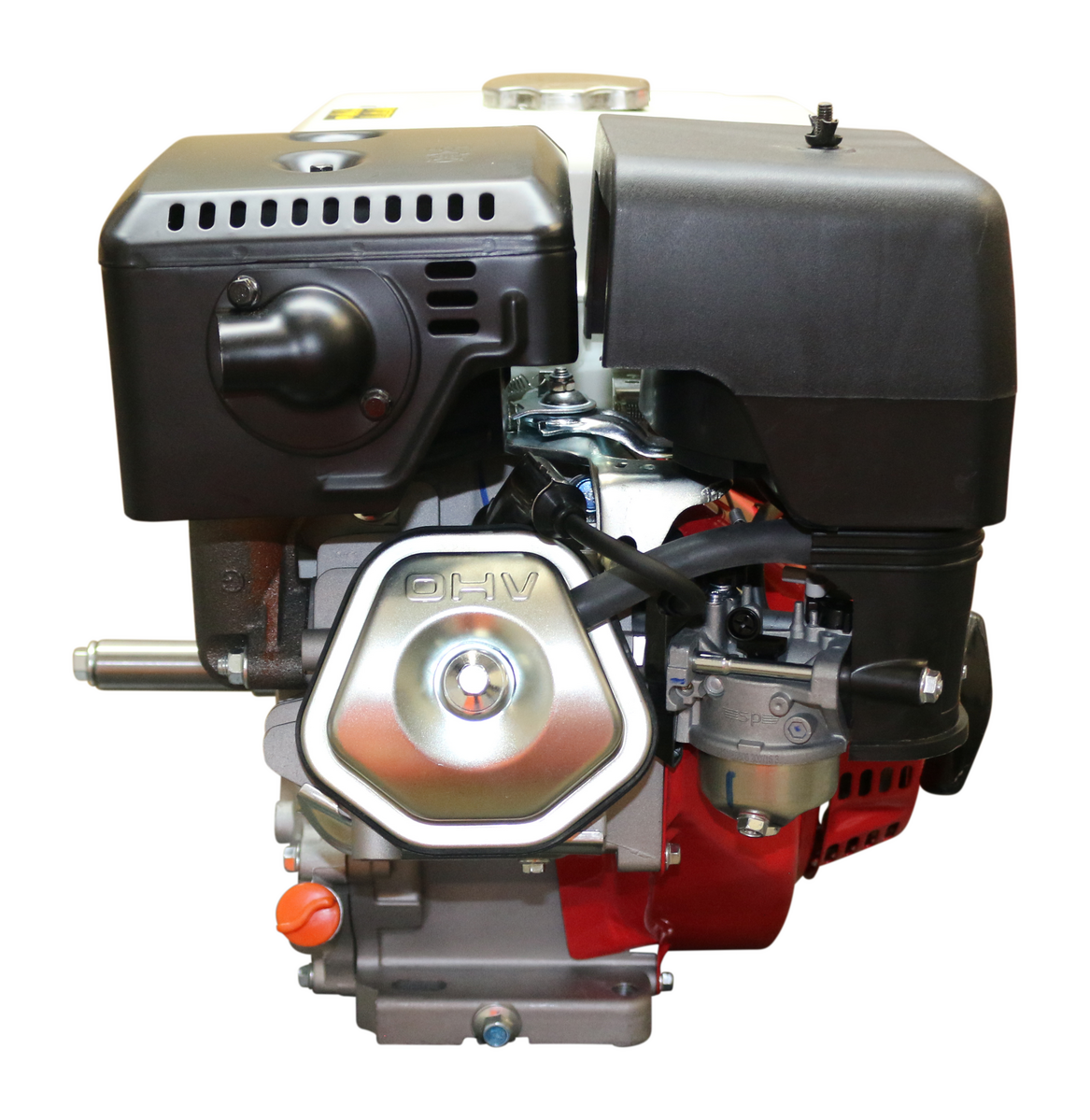

Air cooled, 4-stroke, OHV25 inclined single cylinder, 9hp gasoline/petrol engine.

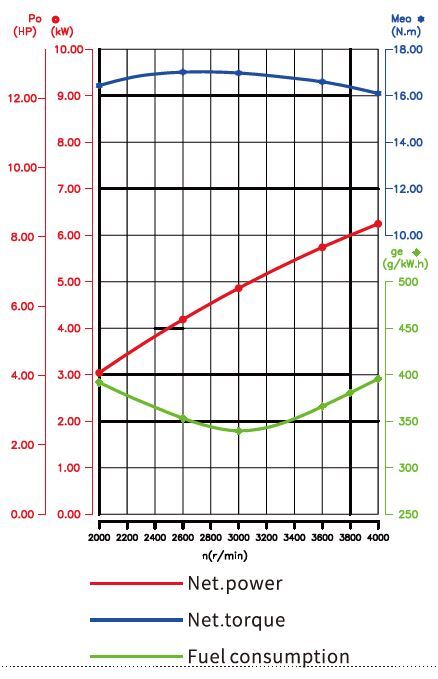

Max Power Output: | 9hp/3600rpm |
Displacement: | 270cc |
Bore x Stroke (mm): | 77 x 58 |
Max Torque: | 18.5NM @ 2600rpm |
Ignition system: | Transistor Electric / Inductive Firing |
Spark Plug Type: | NGK: BPR6ES Champion: RN9YC Bosch: W7DCR |
Starting system: | Electric and Recoil |
Charging coil (alternator): | 12V - 15W - 1.25A |
Fuel Tank Capacity: | 6L |
Oil capacity: | 1.1L |
Fuel consumption: | 374g/kw.h |
Air cleaner: | Semi dry, dual filter |

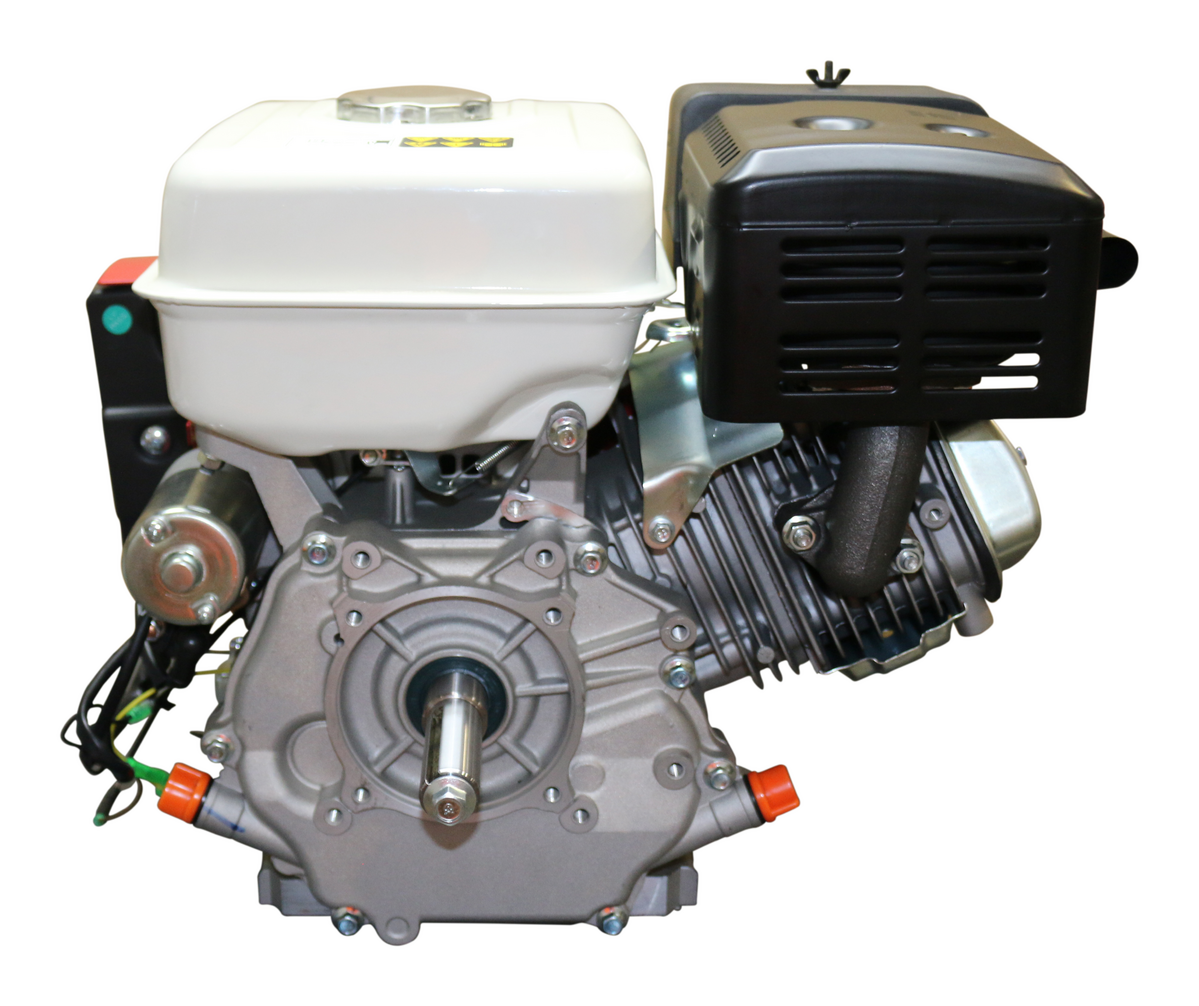

Shaft Diameter: | 1" (25.4mm) |
Shaft Length: | 89mm |
Shaft internal thread: | 7/16-20 UNF – 2B |
Shaft has keyway: | Yes, key included |
Keyway Length:: | 60mm |
Keyway Width: | 6mm |
Distance from base to centre of output shaft: | 134mm |
Shaft rotation: | Anti-clockwise (from output) |
Weight: | 28kg (including box and packaging) |
Jono & Johno offers a 12-month warranty on most products.
We pride ourselves on selling good quality gear and will be fair and prompt in honouring our warranties. If you’re in trouble, we’ll help you out.
The exact warranty coverage depends on two factors:
Minor faults caused by the user
Minor faults caused by the manufacturer
Major faults caused by the manufacturer
Major faults caused by the user
If you need to return your product:
Some products are not covered by warranty, including:
If your product is out of warranty and has failed despite minimal use, contact us. We may assess it on a case-by-case basis. If a manufacturer defect is identified, we aim to be fair in resolving the issue—but this is at our discretion.
SKU | JPE9ES | |
Model # | JPE9ES | |
Barcode # | 682157270378 | |
Brand | JONO & JOHNO | |
Shipping Weight | 33.0000kg | |
Shipping Width | 0.510m | |
Shipping Height | 0.570m | |
Shipping Length | 0.430m | |
Shipping Cubic | 0.125001000m3 | |
Unit Of Measure | ea |
