13.5HP VERTICAL SHAFT LAWN MOWER ENGINE
ELECTRIC START- BRAND NEW

Please enter your postcode into the Shipping Cost Calculator above and then click 'Calculate' to find out the freight cost to your address.

Any questions don't hesitate to contact us by phone or email.

Top of the range, 13.5HP vertical shaft engine. Equal to any brand name engine on the market today.

There are a few things you need to check before purchasing any vertical-shaft engine to ensure it fits your mower.

Bolt Pattern:
Our engine has a Briggs & Stratton bolt pattern. You can view a schematic of the bolt pattern in our thumbnail pictures. If you have a Briggs engine then the bolt pattern will be a perfect match. All four mounting bolt holes are M10 x 1.25x 70 (bolts not included)

Output Shaft Size:
The output shaft on our engine is 1” (25.4mm). Almost all ride-on-mower engines with a HP rating above will have a 1” shaft. The thread pitch for the output shaft is 7/16 20 UNF -2B.

Physical Size of Engine:
If your mower has only a limited amount of space for the engine to fit into then you will need to check the physical dimensions of our engine before purchasing.

DESCRIPTION:

Has your ride on mower engine packed it in? Are you desperate to start cutting again but don’t want to pay as much for a new engine as you paid for the mower to begin with?

Jono & Johno think they might know what you need.

This Jono & Johno 13.5HP Vertical Shaft Engine is a rock solid beast. At 439cc and 3600rpm it will have your mower running like a dream from the second you mount it.

It comes with a one year parts warranty and a lifetime of ongoing advice.

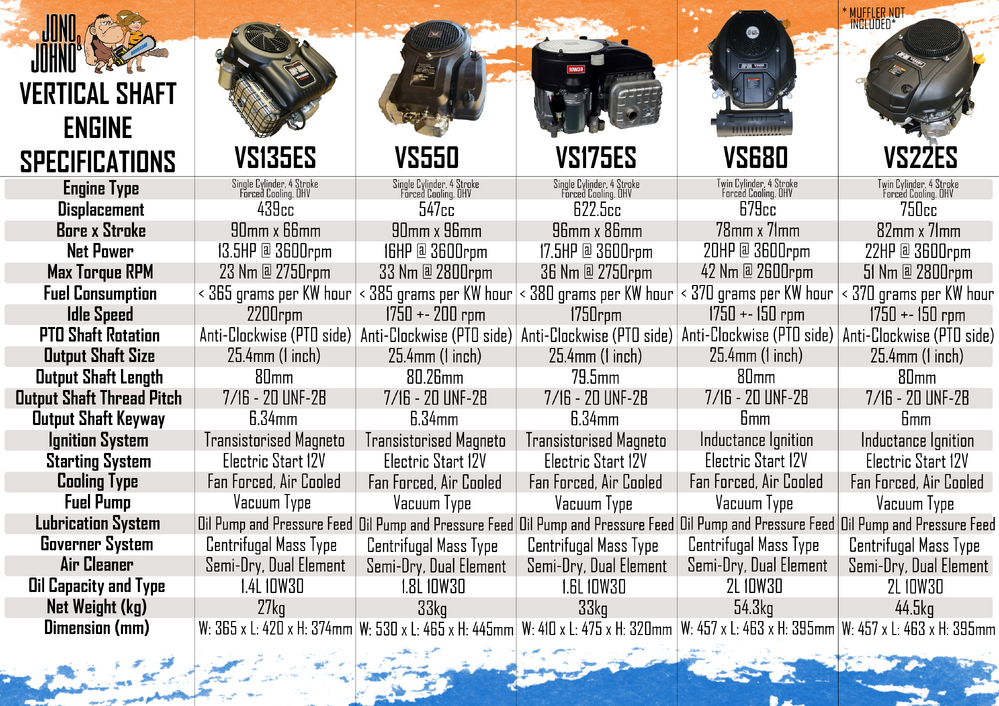

SPECIFICATIONS:

Engine type	Single cylinder, 4stroke, forced cooling, OHV
Displacement	439cc
Bore x stroke	90mm × 66mm
Bore material	Cast iron
Net power	13.5HP @ 3600rpm
Net torque	23 Nm @ 2750rpm
Idle Speed	2200rpm
Fuel consumption	≤ 365 grams per killowatt hour
Compression ratio	9.2:1
PTO shaft rotation	Anti-clockwise (from PTO side)
Output Shaft Size	25.4mm (1 inch)
Output Shaft Length	80mm
Output Shaft Thread Pitch	7/16 – 20 UNF-2B
Output Shaft Keyway	6.34mm
Ignition system	Transistorized magneto ignition
Starting system	Electric-start, 12V (battery not included)
Charging coil	4A, 14V
Cooling type	Fan forced, air cooled
Spark Plug	Champion N9YC / NGK BPR6ES
Lubrication system	Oil Pump and Pressure Feed
Governor system	Centrifugal mass type
Air cleaner	Semi-dry, dual element
Oil capacity	1.4L (10W30)
Net weight	27kg
Dimension(mm)	W: 365 × L: 420 × H: 374mm (Check photos for schematic)

NO FUEL TANK IS INCLUDED WITH THIS ENGINE

WARRANTY OVERVIEW

Jono & Johno offers a 12-month warranty on all products.

We pride ourselves on selling good quality kit and will be fair and prompt honouring our warranties. If you’re in trouble, we’ll help you out.

WHAT IS COVERED?

Exactly what is covered by warranty will depend on 2 things:

If the fault is due to user or manufacturer
If the fault is minor or major

Minor faults caused by user - Parts will be supplied for repair at user expense.

Minor faults caused by manufacturer - Parts will be supplied for repair, with instructions provided by us on how to carry out repair.

Major faults caused by manufacturer - Jono & Johno will facilitate a return of the product for refund or replacement at our expense. Or if you’d prefer (at our discretion and in consultation with you), we can send appropriate parts and compensate labour costs if you can carry out the repair yourself.

Major faults caused by user - Where possible parts will be supplied at user expense. Where the item cannot be repaired by the user, Jono & Johno will offer to have the item returned for repair at user expense. Our workshop rate is $60 per hour.

HOW DO I RETURN MY PRODUCT IF IT’S COVERED BY WARRANTY?

If you’re in reasonable driving distance of a Jono and Johno outlet, you can physically return the product yourself. Please contact us in advance to arrange a return authority.

If you are not within reasonable driving distance, Jono & Johno will provide you with a return authority and an address to return the product to. Where Jono & Johno is at fault, a postage-paid return label will be provided.

EXCEPTIONS TO THE RULE

If your product is out of warranty and is buggered, even though you’ve hardly used it, give us a call or shoot us an email. If there is a manufacturer fault or the item should have lasted a lot longer than it has, we’re happy to assess it outside of the warranty period. We do this on a case-by-case basis.

SKU	VS135ES
Model #	VS135ES
Barcode #	688187205557
Brand	JONO & JOHNO
Shipping Weight	30.0000kg
Shipping Width	0.480m
Shipping Height	0.440m
Shipping Length	0.460m
Shipping Cubic	0.097152000m3
