SKU : JPE9R6ES

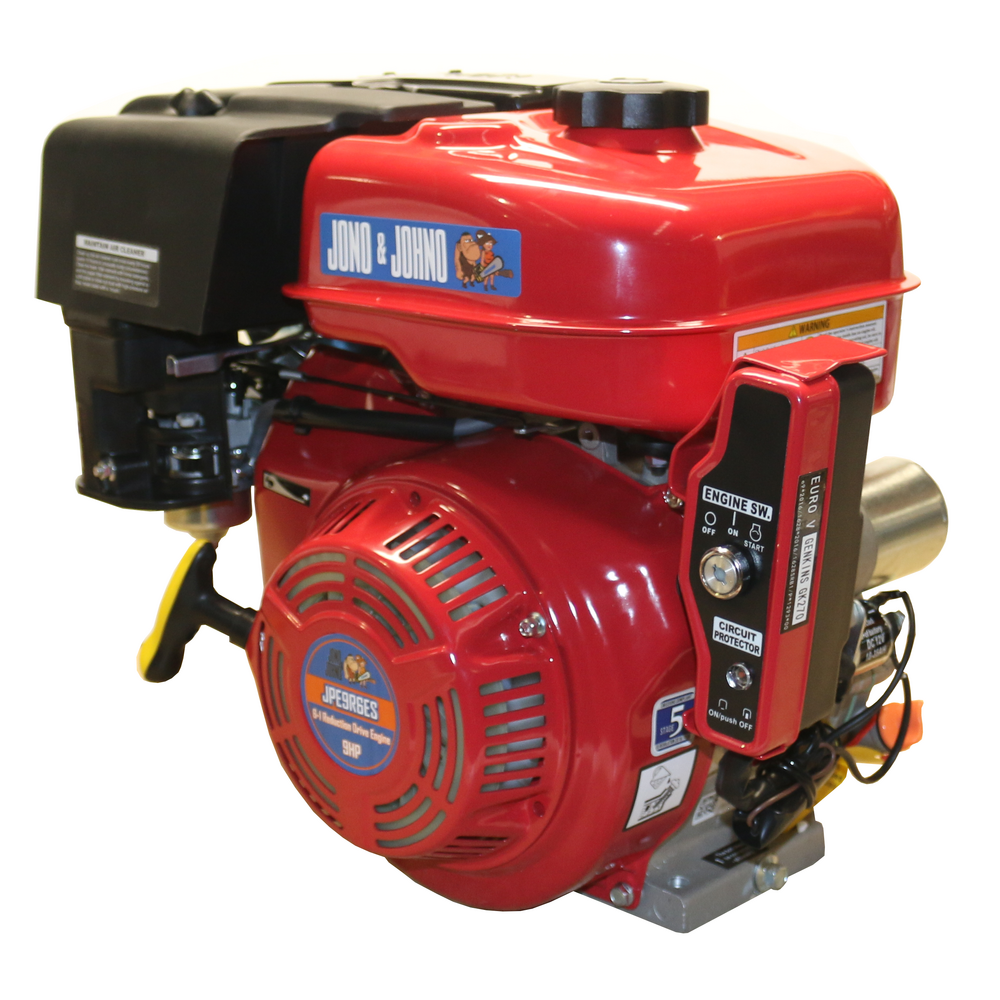

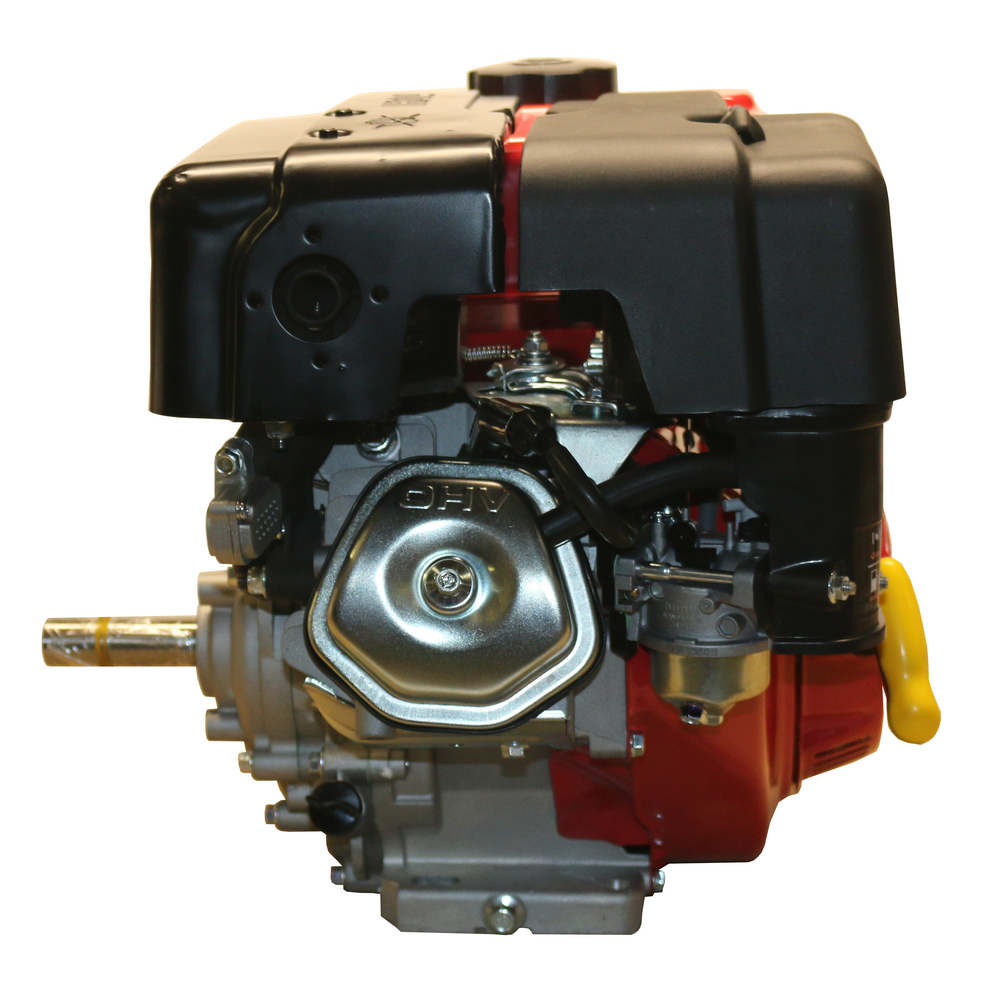

JONO & JOHNO 9HP ELECTRIC START ENGINE with 6:1 Reduction Drive Gearbox
Whether you’re thinking industrial, agricultural or home use, this could be the engine for you.
This engine is a Jono & Johno brand, Electric and Recoil start, 4 stroke, single cylinder, petrol engine with a 9hp capacity.
Engine comes with a 6:1 reduction drive gear box. The engine is direct drive, so does not come with a clutch.
The gearbox on this reduction uses the engine oil for lubrication, so there is only one oil reservoir and one fill point.
The 6:1 reduction reduces the RPM from 3600 to 600.
Reduction drive engines are used to decrease the rotational speed (RPM) of the engine to an appropriate output shaft speed and increase torque power of the output shaft.
Suitable to power items such as, concrete cutters, cement mixers, grain augers, weed sprayers or any application where you wish to maintain torque power and reduce the minimum rpm of the output shaft.
The engine comes with a one-year parts warranty and a lifetime of after sales service.
PLEASE NOTE: BATTERY NOT INCLUDED! YOU'LL NEED A 12 VOLT, 9AH BATTERY (A 12AH BATTERY CAN ALSO BE USED IF YOU NEED THE EXTRA CHARGE FOR ACCESSORIES)
SPECIFICATIONS:
Air cooled, 4-stroke, OHV25 inclined single cylinder, 9hp petrol engine.
6:1 reduction drive gear box
Max Power Output: |
9hp/3600rpm (Reduced to 600rpm with the 6:1 Gearbox) |
Displacement: |
270cc |
Bore x Stroke (mm): |
77 x 58 |
Max Torque: |
18.5NM @ 2600rpm |
Ignition system: |
Transistor Electric / Inductive Firing |
Spark Plug Type: |
NGK: BPR6ES Champion: RN9YC Bosch: W7DCR |
Starting system: |
Electric and Recoil |
Charging coil (alternator): |
12V - 15W - 1.25A |
Fuel Tank Capacity: |
6L |
Oil capacity: |
1.1L |
Fuel consumption: |
374g/kw.h |
Air cleaner: |
Semi dry, dual filter |
Shaft Diameter: |
1" (25.4") |
Shaft Length: |
85mm |
Shaft internal thread: |
7/16-20 UNF – 2B |
Shaft has keyway: |
Yes, Keyway included |
Keyway Length: |
60mm |
Keyway Width: |
6.35mm (1/4") |
Distance from base to centre of output shaft: |
130mm |
Shaft rotation: |
Anti-clockwise (from output) |
Weight: |
30kg (including box and packaging) |
WARRANTY OVERVIEW
Jono & Johno offers a 12-month warranty on all products.
We pride ourselves on selling good quality kit and will be fair and prompt honouring our warranties. If you’re in trouble, we’ll help you out.
WHAT IS COVERED?
Exactly what is covered by warranty will depend on 2 things:
Minor faults caused by user - Parts will be supplied for repair at user expense.
Minor faults caused by manufacturer - Parts will be supplied for repair, with instructions provided by us on how to carry out repair.
Major faults caused by manufacturer - Jono & Johno will facilitate a return of the product for refund or replacement at our expense. Or if you’d prefer (at our discretion and in consultation with you), we can send appropriate parts and compensate labour costs if you can carry out the repair yourself.
Major faults caused by user - Where possible parts will be supplied at user expense. Where the item cannot be repaired by the user, Jono & Johno will offer to have the item returned for repair at user expense. Our workshop rate is $60 per hour.
HOW DO I RETURN MY PRODUCT IF IT’S COVERED BY WARRANTY?
If you’re in reasonable driving distance of a Jono and Johno outlet, you can physically return the product yourself. Please contact us in advance to arrange a return authority.
If you are not within reasonable driving distance, Jono & Johno will provide you with a return authority and an address to return the product to. Where Jono & Johno is at fault, a postage-paid return label will be provided.
EXCEPTIONS TO THE RULE
If your product is out of warranty and is buggered, even though you’ve hardly used it, give us a call or shoot us an email. If there is a manufacturer fault or the item should have lasted a lot longer than it has, we’re happy to assess it outside of the warranty period. We do this on a case-by-case basis.
SKU | JPE9R6ES | |
Barcode # | 795154966387 | |
Brand | JONO & JOHNO | |
Shipping Weight | 33.0000kg | |
Shipping Width | 0.530m | |
Shipping Height | 0.510m | |
Shipping Length | 0.510m | |
Shipping Cubic | 0.137853000m3 | |
Unit Of Measure | ea |
